Rope Grabs, Type 1 Lever Cams

Rope Grabs (a.k.a. Fall Arrests) are industrial devices used to protect workers in high places. Their function is to ensure that the worker doesn't perform the big splat when falling from high places; however, they are often used with safety belts that can cause a slower and far less spectacular death by suffocation. This can't be blamed on the rope grab, its the fault of the uninformed user.

My interest in rope grabs is that they are similar to ascenders, and suggest alternate ideas for ascender design. I often discuss these in this context instead of the context of their intended use.

All of the rope grabs on this page have lever cams similar to those found on Type 1 Lever Cam Ascenders. Each of these can be used as an ascender, but some are clearly far to heavy to seriously consider them for that purpose. The steel ones, in particular, are best left for industrial use. I've marked those by a gray background in the weight column. Similarly, some of these are specifically designed for use on steel cable instead of rope, and I've marked those by a gray background in the desciption column.

ID	Device ↓	Description	Acquired	Weight ↓	Height ↓	Width ↓	Thickness ↓	Std. volume ↓

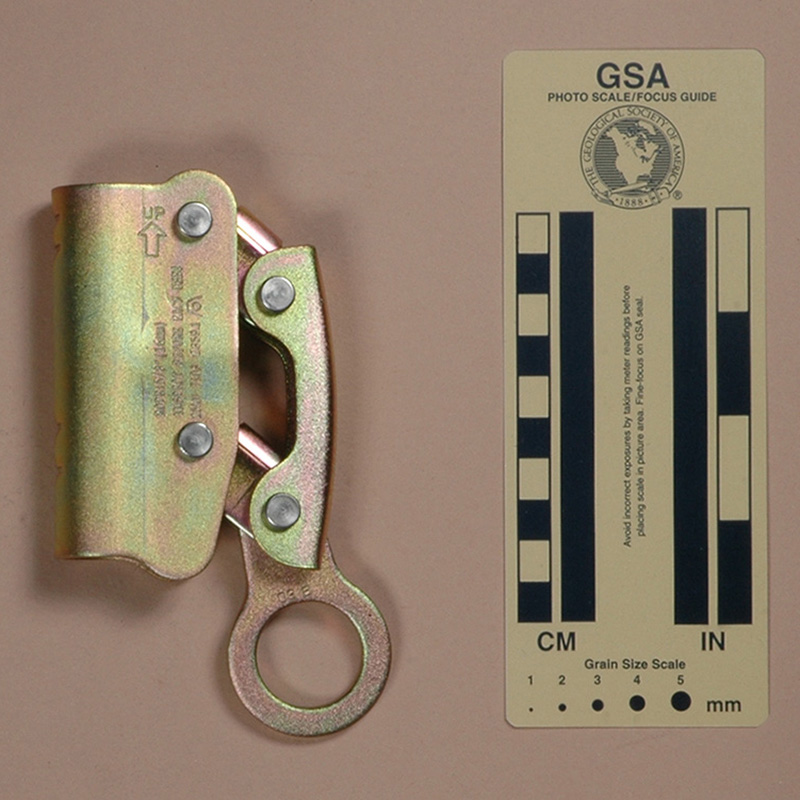

1702	Ace Metal Products FP-7202G-3-LG-2-1	Steel, dual type 1 lever cams, for 5/8 inch (16 mm) rope.	Hardware Sales, 2010	454	124	68	24	201

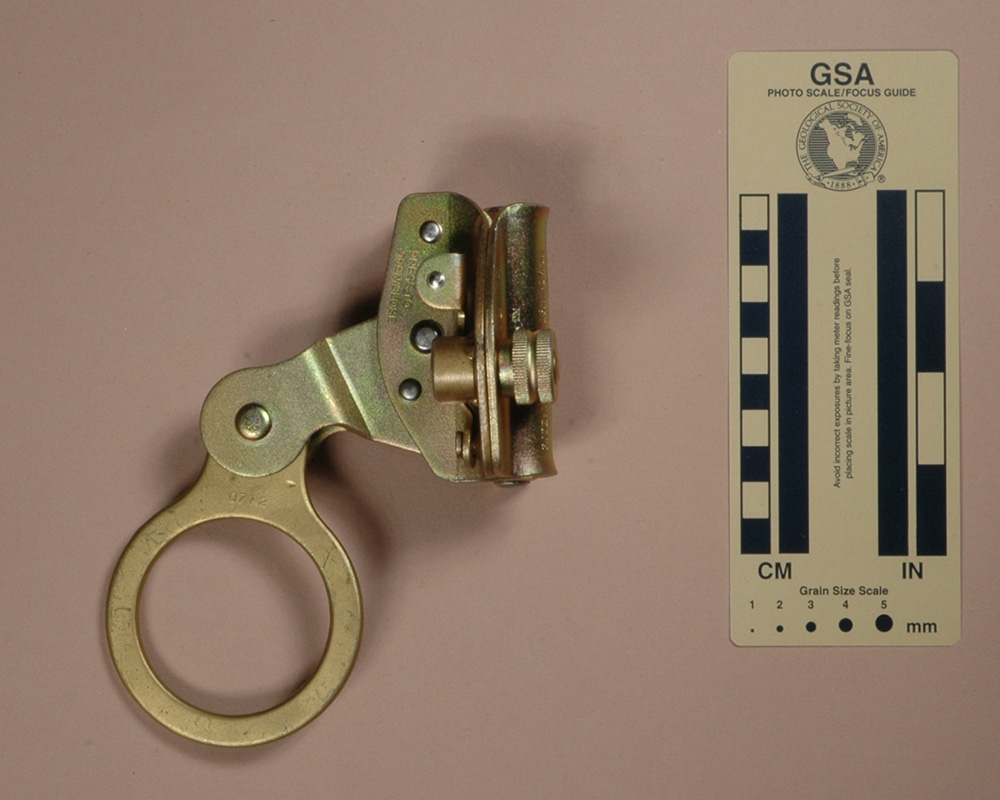

1703	Ace Metal Products FP-7103G-S Presto	Steel, type 1 lever cam, stamped eye, for 1/2 - 5/8 inch (13-16 mm) rope.	Hardware Sales, 2010	584	130	99	65	831

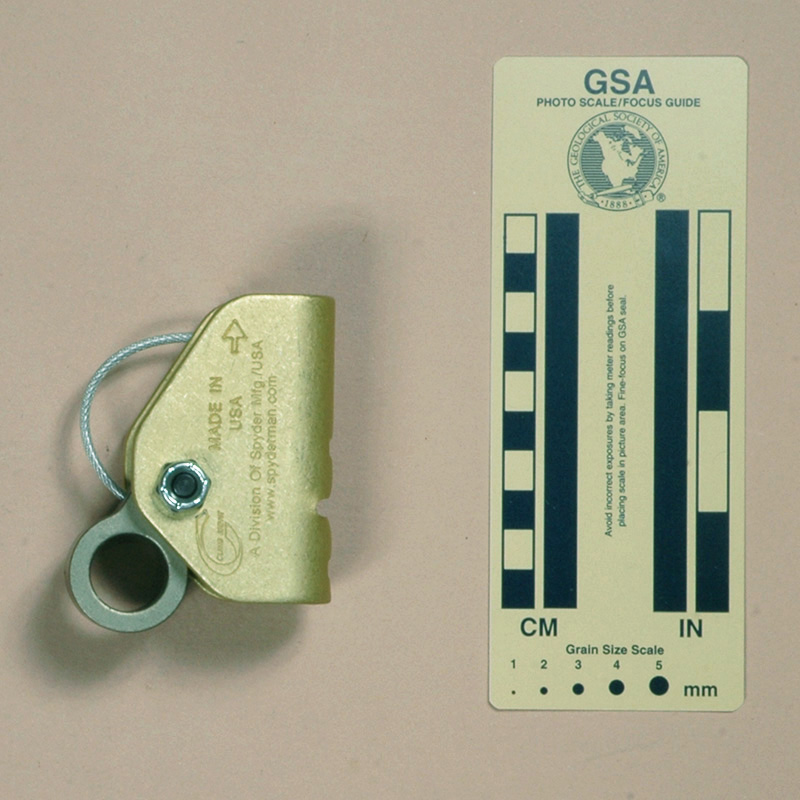

1657	Climb Right #85525	Bent Al frame, milled Al cam, bolt axle, stranded spring-wire	WesSpur Tree Equipment, 2009	193	76	74	44	250

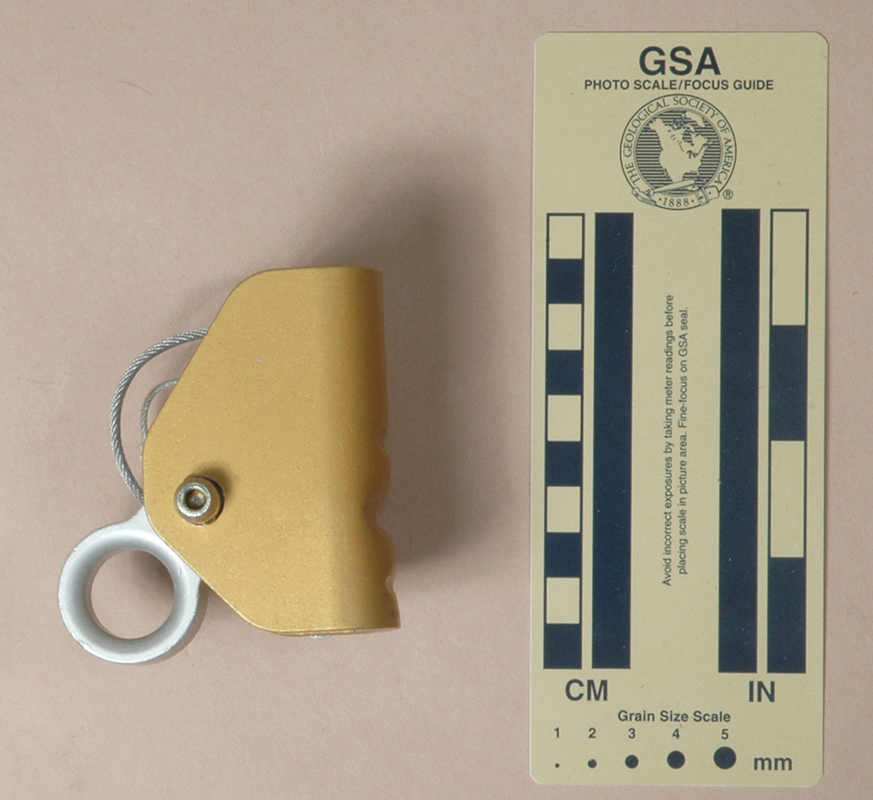

2649	Climb Right #85535	Bent Al frame, milled Al cam, QR pin axle, stranded spring-wire	Bob Thrun Collection, 2017	205	77	71	64	351

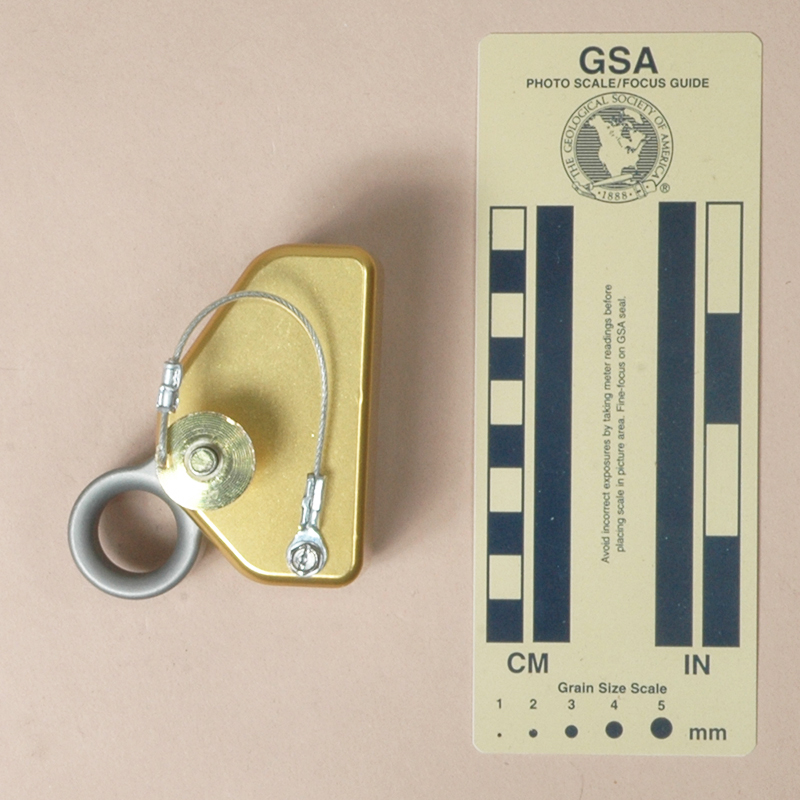

2648	Climb Right #85538	Milled Al frame, milled Al cam, QR pin axle, stranded spring-wire	Bob Thrun Collection, 2017	203	76	66	64	323

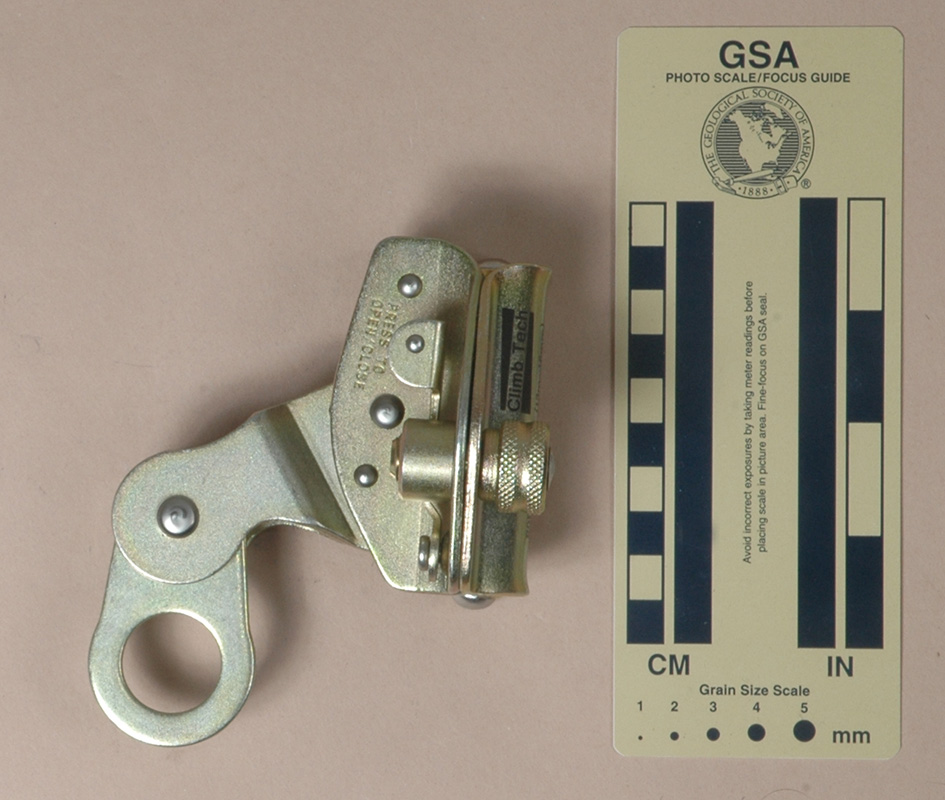

2632	Climb Tech	Steel, type 1 lever cam, stamped eye, for 1/2 - 5/8 inch (13-16 mm) rope.	Bob Thrun Collection, 2017	537	78	93	64	464

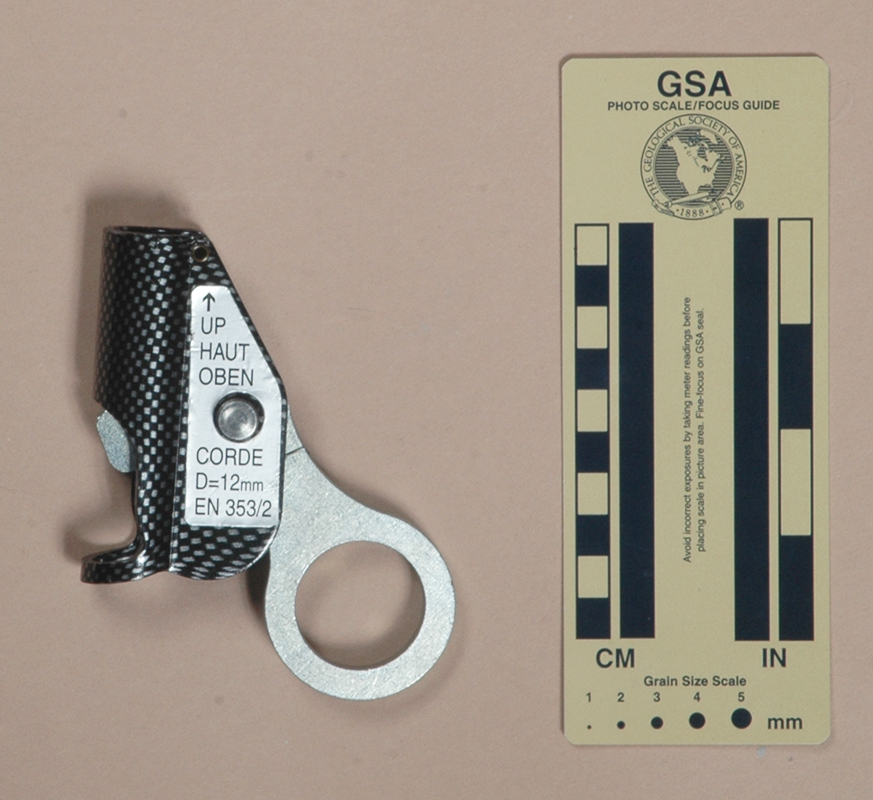

1801	Croatian	Steel, type 1 lever cams, for 12 mm. rope	Mladen Skeja, 2013	288	109	92	27	272

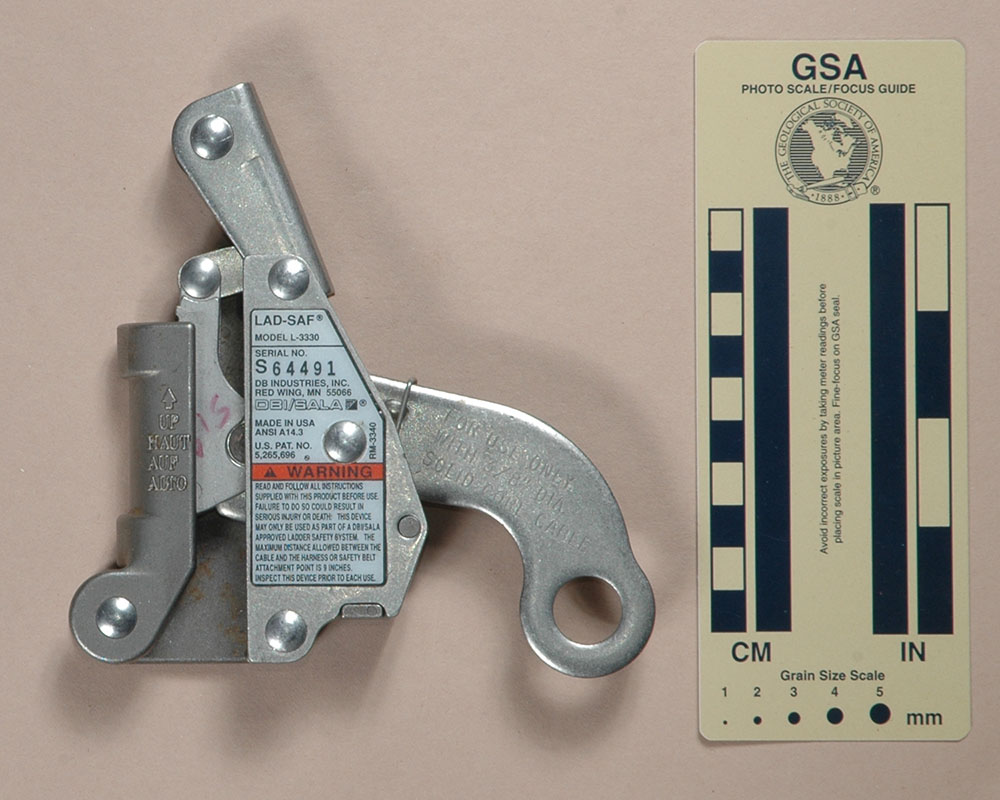

804	DBI/SALA Lad-Saf L-3330	Cast steel body, lever-actuated cam block, open side, for 3/8-in cable.	Harry Rogers, 2004	690	135	133	32	575

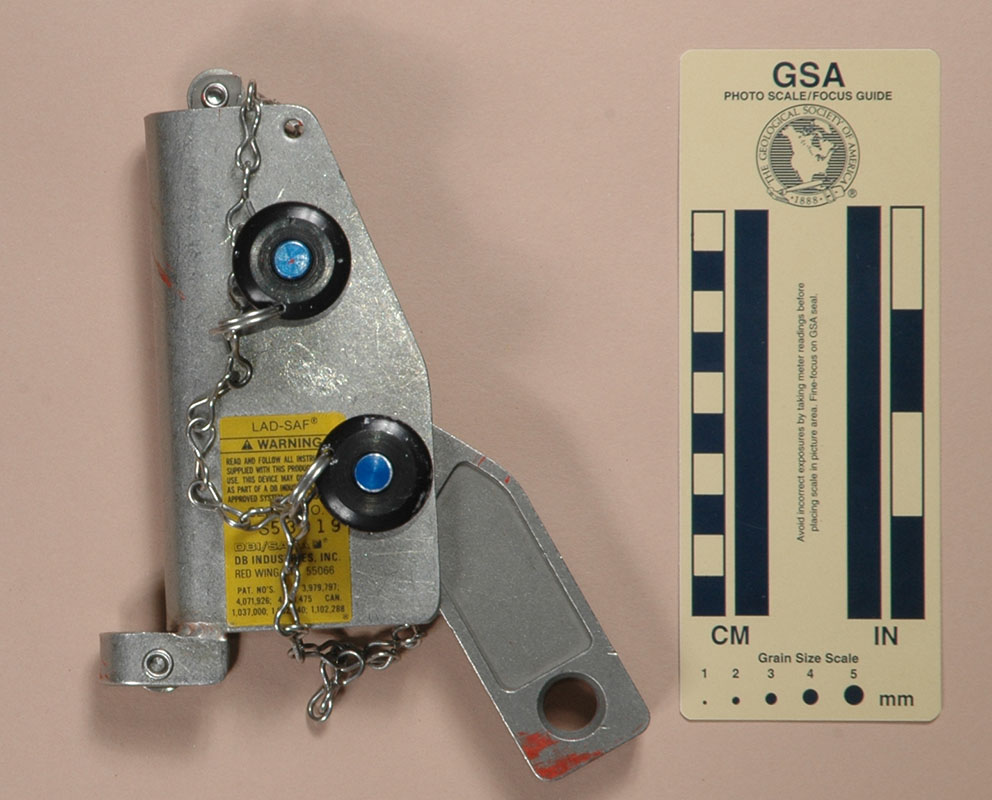

803	DBI/SALA Lad-Saf LS-038	Steel, lever-actuated sliding cam /w pulley, 2 QR pin closure, for 3/8-in cable.	Harry Rogers, 2004	892	180	132	61	1449

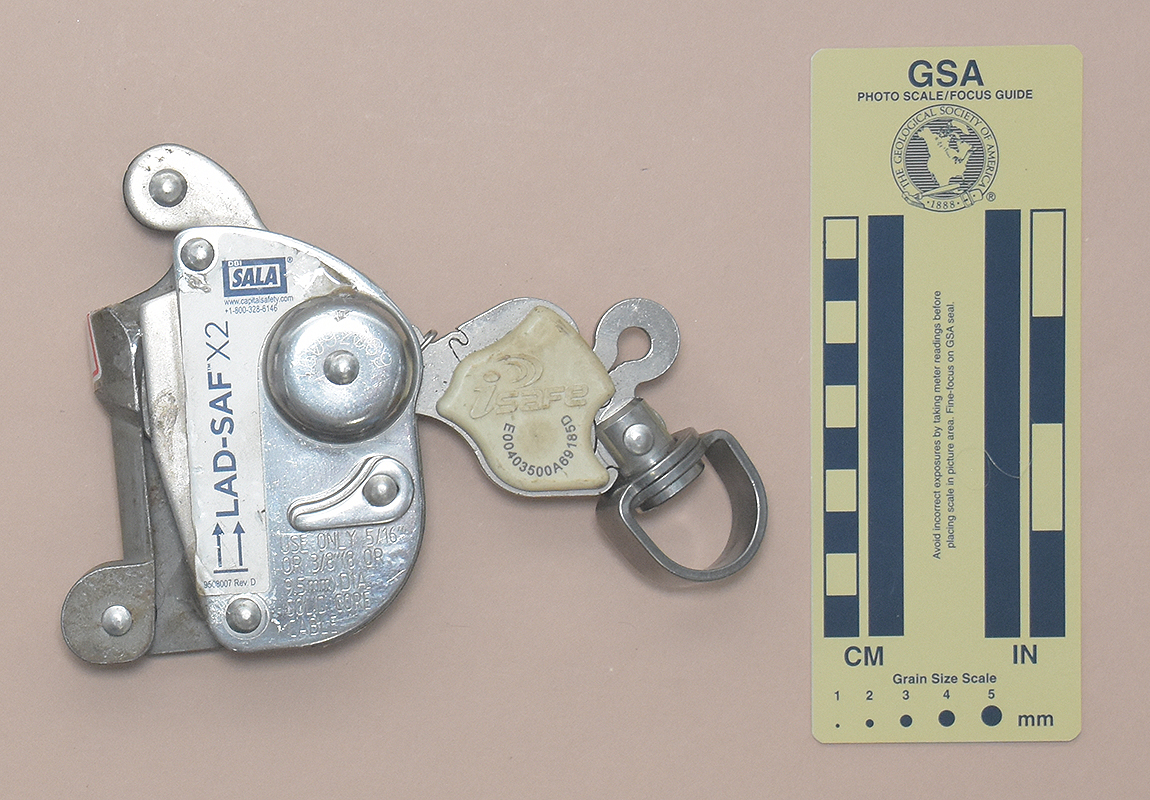

2748	DBI/SALA Lad-Saf X2 (6160030)	Cast & stamped steel body, steel cam /w Z-teeth, metal energy absorber, captured carabiner, for solid-core 5/16 or 3/8-in cable.	Marine Federation, 2022	949	119	162	40	769
2746	DBI/SALA Lad-Saf X3 (6160054))	Cast & stamped steel body, steel cam /w Z-teeth, metal energy absorber, swivel eye, for solid-core 5/16 or 3/8-in cable.	Jason White / Independent Pawn, 2022	1185	119	178	40	835

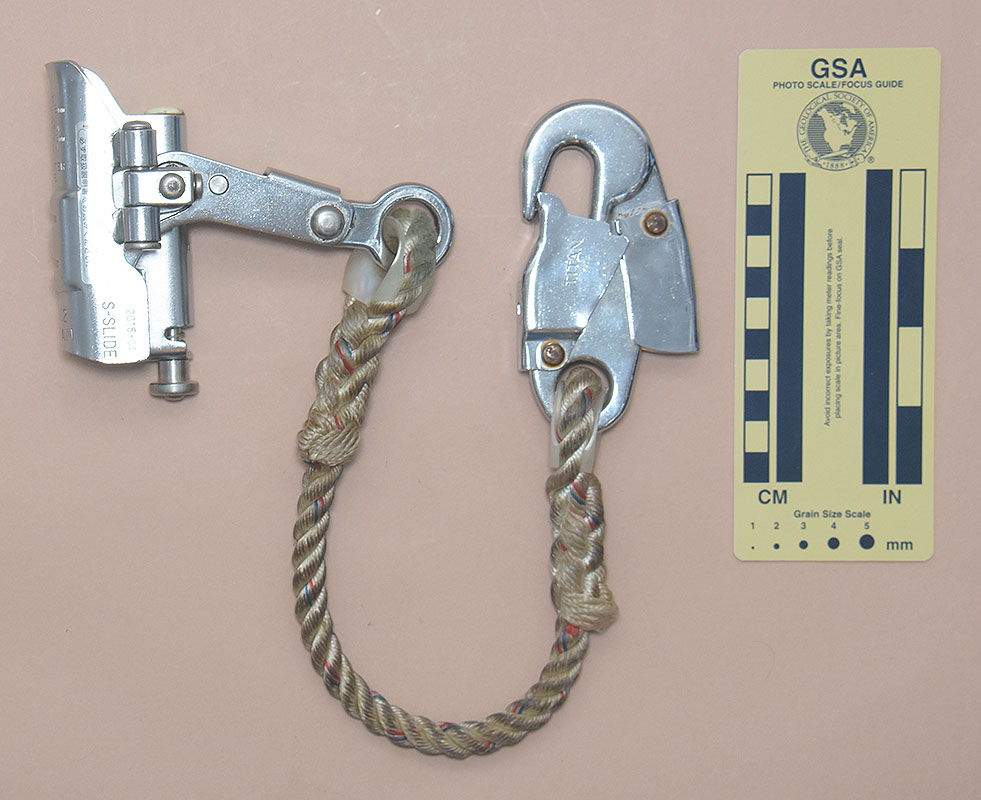

3712	Fuji-Denko B-02 Titan 9502781	Steel, type 1 lever cam, swing-open cam, for 16- 18 mm. rope.	Marine Federation, 2022	688	109	94	50	510

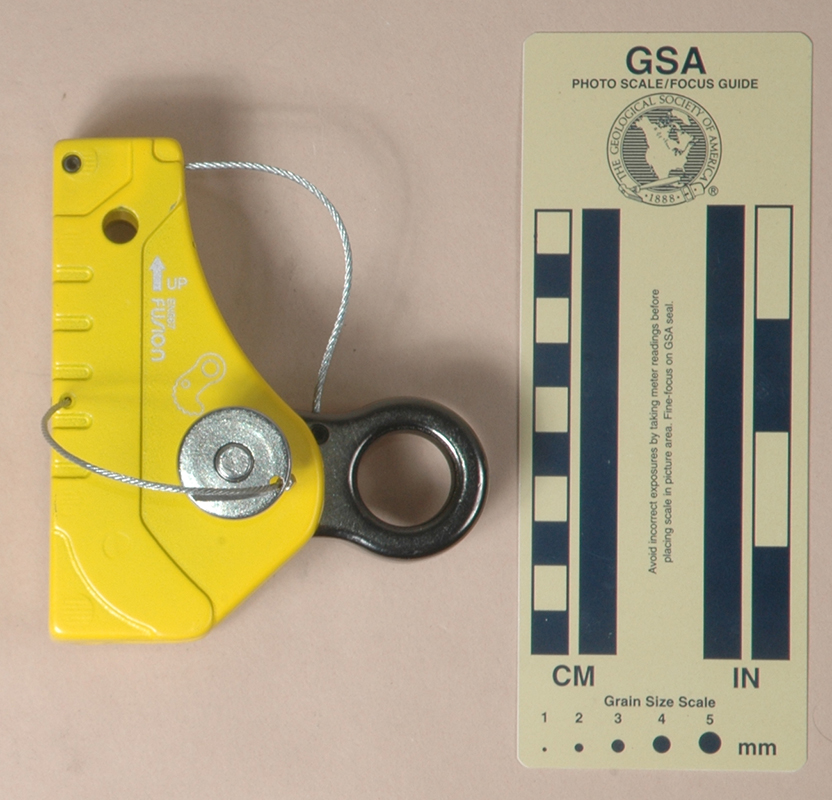

2674	Fusion Puma FP-7208-AS	Milled and painted aluminum frame, cast cam on cable spring-wire, QR pin axle on cable keeper	Fusion Climb online, 2017	328	111	97	62	672

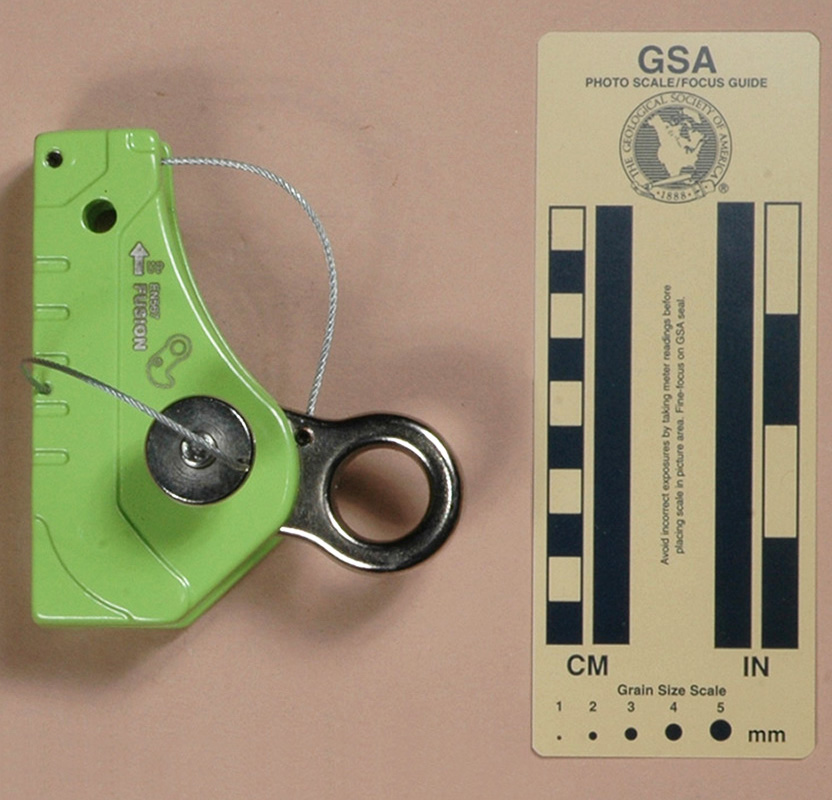

1655	Fusion Puma FP-7208-AS	Milled and painted aluminum frame, cast cam on cable spring-wire, QR pin axle on cable keeper	Yi-tien Tuan, 2009	330	111	96	63	663

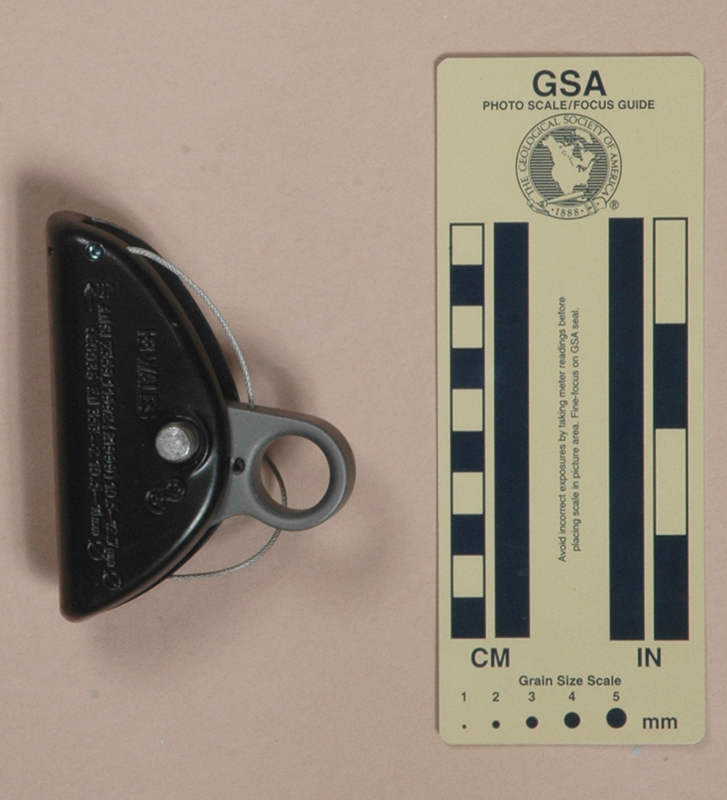

1755	Hugh Banner, Version A	Forged painted frame, hardcoated Al cam, SS axle, spring-loaded axle latch	Tom Furey, 2012	207	98	72	49	340
1760	Hugh Banner, Version B	Forged painted frame, hardcoated Al cam, SS axle	Tom Furey, 2012	204	98	72	45	320
1728	International Safety Components Large Fishhook	Milled painted Al frame & Al cam, QR Pin /w retaining pin	Lisa Jones, 2011	305	100	95	52	486

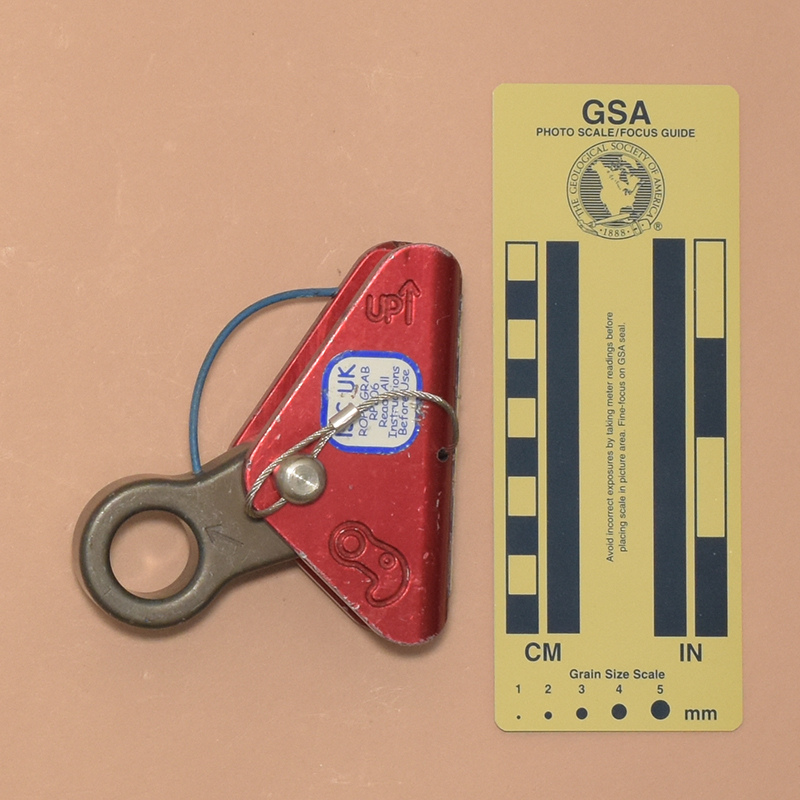

3947	International Safety Components RP206	Milled & anodized Al frame & cam, QR Pin /w retaining pin	Stephan C DeFilippi, 2024	296	99	88	52	450

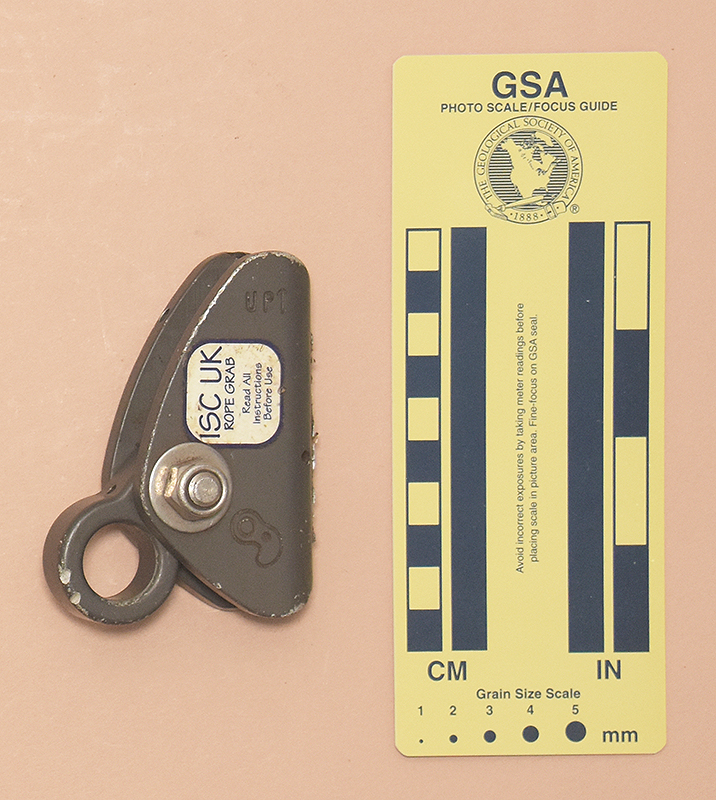

3819	International Safety Components Small	Milled Al frame, hard-coated milled Al cam, bolt axle	mind-me-jacobs, 2022	177	85	57	43	210

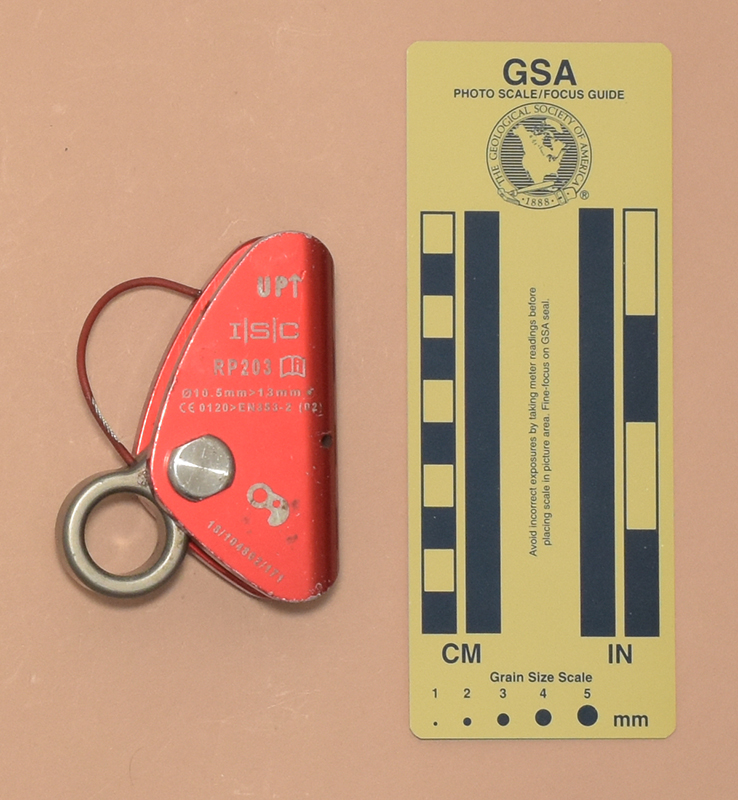

3946	International Safety Components RP203	Milled Al frame, hard-coated milled Al cam, bolt axle	JMD Tools, 2024	175	86	64	40	220

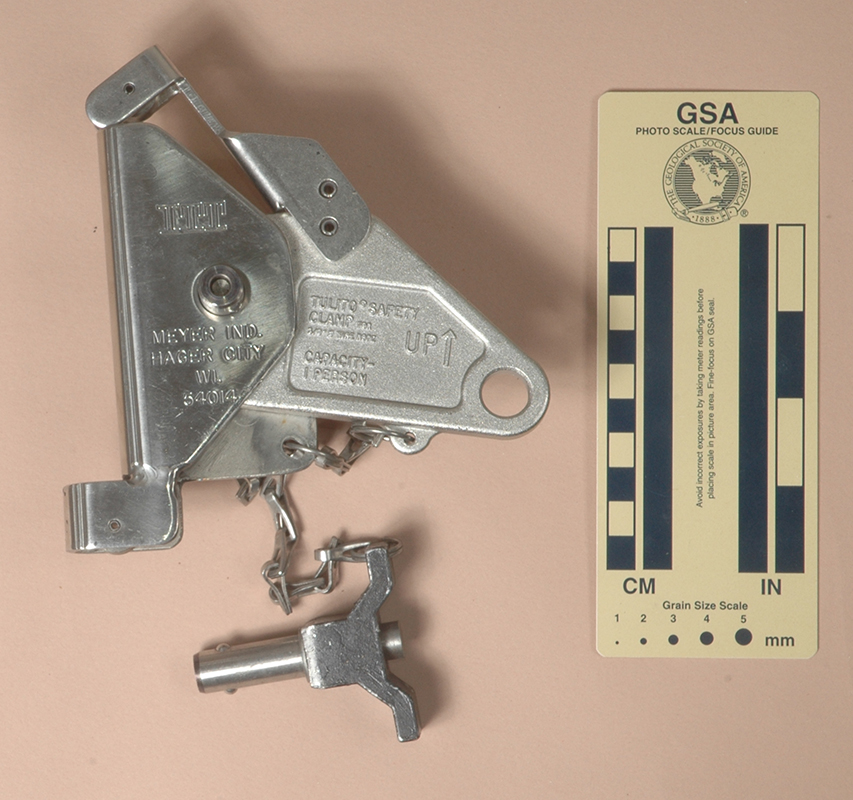

2682	ITT Tulito Safety Clamp	SS shell, cast SS Cam, two rollers, QR pins. For 1/8" (3 mm.) wire rope	Yaroslav Trubetsky, 2017	824	139	127	62	1088
3751	Komet Altochut, Version A	Steel, type 1 lever cam, for specified 5/8 inch (16 mm.) polypropylene or nylon rope.	KHS Sales, 1988	505	81	151	63	771

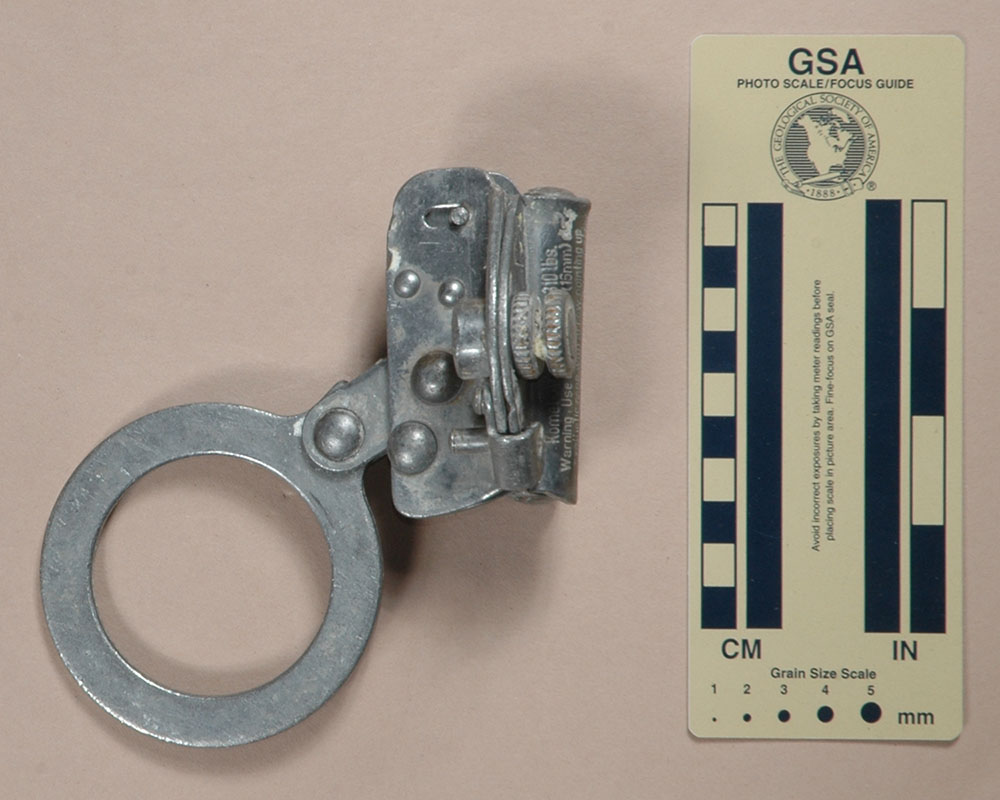

820 3928	Komet Altochut, Version B	Steel, type 1 lever cam, stamped eye, for specified 5/8 inch (16 mm.) polypropylene or nylon rope.	Len Zandee, 2005 Kim Fleishmann, 2024	515	81	148	62	746

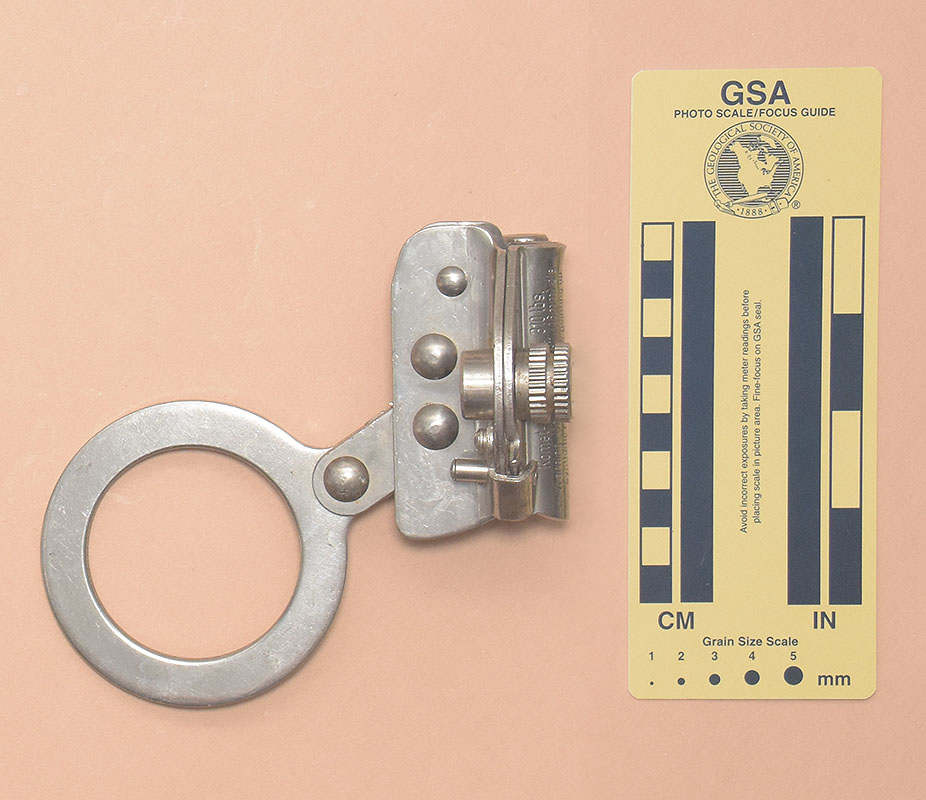

2869	Komet Altochut Spider P00018	Steel, type 1 lever cam, stamped eye, for specified 5/8 inch (16 mm) polypropylene or nylon rope.	Gary Day, 2021	506	80	145	63	734

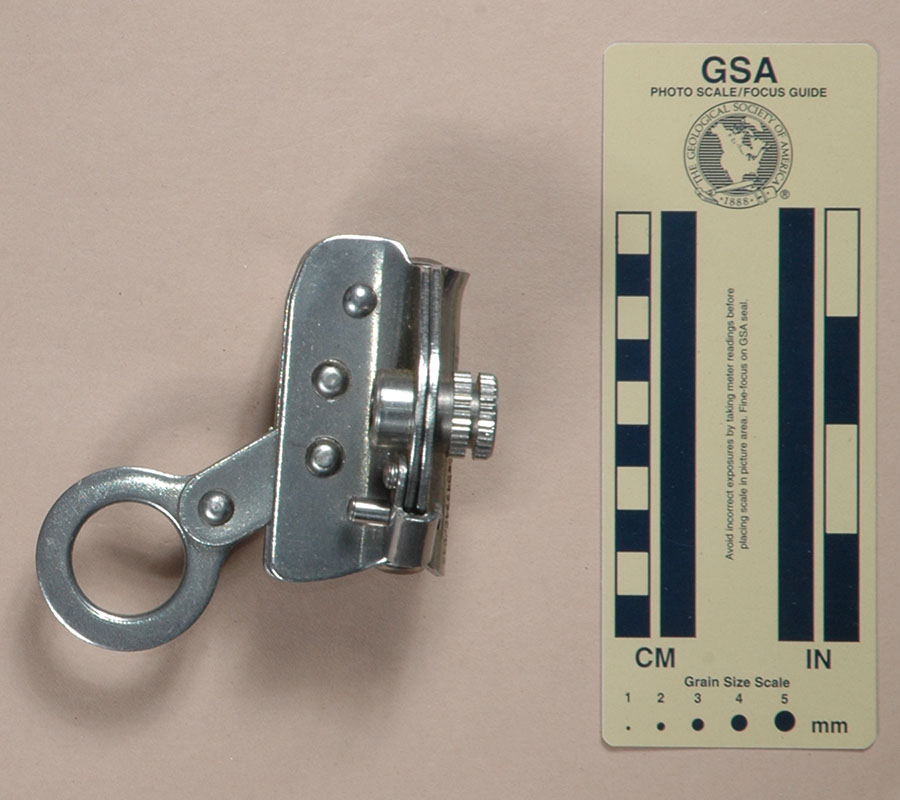

728	Komet Stick-Run	Steel, type 1 lever cam, for 10.5 mm. kernmantle or 12 mm. laid rope.	Inner Mountain Outfitters, 1999	461	81	110	63	561

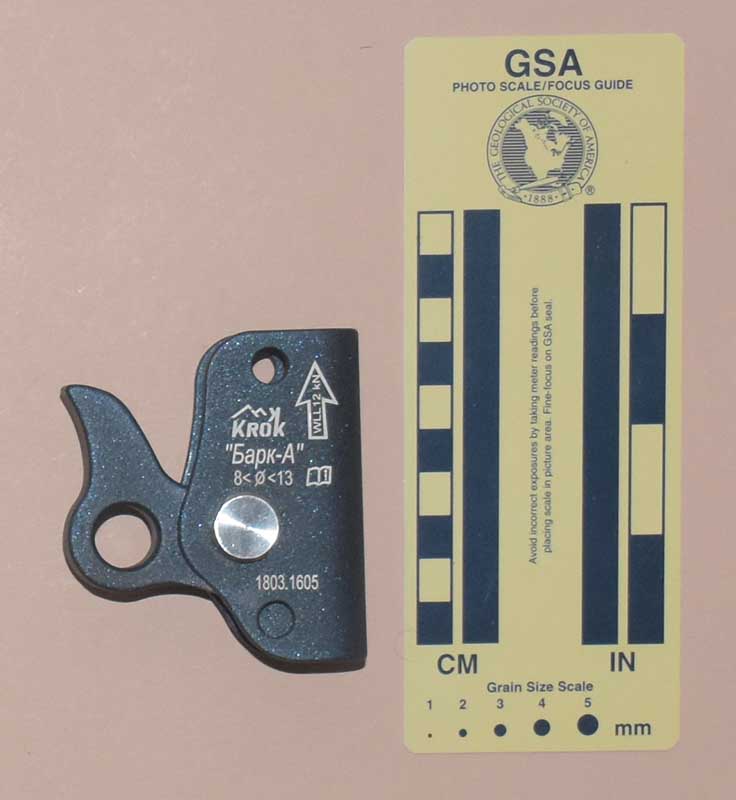

2822	Krok Bark-A (Барк-А)	Al shell, spring-loaded Al cam /w thumb tab	Krok, 2021	133	75	68	33	170

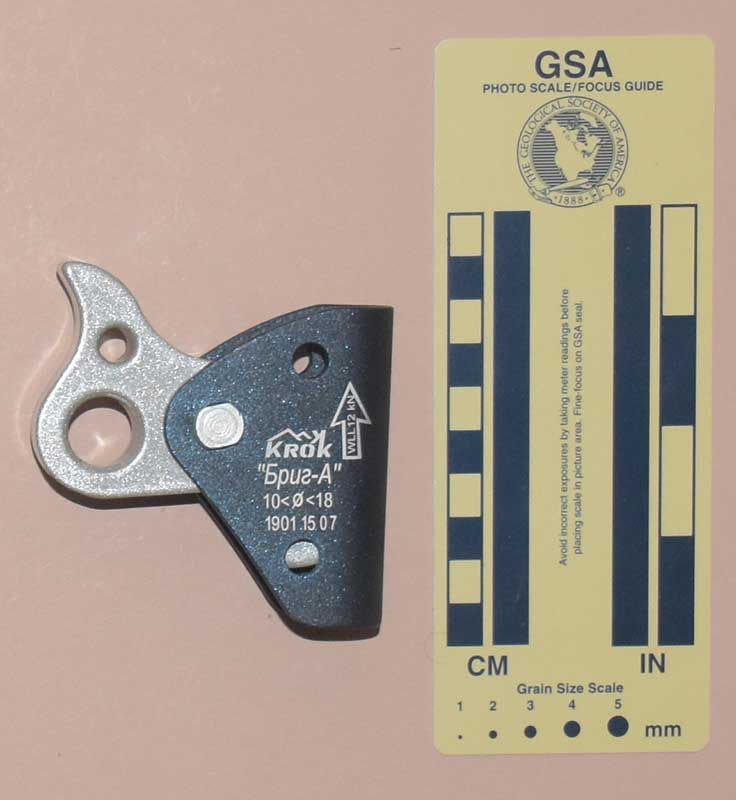

2823	Krok Brig-A (Бриг-А)	Al shell, spring-loaded Al cam /w thumb tab	Krok, 2021	168	73	81	37	219

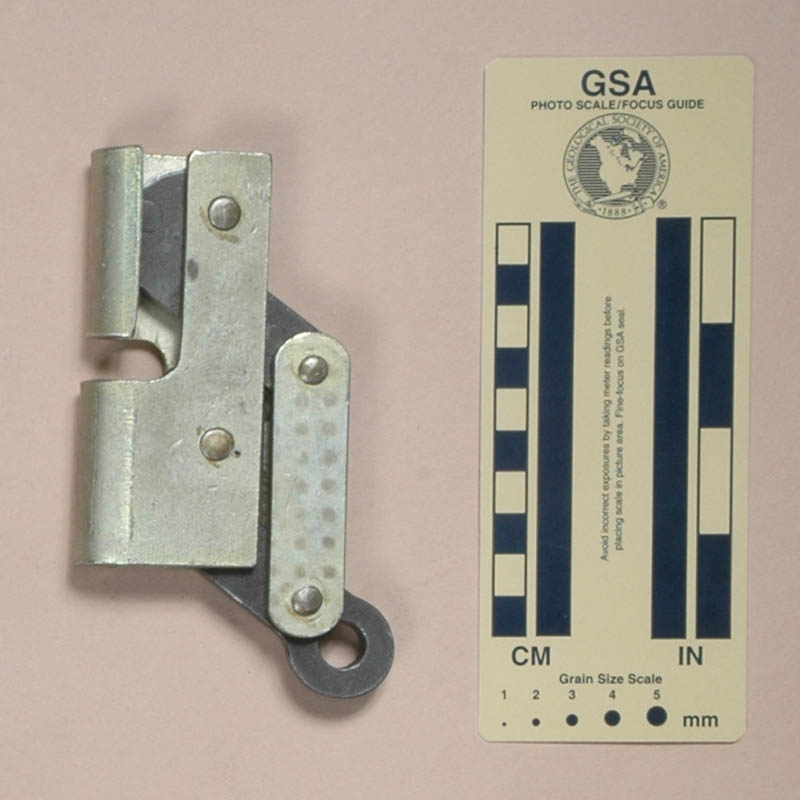

1778	Krok Cable Lock	Steel, dual type 1 lever cams, for 8 mm. wire cable	Gear4Rocks, 2012	487	130	78	19	193

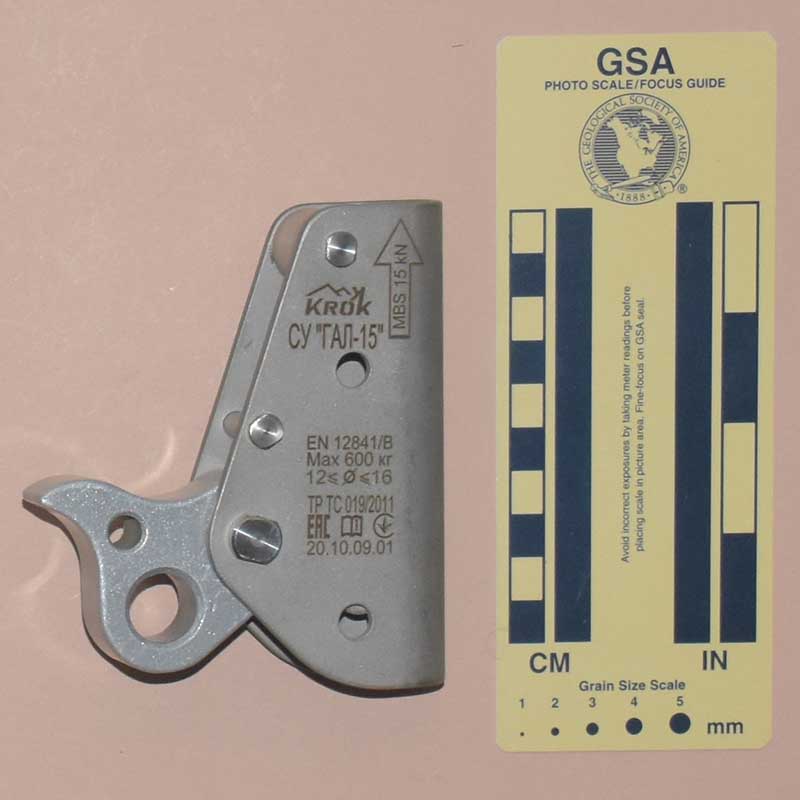

2824	Krok GAL-15 (ГАЛ-15)	Al shell, spring-loaded Al cam /w thumb tab	Krok, 2021	392	110	90	36	355

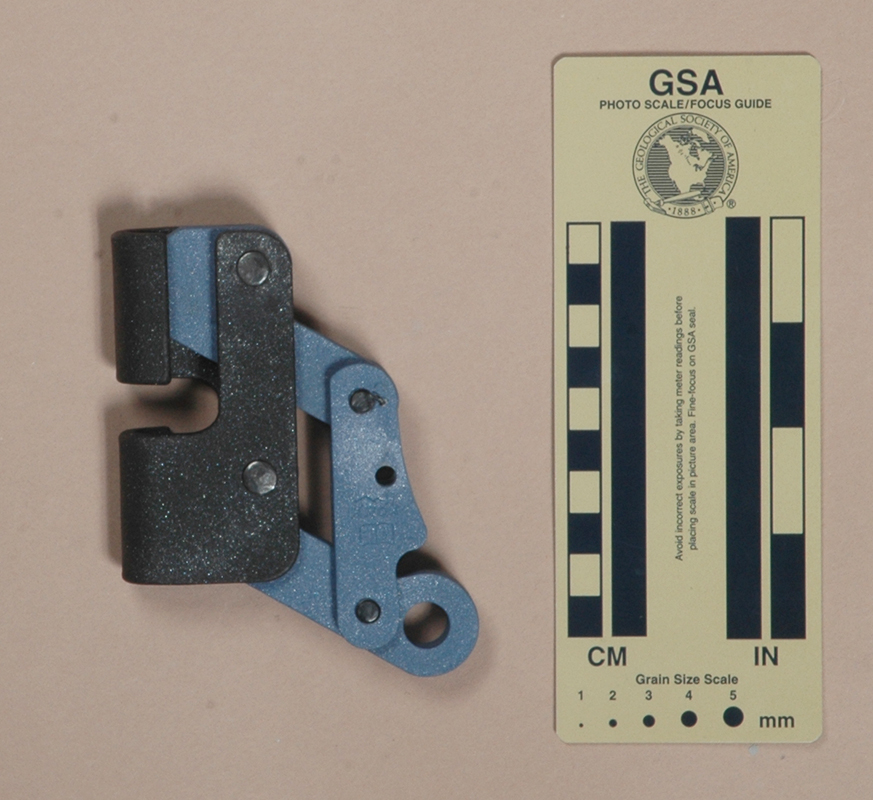

1803	Krok Rope Lock Lite	Steel frame, dual Al type 1 lever cams, for rope	Gear4Rocks, 2013	307	108	85	23	210

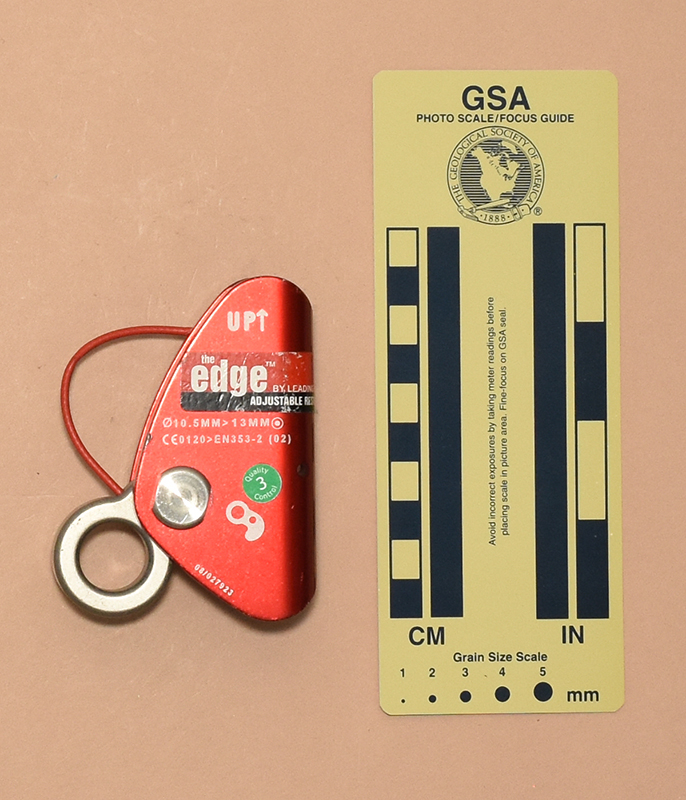

3920	Leading Edge the Edge	Milled anodized Al shell, milled hard-anodized Al cam, bolt axle, cable spring-wire	Miles Bradshaw, 2024	177	86	64	40	220

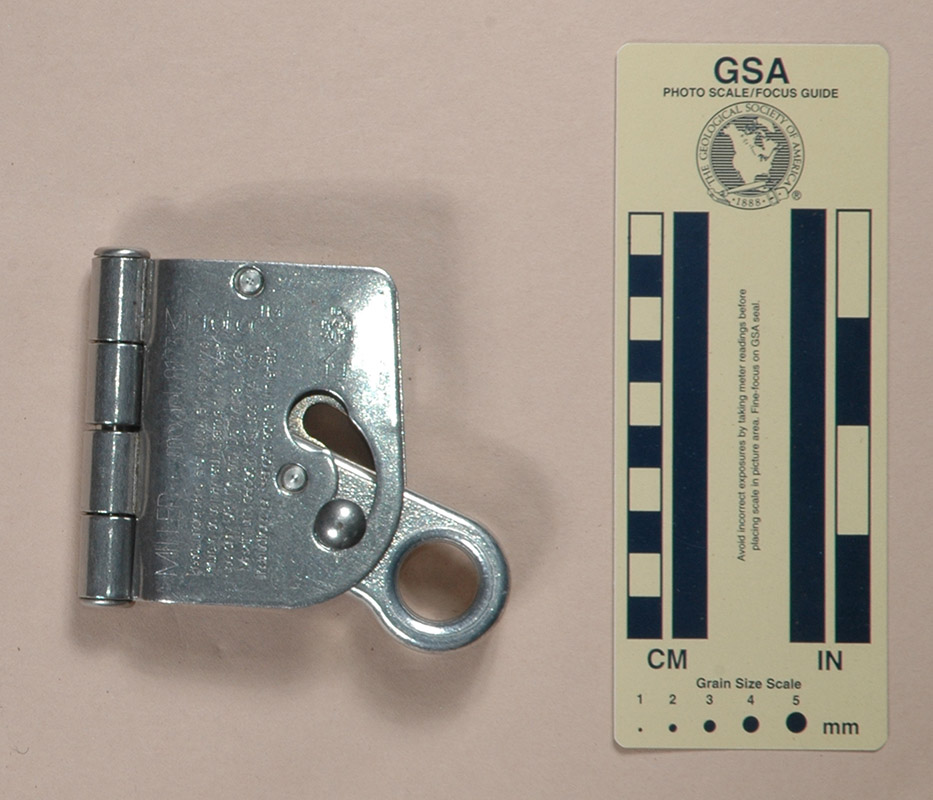

1648 2634	Miller 8173 Microloc	Steel, type 1 lever cam, swing-open shell	Dan MacMurray, 2009 Bob Thrun Collection, 2017	358	87	75	30	193
3752	Miller 8174, Version A	Steel, dual type 1 lever cams, catch & screw closure, small eye, for 5/8 inch (16 mm.) rope.	John E. Weinel, Inc., 1988	803	122	72	89	782

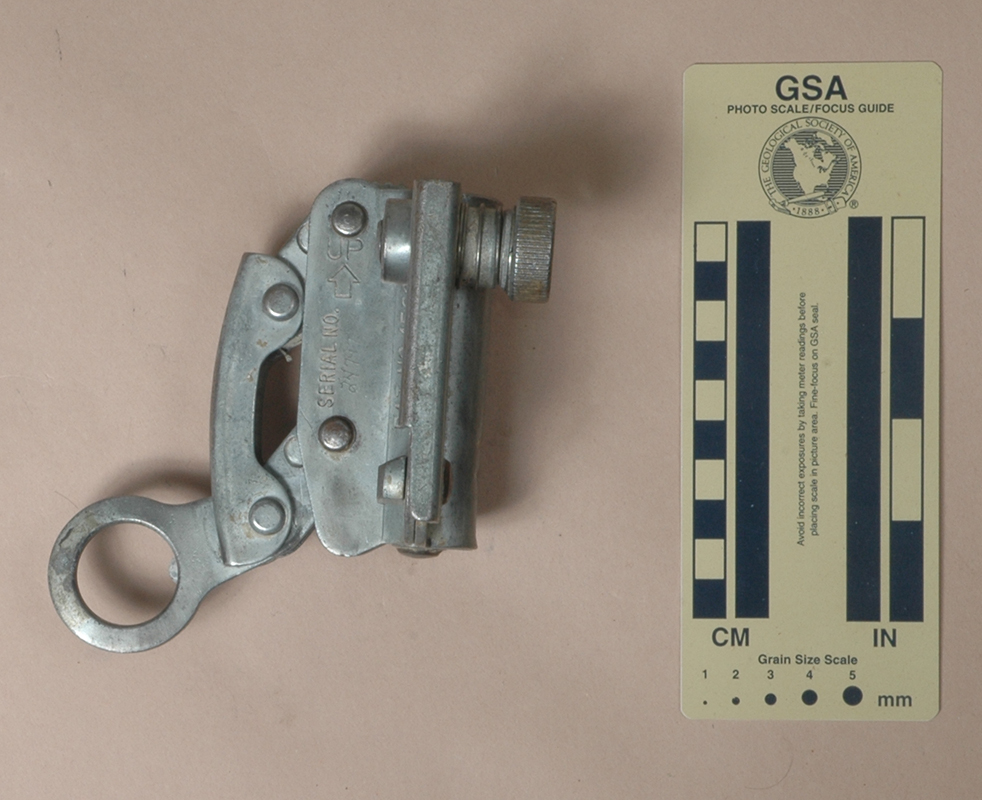

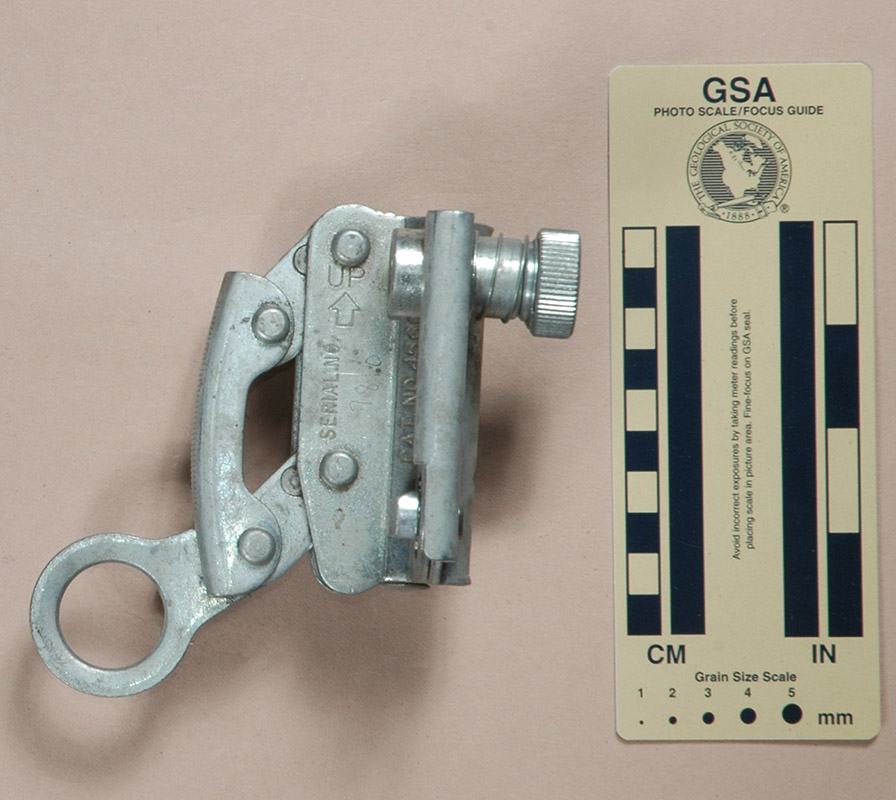

2633	Miller 8174, Version B	Steel, dual type 1 lever cams, catch & screw closure, small eye, for 5/8 inch (16 mm) rope.	Bob Thrun Collection, 2017	801	121	71	81	696

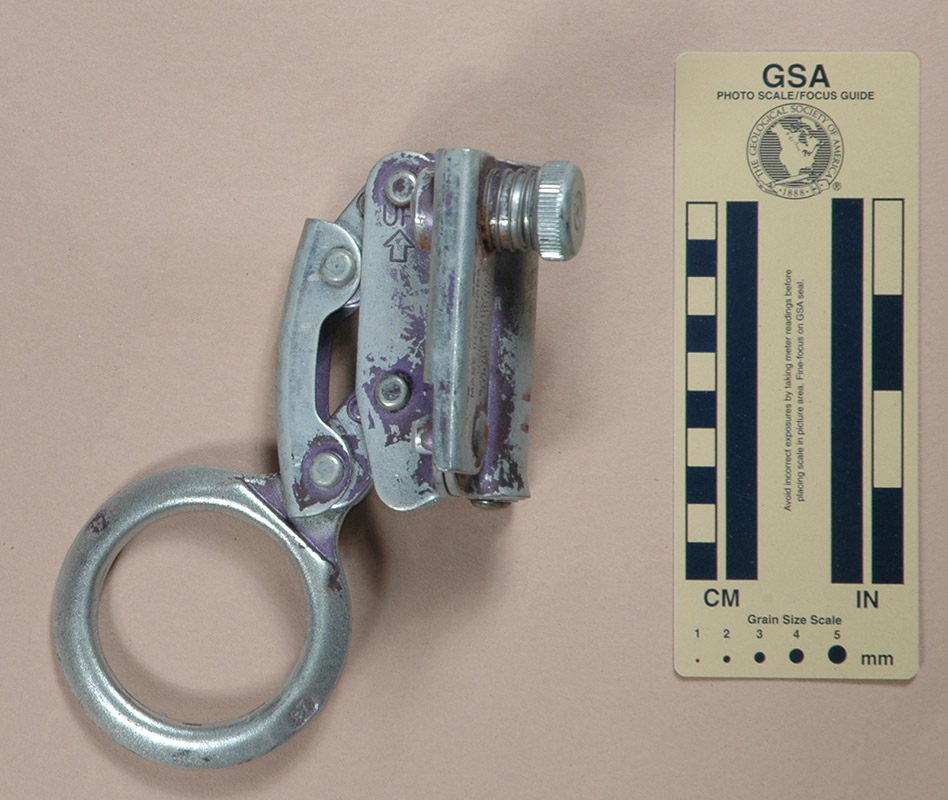

889	Miller 8174, Version C	Steel, dual type 1 lever cams, catch & screw closure, large eye, for 5/8 inch (16 mm.) or 3.4 inch (19 mm.) rope.	Lindsay Rissinger, 2008	898	165	72	83	975

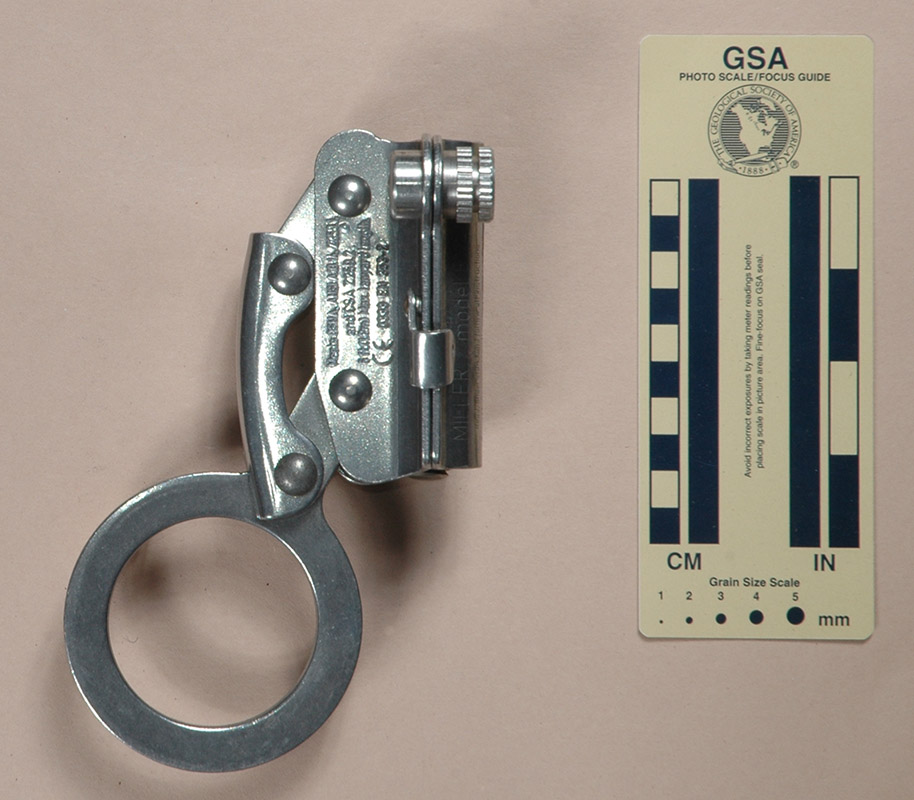

890	Miller 8174, Version D	Steel, dual type 1 lever cams, screw closure, large eye, for 5/8 inch (16 mm.) or 3.4 inch (19 mm.) rope.	Lindsay Rissinger, 2008	725	167	67	81	900
1735	Mittlemann KB2	Steel, dual type 1 lever cams, for 5/8 inch (16 mm) rope.	Steven Kaufman, 2011	466	135	75	27	275

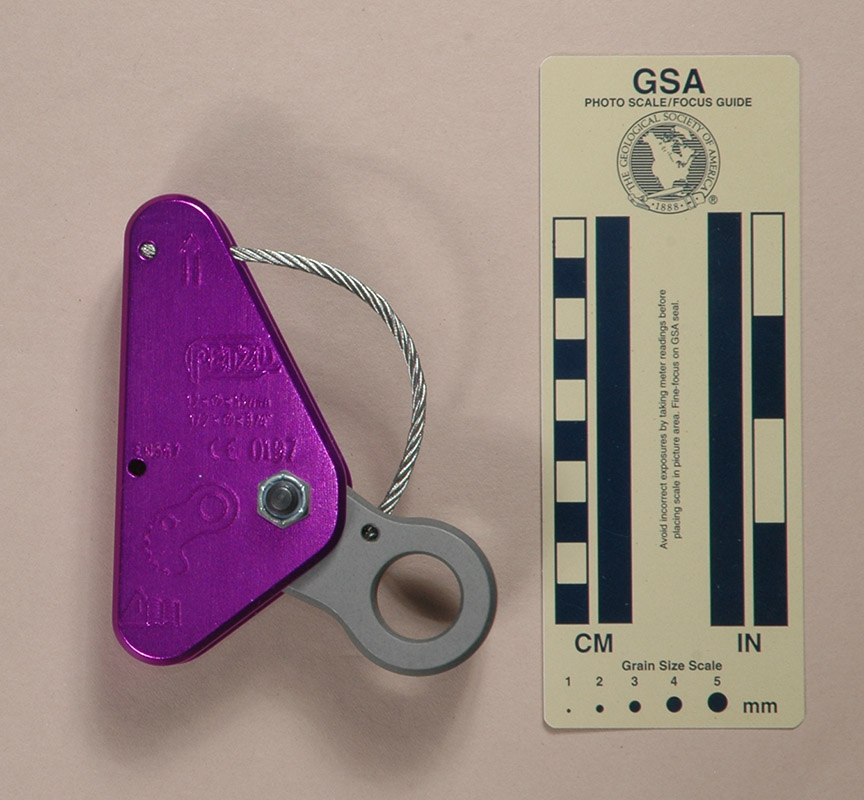

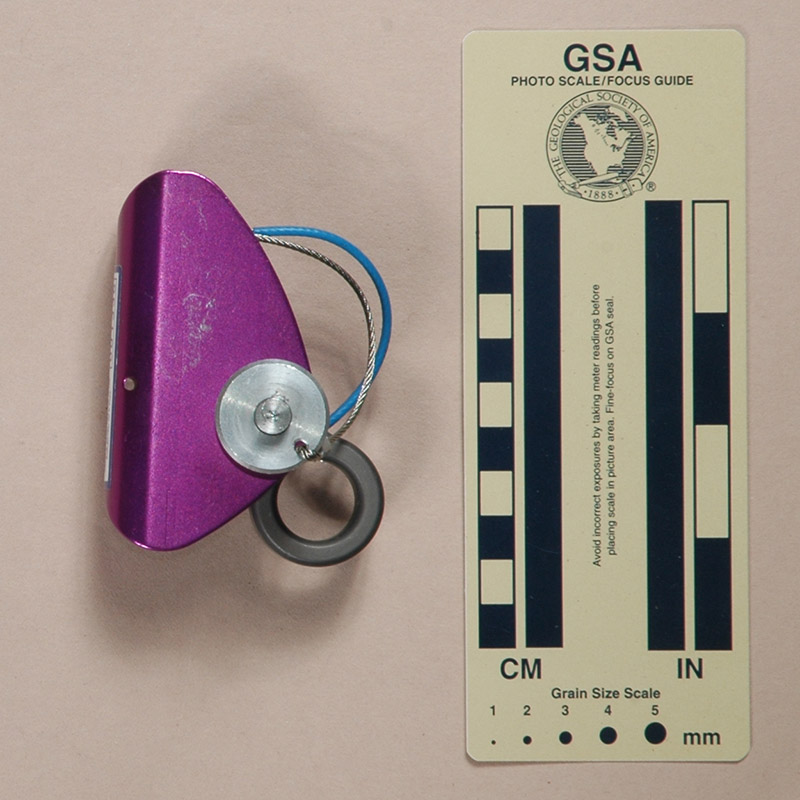

747	Petzl Macrograb B52, Version A	Milled Al frame & cam, QR Pin axle, stranded spring-wire	On Rope 1, 2000	336	92	114	51	536

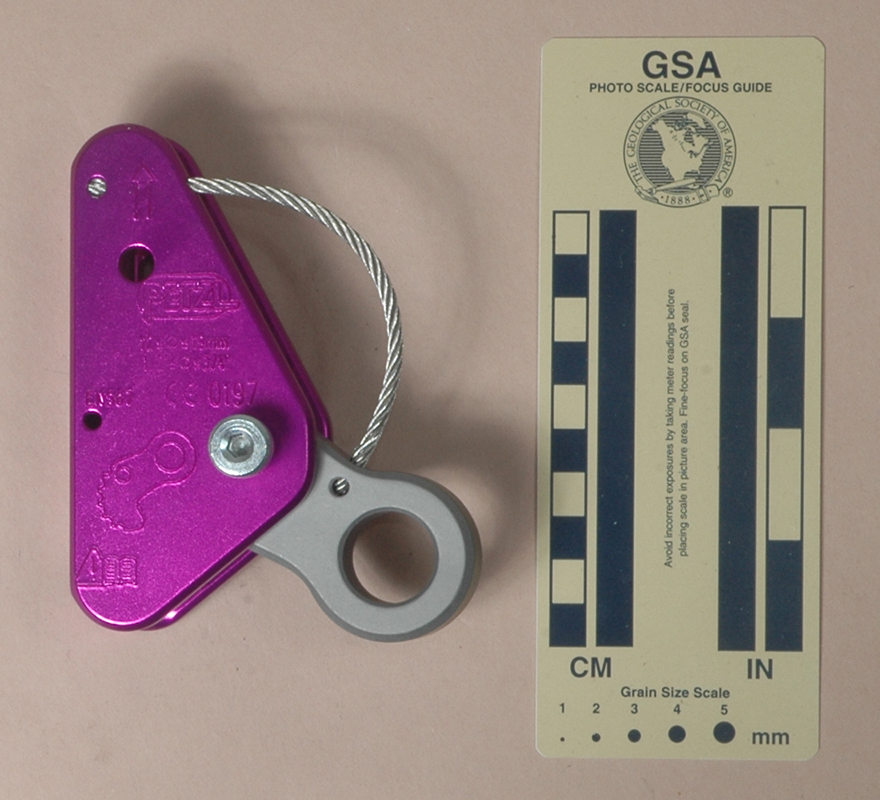

2643	Petzl Macrograb B52, Version B	Milled aluminum frame & cam, QR Pin axle, stranded spring-wire	Bob Thrun Collection, 2017	340	90	114	53	545

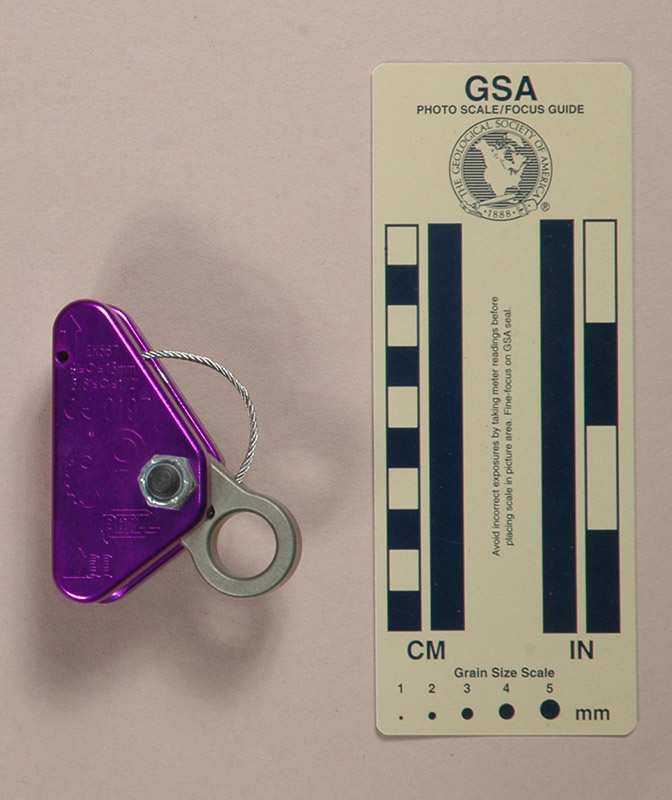

746 2642	Petzl Micrograb B53	Milled Al frame & cam, bolt axle, stranded spring-wire	On Rope 1, 2000 Bob Thrun Collection, 2017	173	74	58	51	216

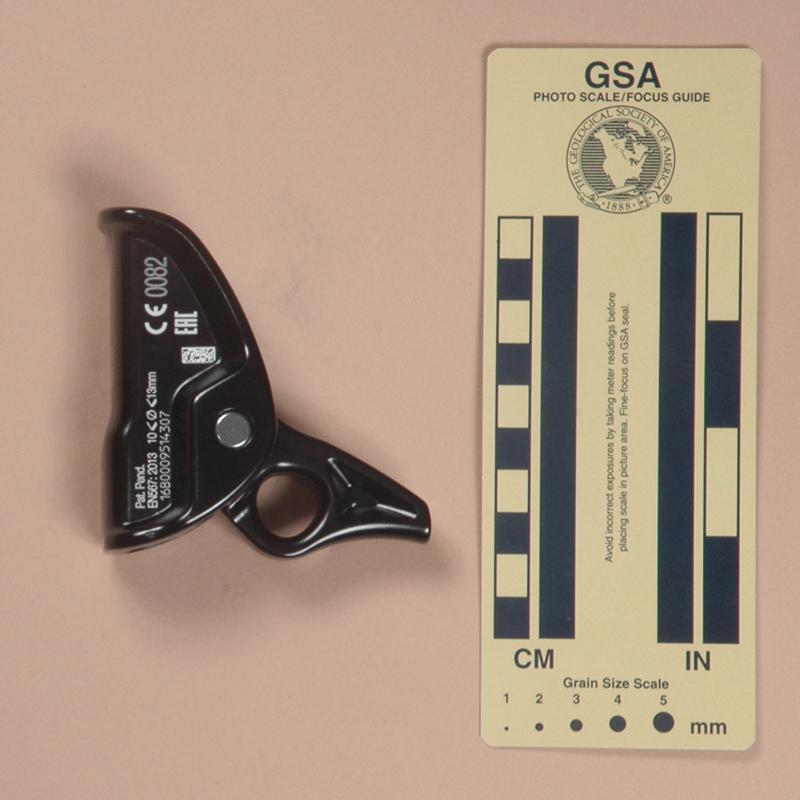

1884	Petzl Micrograb B53A	Milled aluminum frame & cam, pin axle, spring	On Rope 1, 2016	144	81	76	34	212

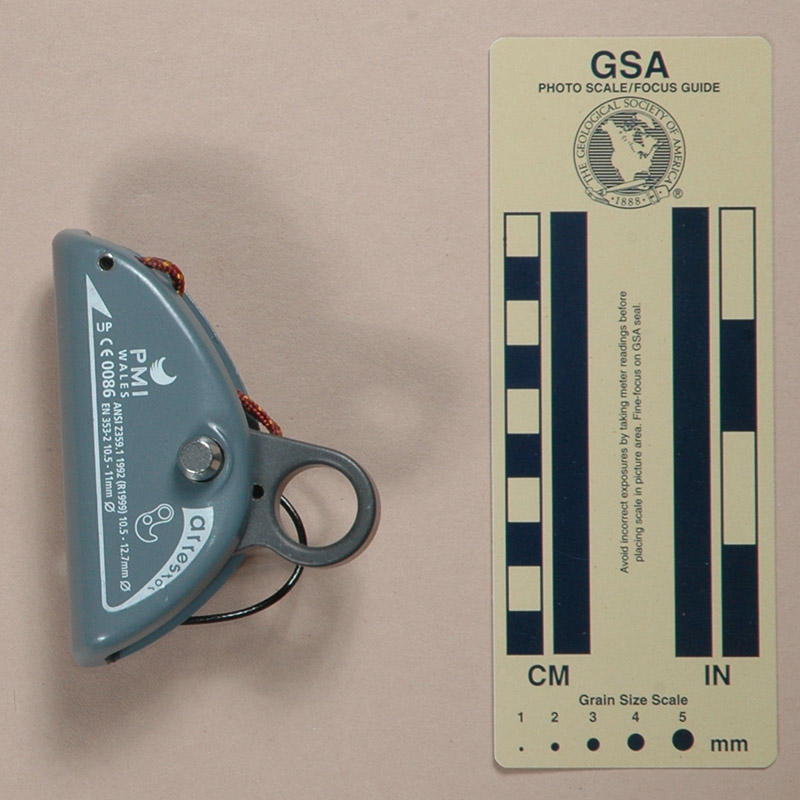

781 2645	PMI Arrestor, Version A	Forged painted frame, hardcoated Al cam, SS bolt axle	On Rope 1, 2003 Bob Thrun Collection, 2017	209	98	61	49	291

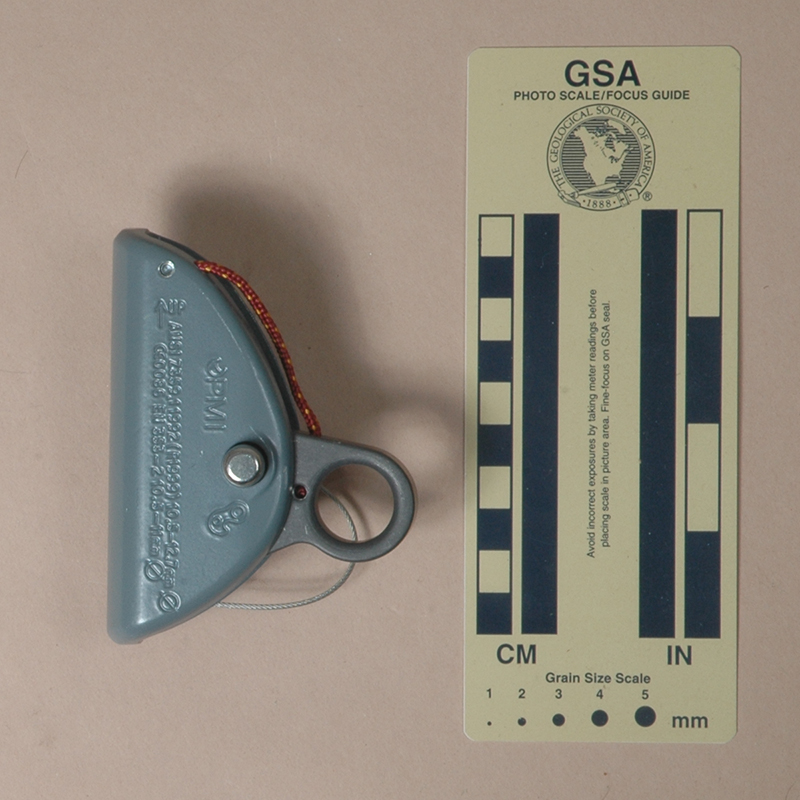

2646	PMI Arrestor, Version B	Forged painted frame, hardcoated Al cam, SS axle, spring-loaded axle latch	Bob Thrun Collection, 2017	208	98	70	49	335
3759 2644	PMI Grip-Tech Jr.	Milled Al frame & cam, bolt axle, stranded spring-wire	On Rope 1, 2000 Bob Thrun Collection, 2017	179	85	62	59	311

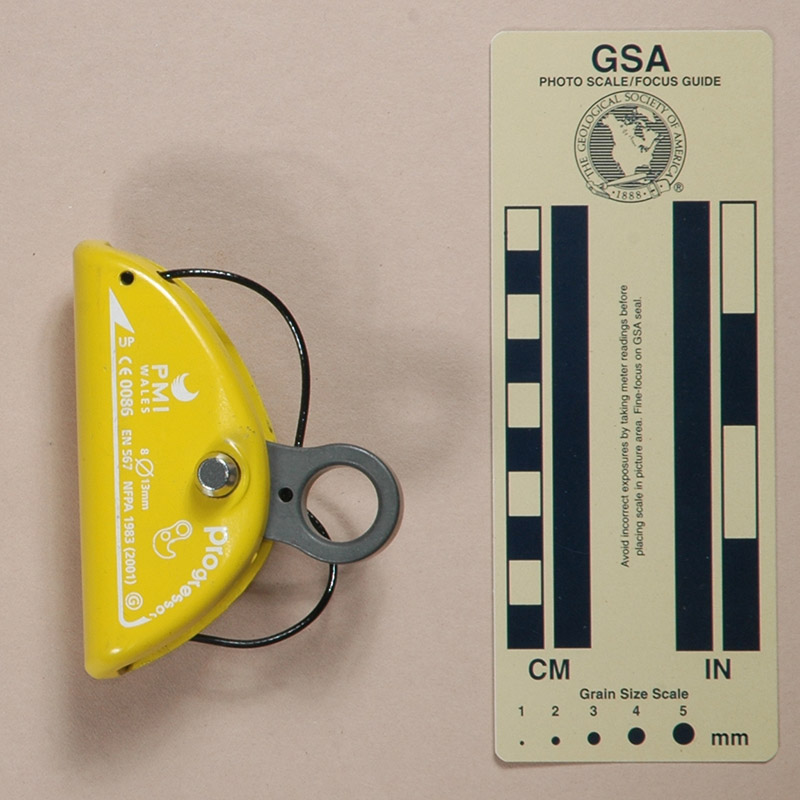

782	PMI Progressor, Version A	Forged painted frame, hardcoated Al cam, SS axle, spring-loaded axle latch	On Rope 1, 2003	208	98	72	49	343
783	PMI Progressor, Version B	Forged painted frame, hardcoated Al cam, SS axlebolt.	On Rope 1, 2003	209	98	72	46	323

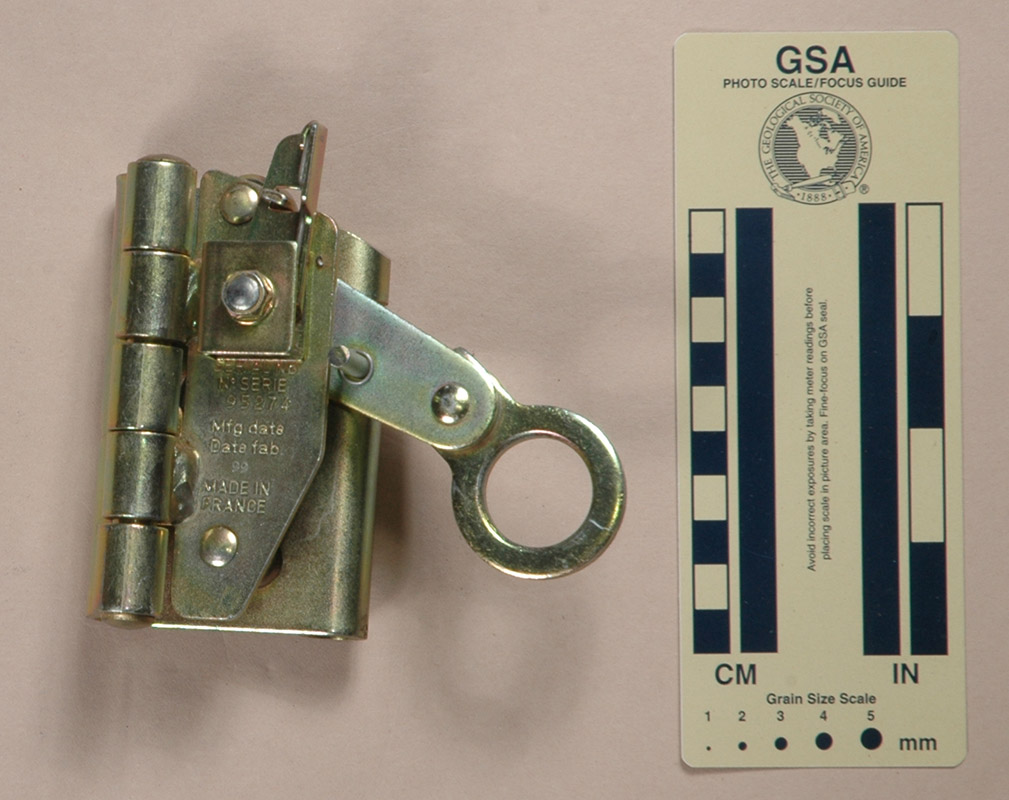

729	Protecta International AC202/01 Cobra	Steel, type 1 lever cam, for 12-16 mm. rope	GyC Seguridad S.L., 2000	805	106	120	62	785

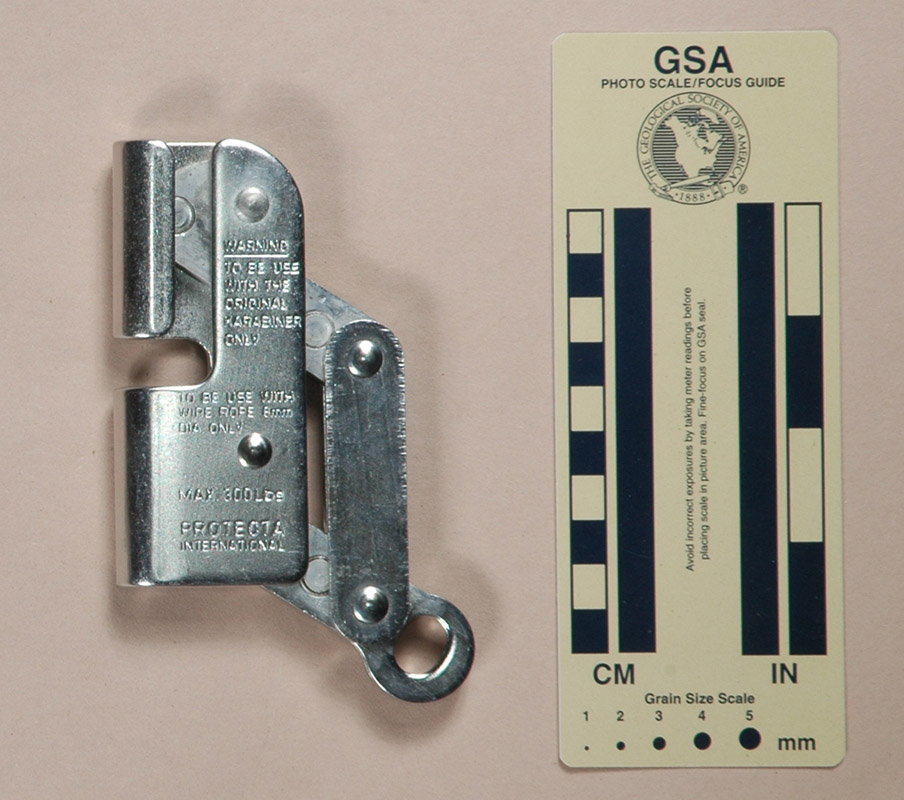

730	Protecta International AC350 Cabloc	Steel, dual type 1 lever cams, for 8 mm. wire cable	GyC Seguridad S.L., 2000	488	100	97	20	195

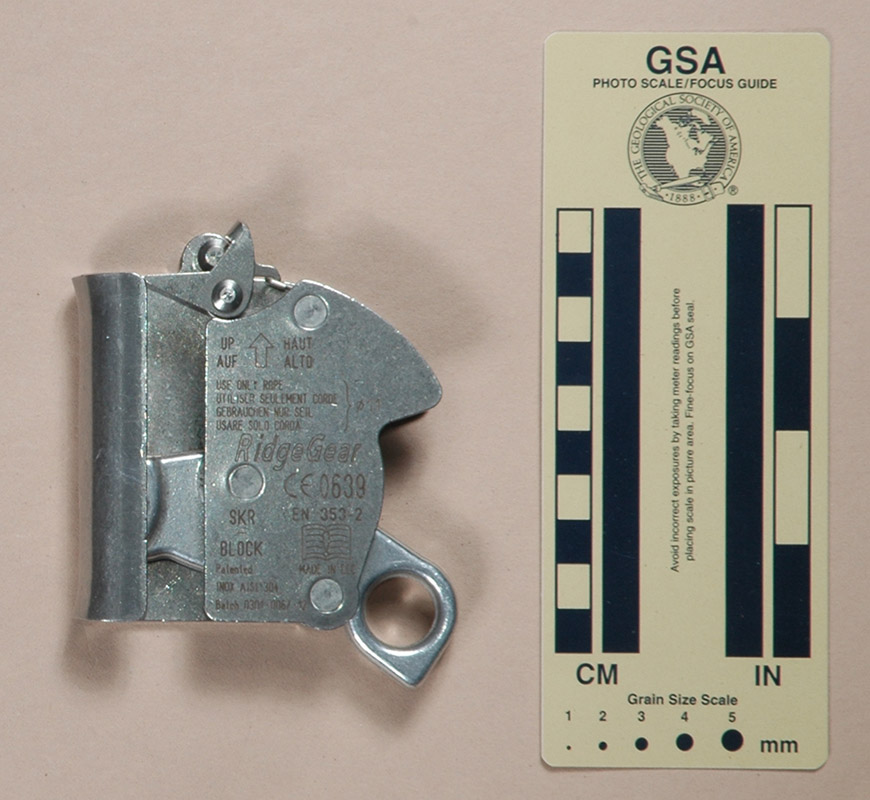

870	RidgeGear	Stainless steel, open side, spring-loaded cam & safety gate	Lee Pyell, 2007	327	94	86	23	186

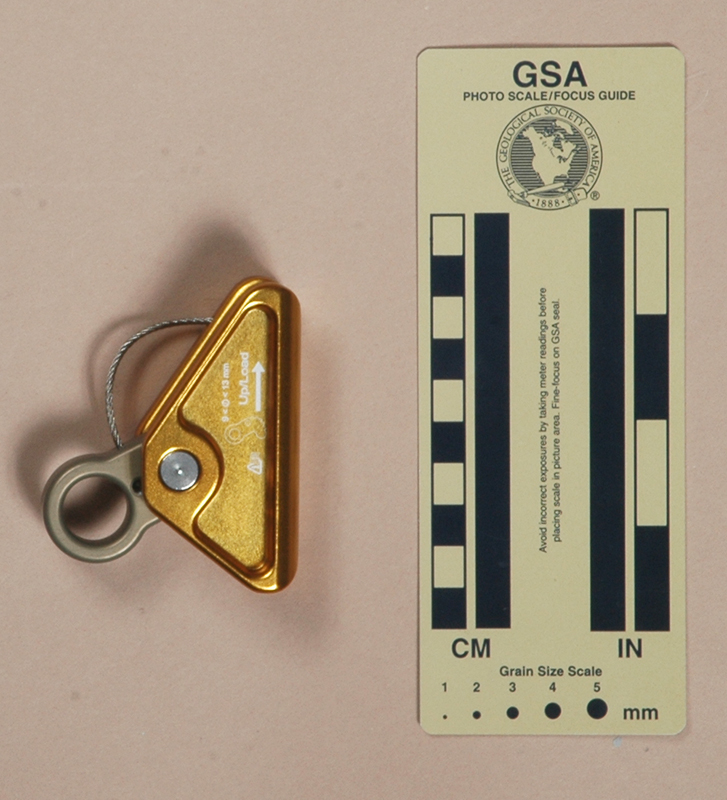

1757	Rock Exotica rockGrab RG2	Milled anodized Al shell, milled hard-anodized Al cam, cable spring-wire	Hanny Piltz, 2012	127	74	61	33	149

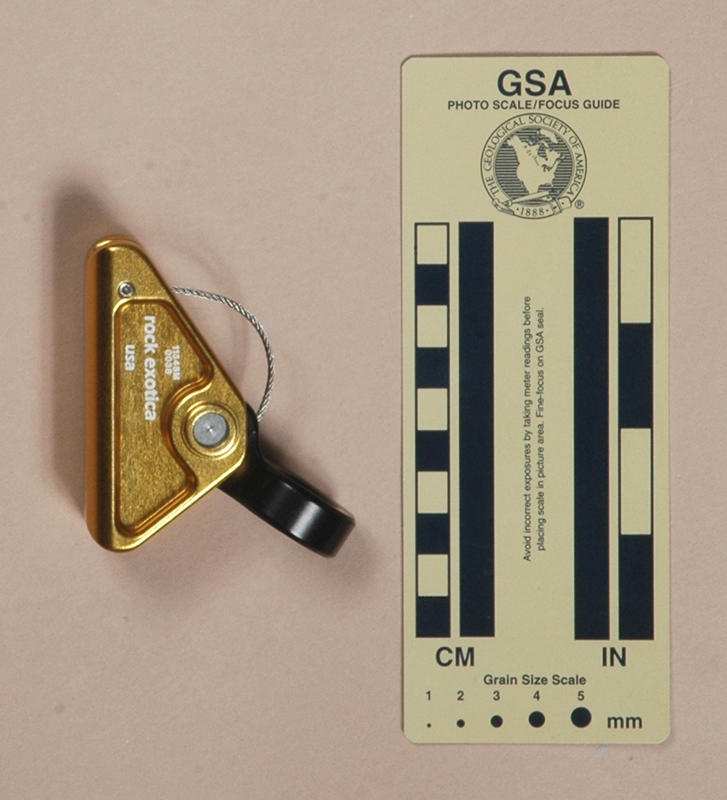

1758	Rock Exotica rockGrab RG2-90	Milled anodized Al shell, milled hard-anodized Al cam, 90° eye, cable spring-wire	Hanny Piltz, 2012	137	74	67	33	163

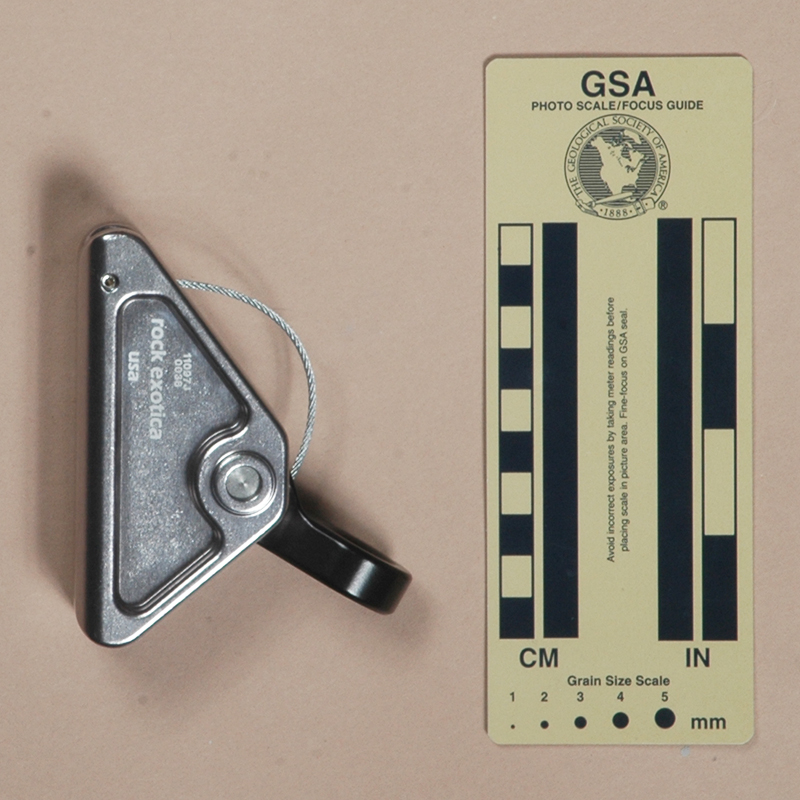

1752	Rock Exotica rockGrab RG4-90	Milled anodized Al shell, milled hard-anodized Al cam, 90° eye, cable spring-wire	Hanny Piltz, 2012	231	99	37	66	242

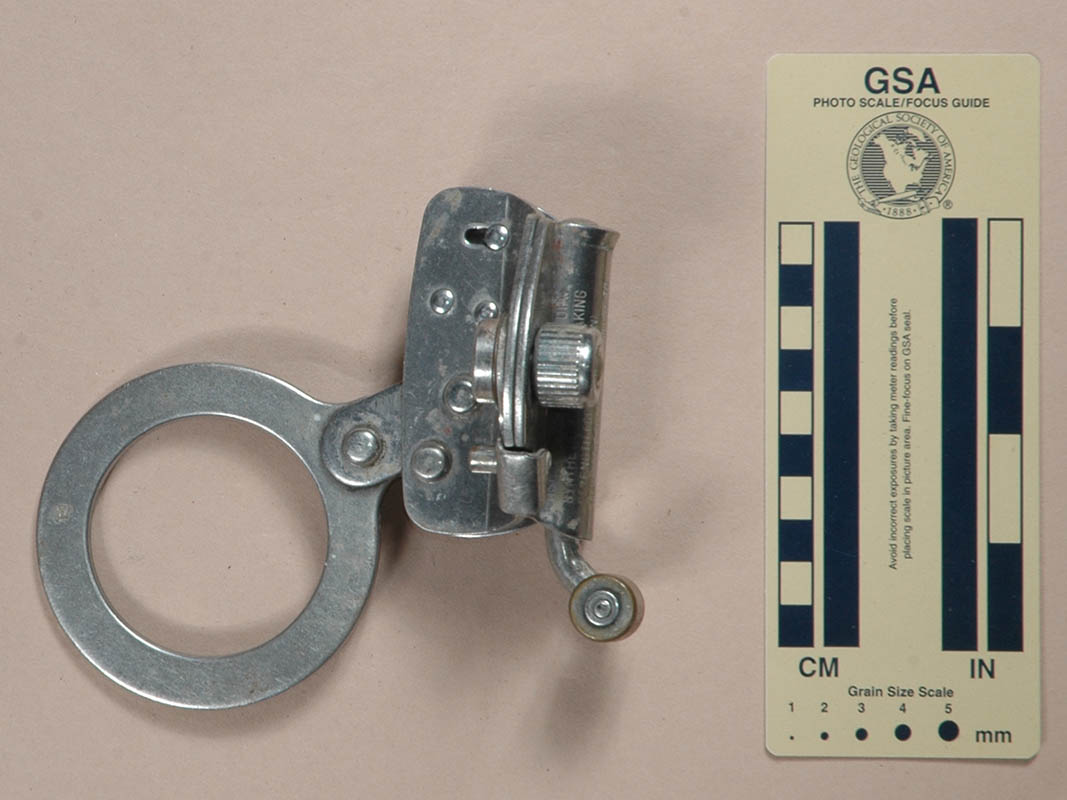

821	Safe-Waze GR100	Steel, type 1 lever cam, stamped eye, for specified 5/8 inch (16 mm.) polypropylene or nylon rope.	Len Zandee, 2005	601	103	158	70	1139

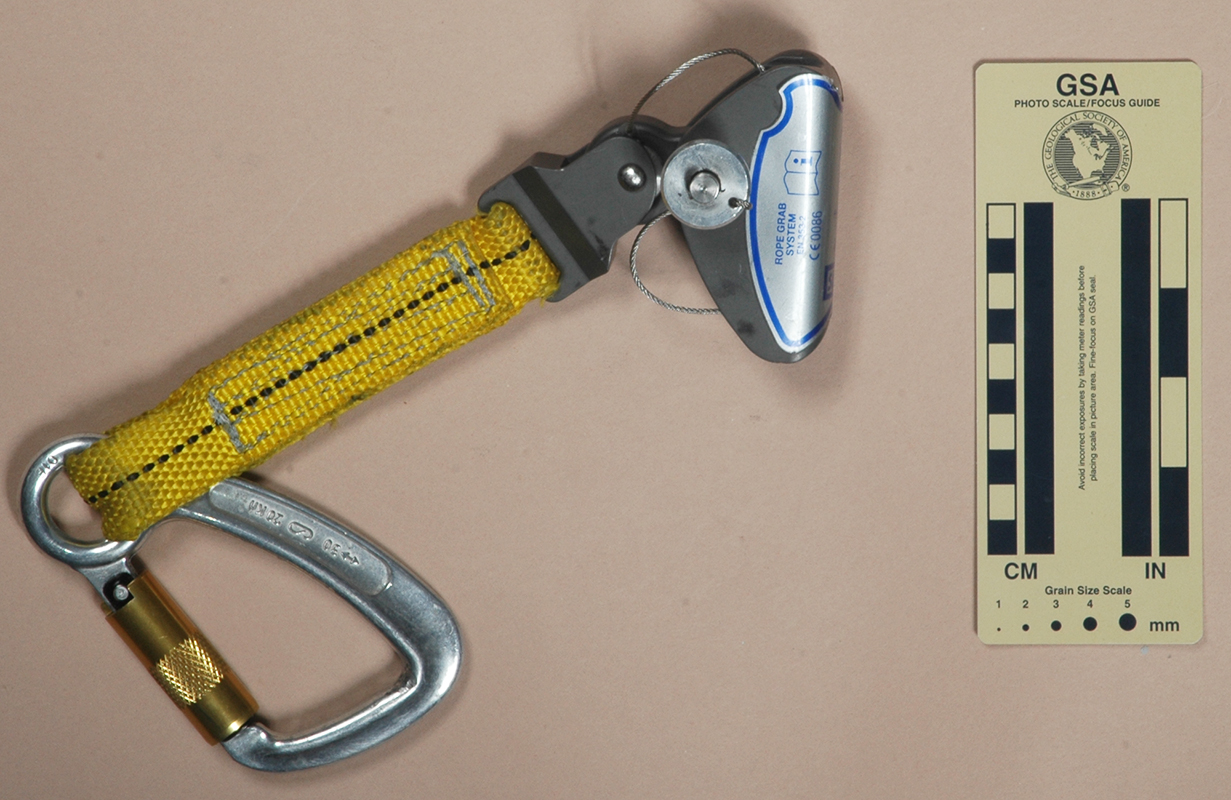

1764	Sala	Milled hard-anodized Al shell & cam, cable spring-wire & keeper, pivoting webbing eye, attached web sling & carabiner	Tom Furey, 2012	369	85	66	59	330
833	Sanko Ind. Co. Ltd. Titan	Steel, type 1 lever cam, swing-open cam, for 16 mm. rope.	Paul Brian Scurr, 2006	592	104	108	51	568

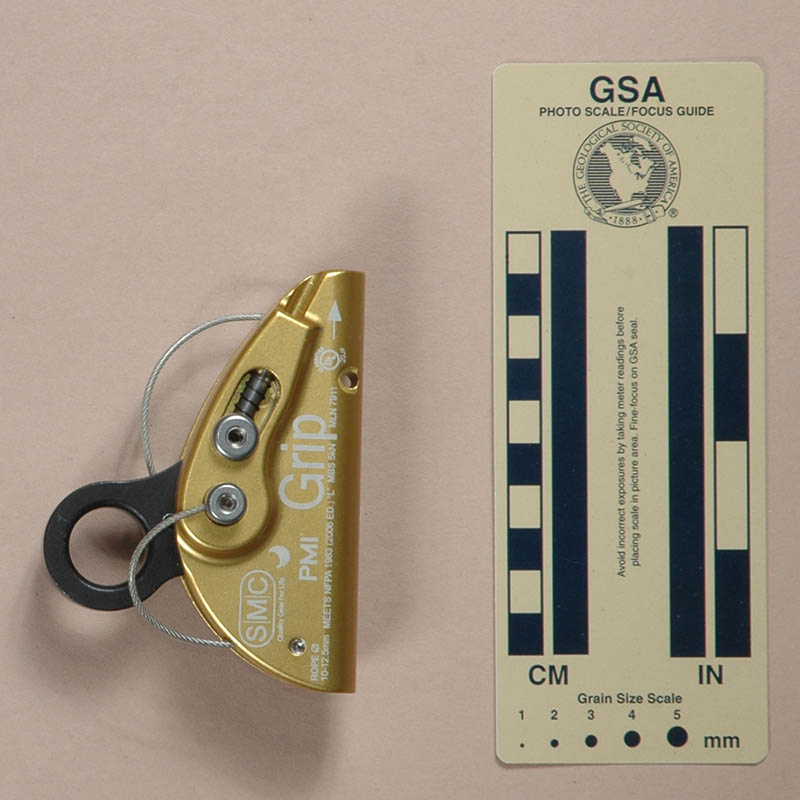

898 2647	SMC Grip	Aluminum, type 1 lever cam, milled frame & cam	On Rope 1, 2008 Bob Thrun Collection, 2017	193	98	73	47	336

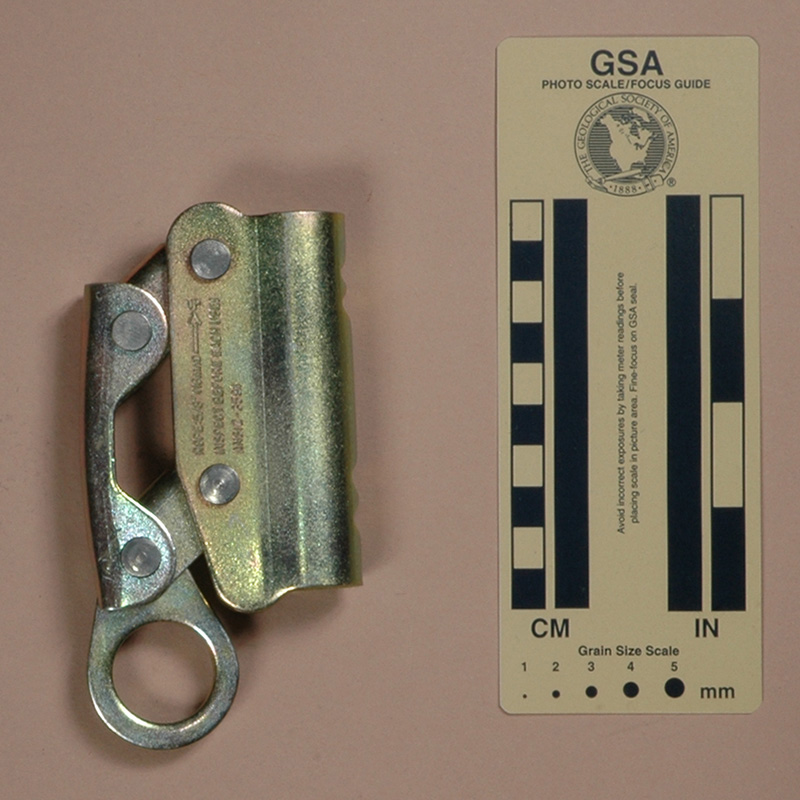

1701	Super Anchor Safety 4015M	Steel, dual type 1 lever cams, for 5/8 inch (16 mm) rope.	Hardware Sales, 2010	443	123	67	25	205

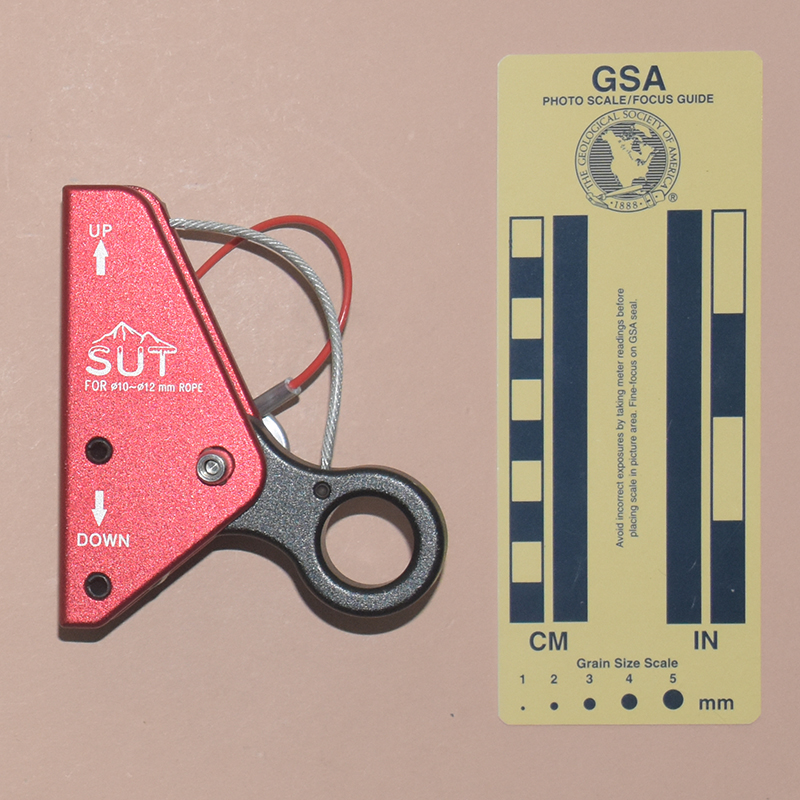

2839	SUT	Aluminum, type 1 lever cam, milled frame & cam	importjewelrylover, 2021	254	105	90	59	561

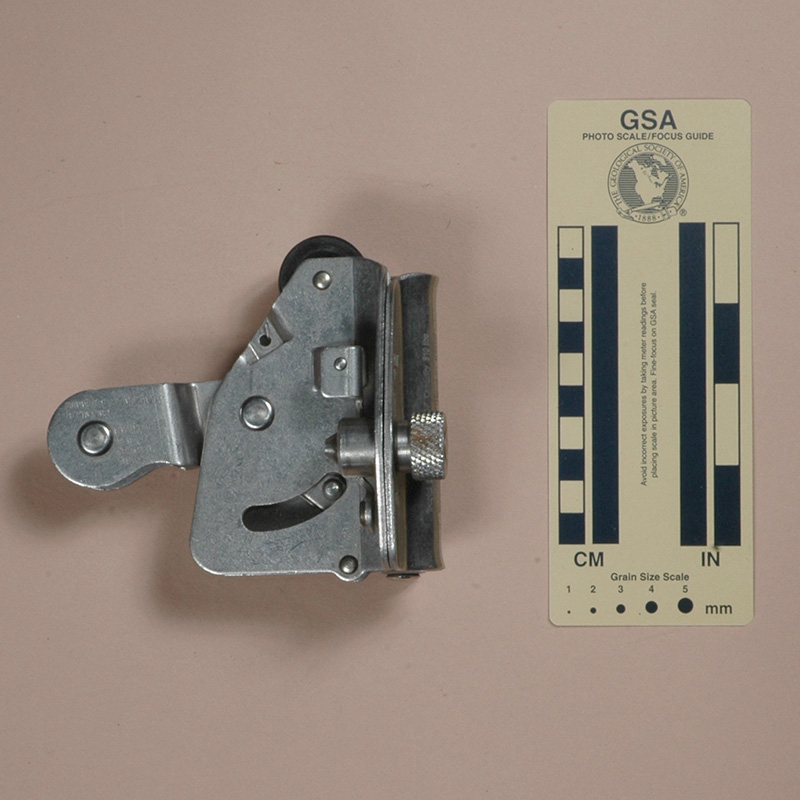

1709	Tractel Stopfor A	Steel, type 1 lever cam, nylon roller, for 11 mm. rope	Magen Deans, 2010	745	106	120	71	904

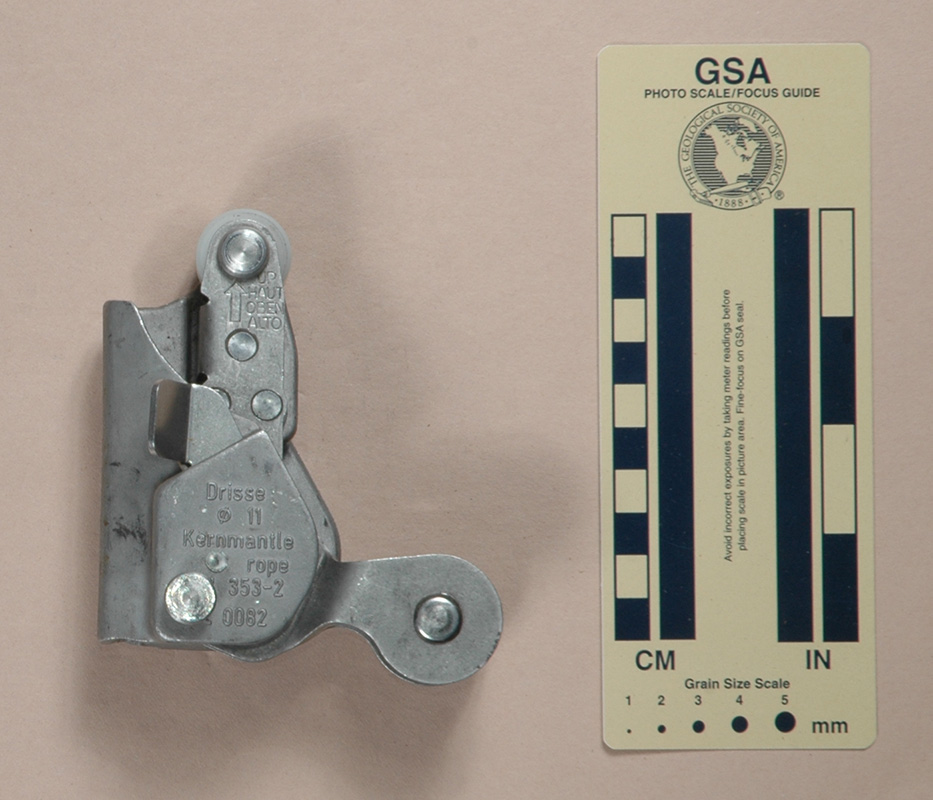

874	Tractel Stopfor D (Model WS58)	Steel, type 1 lever cam, rubber roller, for 5/8 in. (16 mm.) rope	Richard Wolle, 2007	615	105	93	54	527

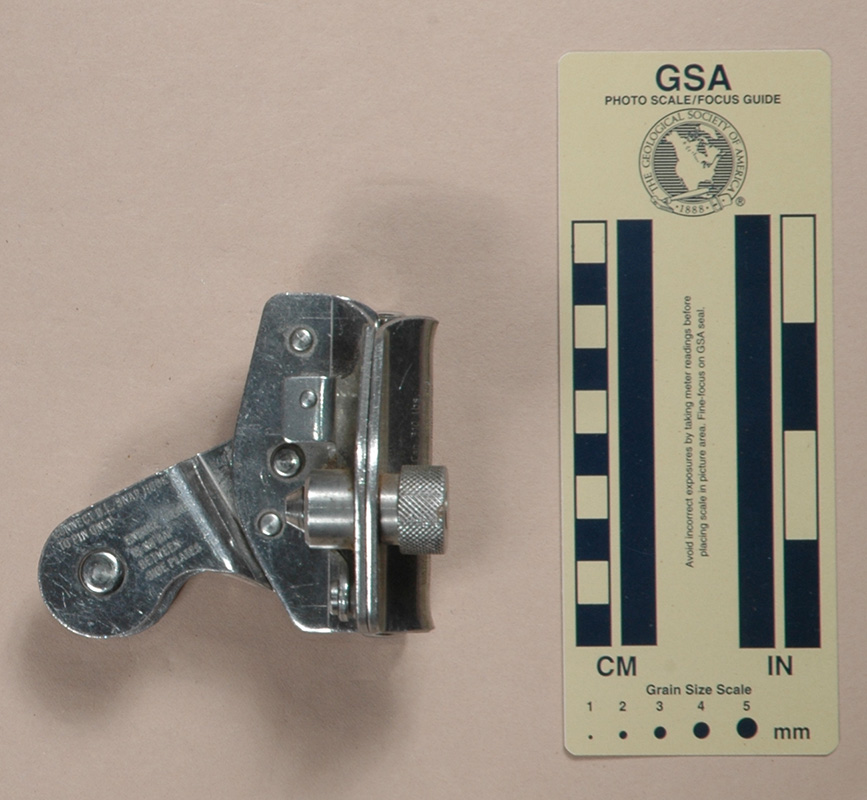

766	Tractel Stopfor S	Steel, type 1 lever cam, rubber roller, for 5/8 in. (16 mm.) rope	Jame Bullard, 2002	475	79	96	65	491

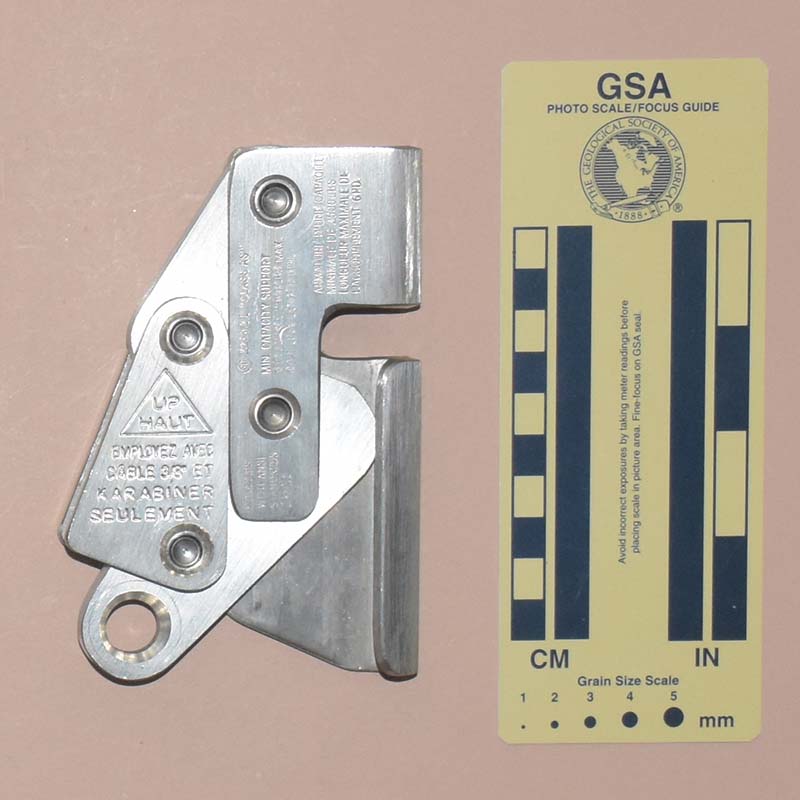

2837	Trylon Stratos	Steel, dual type 1 lever cams, for 9.5 mm. wire cable	Jim Patrick, 2021	796	127	87	21	230

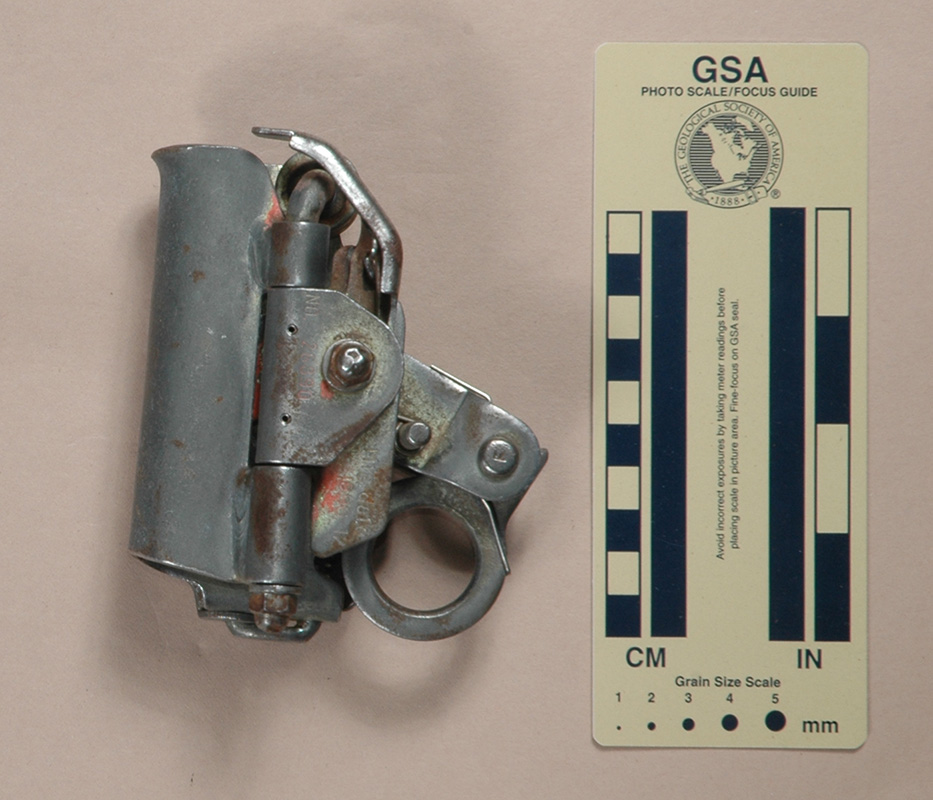

881	Unknown #1	Steel, type 1 lever cam, steel roller, for 16 mm. rope	Mike Moser, 2007	801	116	92	64	685
1763	Unknown #2	Milled aluminum frame & cam, QR pin axle, stranded spring-wire & keeper	Tom Furey, 2012	177	85	65	61	334
1738	Unknown #3, Version A	Steel, type 1 lever cam, for 5/8 in. (16-mm) rope	Brent Fader, 2011	458	122	67	25	206

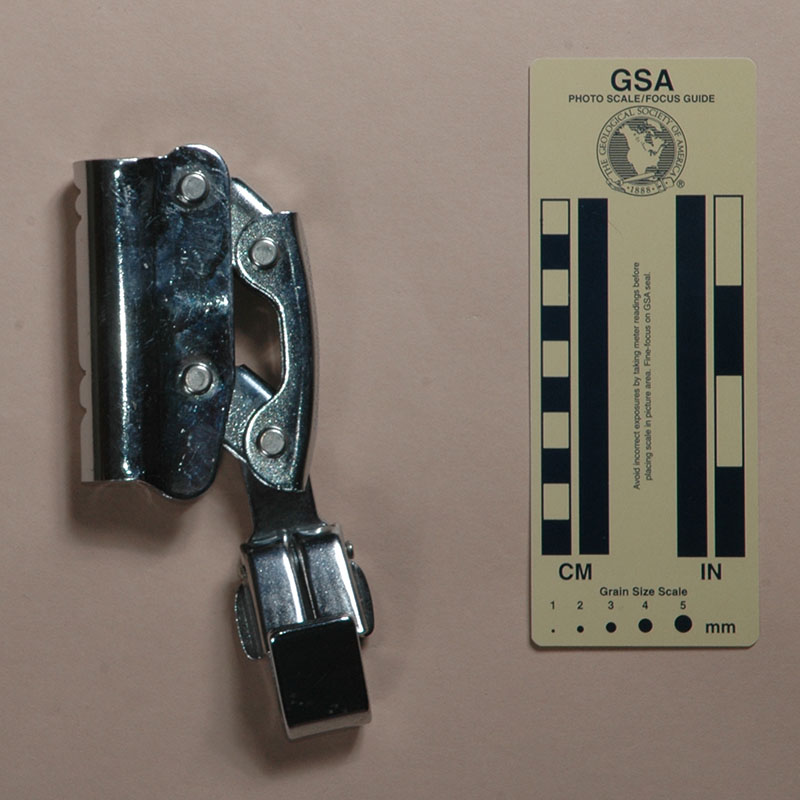

1737	Unknown #3, Version B	Steel, dual type 1 lever cams, double-latched hook attachment, for 5/8 in. (16-mm) rope	Brent Fader, 2011	550	156	67	35	369

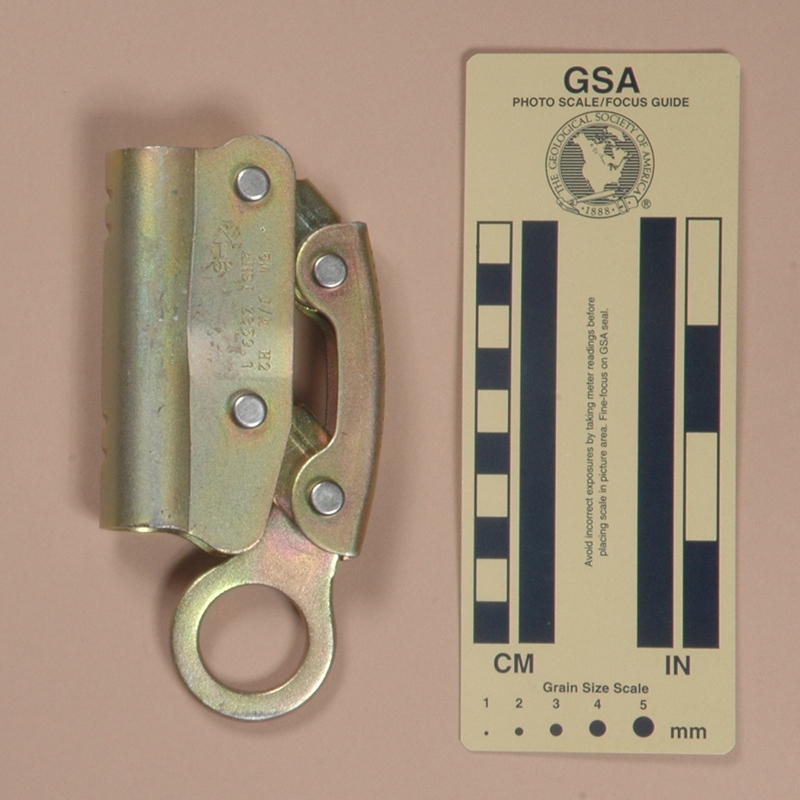

1881	Unknown #4	Steel, dual type 1 lever cams, for 5/8 in. (16 mm) rope.	Bob Elron, 2016	450	122	66	25	200
661	UNR-Rohn Rohn-Loc	Steel, type 1 lever cam.	John E. Weinel, Inc., 1990	989	102	167	34	579
3739	Vertical (Вертикаль) ver 0113	Steel, dual type 1 lever cams, for 8 mm wire cable	Vertical (Вертикаль) via Artyom Babin (Артём Бабин), 2022	468	100	103	22	228
