Tubers

Tubers predate belay tubes, but function nearly as well. The rope runs smoothly, they dissipate heat, they wear well, they are small, and they don't cost very much. Most of my tubers have external ribs to improve heat transfer to the air without adding excessive weight. Still, these are belay devices, not long drop rappel devices.

I use the following criteria to decide whether to call something a Tuber:

  • The devices that I placed in this category have one main rope channel that is split into two halves by a rod.
  • The rod splitting the rope channel also forms an attachment for the keeper.

Although most of my tubers have external ribs, I do not use this as a deciding criteria, so the Simond Cubiks are tubers. The examples that I use for comparison when I consider placing a device into this category are the Latok Tuber and the Lowe Tuber.

In the ID field, I used a red background for round tubers, an orange background for square tubers, and a magenta background for notched square tubers.

Gallery

Image ID  Device ↓ Description Acquired Weight ↓ Height ↓ Width ↓ Thickness ↓ Std. volume ↓

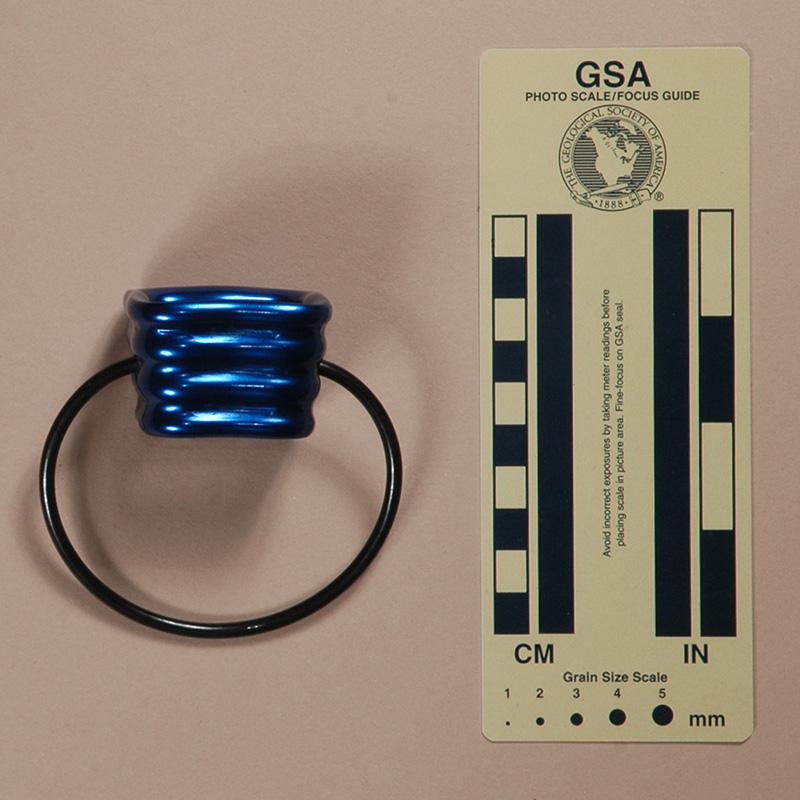

Advanced Base Camp Decelerator 701 Advanced Base Camp Decelerator Forged Al, hard anodized, square, cable keeper Inner Mountain Outfitters, 1996 76 85 49 86 359

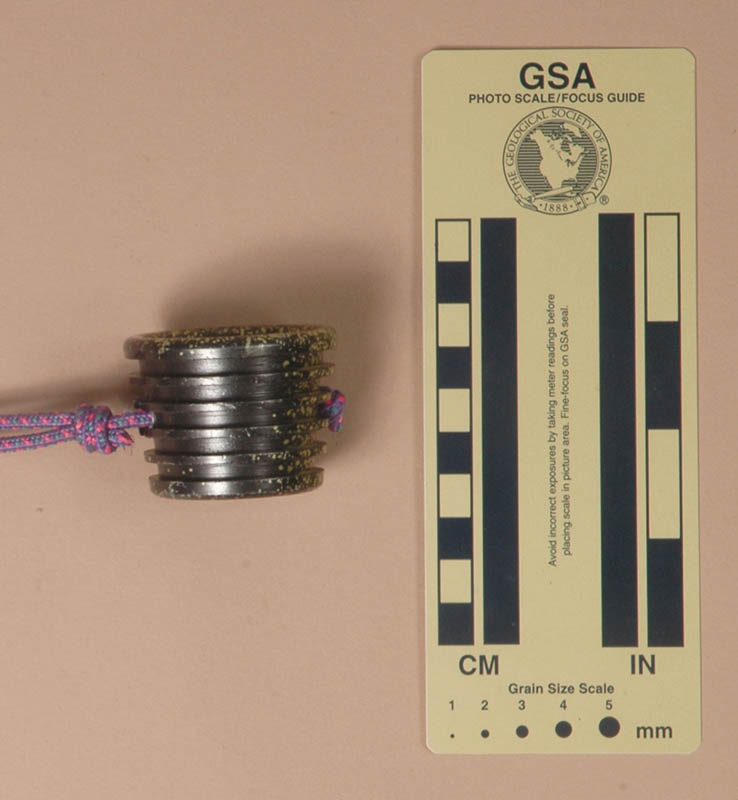

Camp Tuber 2690 Camp Tuber Turned Al, painted, round, cord keeper J. Tsang, 2017 50 50 50 37 92
Jiří Janáček 724 Jiří Janáček Al, painted, V-grooves, cord keeper Ondřej Belica / Climbing CZ sro, 2023 86 49 45 39 86

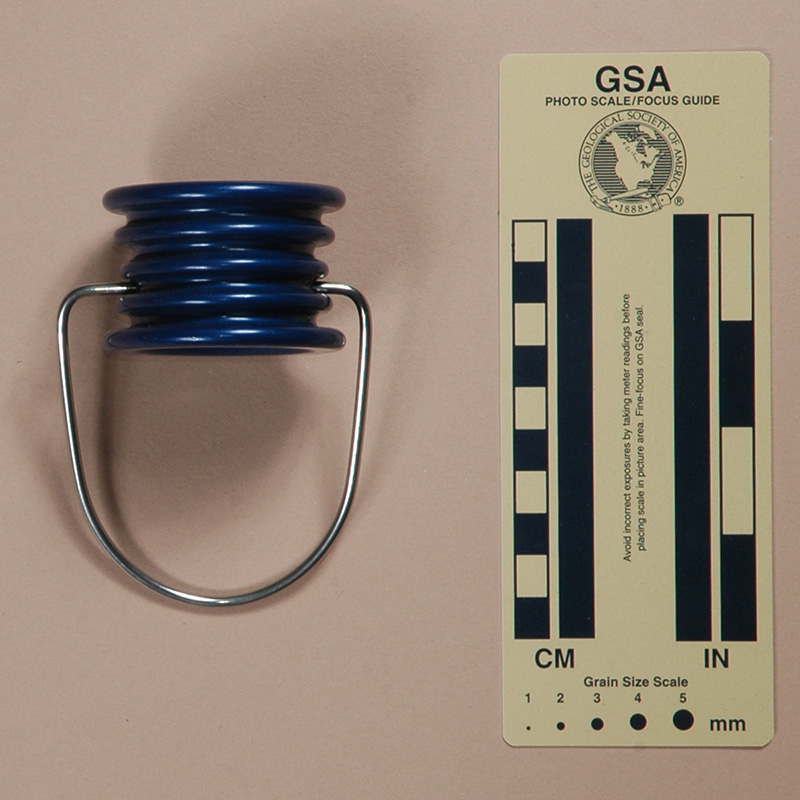

Koola (Florsheim) 840 Koola (Florsheim) Turned Al, hard anodized, round, pivoting rod keeper Florsheim Consultants, 2006 85 74 57 96 405
Koola(Megagrip) 787 Koola(Megagrip) Turned Al, unfinished, round, pivoting rod keeper Ian MacNab, 2003 76 68 55 108 407

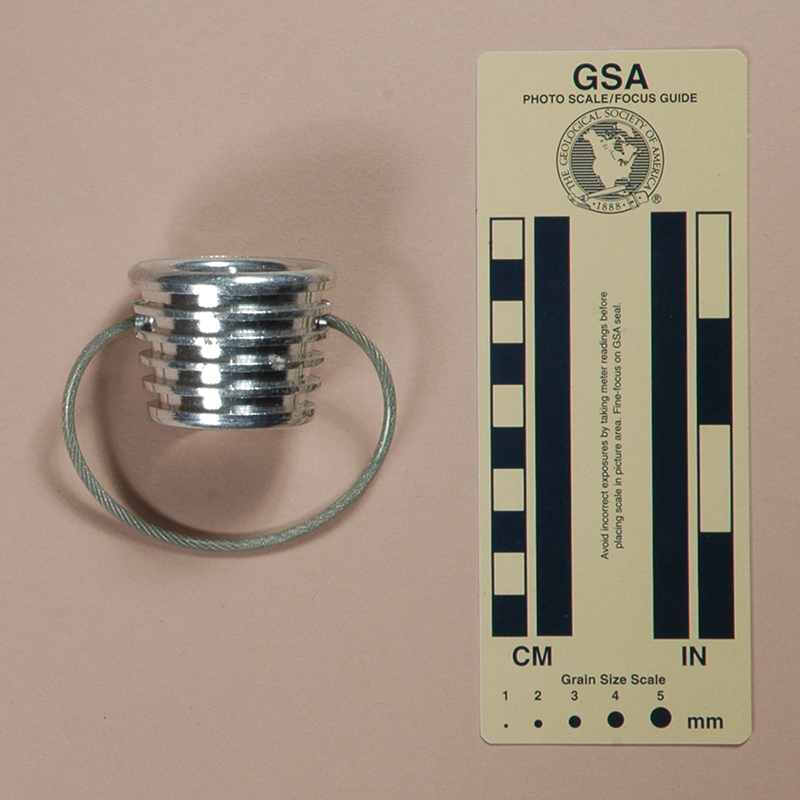

Latok Tuber 612 Latok Tuber Turned & forged Al, unfinished, round, cable keeper L.L. Bean, 1987 53 78 49 72 276

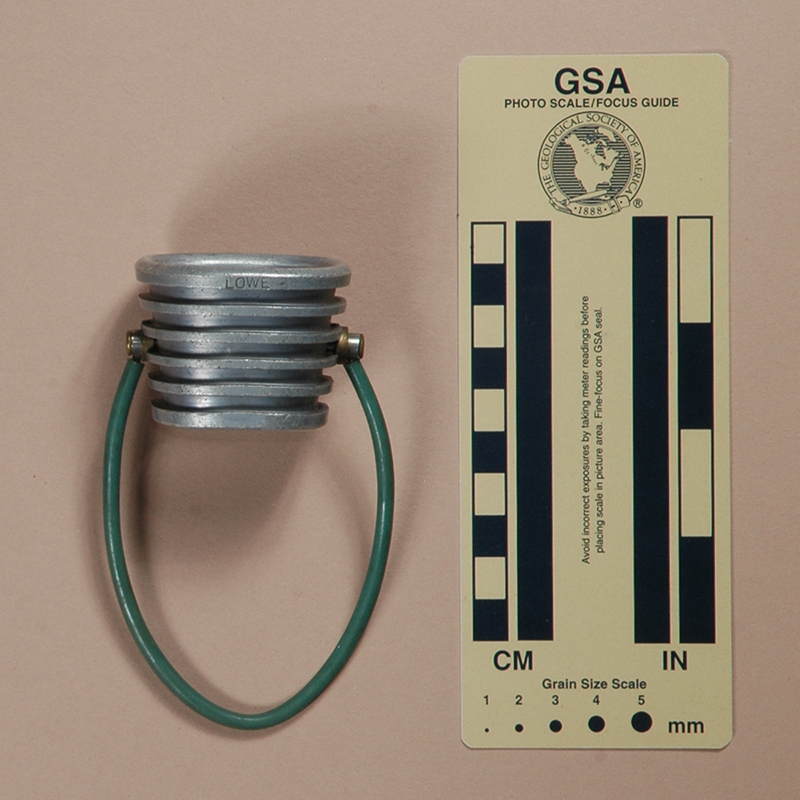

Lowe Square Tuber 1623
1644
Lowe Square Tuber
Star
Turned Al, unfinished, square, cable keeper
  • Rose Gonos, 2009
  • Duane Frerichs, 2009
61 56 52 113 324

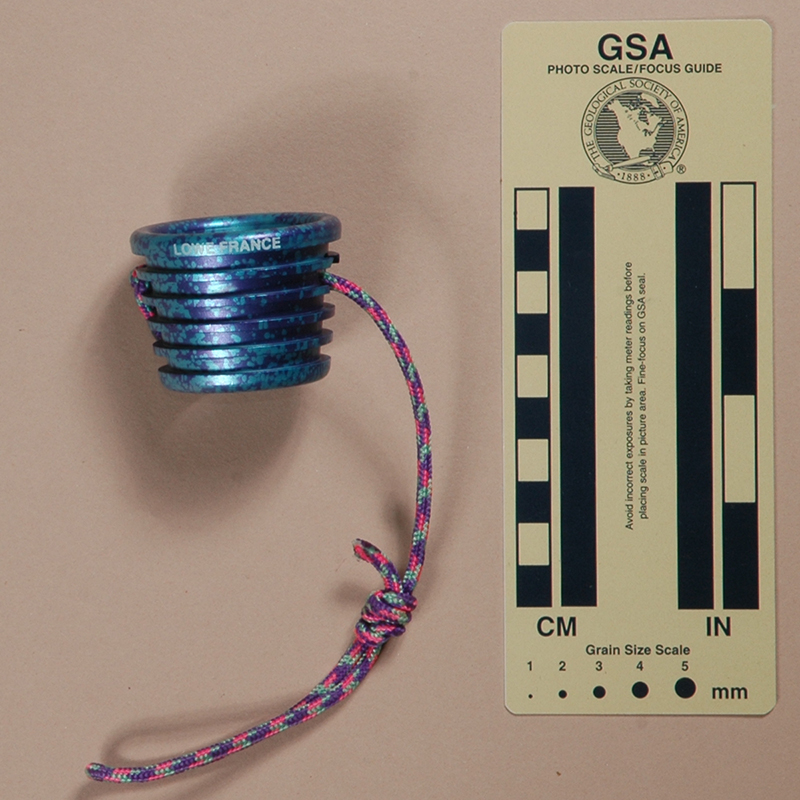

Lowe Tuber, Version A 664 Lowe Tuber, Version A Turned Al, soft anodized, round, cord keeper Ragged Mountain Equipment, 1994 49 50 50 38 94

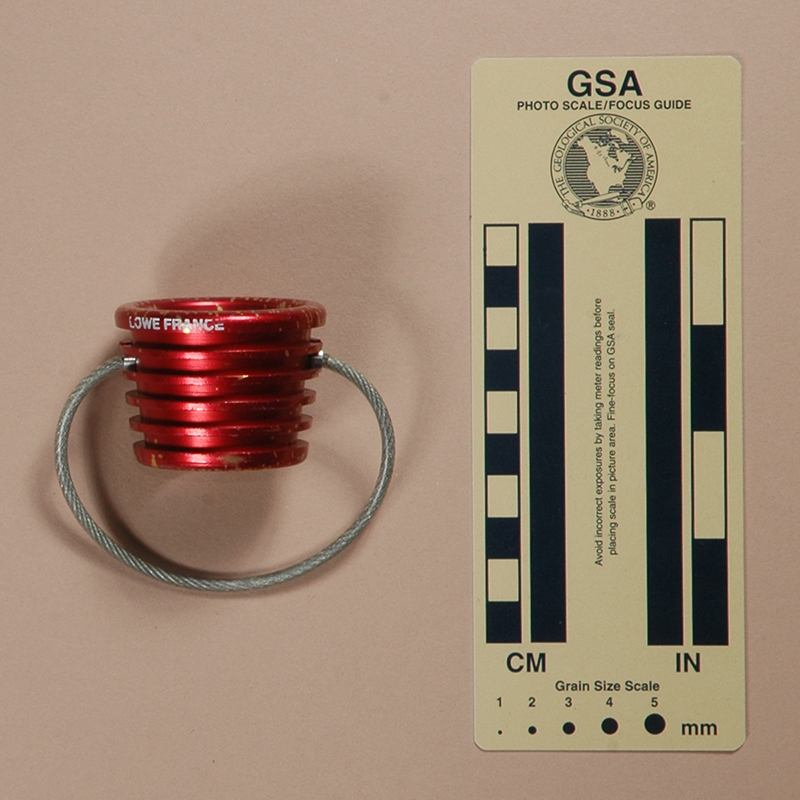

Lowe Tuber, Version B 1612 Lowe Tuber, Version B Turned Al, soft anodized, round, cable keeper Tim Spencer, 2008 58 80 50 72 286

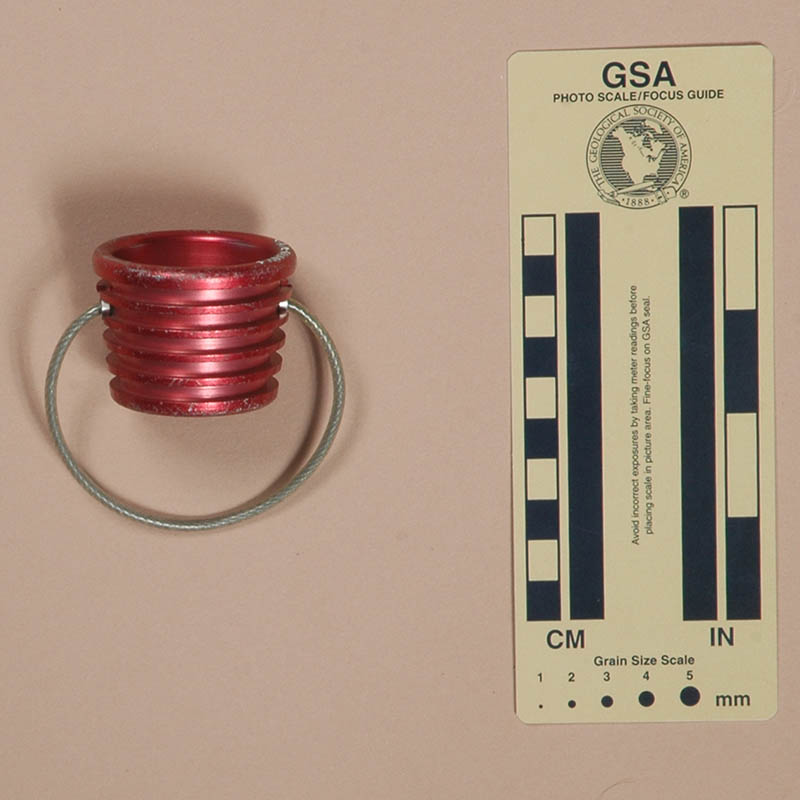

Lowe Tuber, Version C 1753 Lowe Tuber, Version C Turned Al, soft anodized, round, cable keeper Susan Faerber, 2012 50 73 49 76 272

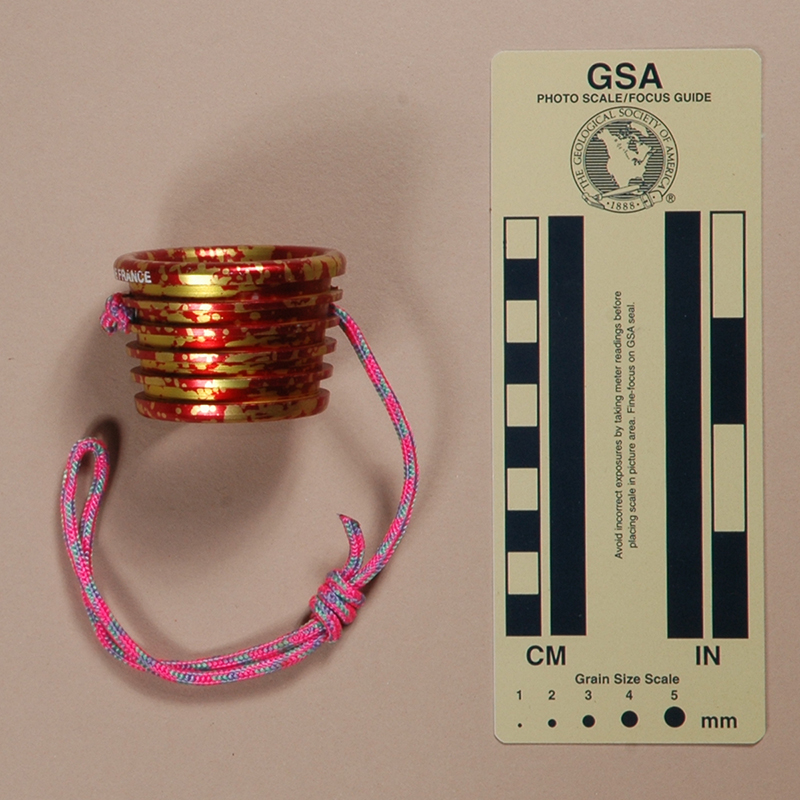

Lowe Tuber II, Version A 613 Lowe Tuber II, Version A Turned Al, soft anodized, round, cord keeper Ragged Mountain Equipment, 1994 61 55 55 38 112

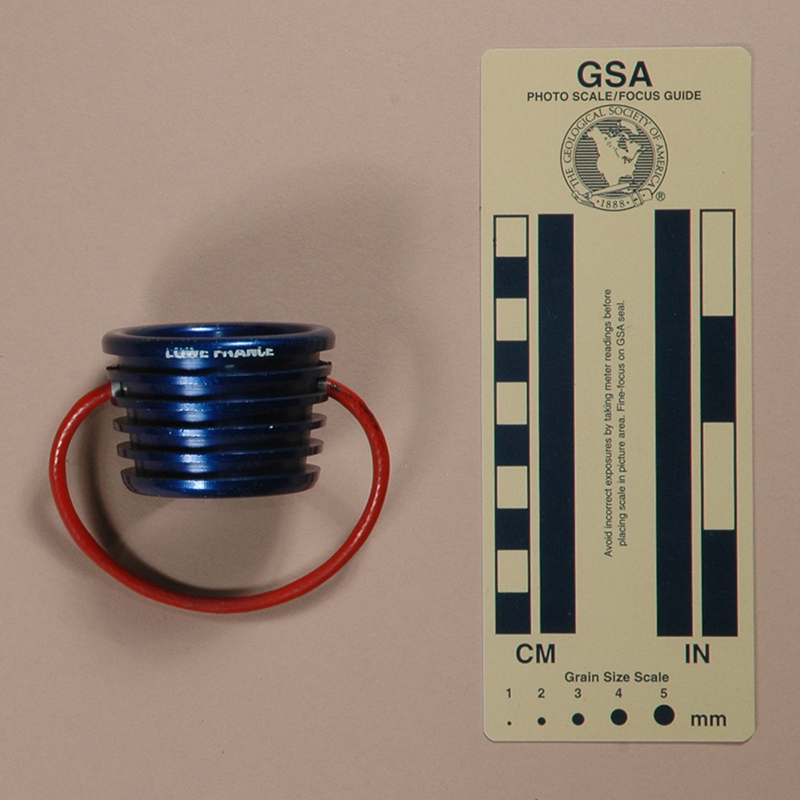

Lowe Tuber II, Version B 1625 Lowe Tuber II, Version B Turned Al, soft anodized, round,plastic-covered cable keeper Thomas Kopp, 2009 63 65 55 38 134

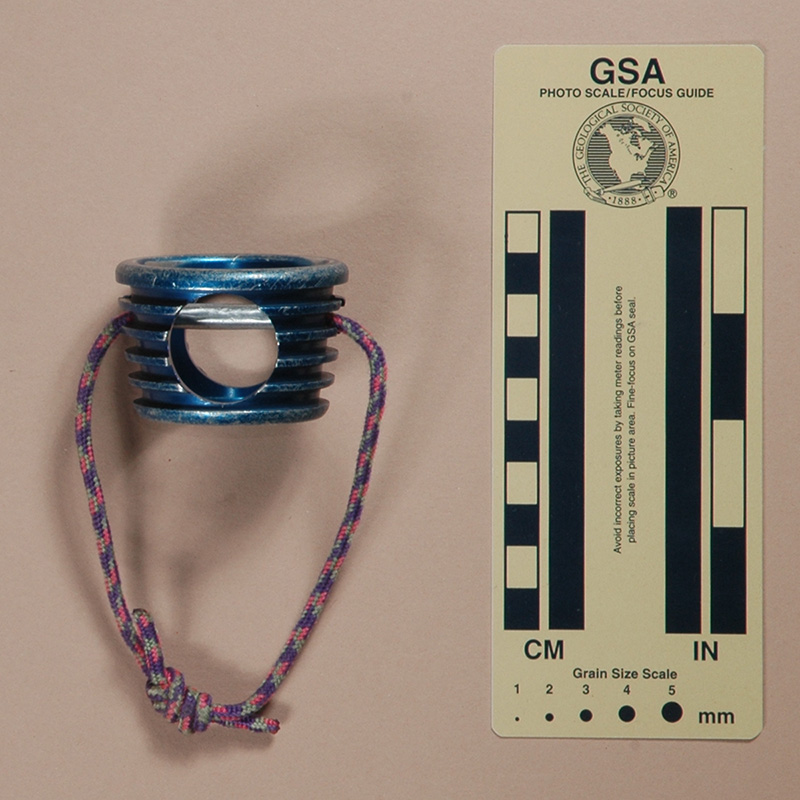

Lowe Tuber II, Version C 1711
1725
Lowe Tuber II, Version C Turned & milled Al, soft anodized, round, lightening holes, cord keeper
  • Kevin Cooper, 2010
  • Deziree Wilson, 2011
48 55 55 37 109

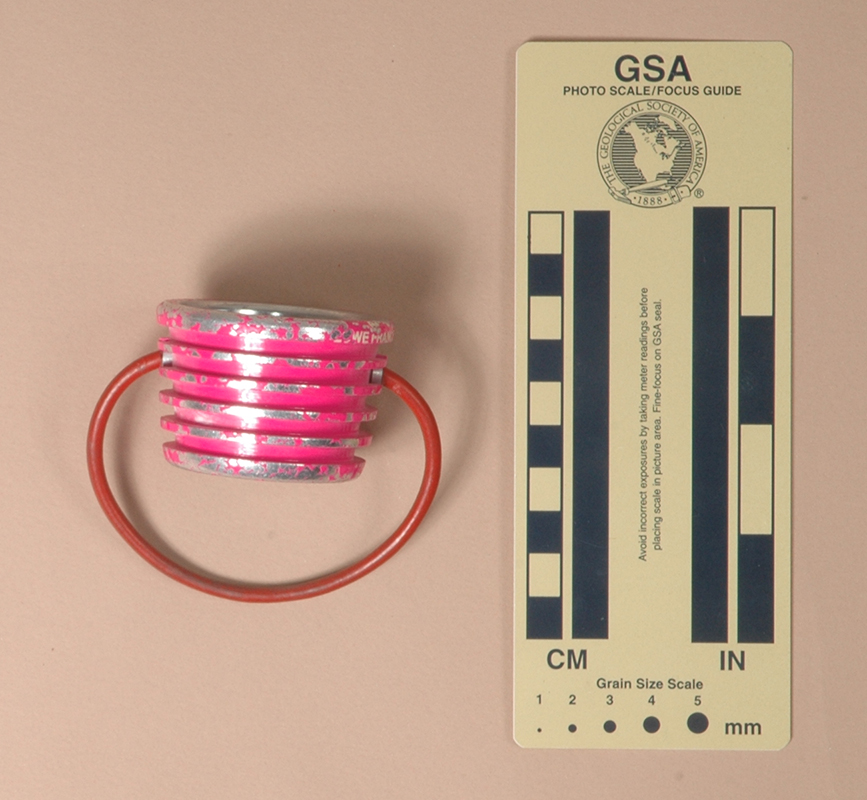

Lowe Tuber II, Version D 2679 Lowe Tuber II, Version D Turned Al, painted, round, lightening holes, cord keeper Yinetyme (Nocogear), 2017 68 67 55 38 139

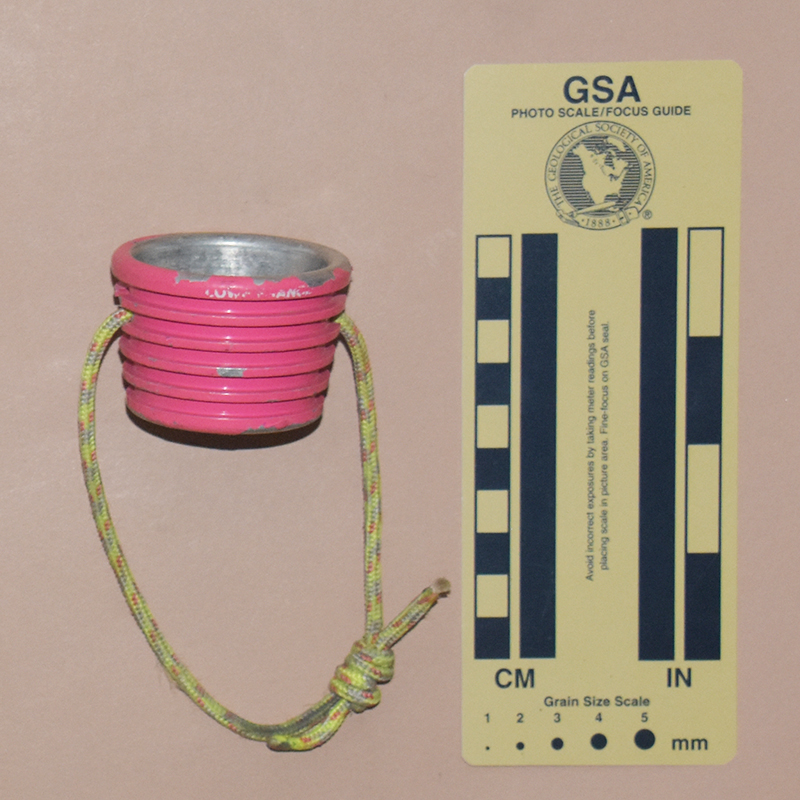

Lowe Tuber II, Version E 2727 Lowe Tuber II, Version E Turned Al, painted, round, lightening holes, cord keeper Eric Kohl, 2018 59 55 55 37 112

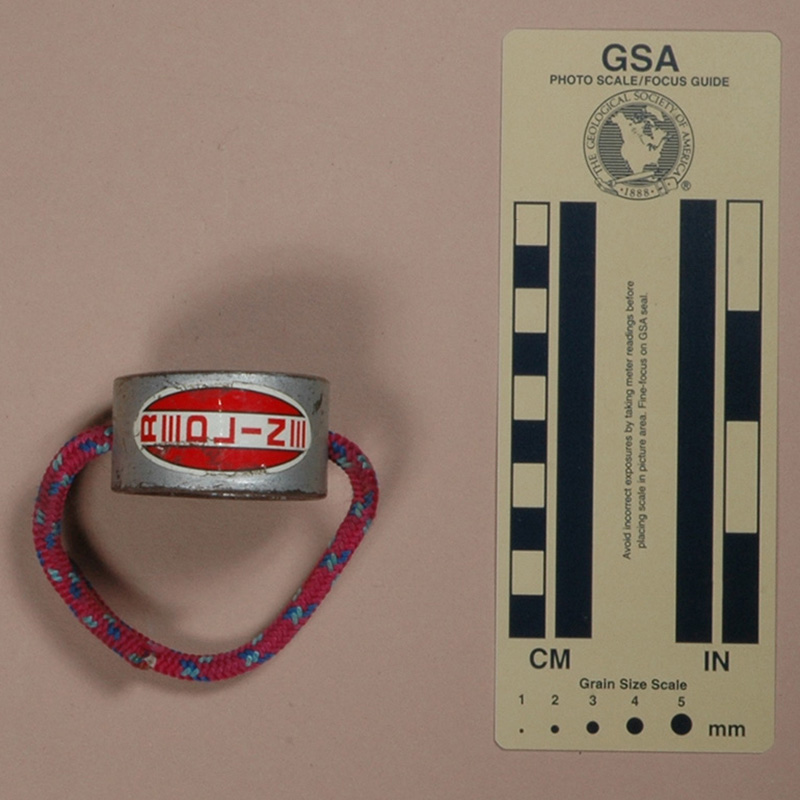

Redline 1717 Redline Galvanized steel pipe, sewn 5 mm. acc. Cord keeper John Greer, 2011 105 58 49 27 75

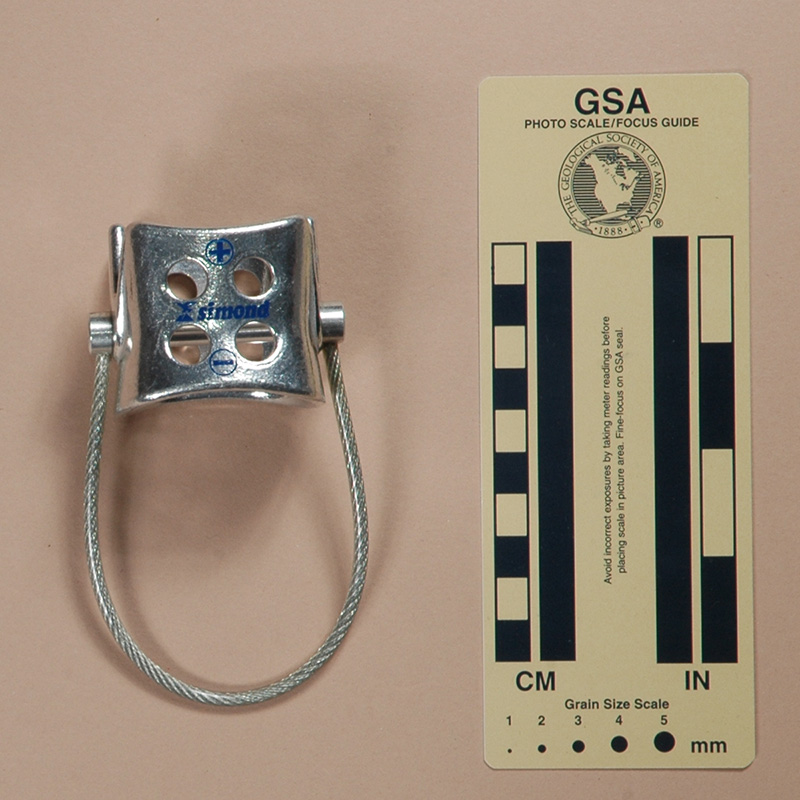

Simond Cubik, Version A 724 Simond Cubik, Version A Forged Al, unfinished, V grooves, cable keeper Climb Max, 1999 72 60 50 117 350

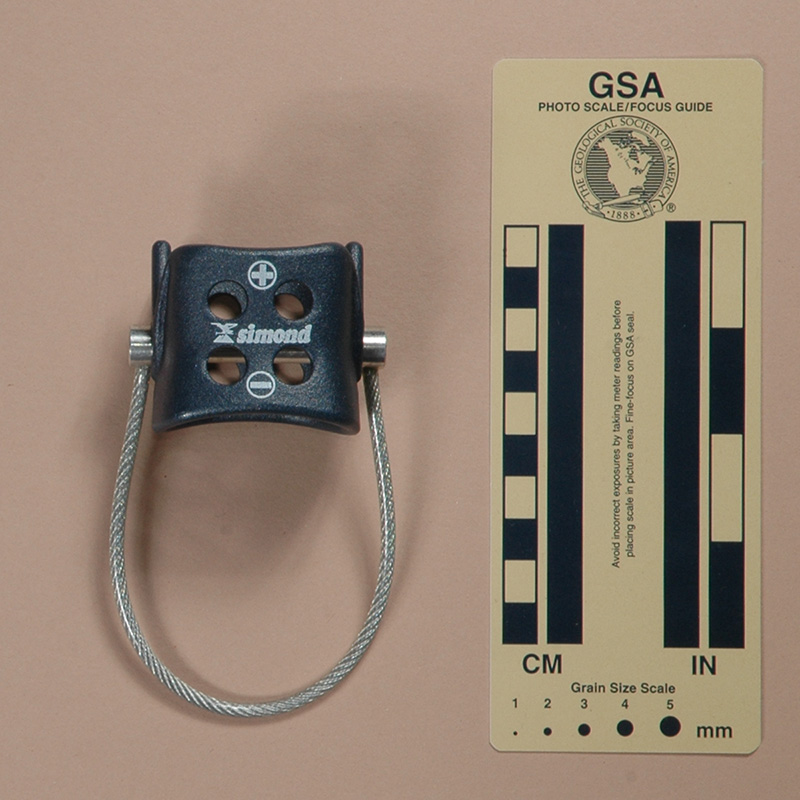

Simond Cubik, Version B 853 Simond Cubik, Version B Forged Al, painted, V grooves, cable keeper Barrabés.com, 2007 73 60 50 108 322

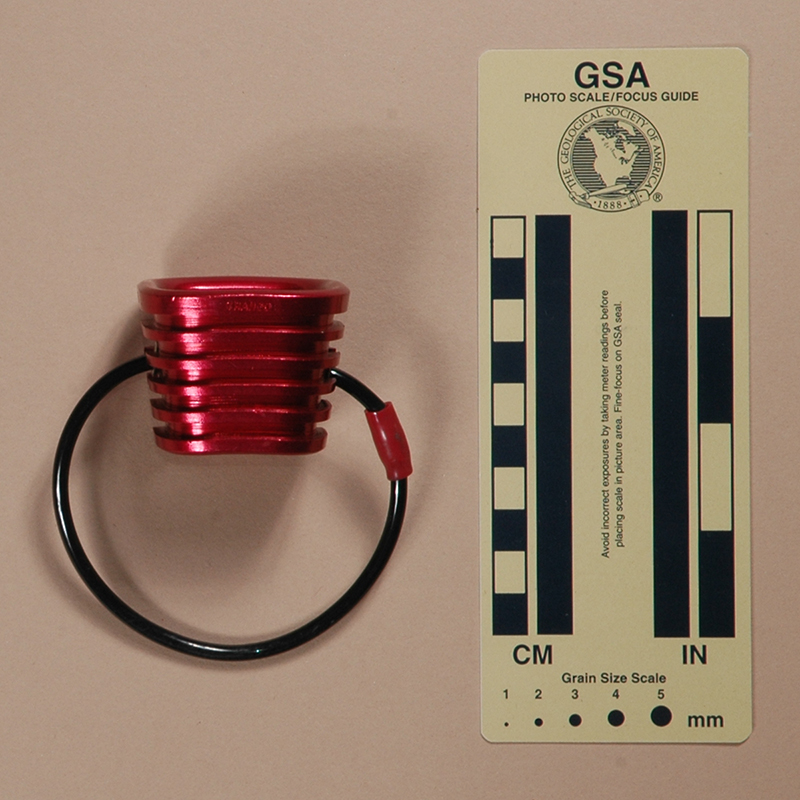

Trango Pyramid, Version A 673
677
Trango Pyramid, Version A
Star
Milled & forged Al, hard anodized, square, cable keeper
  • Exkursion, 1994
  • Ragged Mountain Equipment, 1994
66 84 51 92 393

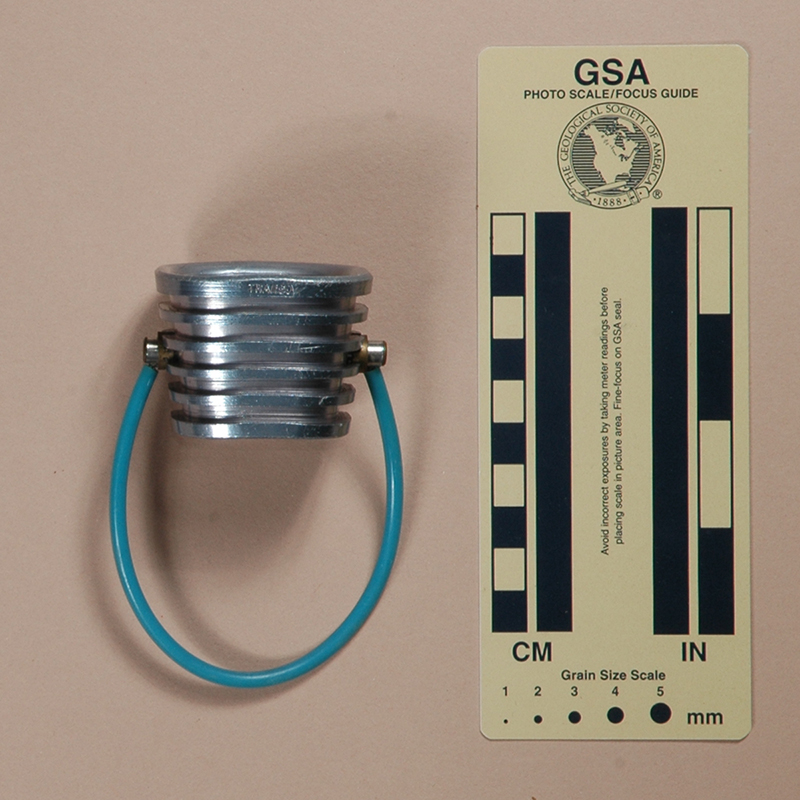

Trango Pyramid, Version B 1633
Trango Pyramid, Version B
Star
Milled & forged Al, soft anodized, square, cable keeper Zachary Britner, 2009 66 57 50 97 279

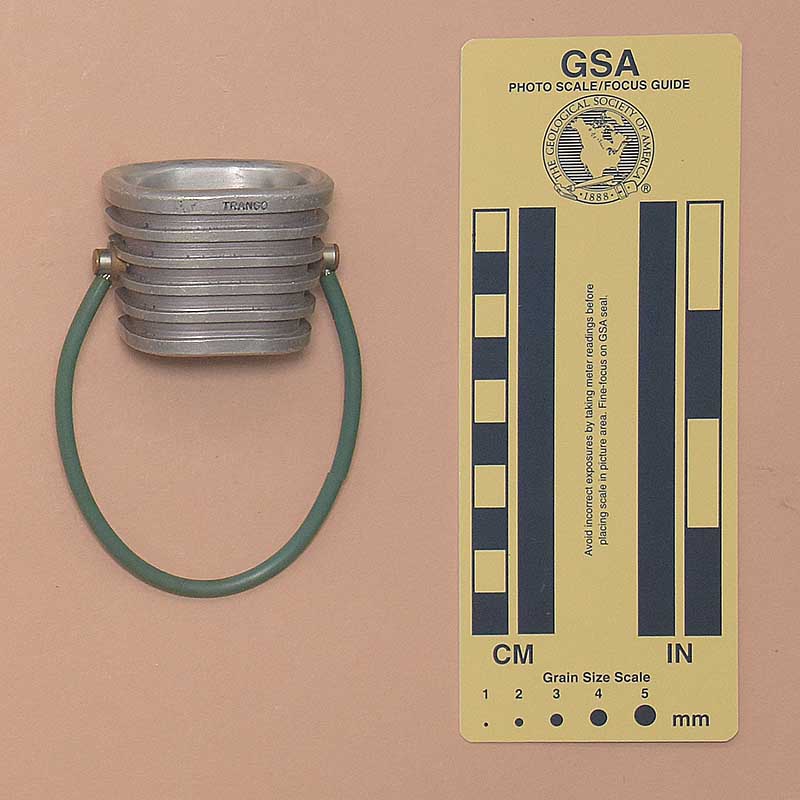

Trango Pyramid, Version C 2862 Trango Pyramid, Version C
Star
Milled & forged Al, unfinished, square, cable keeper Kim Metz, 2021 68 56 51 102 289

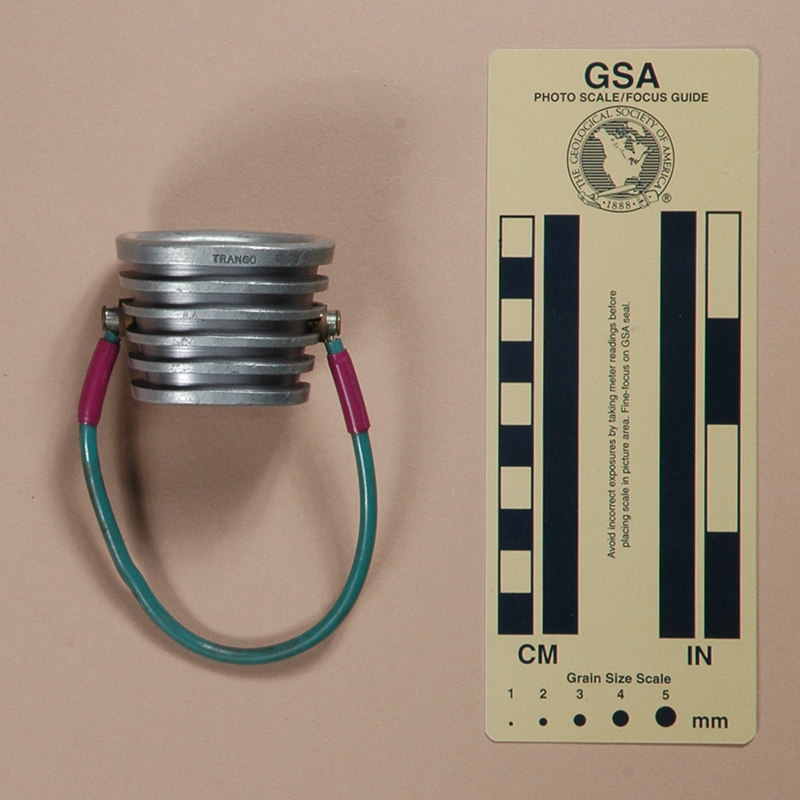

Trango Pyramid, Version D 1690 Trango Pyramid, Version D
Star
Milled & forged Al, unfinished, square, reinforced cable keeper Chloe Reeder, 2010 69 56 52 102 294

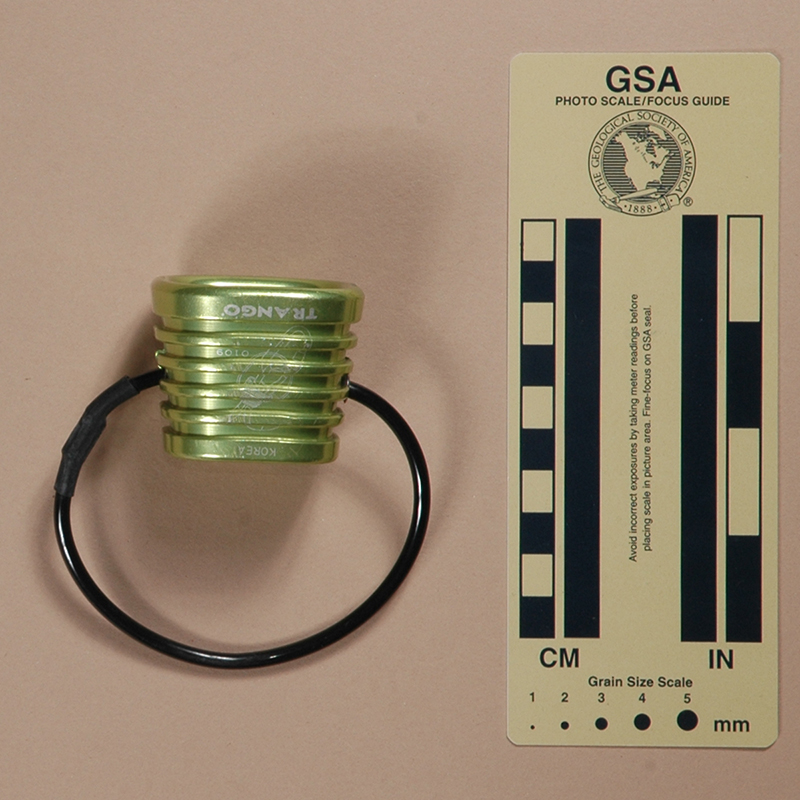

Trango Pyramid, Version E 1645 Trango Pyramid, Version E
Star
Milled & forged Al, hard anodized, square, cable keeper
  • Thomas Carlsen, 2009
  • Jason Scott Arwood, 2023
81 87 50 96 415

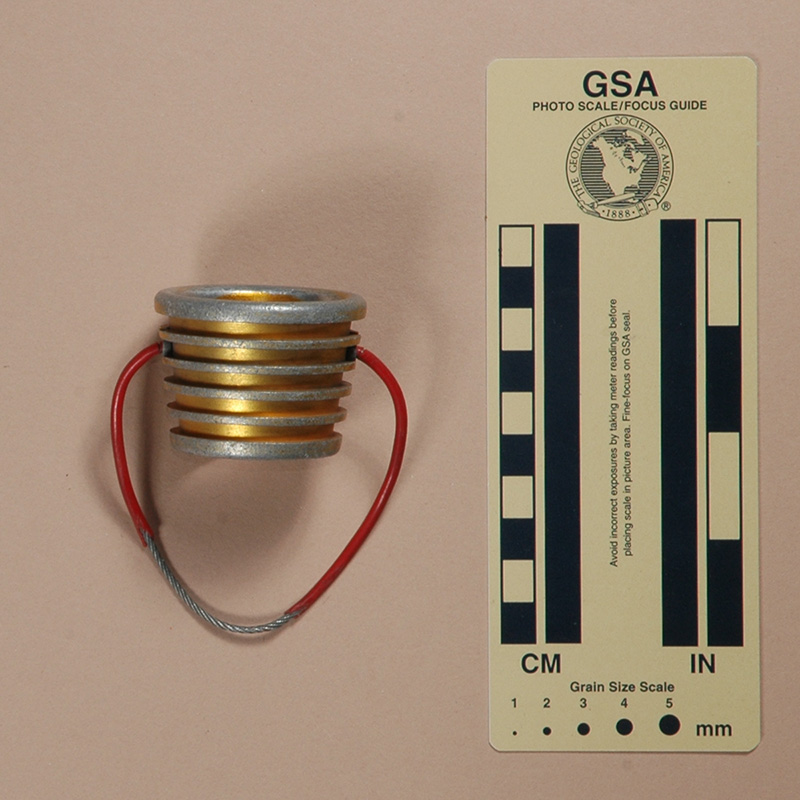

Unknown Tuber #1 1624 Unknown Tuber #1 Turned Al, soft anodized, round, plastic-covered cable keeper Vic Clementi, 2009 50 50 20 37 37

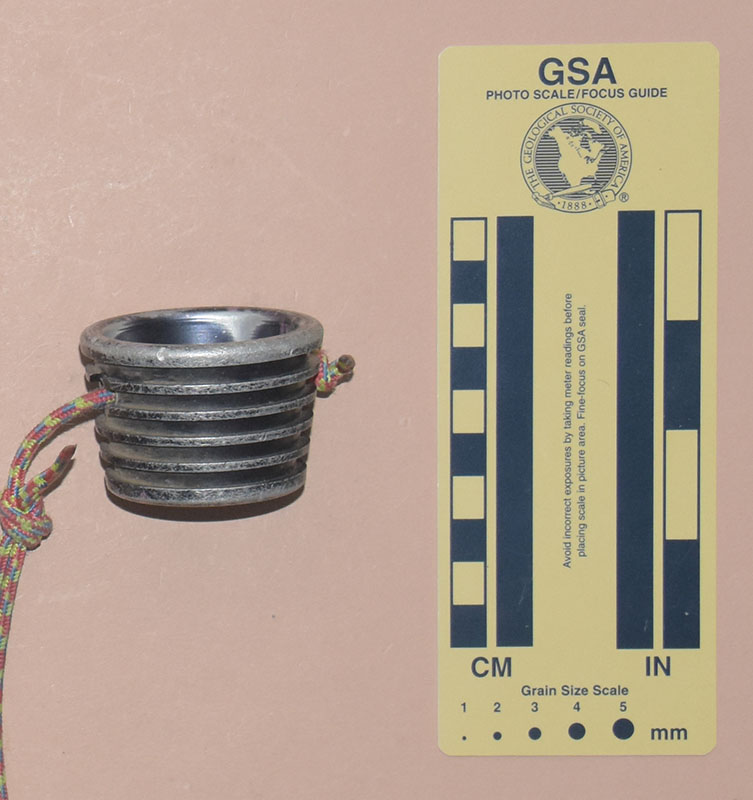

Unknown Tuber #1 2849 Unknown Tuber #2 Turned Al, soft anodized, round, cord keeper Tom Smith, 2021 62 55 55 38 113

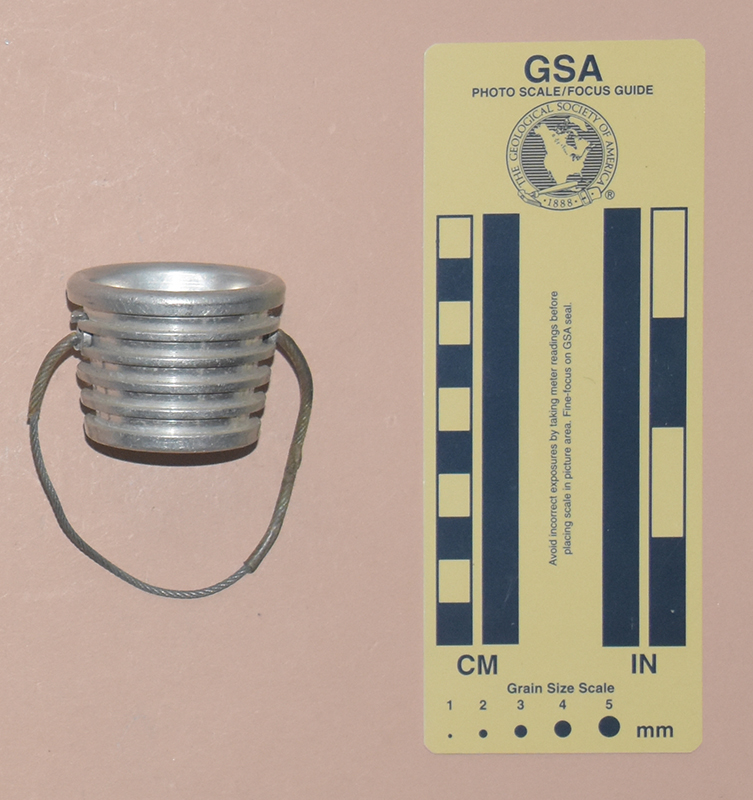

Unknown Tuber #3 2853 Unknown Tuber #3 Turned Al, clear anodized, round, plastic-covered cable keeper Ron H. Clementi, 2021 47 57 49 37 104
Unknown Tuber #4 3889 Unknown Tuber #4 Turned Al, clear anodized, round, plastic-covered cable keeper Sam Johnson, 2023 55 54 54 38 110

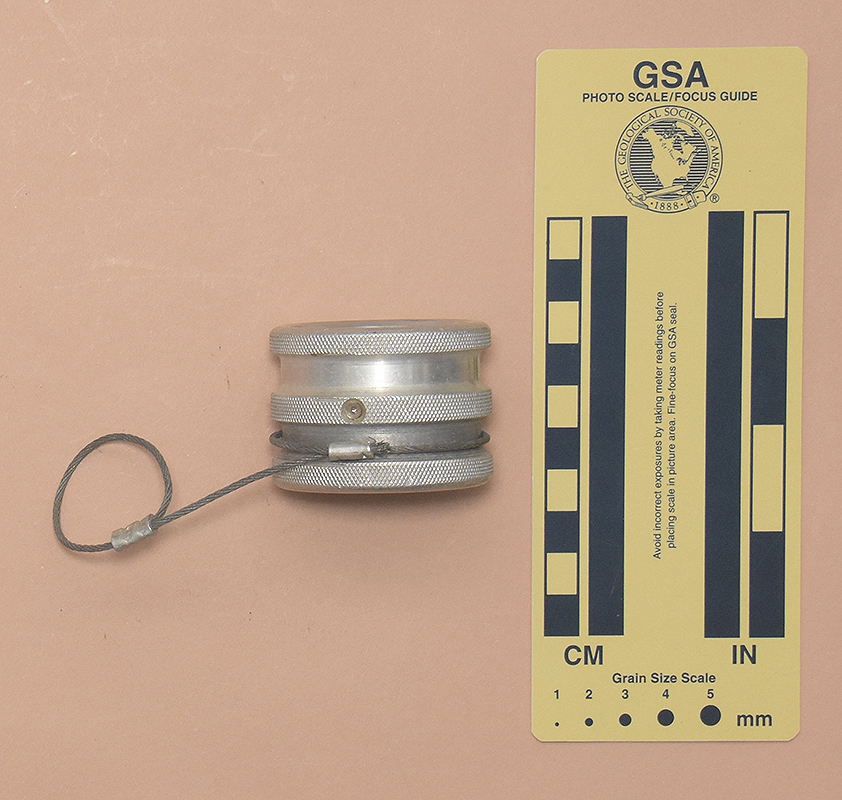

Unknown Tuber #5 3721 Unknown Tuber #5 Turned Al, knurled,  cable keeper Wild Gear Deals, 2022 75 55 51 38 106

Near Tubes Belay Tubes Tuber and Belay Tube Weight Chart
