Single Brake Bar Descenders

These descenders have one and only one brake bar that swings open for rigging. I exclude the use of a "normal" brake bar on a single carabiner, putting this on the Carabiner Brake Bar Methods page, but I include unusual brake bars such as the Charlet Moser, PFH Pitt Stop and Wagner Brake Bar here. Descenders with multiple brake bars that swings open are covered on the J-frame Racks and O-frame & U-frame Racks pages or, in a strange case, the Miscellaneous Descenders (for the J-Bar).

Note that it is a "Brake Bar," not a "Break Bar." Think about it.

Image	ID	Device ↓	Description	Acquired	Weight ↓	Height ↓	Width ↓	Thickness ↓	Std. volume ↓
	1305	Bonaiti Robot	Forged bent frame /w two horns, unfinished, pivoting steel bar, flat back	Avri Keren, 2011	140	145	53	33	251
	454	Bonaiti Robot	Forged bent frame /w two horns, unfinished, pivoting steel bar, flat back	Unknown, 1970s	142	145	53	33	254

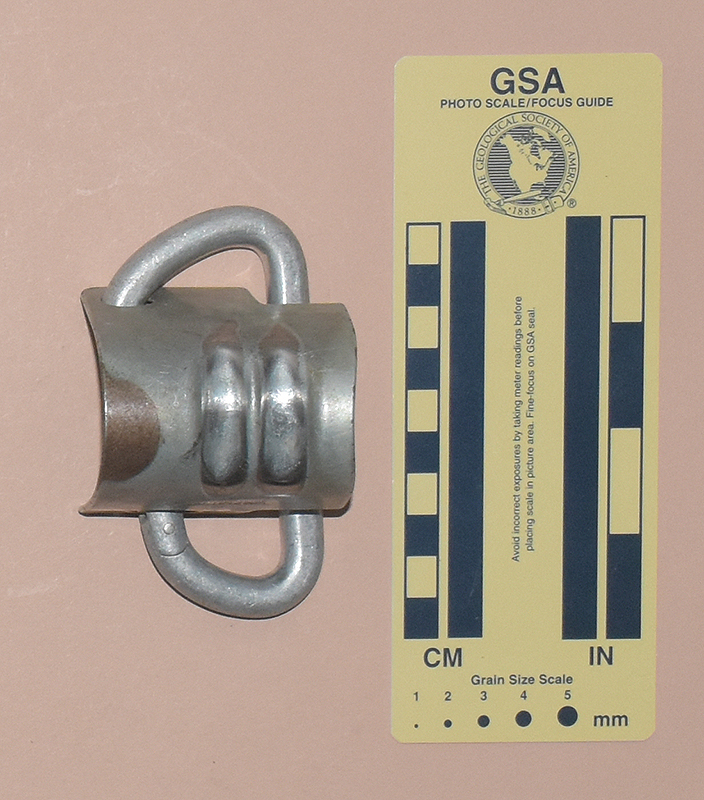

	1413	Charlet Moser, Version A	Stamped plated steel brake bar	Stéphane Pennequin, 2014	76	54	61	55	179

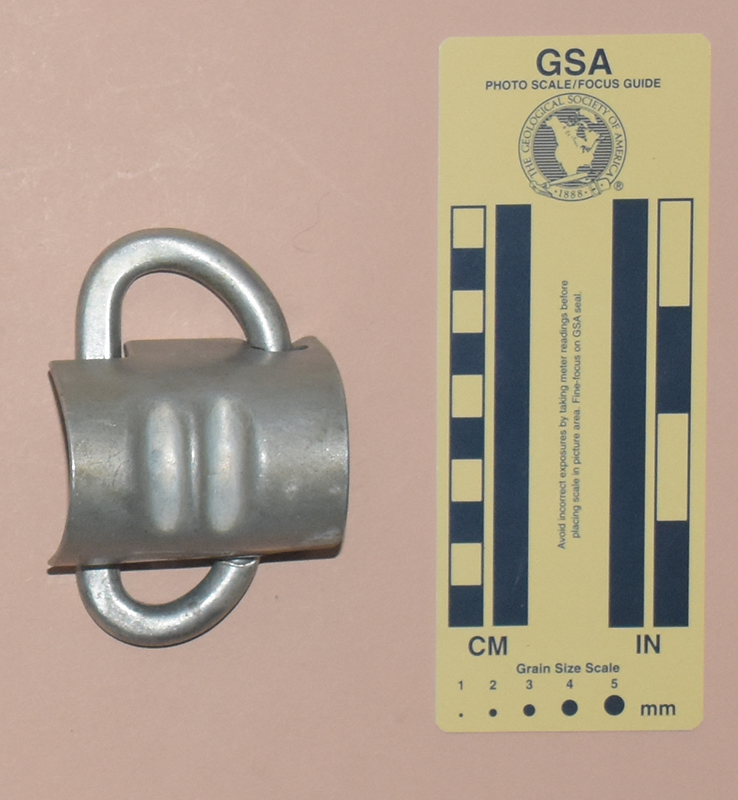

	3203	Charlet Moser, Version B	Stamped plated steel brake bar	Marty Karabin, 2021	86	53	66	58	201

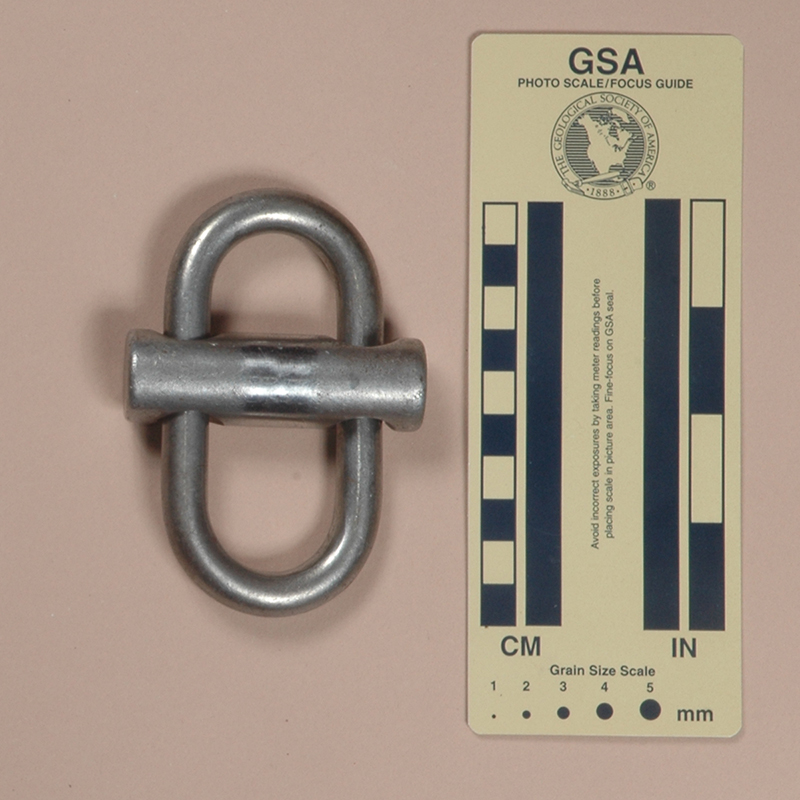

	1487	Coe Descender, Version A	Steel brake bar on steel oval	Kris Wild/Squamish Search & Rescue, 2016	327	101	70	22	155

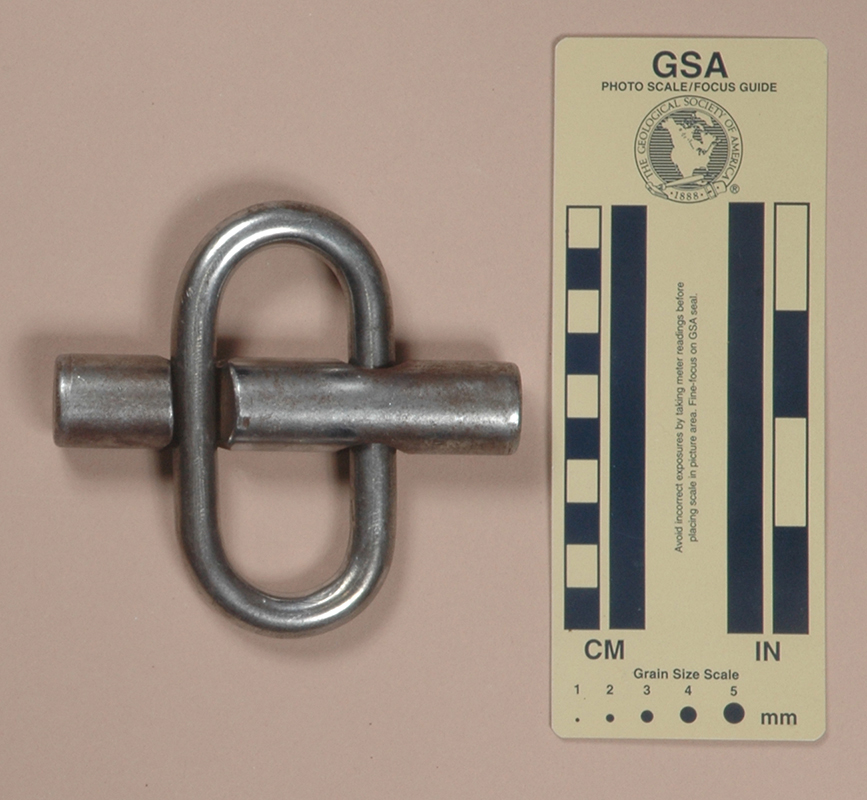

	1488	Coe Descender, Version B	Long steel brake bar on steel oval	Kris Wild, 2016	449	103	109	22	247

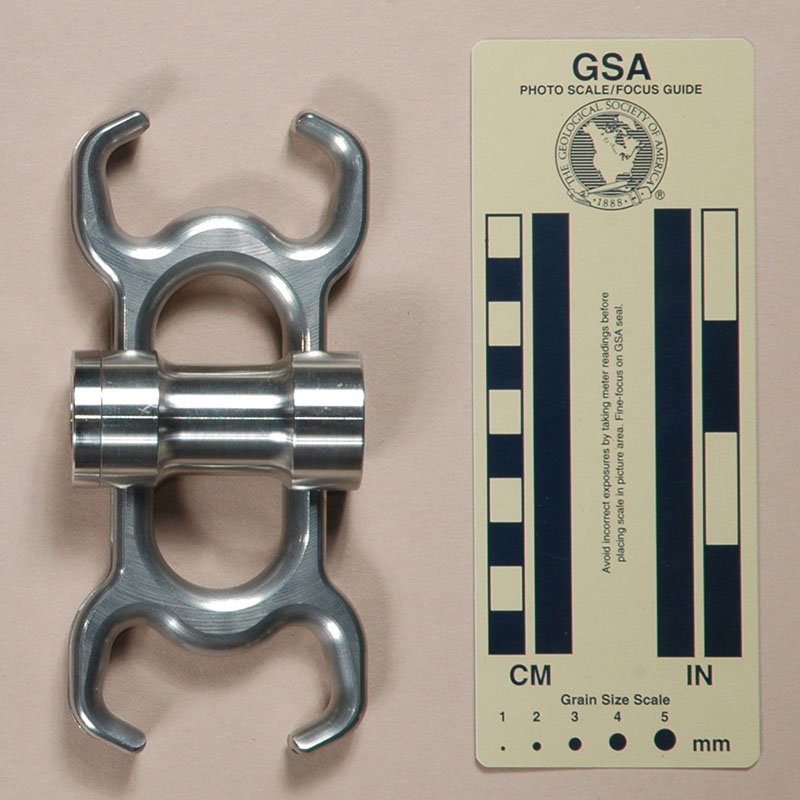

	1164	Conterra Scarab	SS Frame /w 1 slot & 4 ears, SS brake bar	Rescue Response Gear Inc., 2008	394	146	67	31	308

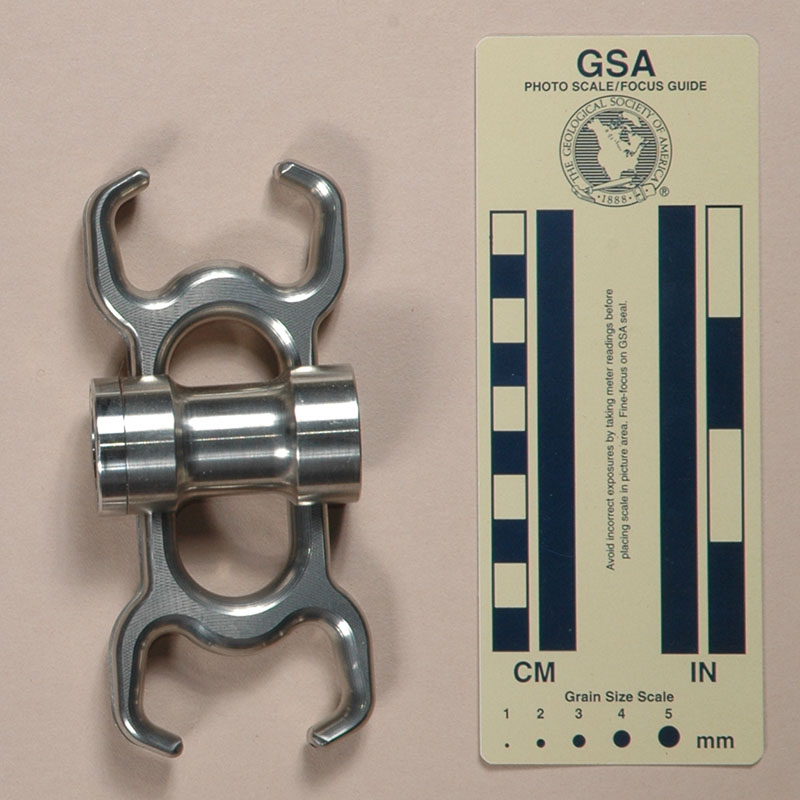

	1167	Conterra Scarab Ti, Version A	Ti Frame /w 1 slot & 4 ears, Ti brake bar	On Rope 1, 2008	192	133	59	31	246

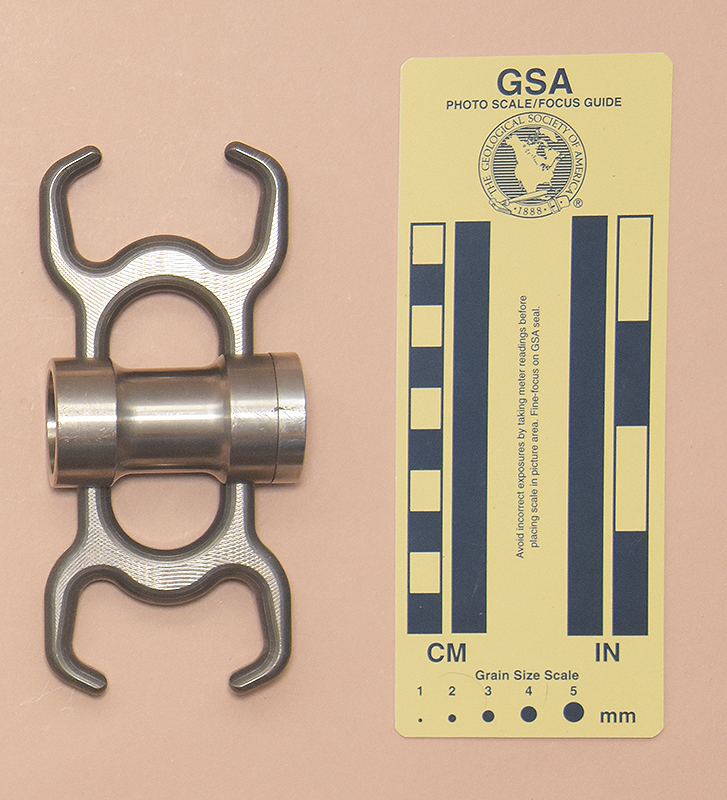

	3123	Conterra Scarab Ti, Version B	Ti Frame /w 1 slot & 4 ears, Ti brake bar	Debbie Flythe, 2021	195	133	59	31	247

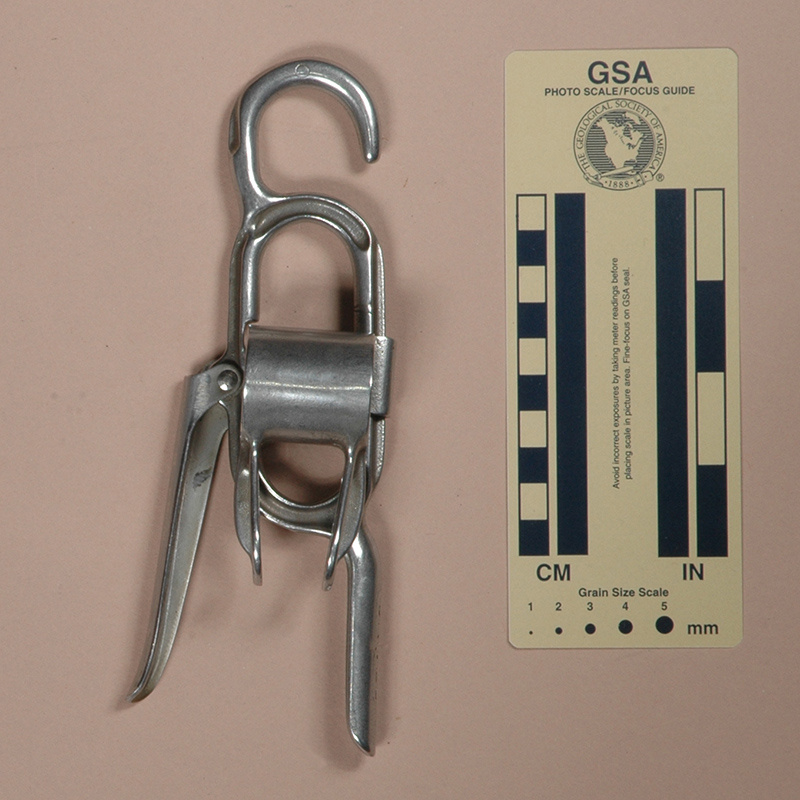

	1284	Grivel	Stainless steel, frame with horn and handle, sliding brake bar, control handle	Heinz Steffen Zeidler, 2011	264	192	59	37	414

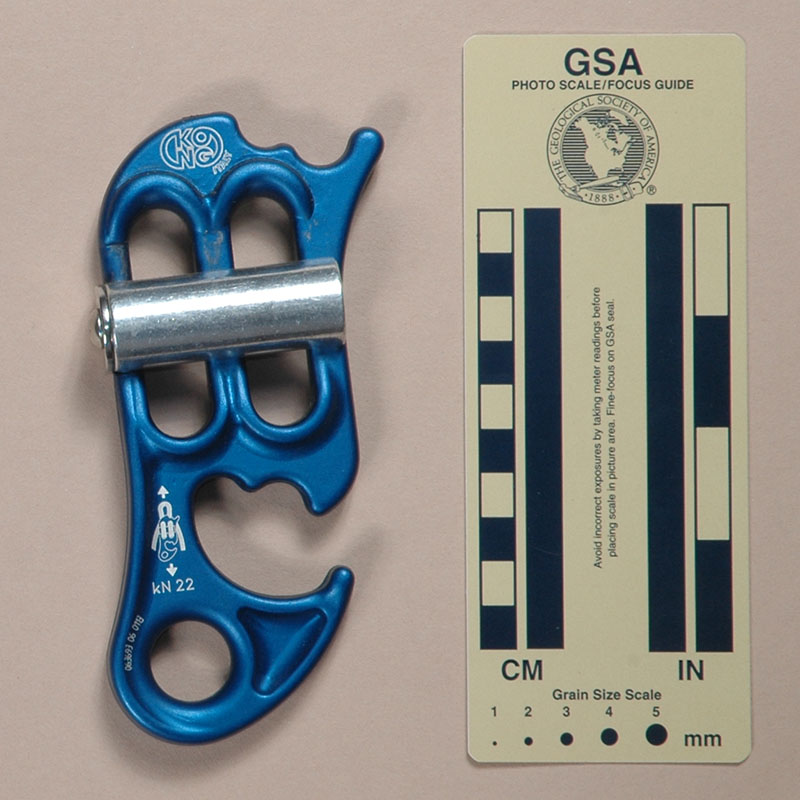

	1030	Kong Hydrobot	Forged anodized Al frame /w two slots, pivoting steel bar	Barrabés.com, 2007	186	142	63	21	188
	455	Kong Robot, Version A	Forged bent frame /w two horns, unfinished, pivoting steel bar, grooved back	1992	155	147	53	33	257
	1435	Kong Robot, Version B	Forged bent frame /w two horns, unfinished, pivoting steel bar, grooved back	Hanny Piltz, 2015	156	148	52	33	257
	1024	Kong Robot, Version C	Forged bent frame /w two horns, hard anodized, pivoting steel bar, grooved back	Barry Duncan, 2006	161	146	53	33	257

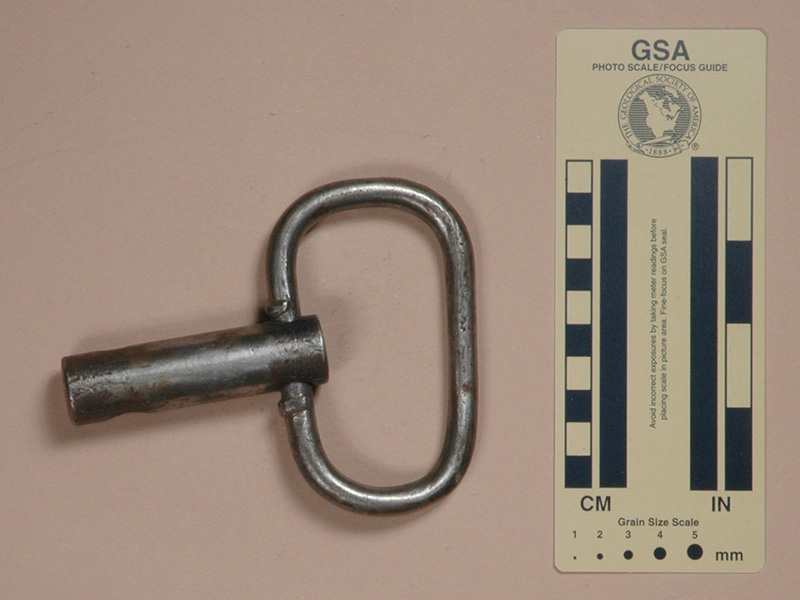

	1248	Larry Tidd / Missouri School of Mines	9.4 mm. steel frame with hollow steel brake bar	Stanley Sides, 2009	216	103	80	21	174

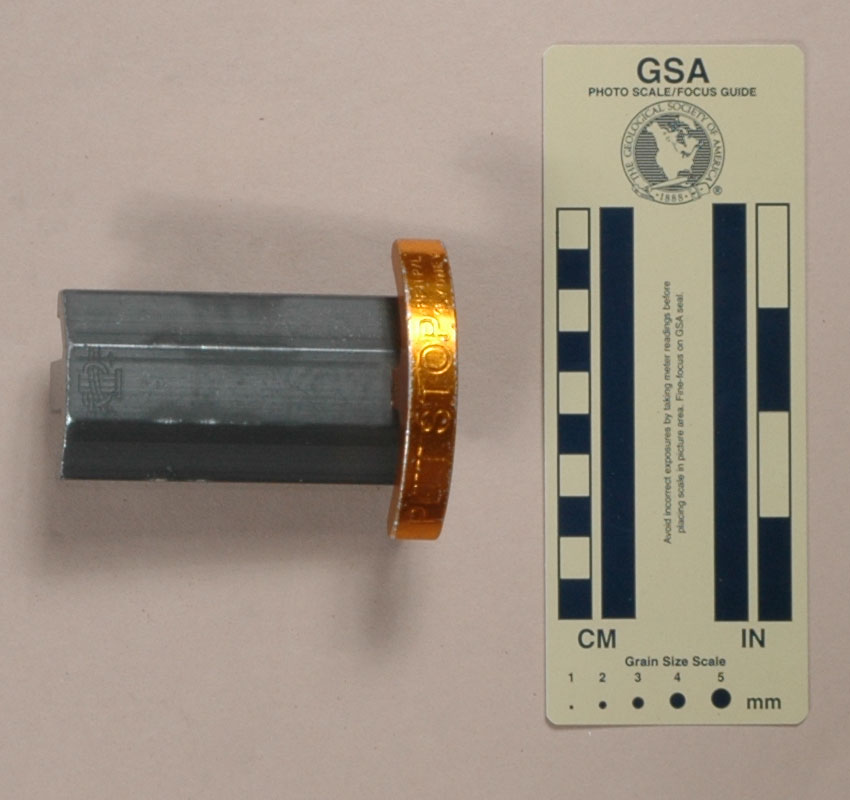

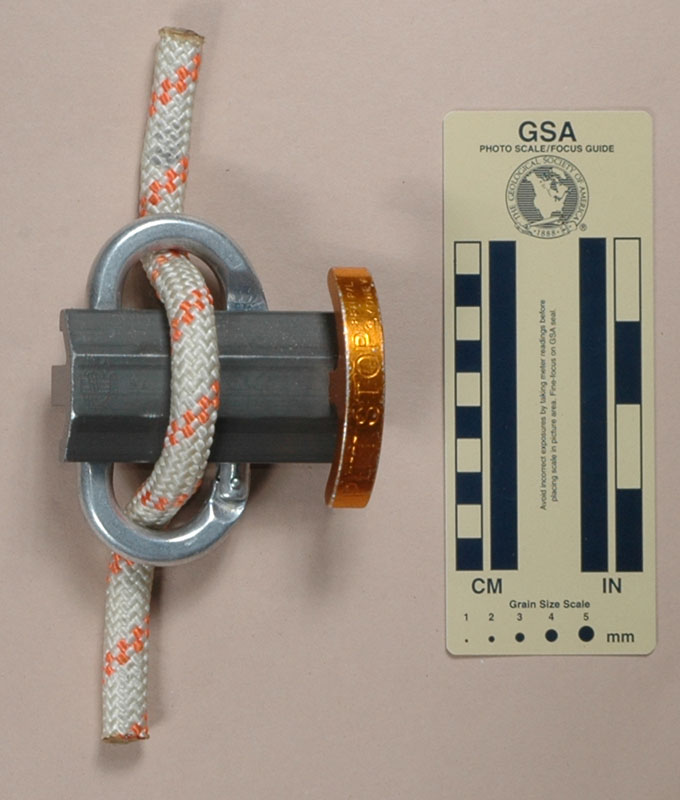

	592	PFH Pitt Stop, Version A	Extruded Al, hard-coated oversize brake bar /w tie-off horns	Paul MacLeman, 2001	154	90	72	61	394

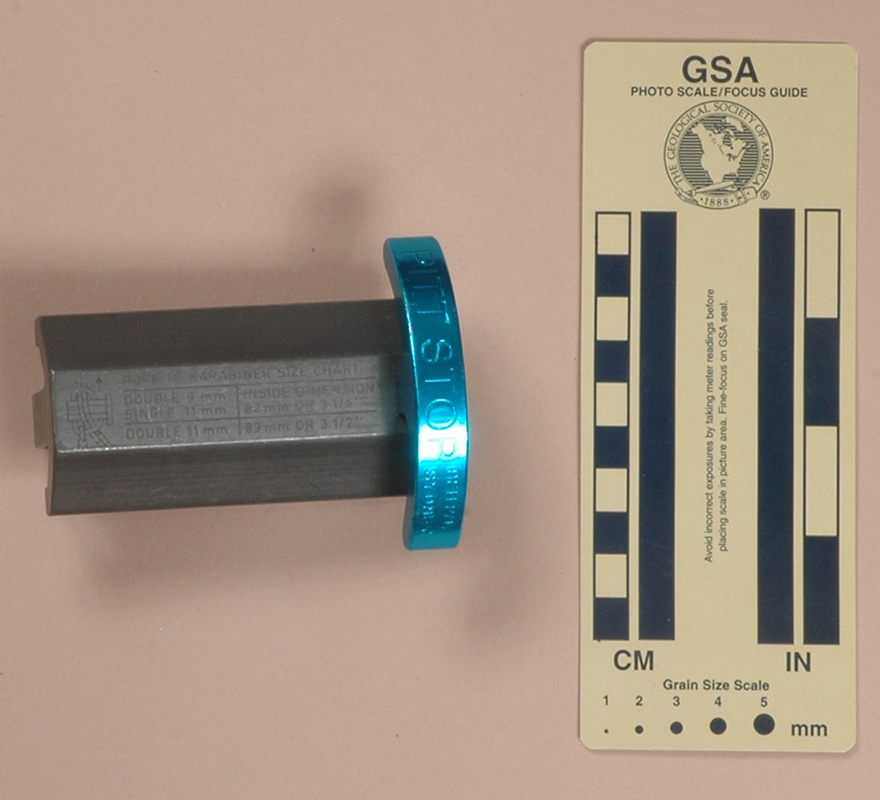

	596	PFH Pitt Stop, Version B	Extruded Al, hard-coated oversize brake bar /w tie-off horns	Inner Mountain Outfitters, 2001	154	90	72	61	394

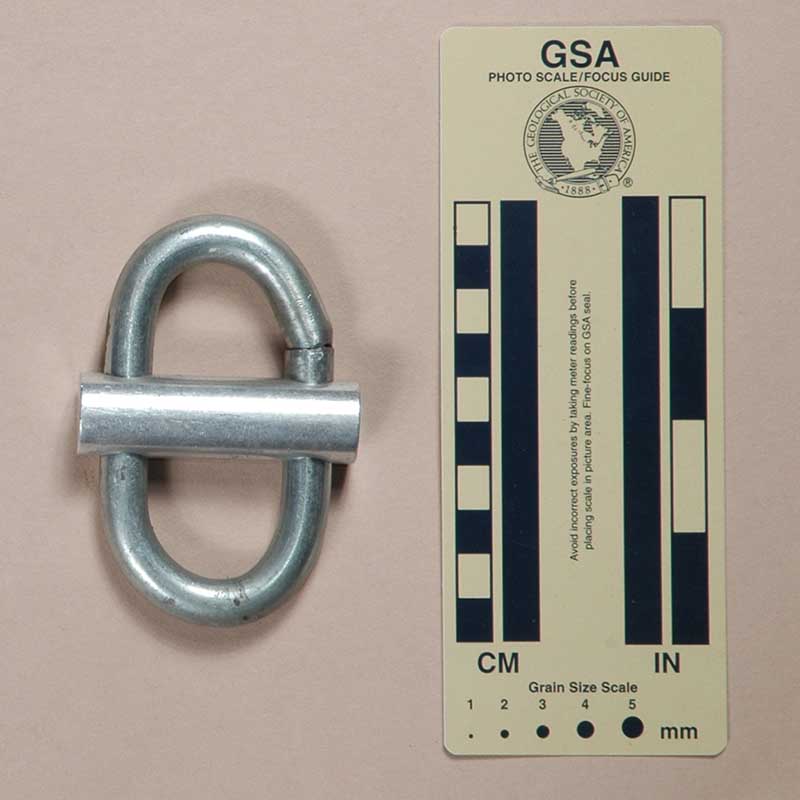

	954	Storrick - Francis, Version A	SMC Brake Bar on 7/16" steel rod oval	Gary Storrick, 2004	197	94	63	19	113

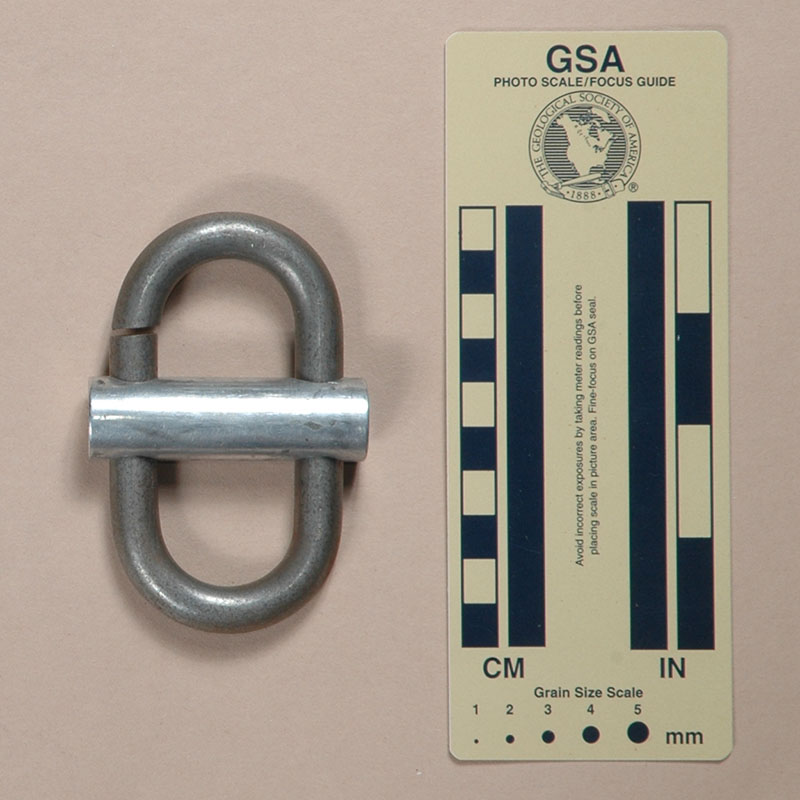

	992	Storrick - Francis, Version B	SMC Brake Bar on 7/16" steel rod oval	Gary Storrick, 2005	197	96	63	19	116

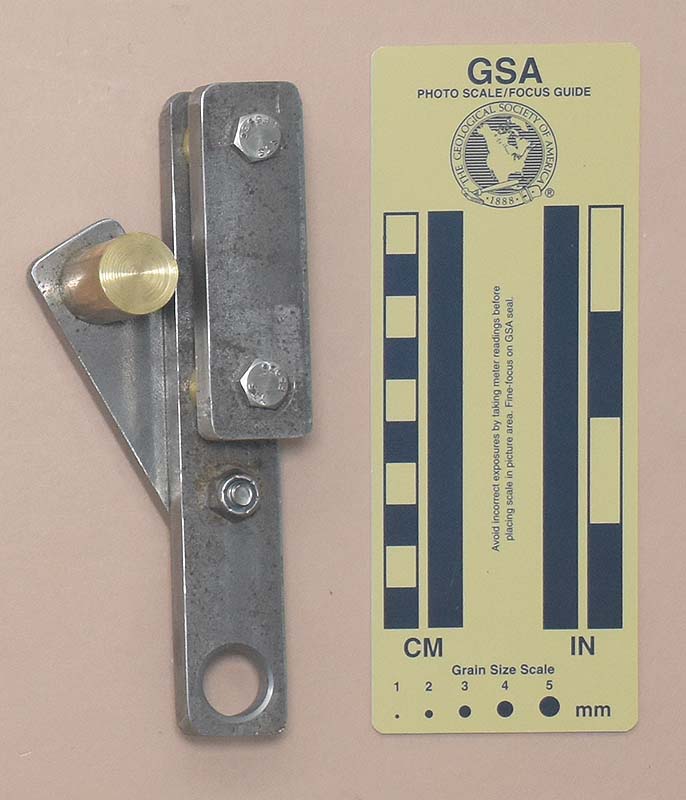

	3216	Storrick - Geffner, Version A	Homemade, 2 brass bars between fixed steel sideplates, third bar on pivot arm, single-ended	Gary Storrick, 2022	662	152	47	51	365

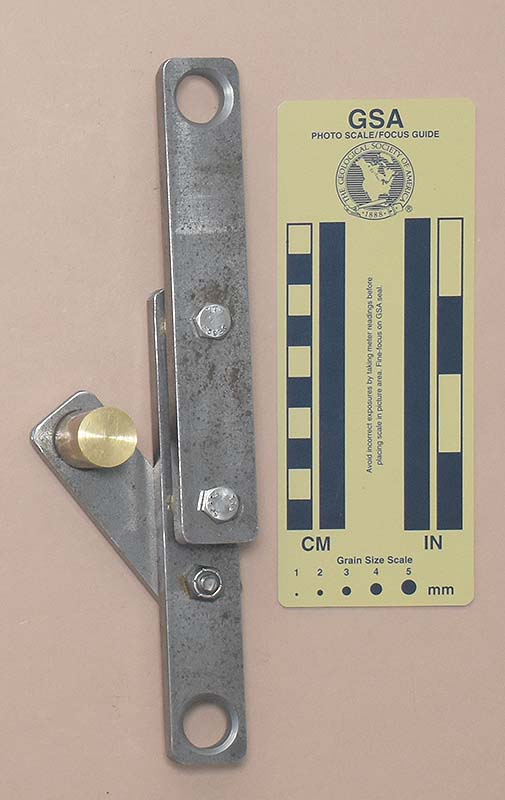

	3217	Storrick - Geffner, Version B	Homemade, 2 brass bars between fixed steel sideplates, third bar on pivot arm, double-ended	Gary Storrick, 2022	778	224	47	52	551

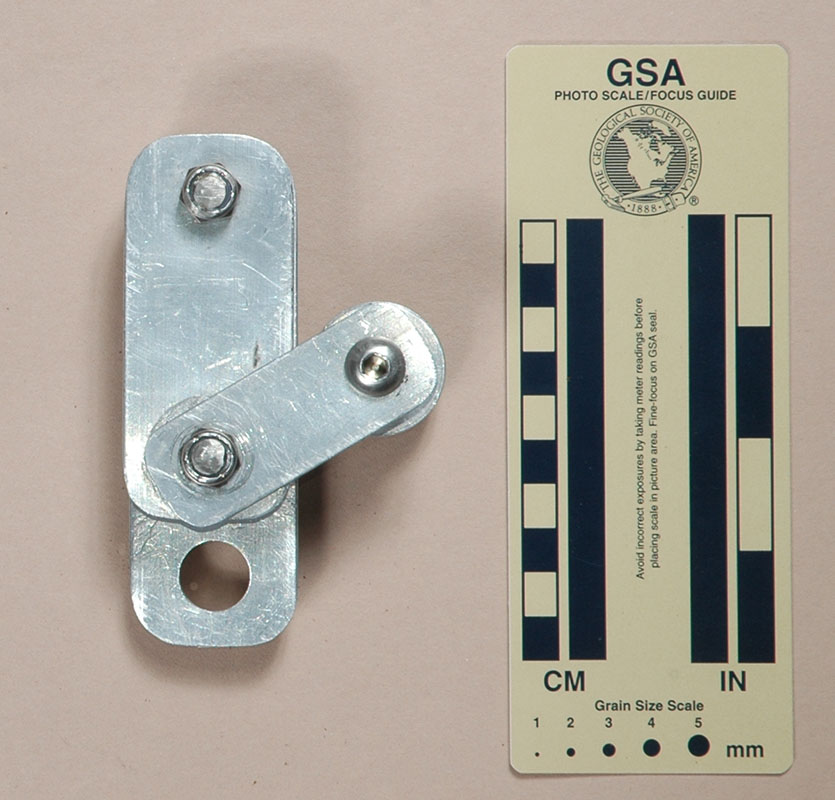

	937	Storrick - Geffner, Version C	Homemade Al, 2 short bars between fixed side plates, third bar on pivot arm	Gary Storrick, 2004	146	115	63	39	283

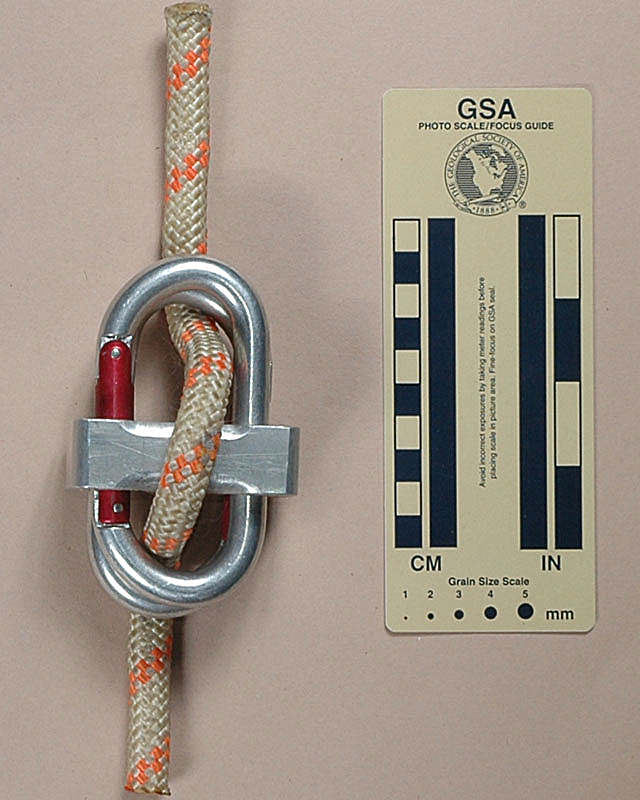

	953	Wagner Brake Bar	Brake Bar for Two Carabiners	Gary Storrick, 2004	91	67	40	20	55
