Belay Spools

These are multiwrap spools primarily designed for rescue and lowering applications.

Gallery

Image ID Device ↓ Description Acquired Weight ↓ Height ↓ Width ↓ Thickness ↓ Std. volume ↓
Bassett Metal Studios Belay Spool, Production Model 721 Bassett Metal Studios Belay Spool Unfinished rounded square Al spool, 2 pins, swing frame, SS frame Karst Sports, 1999 870 145 80 77 893
Bassett Metal Studios Belay Spool, Prototype 705 Bassett Metal Studios Belay Spool, Prototype#1 63 mm. round spool, 2 pins, swing frame, unfinished Al Vertical Supply, 1997 831 145 84 76 926
Bassett Metal Studios Belay Spool, Prototype 3700 Bassett Metal Studios Belay Spool, Prototype#2 Unfinished rounded square Al spool, 2 pins, swing frame, SS frame Mark Dickey & New Jersey Initial Response Team, 2022 923 144 79 76 870

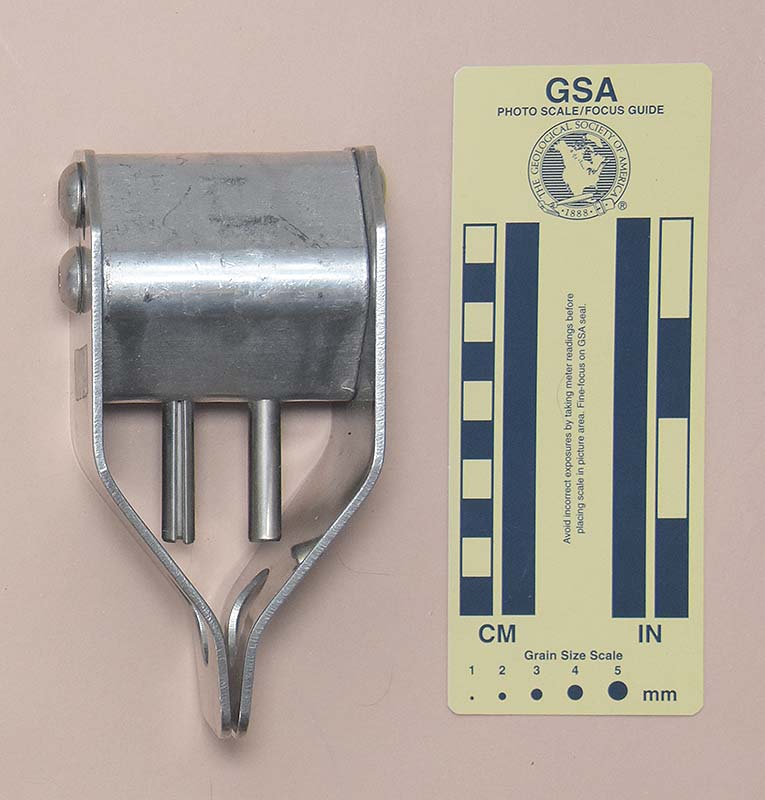

Bassett Metal Studios Belay Spool, Prototype 2899 Bassett Metal Studios Belay Spool, Prototype#3 Unfinished rounded subtriangular Al spool, 2 pins, swing frame, SS frame Mark Dickey & New Jersey Initial Response Team, 2022 871 143 79 76 866

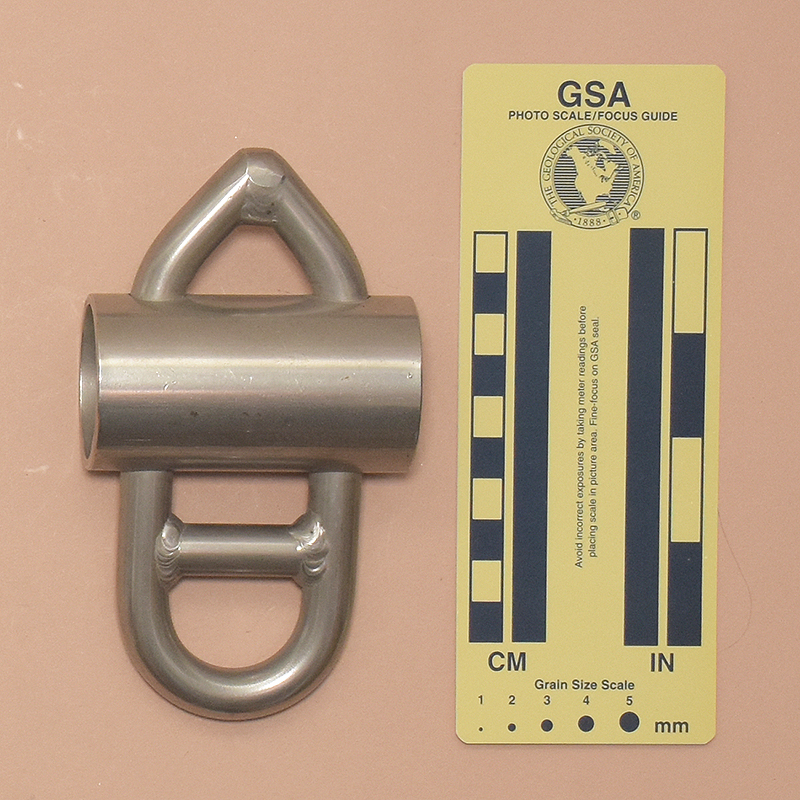

Bassett Metal Studios Small Belay Spool, Prototype 3844 Bassett Metal Studios Small Belay Spool, Prototype SS spool on welded 12.7 mm. SS frame Bassett Metal Studios, 2023 522 139 77 42 446

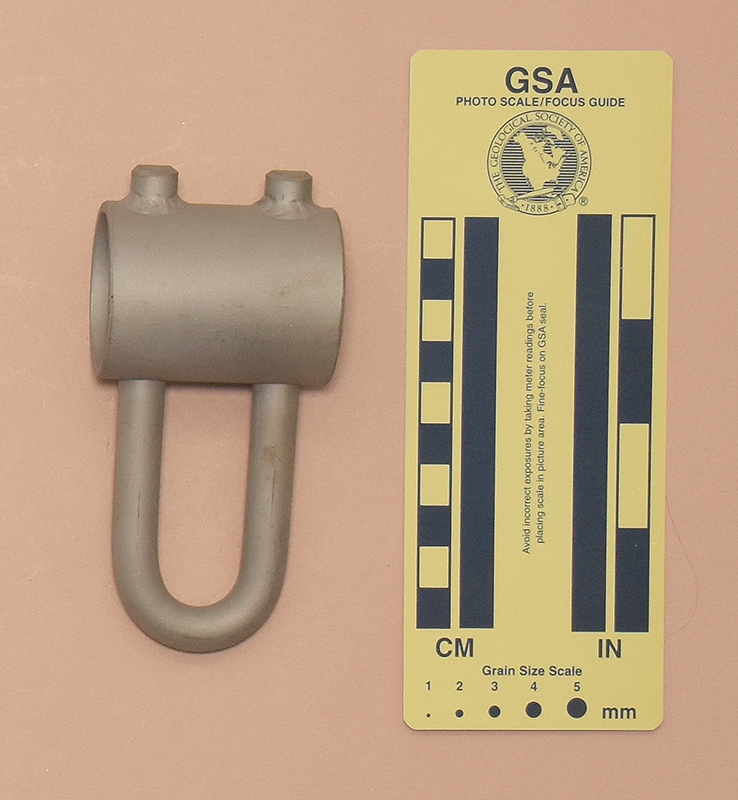

Bassett Metal Studios Small Belay Spool, Version A 3842 Bassett Metal Studios Small Belay Spool, Version A SS spool on 11 mm. U-shaped SS frame Bassett Metal Studios, 2023 319 118 55 42 269

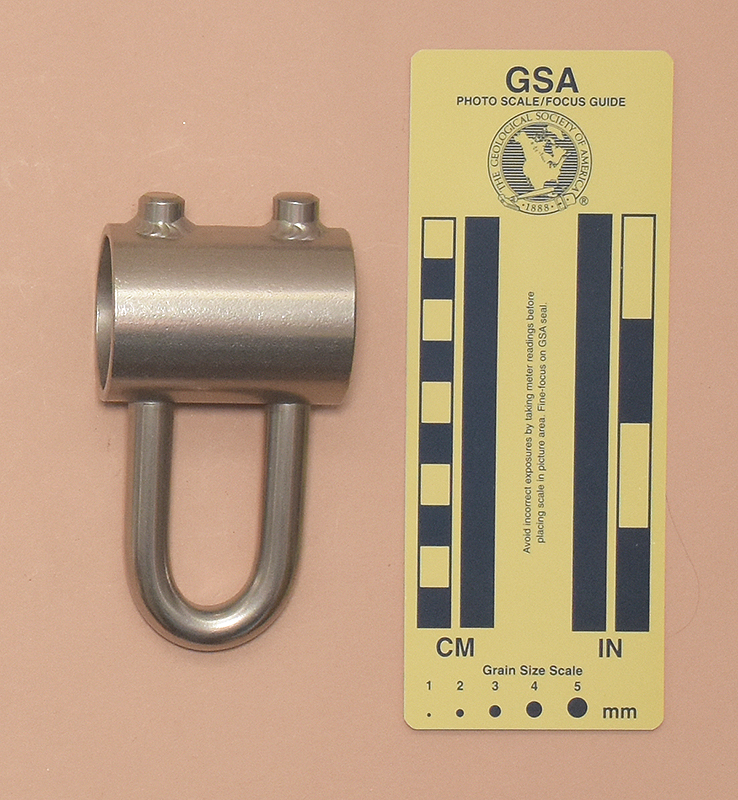

Bassett Metal Studios Small Belay Spool, Version B 3843 Bassett Metal Studios Small Belay Spool, Version B SS spool on 11 mm. U-shaped SS frame Bassett Metal Studios, 2023 315 112 57 42 267

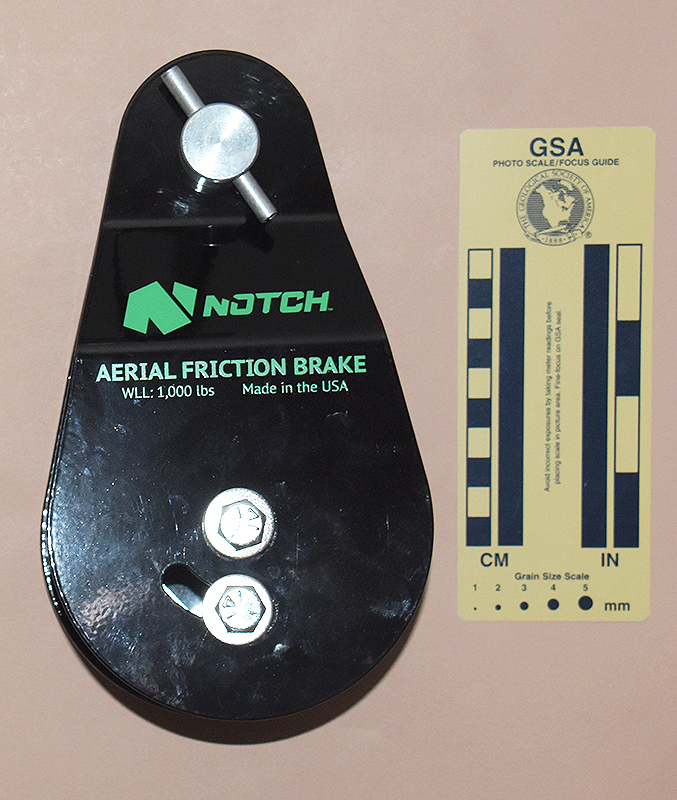

Bassett Metal Studios Belay Spool, Prototype  2765  Notch Aerial Friction Brake Unfinished rounded square Al spool, 2 pins, swing ing steel frame, pulley sheave anchor /w screw latch Nick Bonner, Treestuff.com, 2019 1530 213 120 101 2567
SBCI Belay Spool 884 SBCI Belay Spool 64 mm. round spool, 2 pins, swing frame, unfinished Al Todd Paris, 2007 848 145 76 84 920

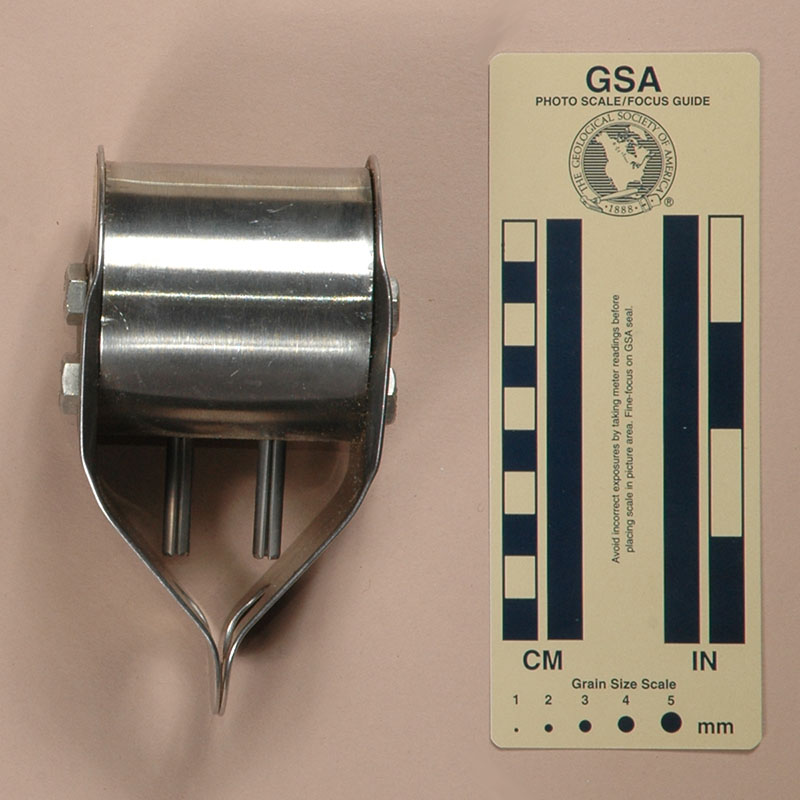

Single Rope Technique RBM 738 Single Rope Technique Equipment RBM 63 mm. round spool, 2 pins, swing frame, SS Single Rope Technique Equipment, 2000 834 132 78 71 729

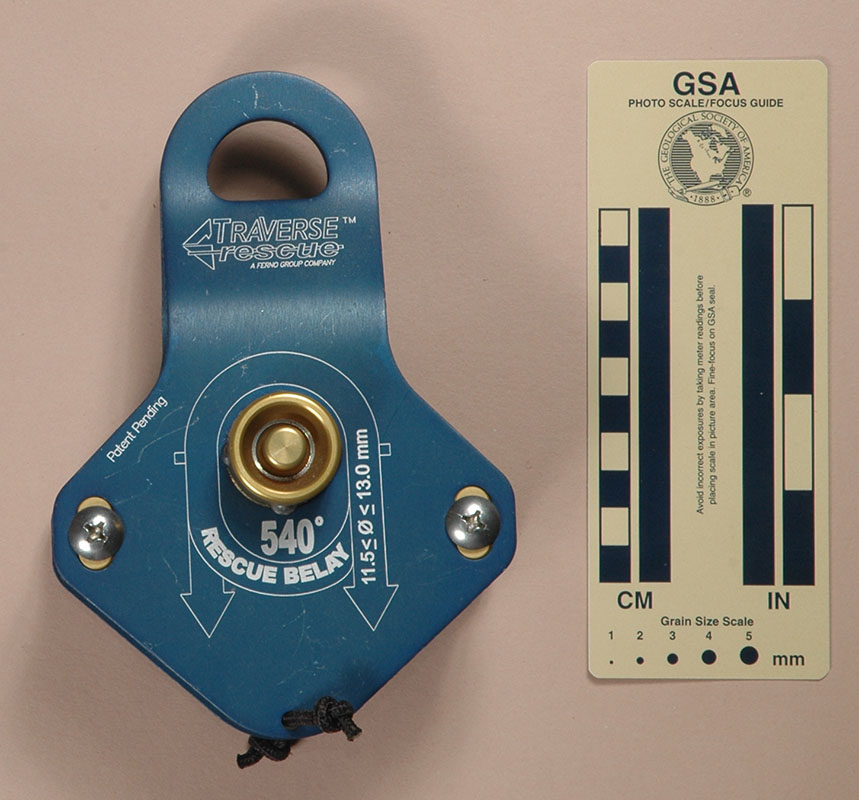

Traverse Rescue 540° Rescue Belay, Version A 756 Traverse Rescue 540° Rescue Belay, Version A
Star
Al frame, eccentric Al spool on 3-position clutch, release lever CMC Rescue, 2001 671 175 119 77 1604

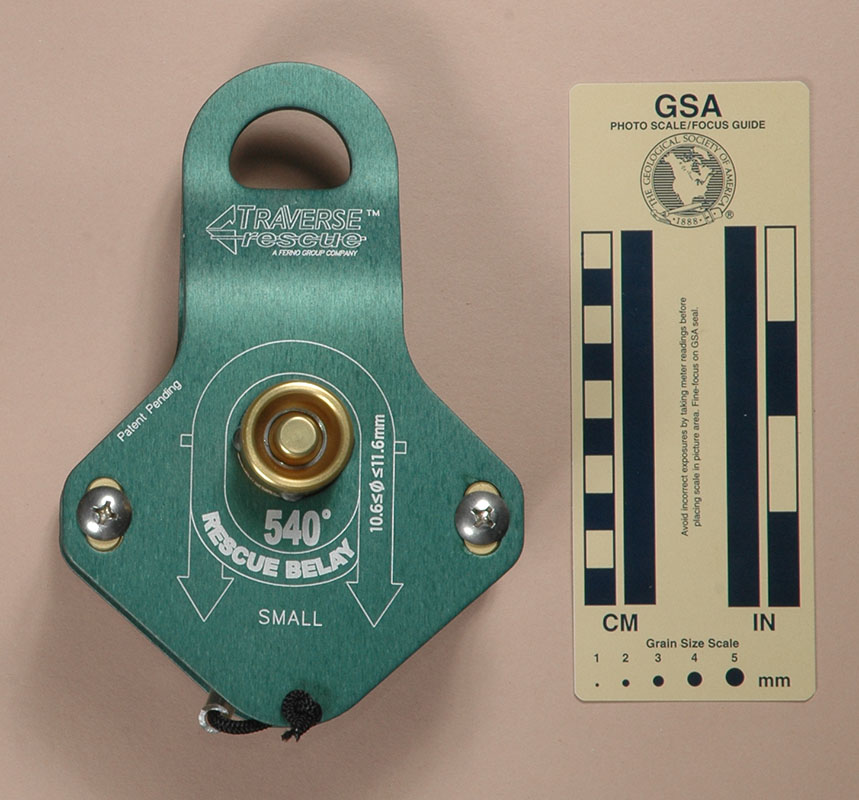

Traverse Rescue 540º Rescue Belay, Version B 800 Traverse Rescue 540º Rescue Belay, Version B
Star
Al frame, eccentric Al spool on 3-position clutch, release lever Pigeon Mountain Industries, 2004 659 170 119 77 1558
Traverse Rescue 540º Rescue Belay, Version B 3841 Treestuff Aerial Friction Brake TS–1 Unfinished rounded square Al spool, 2 pins, swing ing steel frame, pulley sheave anchor /w screw latch Bassett Metal Studios, 2023 1522 213 120 101 2567
