Plain Bobbins

Rope PathBobbins are mechanical descenders where the rope path follows the S-shaped path shown in the figure. The braking surface typically consists of two non-rotating bollards fixed to a side plate, with a second pivoting side plate provided to keep the rope from jumping off the other end of the bollards. A third (usually smaller) bollard may be provided. The seat maillon usually attaches to holes in extensions of the two side plates; these holes are aligned when the side plates pivot to the closed position.

Some bobbins have a mechanism that applies additional braking force if the rappeller releases or squeezes (depending on the design) a handle on the bobbin. Plain bobbins, the subject of this page, have no such mechanism. I divide the bobbins with such mechanisms into these groups:

1. Stop Bobbins, where the main upper bollard is fixed to the rear plate, the main lower bollard is fixed to a rotating lever that moves in one direction to stop and the other for descending,

2. Double-Stop Bobbins, where the main upper bollard is fixed to the rear plate, the main lower bollard is fixed to a rotating lever that moves in either direction to stop and to the center for descending, and

3. Near Bobbins, where the two main bollards are attached to a rotating lever. These may have a double stop feature, and attachments to provide for a double stop are available for most of those that do not.

Bobbins are quite popular among European cavers, but then again, they all seem to use almost exactly the same system. This has advantages, but stifles creativity. I've used bobbins as my short-drop device, but they really don't have enough friction for my weight (I'm 1.91 m., 88 kg.), especially when I'm carrying a heavy load. They should work better for a 50 to 60 kg lightweight.

Gallery

Image ID Device ↓ Description Acquired Weight ↓ Height ↓ Width ↓ Thickness ↓ Std. volume ↓

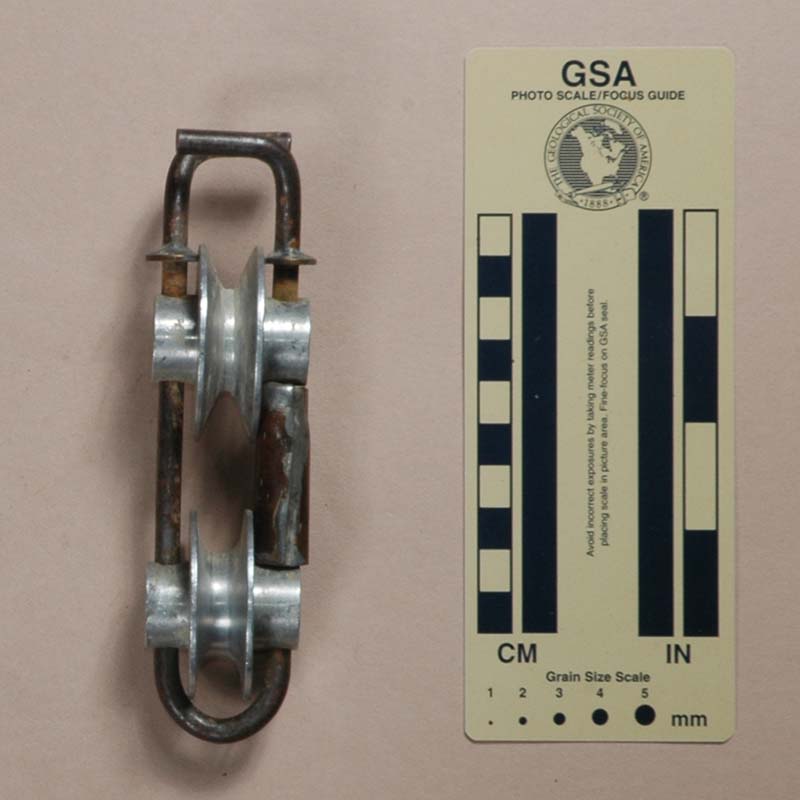

Austrian 430 Austrian Rod frame, solid spools, lower spool cut & pivots on frame, noncommercial Peter Ludwig, 1991 195 143 45 40 257

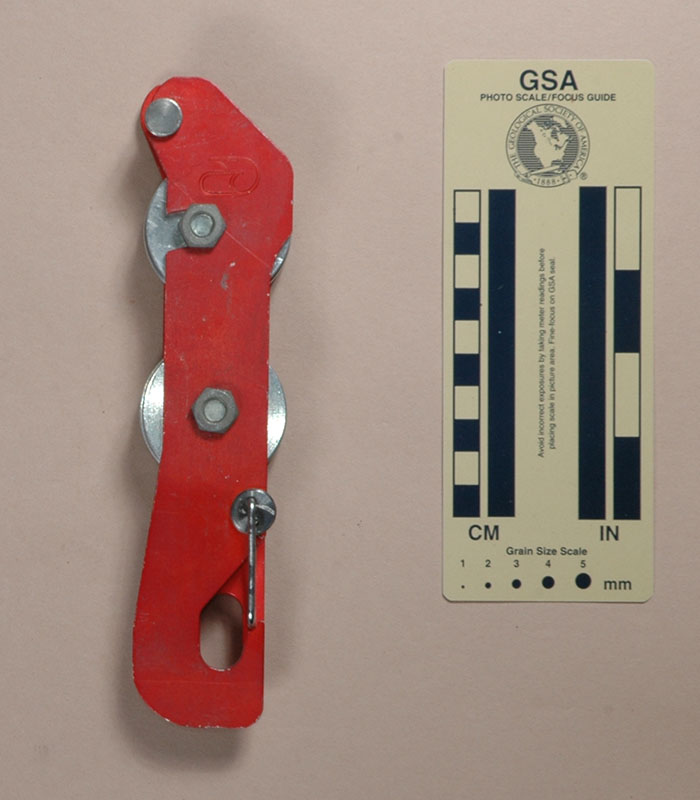

Mikhail Dyakin 450 Cascade
(Каскад)
Bent frame, solid spools, aux. bar, wire gate Vladimir Kisseljov & Ilia Alexandrov,1994 353 195 45 32 281

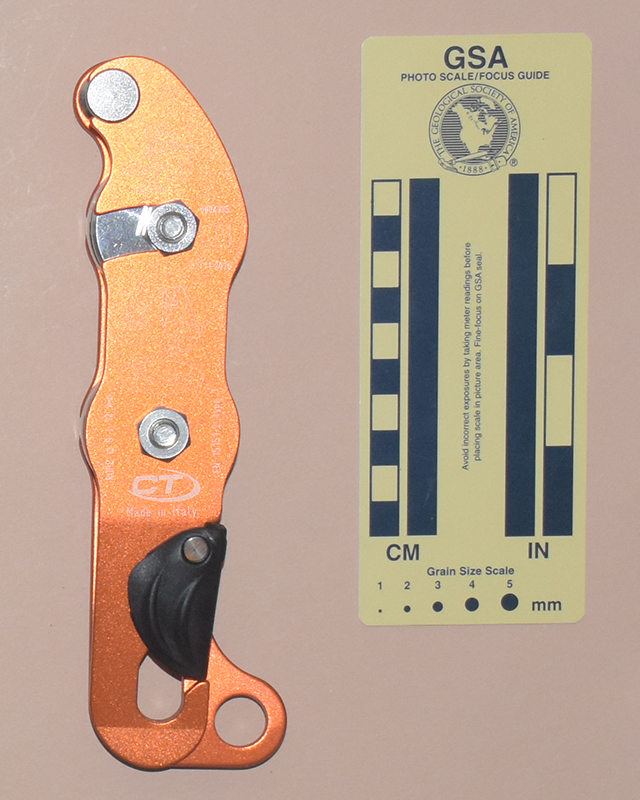

Climbing Technology Acles DX 2583 Climbing Technology Acles DX Bent frame, solid spools, aux. bar, stamped gate. Right-hand version Amazon.com, 2020 244 197 56 29 316

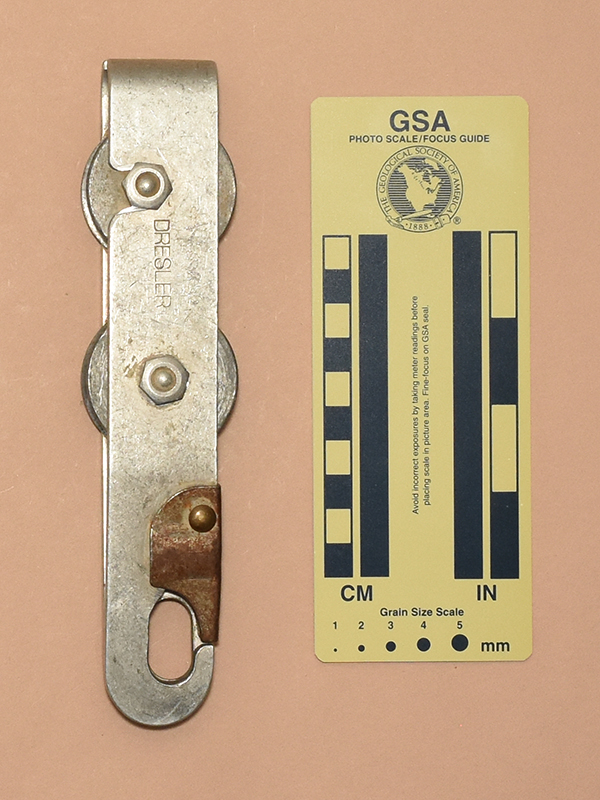

Dresler Single 3358 Dresler Single Bent frame, unfinished, solid spools, stamped gate Raúl Macia Sanchez, 2023 227 193 44 27 232

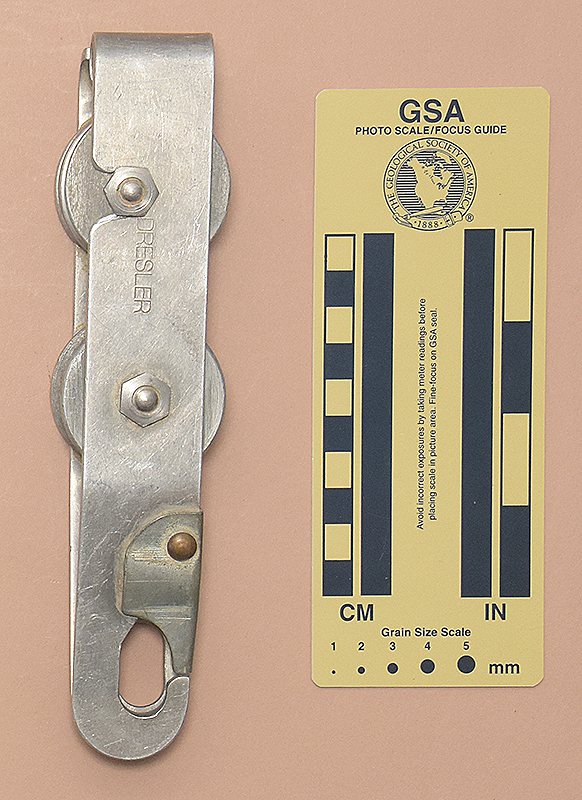

Dresler Double 3161 Dresler Double Bent frame, unfinished, 2 groove upper spool, 1-groove lower spool, stamped gate Josep Guarro, 2022 321 197 45 40 353

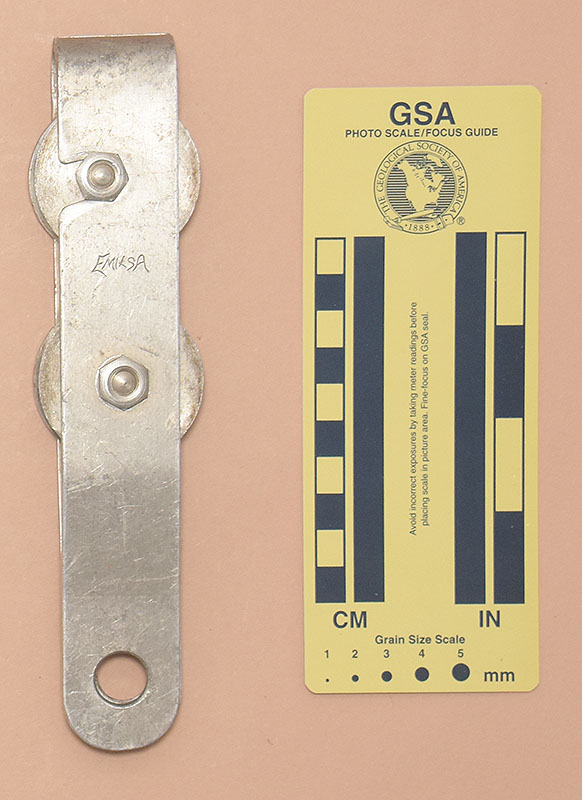

Emilsa 3241 Emilsa Bent frame, unfinished, solid spools, no gate Raúl Macia Sanchez, 2022 213 194 45 26 221
John Woods 1471 John Woods Bent frame, unfinished, Petzl spools, sheet metal  gate John Woods, 2015 269 207 47 36 351

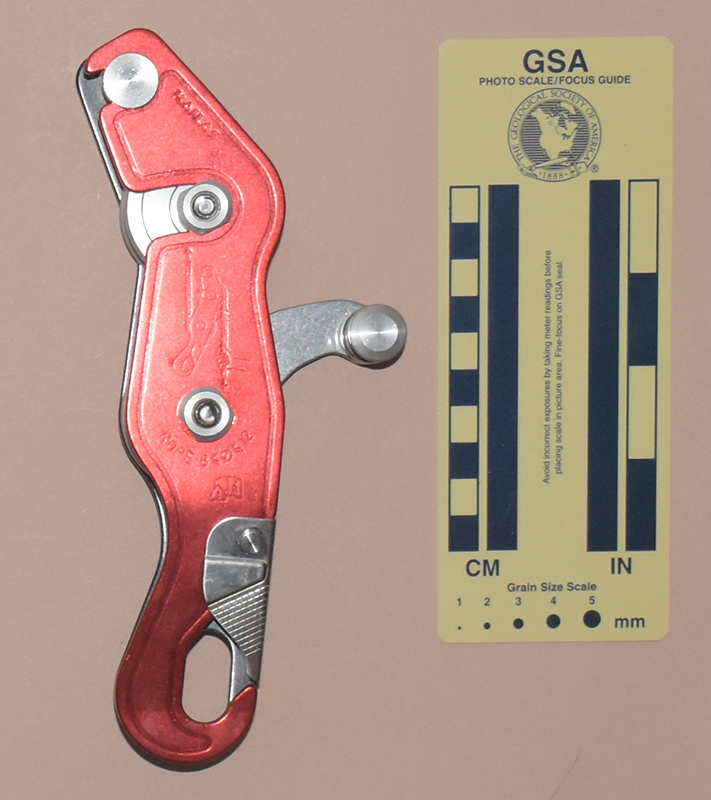

Kailas Alfa 2590 Kailas Alfa Stamped frame, solid spools, aux. top bar, aux. arm /w bar, stamped gate Kailas, 2021 281 197 60 34 407

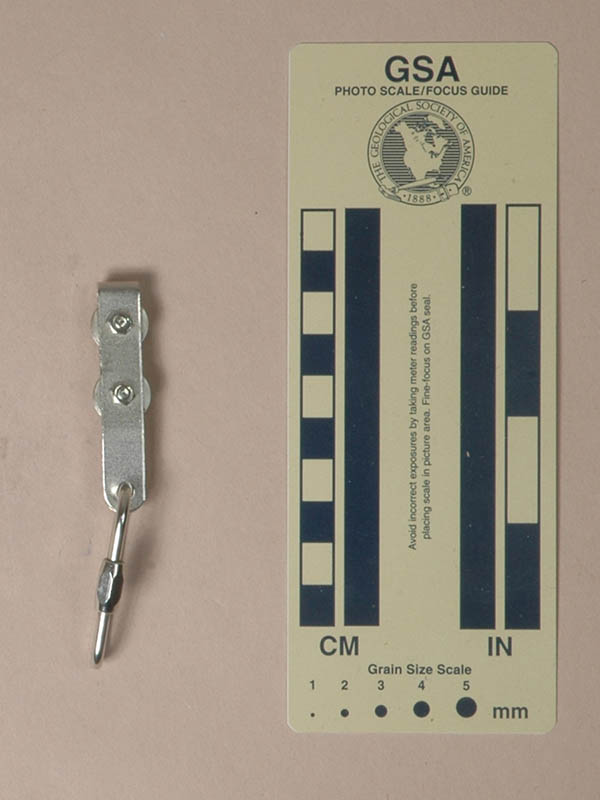

Keychain Bobbin 2416 Key Chain Bobbin Bent frame, solid spools.
UNSAFE! Decorative use only.
Bob Thrun Collection, 2017 17 56 13 12 9

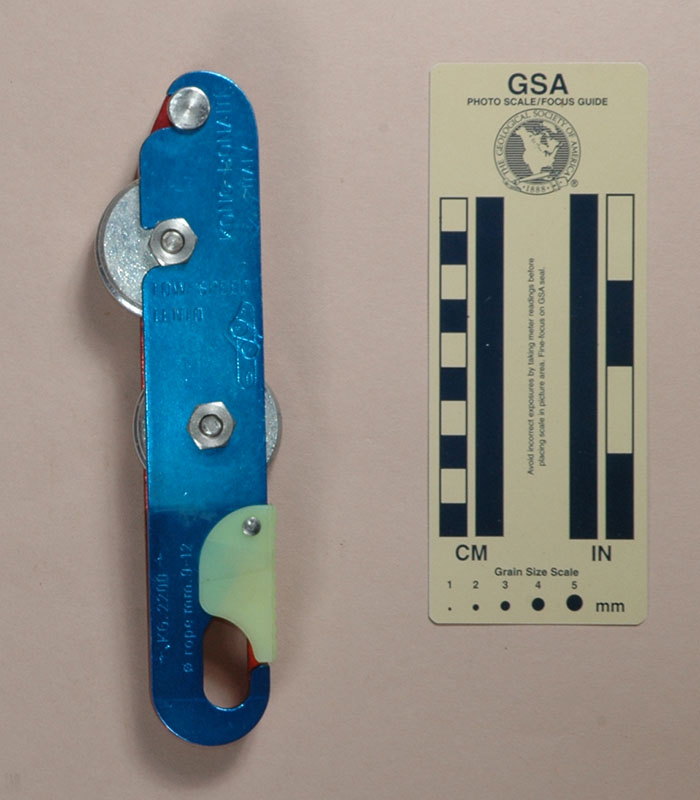

Kong-Bonaiti Doble 434
2421
Kong-Bonaiti Doble Bent frame, solid spools, plastic gate
  • Inner Mountain Outfitters, 1994
  • Bob Thrun Collection, 2017
269 193 55 32 340

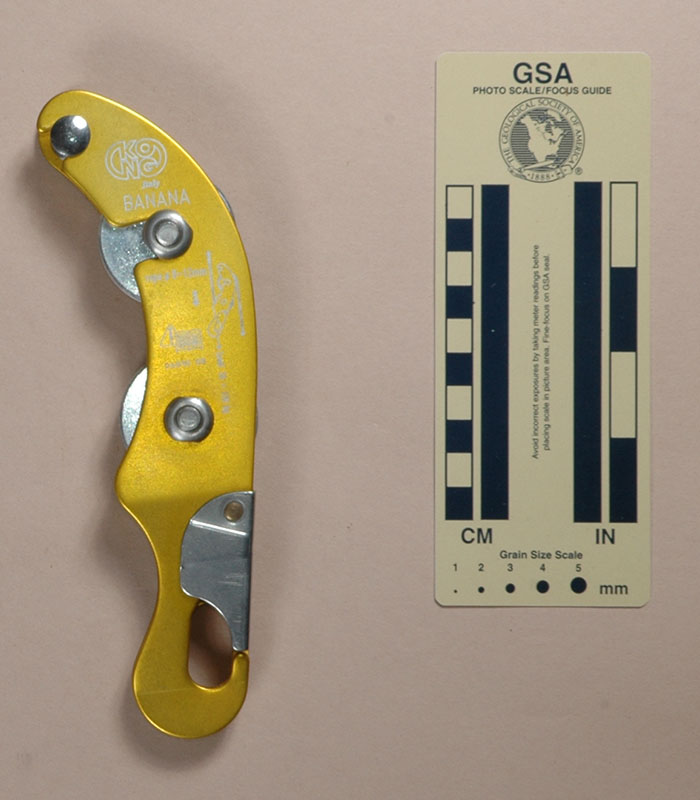

Kong Banana 951 Kong Banana Curved bent frame, solid spools, aux bar, stamped gate Inner Mountain Outfitters, 2004 233 193 55 30 316

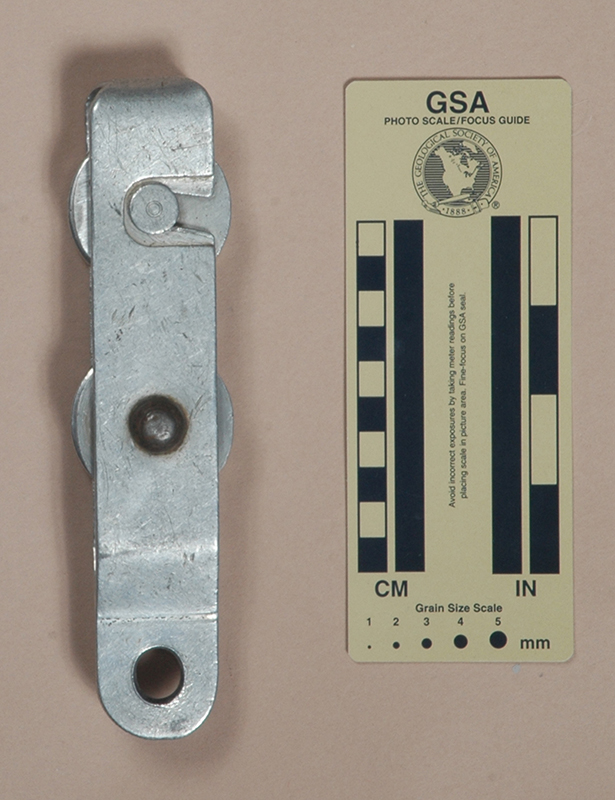

Orcus 1465 Orcus Bent frame, unfinished, solid spools Ondřej Belica, 2015 248 187 46 37 318

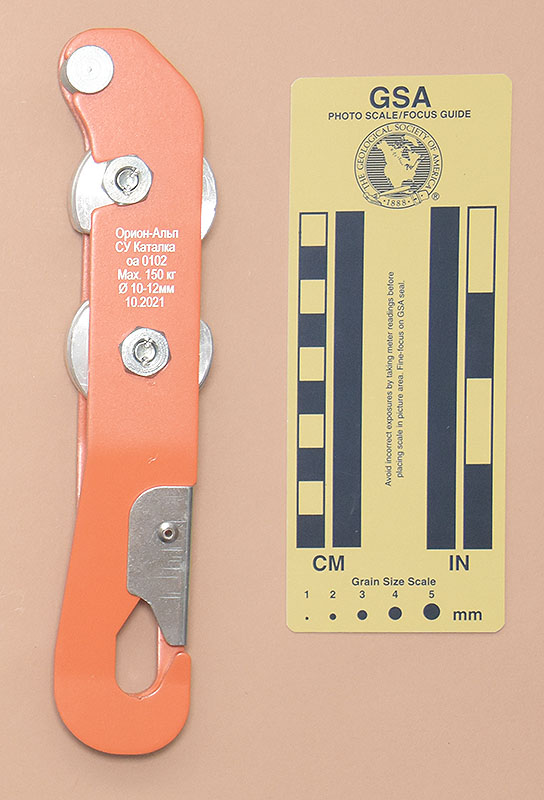

Orion-Alp Gurney 3108 Orion-Alp Gurney (Орион-Альп Каталка) Bent painted frame, solid spools, stamped gate Artyom Babin (Артём Бабин), 2021 253 213 46 32 310

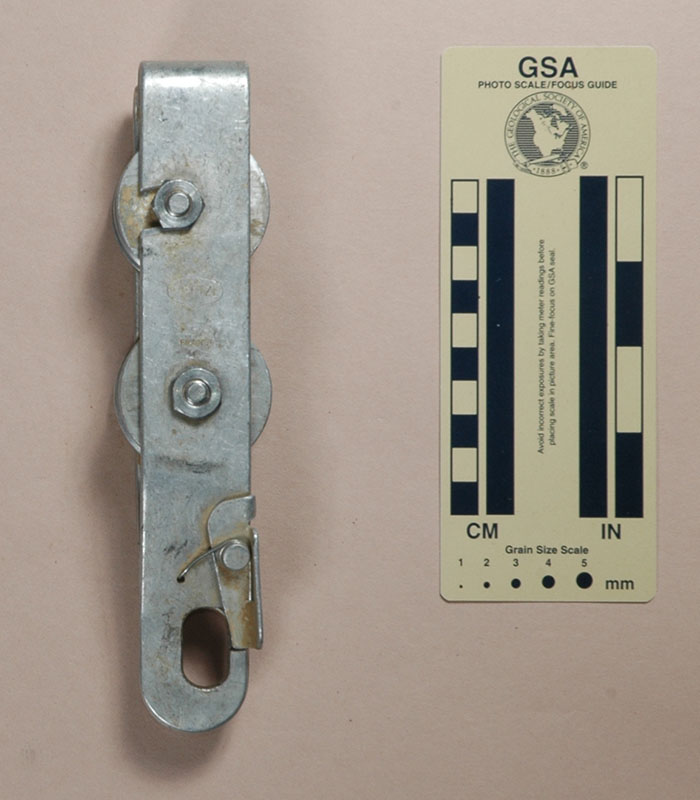

Petzl, double rope, Version A 1207 Petzl, double rope, Version A Bent frame, unfinished, 2 groove upper spool, 1-groove lower spool, stamped gate Albéric Sibille, 2009 305 197 45 41 359

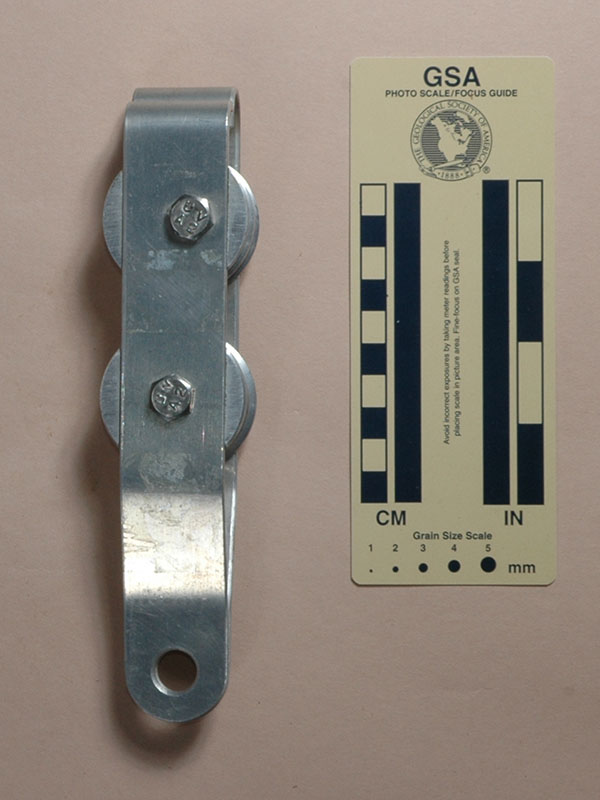

Petzl, double rope, Version B 439
1232
2418
Petzl, double rope, Version B Bent frame, unfinished, 2 groove upper spool, 1-groove lower spool
  • Al Fincham, 1981
  • Susan Wooly, 2009
  • Bob Thrun Collection, 2017
311 194 45 41 358

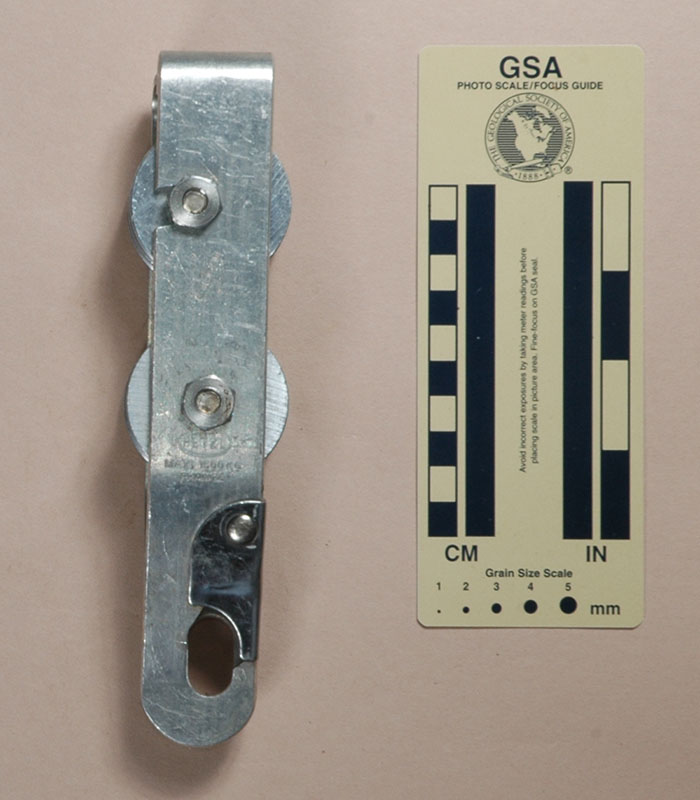

Petzl, double rope, Version C 440 Petzl, double rope, Version C Bent frame, unfinished, 2 groove spools, stamped gate Al Fincham, 1981 324 191 45 41 352

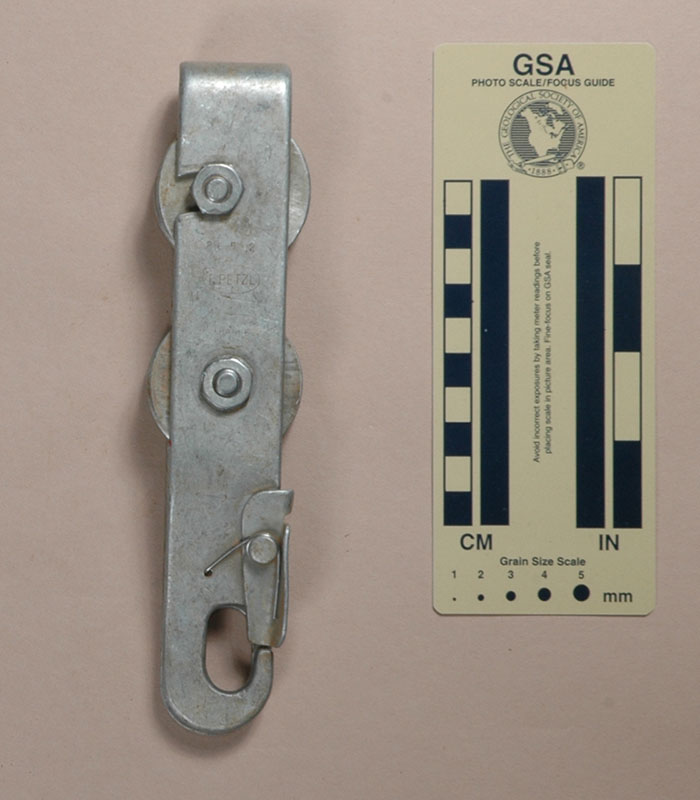

Petzl, single rope, Version A 1206 Petzl Simple, Version A Bent frame, unfinished, solid spools, stamped gate Albéric Sibille, 2009 214 193 44 31 258

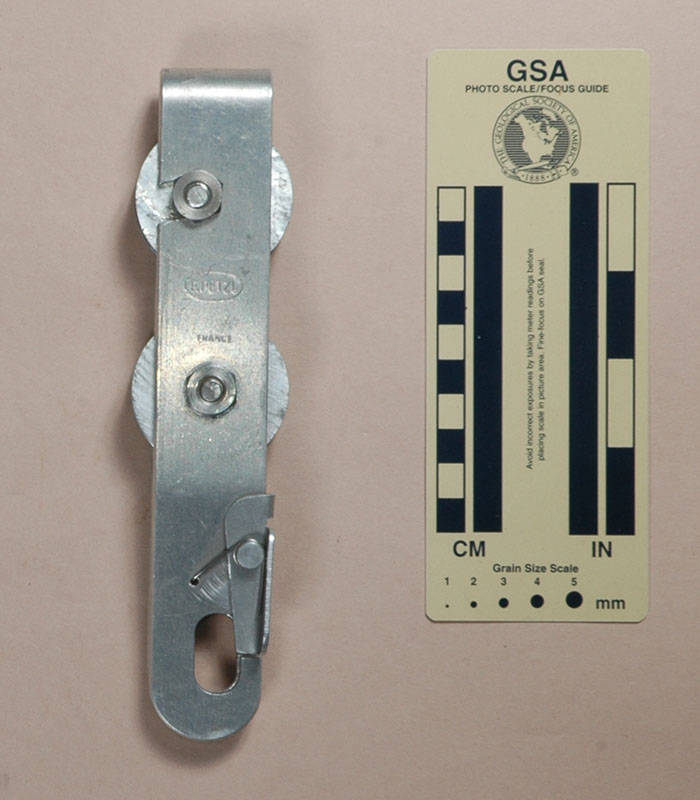

Petzl, single rope, Version B 1220 Petzl Simple, Version B Bent frame, unfinished, solid spools, stamped gate Mariana Oliveira, 2009 214 193 45 26 226

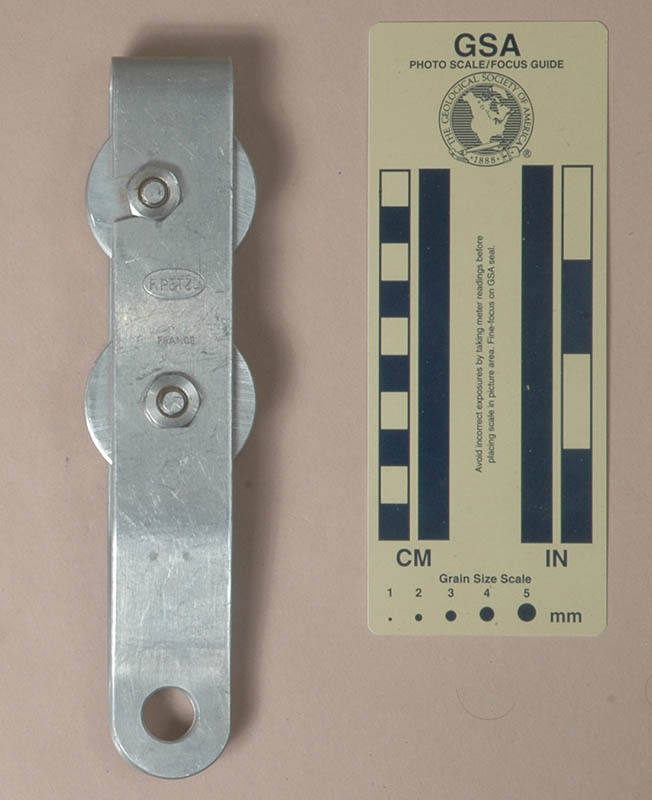

Petzl, single rope, Version C 2317 Petzl Simple, Version C Bent frame, unfinished, solid spools Bob Thrun Collection, 2017 233 192 45 31 266

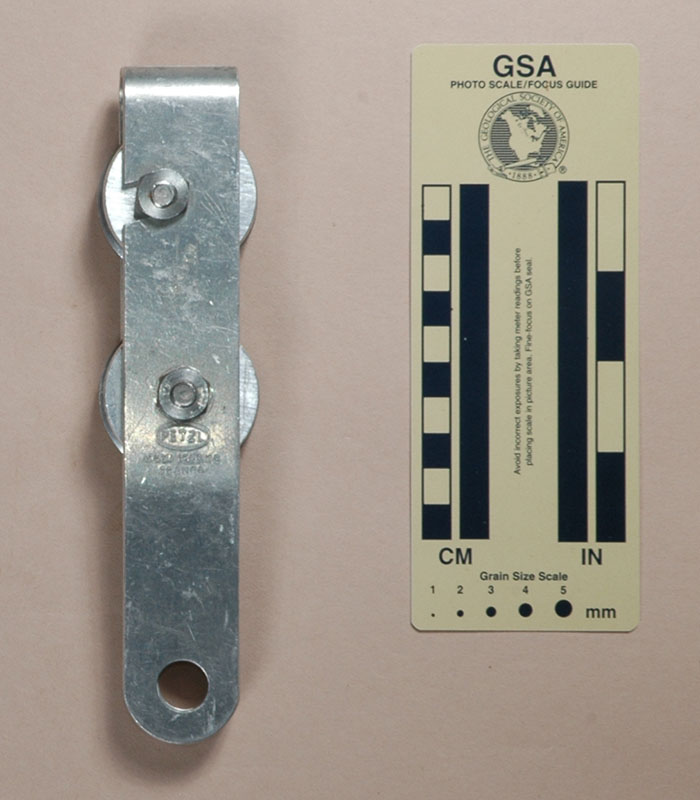

Petzl, single rope, Version D 441 Petzl Simple, Version D Bent frame, unfinished, solid spools Speleoshoppe, 1979 220 187 45 31 261

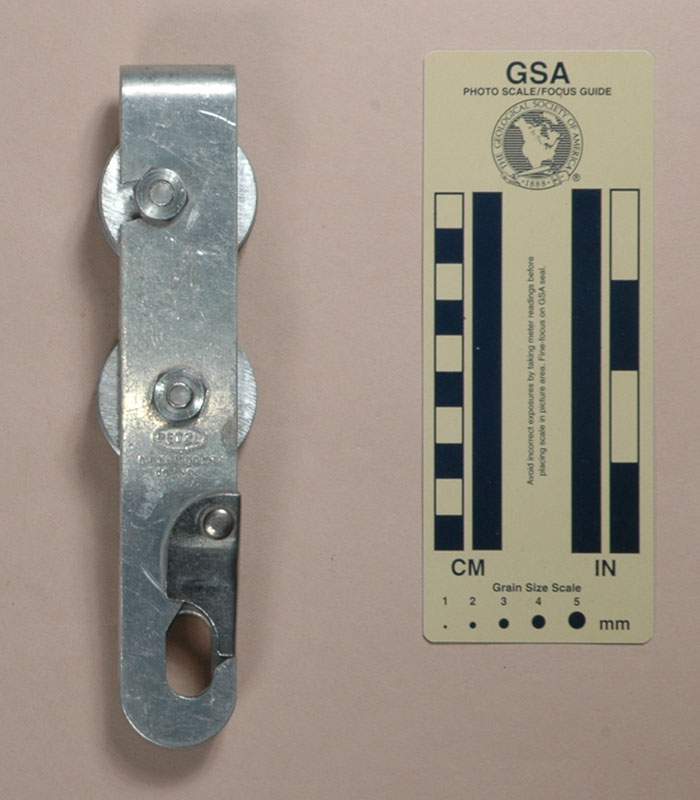

Petzl, single rope, Version E 442
1185
Petzl Simple, Version E Bent frame, unfinished, solid spools, stamped gate
  • Speleoshoppe, 1979
  • Hawill’s Ltd., 2008
240 182 45 31 254

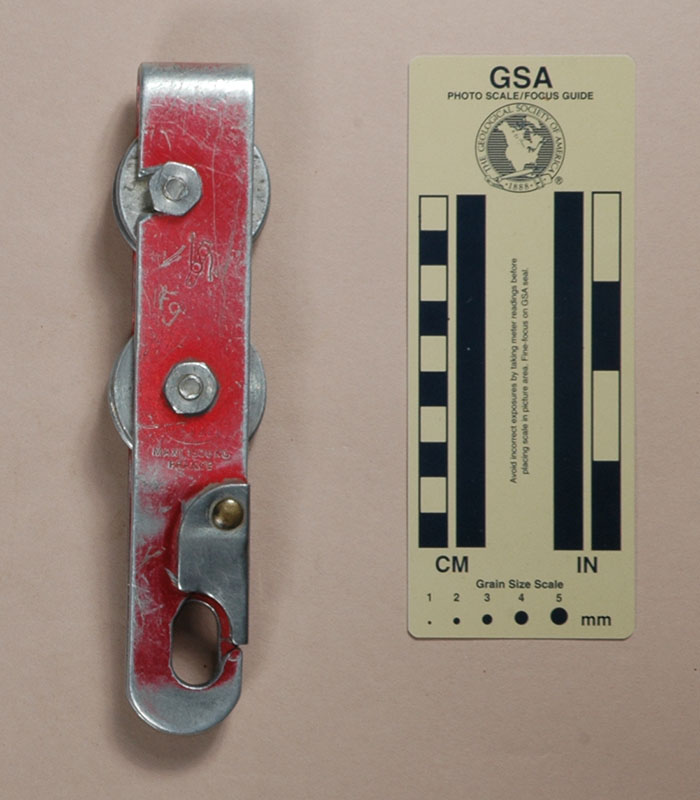

Petzl, single rope, Version F 1242 Petzl Simple, Version F Bent frame, soft anodized solid spools, stamped gate Francois Gelinas, 2009 236 189 45 31 261

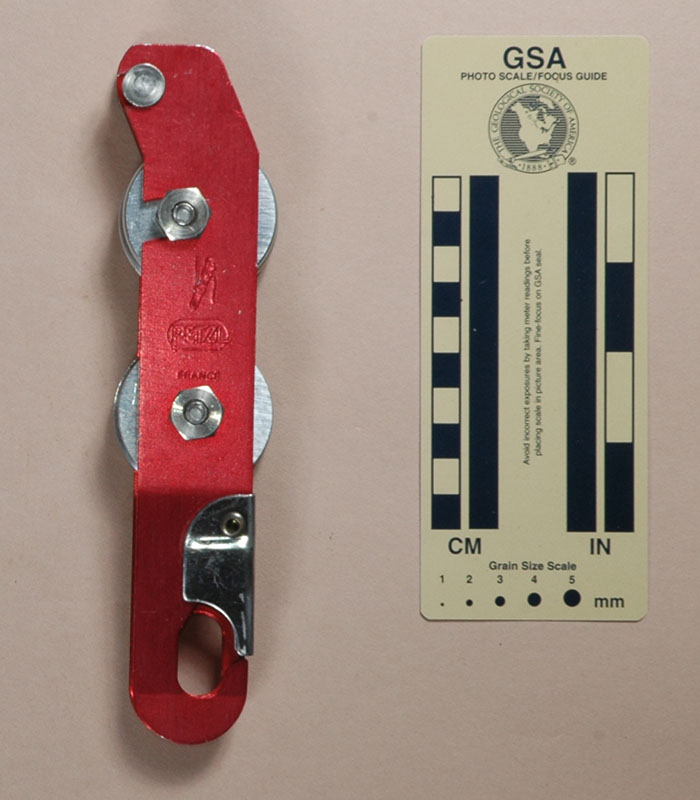

Petzl, single rope, Version G 444 Petzl Simple, Version G Bent frame, solid spools, aux. bar, stamped gate John E. Weinel, Inc., ~1987 248 195 45 32 281

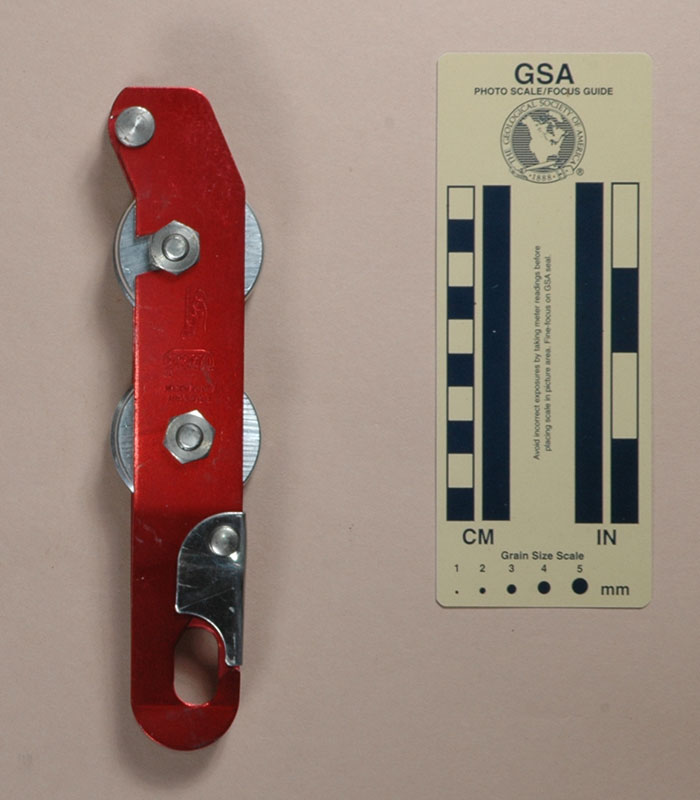

Petzl, single rope, Version H 443
2419
Petzl Simple, Version H Stamped frame, solid spools, aux. bar, stamped gate
  • 1990
  • Bob Thrun Collection, 2017
248 195 45 32 281

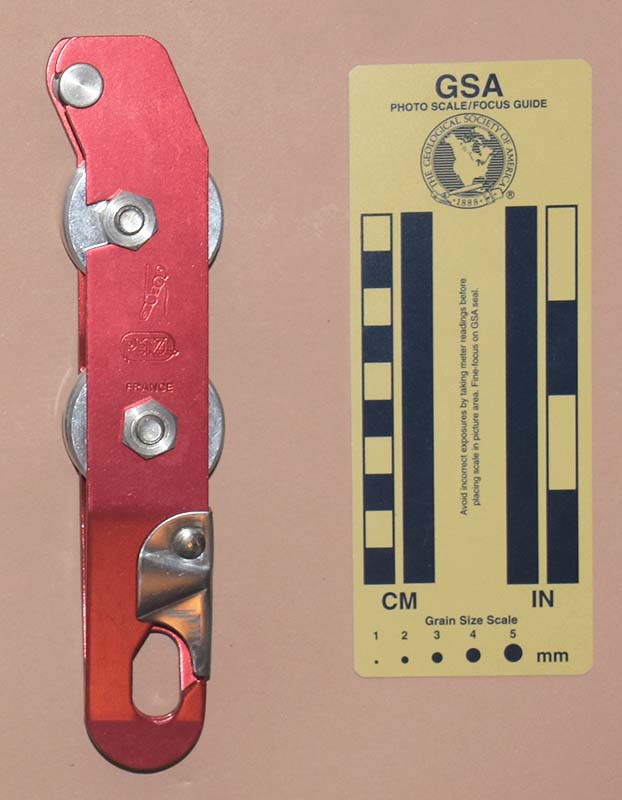

Petzl, single rope, Version I 2496 Petzl Simple, Version I Stamped frame, solid spools, aux. bar, stamped gate On Rope 1, 2018 242 196 45 32 281

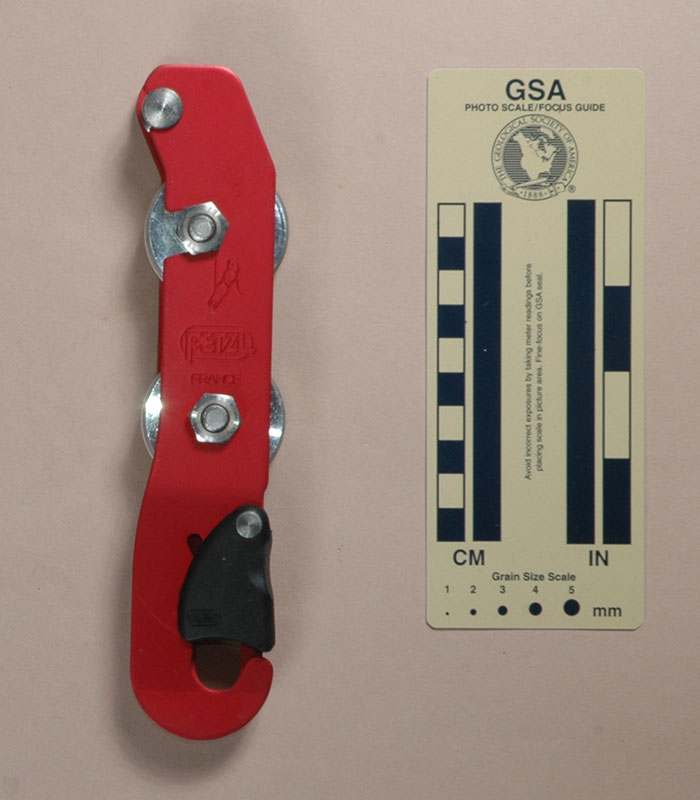

Petzl, single rope, Version J 1010 Petzl Simple, Version J Stamped frame, solid spools, aux. bar, plastic gate Inner Mountain Outfitters, 2006 237 197 42 32 267

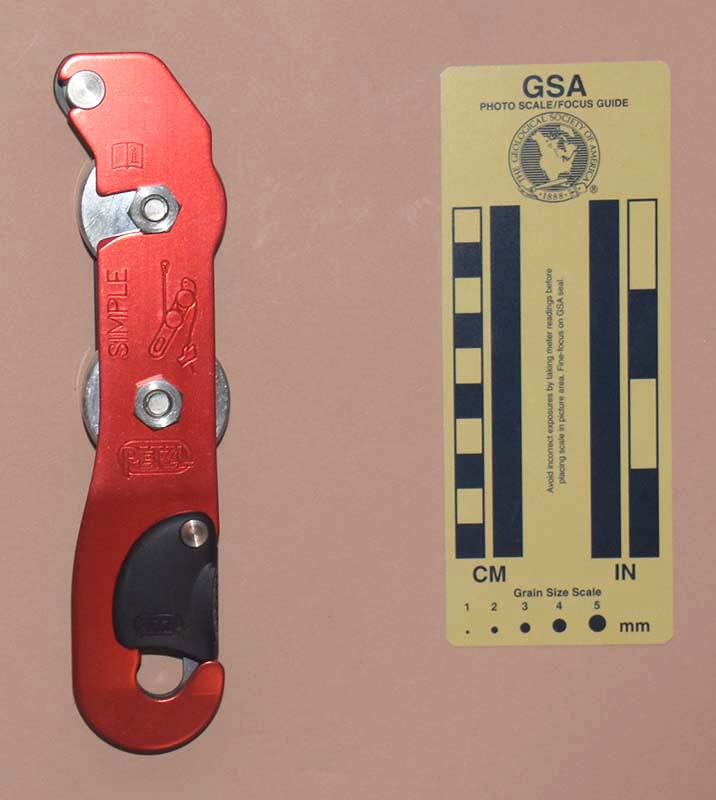

Petzl, single rope, Version K 2527 Petzl Simple, Version K Stamped frame, solid spools, aux. bar, plastic gate Petzl America, 2019 251 197 47 32 292

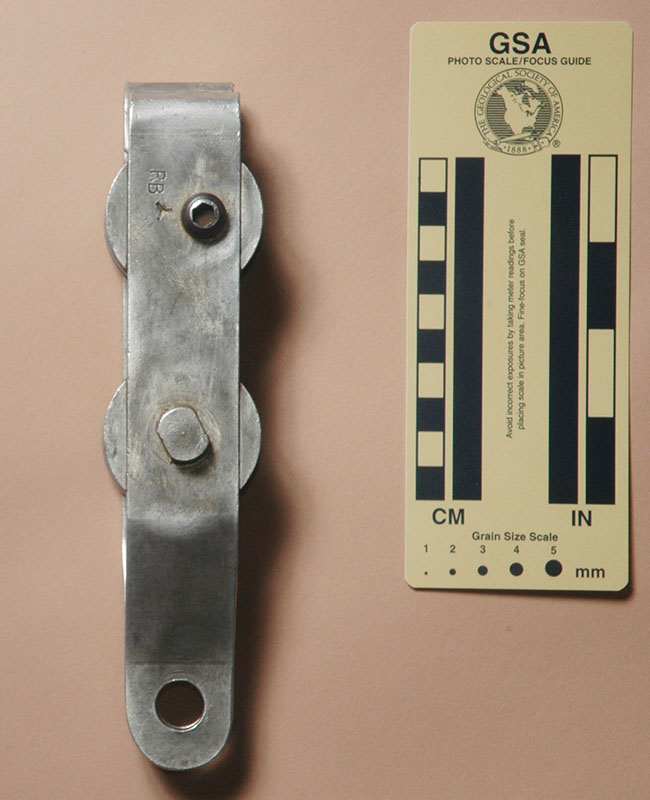

RB 1469 RB Bent frame, unfinished, 2 groove upper spool, 1-groove lower spool Olivier Peron Caillet, 2015 313 199 45 43 383

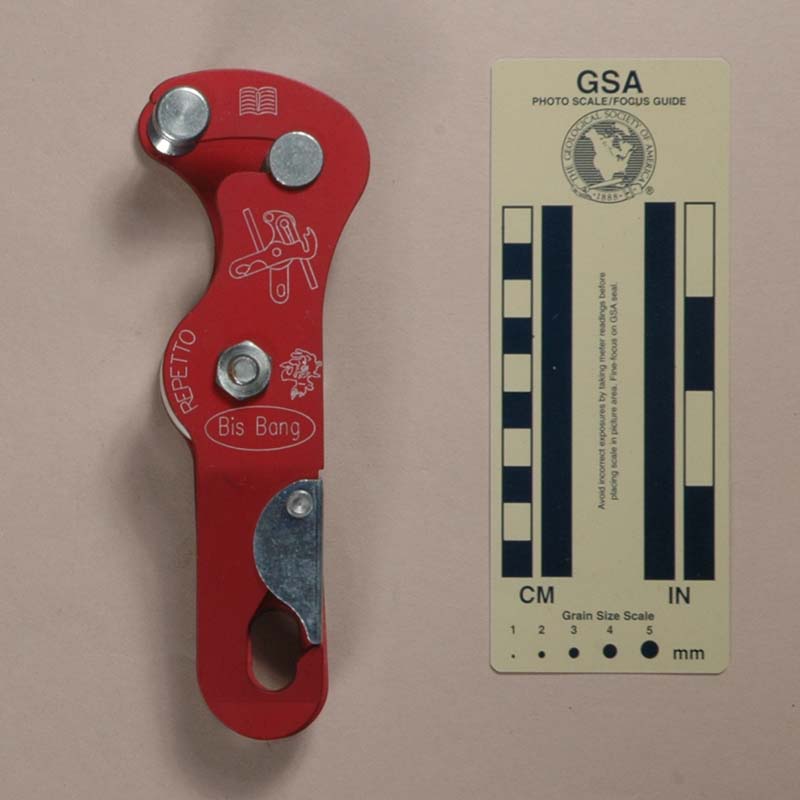

Repetto Bis-Bang 1160 Repetto Bis-Bang Stamped frame, large Al & small steel solid spools, aux. bar, stamped gate, double rope Expé-Spelemat, 2008 247 177 56 41 407

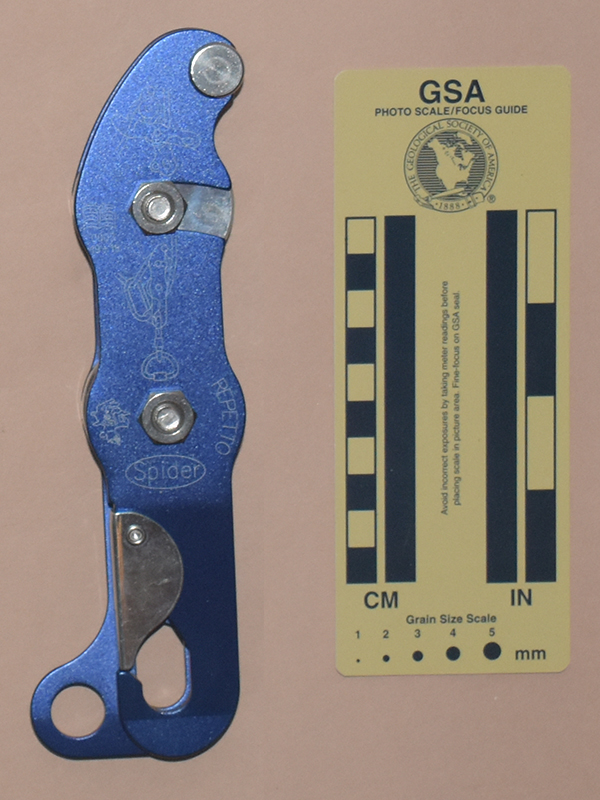

Repetto Spider 2566 Repetto Spider (Left) Bent frame, solid spools, aux. bar, stamped gate. Left-hand version. John Fioroni, The Cave Exploration Society Inc., 2020 247 197 52 29 297

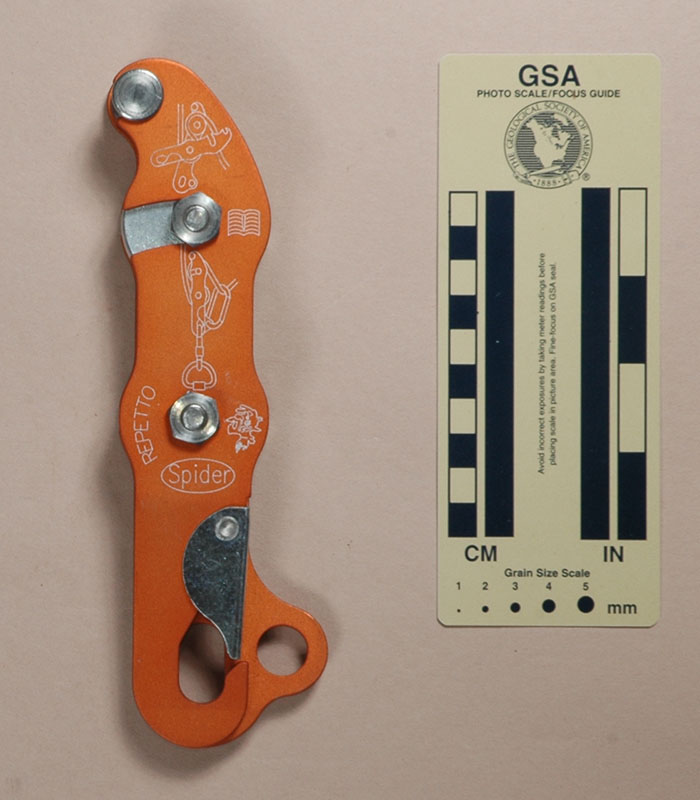

Repetto Spider 929 Repetto Spider (Right) Bent frame, solid spools, aux. bar, stamped gate. Right-hand version. Inner Mountain Outfitters, 2003 251 197 52 29 297

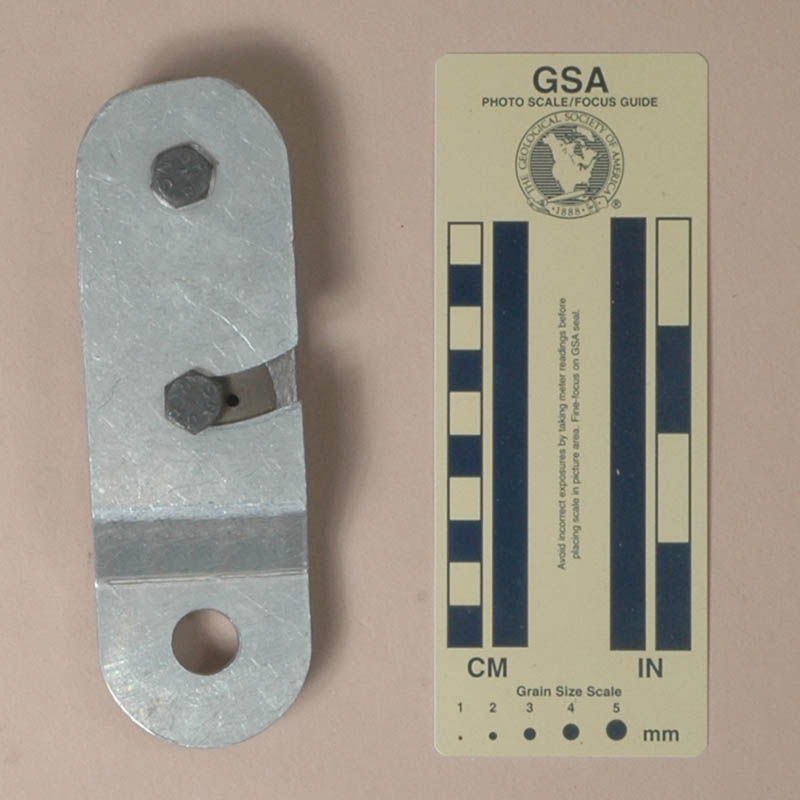

Repetto Spider 2415 Rocksport Buggery Box Fixed Al Plate & bent Al cover, bronze bollards Bob Thrun Collection, 2017 314 155 49 30 233

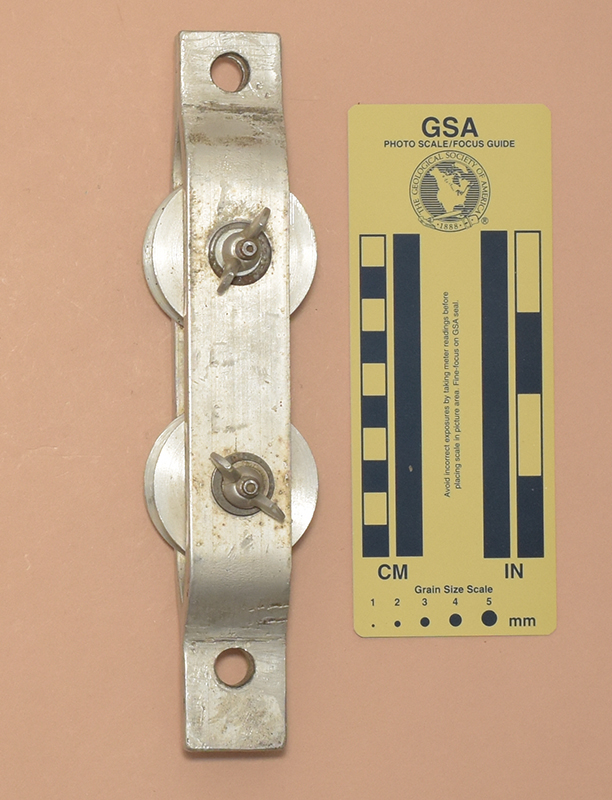

Unknown 4011 Unknown Symmetrical double-ended, Al frame & spools, hex bolts, washers & wing nuts Collectables from Maine, 2024 436 218 50 56 610

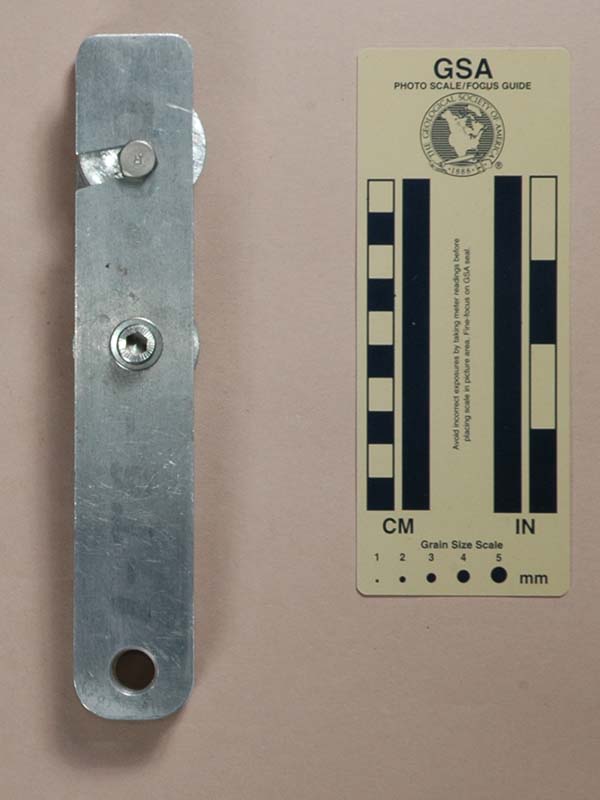

Unknown "S" 1163 Unknown "S" Bent frame, solid cylindrical spools, noncommercial Bill Boehle, 2008 245 203 38 38 298

Double-Stop Bobbins Near Bobbins Stop Bobbins Bobbin Weight Distribution
