Rope Grabs, Rocker-Arm

Rope Grabs (a.k.a. Fall Arrests) are industrial devices used to protect workers in high places. Their function is to ensure that the worker doesn't perform the big splat when falling from high places; however, they are often used with safety belts that can cause a slower and far less spectacular death by suffocation. This can't be blamed on the rope grab, its the fault of the uninformed user.

My interest in rope grabs is that they are similar to ascenders, and suggest alternate ideas for ascender design. I often discuss these in this context instead of the context of their intended use.

All of the rope grabs on this page have rocker arms similar to those found on Rocker-Arm Ascenders. Any of these can be used as an ascender; however, like the Rocker-Arm Ascenders, using any of these as an ascender results in considerable lost motion with each step, causing a substantial loss of efficiency.

ID	Device ↓	Description	Acquired	Weight ↓	Height ↓	Width ↓	Thickness ↓	Std. volume ↓
1859 2369	Camp Goblin	Forged Al frame & swinging side plate, forged ss levers & anvil	Patroller Supply, 2015 Bob Thrun Collection, 2017	278	75	86	28	184

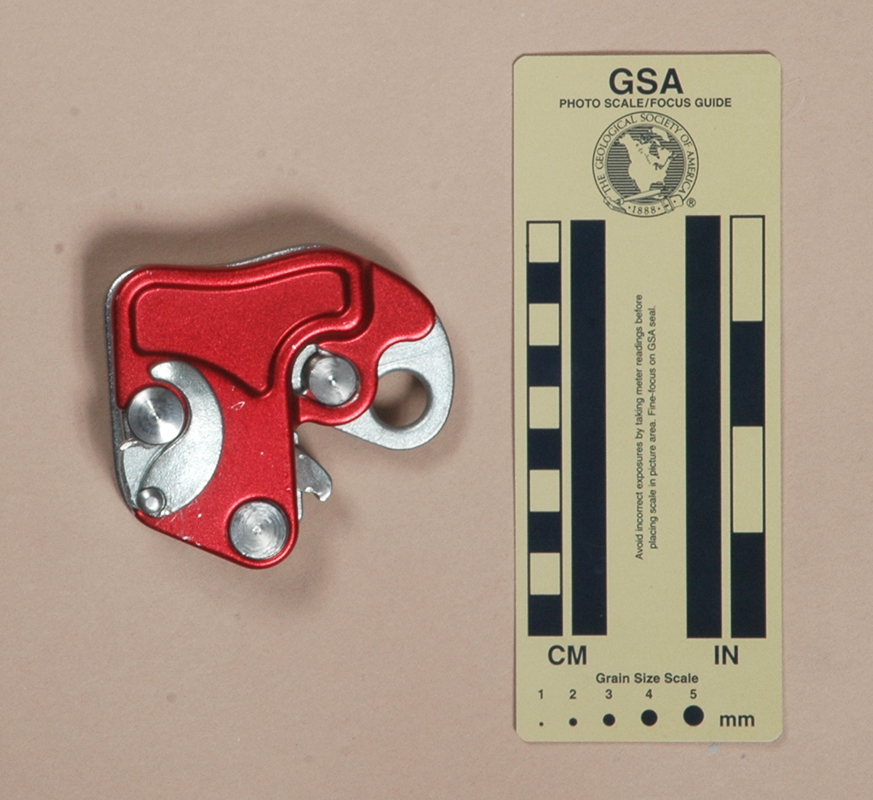

1810	Camp Goblin (prototype)	Forged Al frame & swinging side plate, forged ss levers & anvil, unmarked prototype	Denis Pivot, 2013	272	71	65	29	134

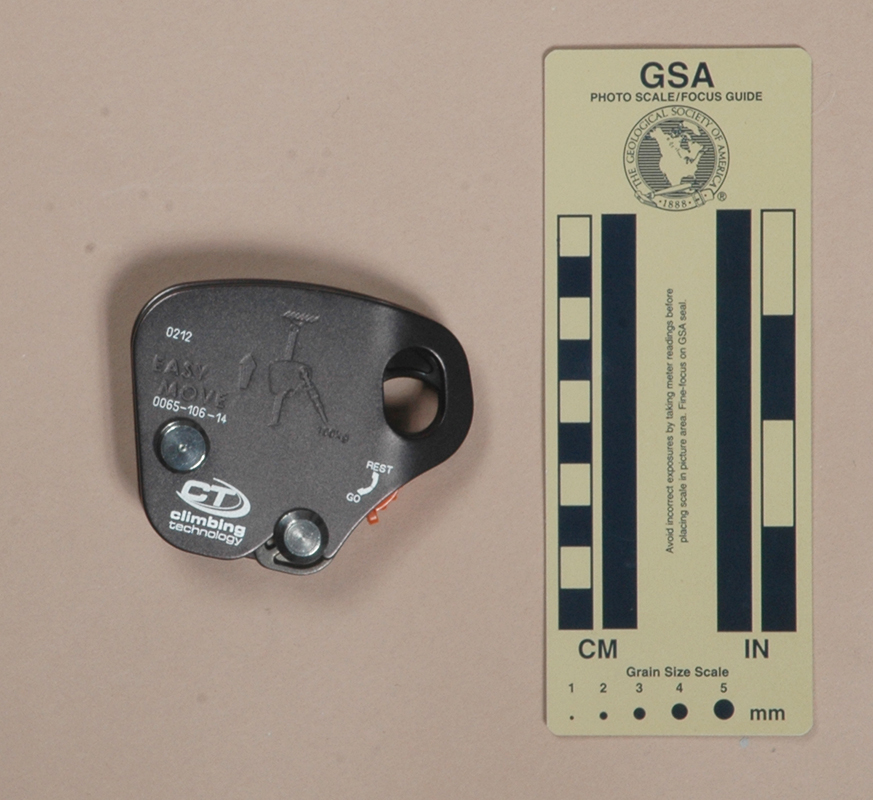

1836	Climbing Technology Easy Move, Version A	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Expé-Spelemat, 2014	202	69	81	24	134
1837	Climbing Technology Easy Move, Version B	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Lior Porian, 2015	202	69	81	24	134

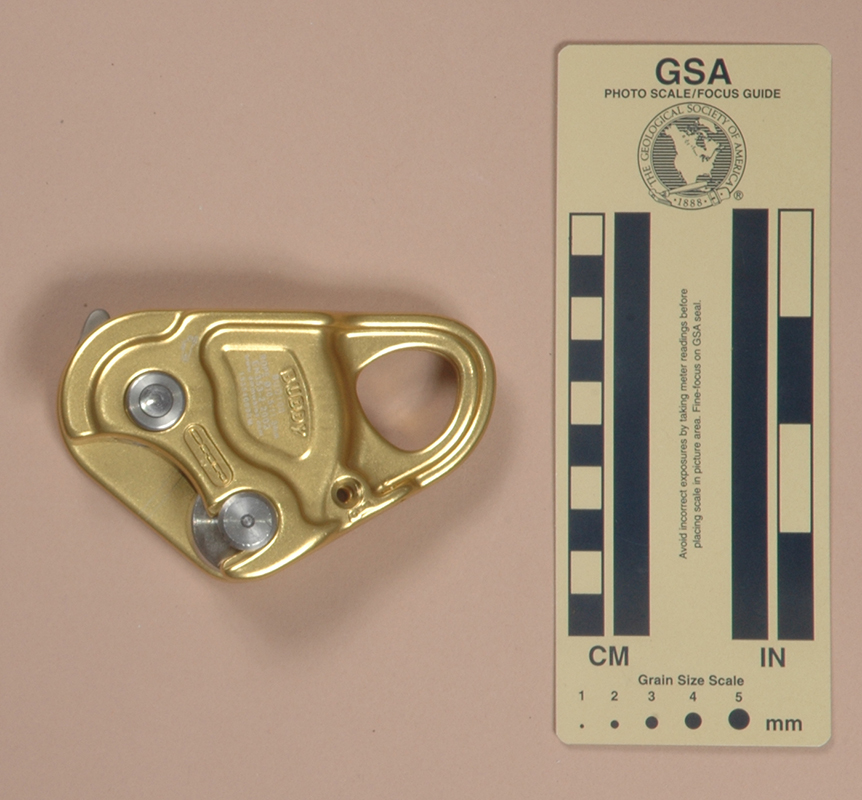

1863	DMM Buddy BUD100	Forged Al side plates, pivoting Al arm, fixed anvil, for 11-13 mm. rope	Arbor Tech Supply, 2012	200	64	103	28	186

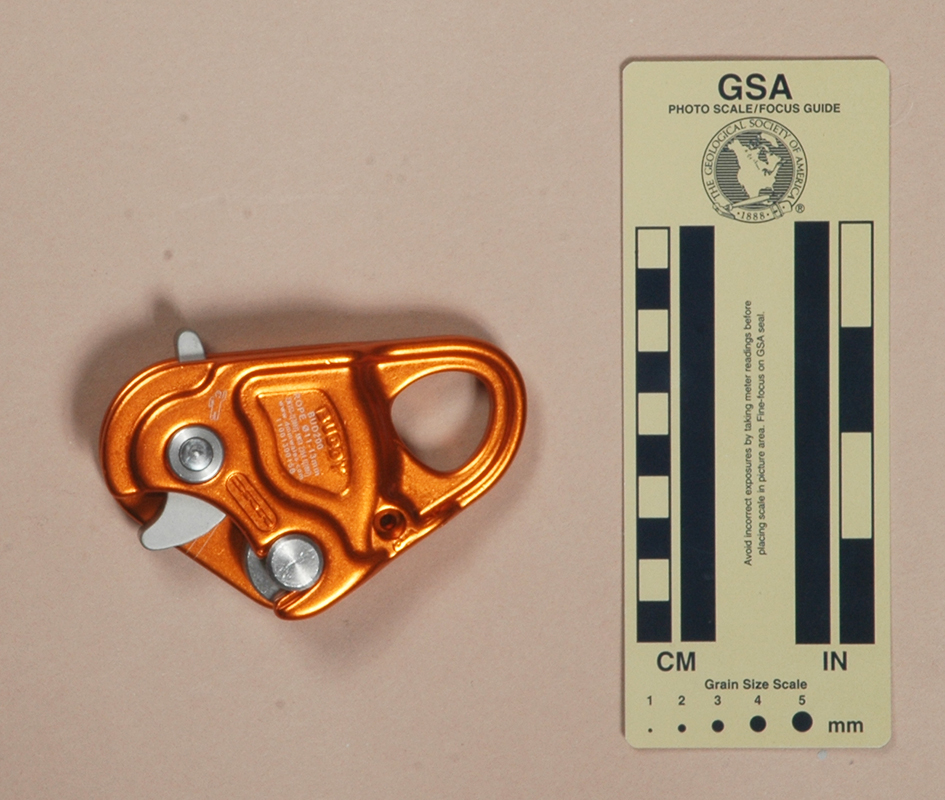

1777 2641	DMM Buddy BUD200	Forged Al side plates, pivoting Al arm, fixed anvil	Arbor Tech Supply, 2012 Bob Thrun Collection, 2017	200	64	103	28	186

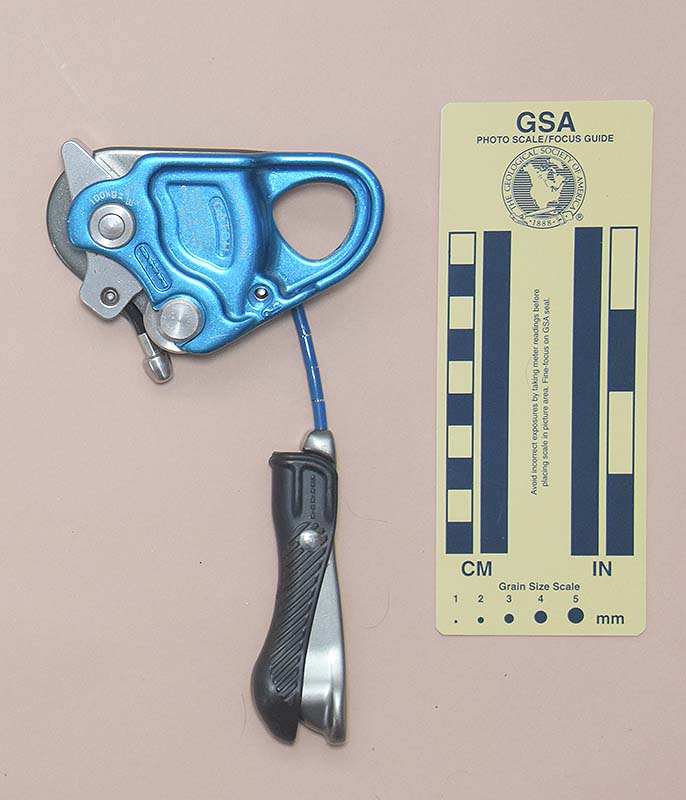

2892	DMM Catch	Forged Al side plates, pivoting Al arm, fixed anvil, cable actuator /w handle, for 11 mm. rope	Adventure Outdoors, 2021	312	71	203	34	490

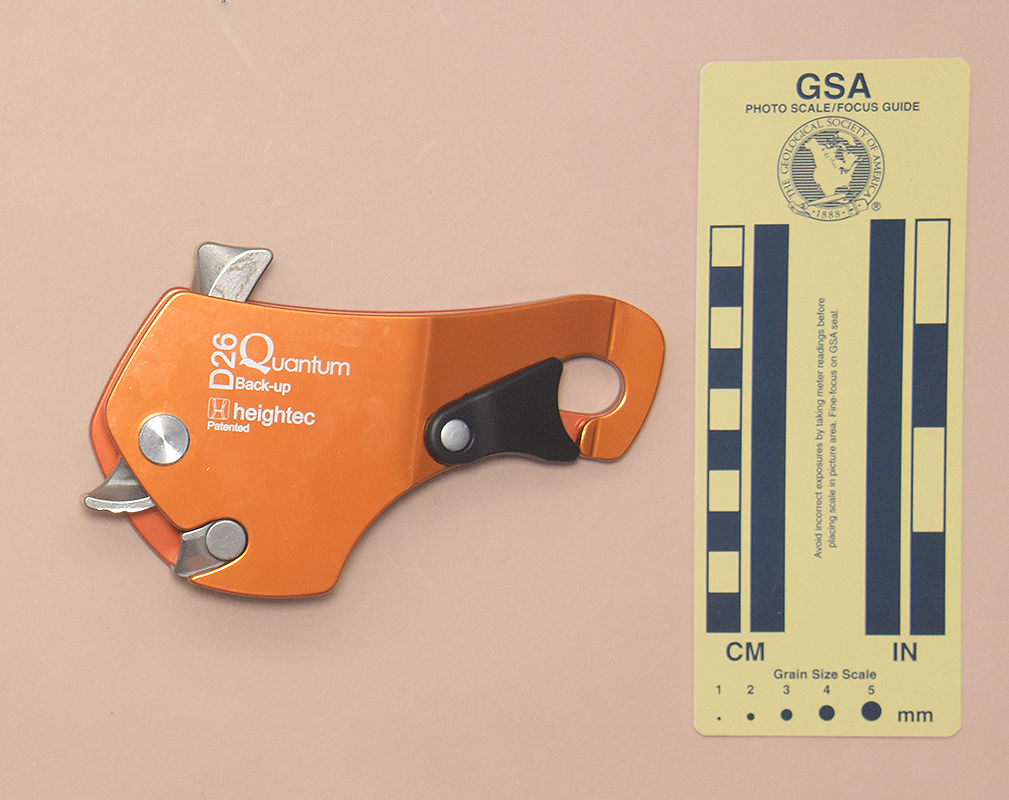

3706	heightec Quantum D26	Stamped Al side plates, pivoting cast SS cam & anvil, plastic gate	eBay Seller, 2022	302	148	74	30	332
1707 2636	heightec-PMI Vector D23A	Stamped Al side plates, pivoting cast steel cam, cast Al anvil	On Rope 1, 2010 Bob Thrun Collection, 2017	219	69	101	29	198

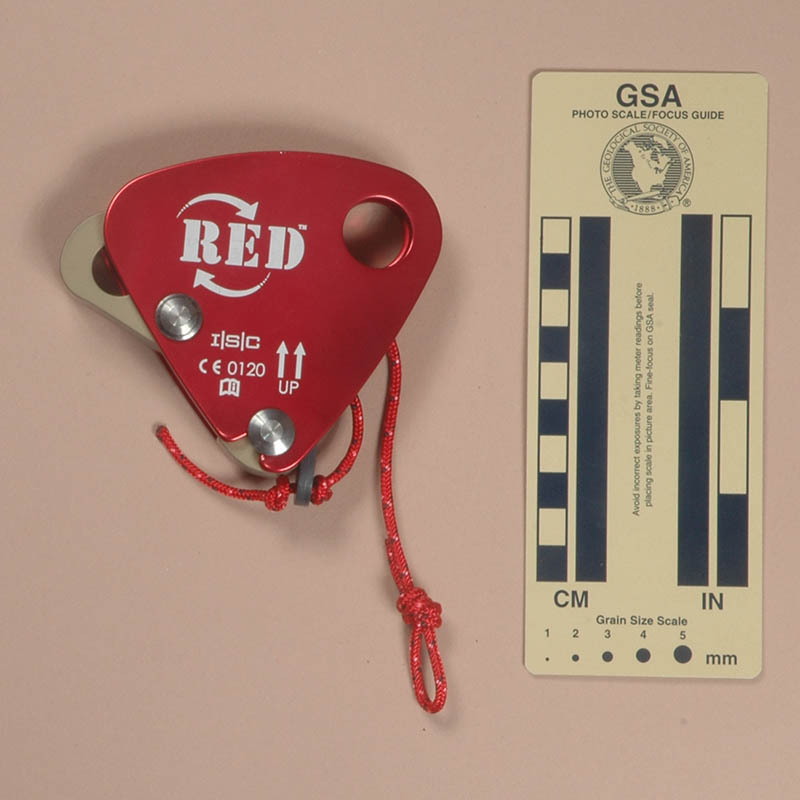

1858	ISC Red	Stamped Al side plates, pivoting cams, anvil	Patroller Supply, 2015	209	104	97	30	295

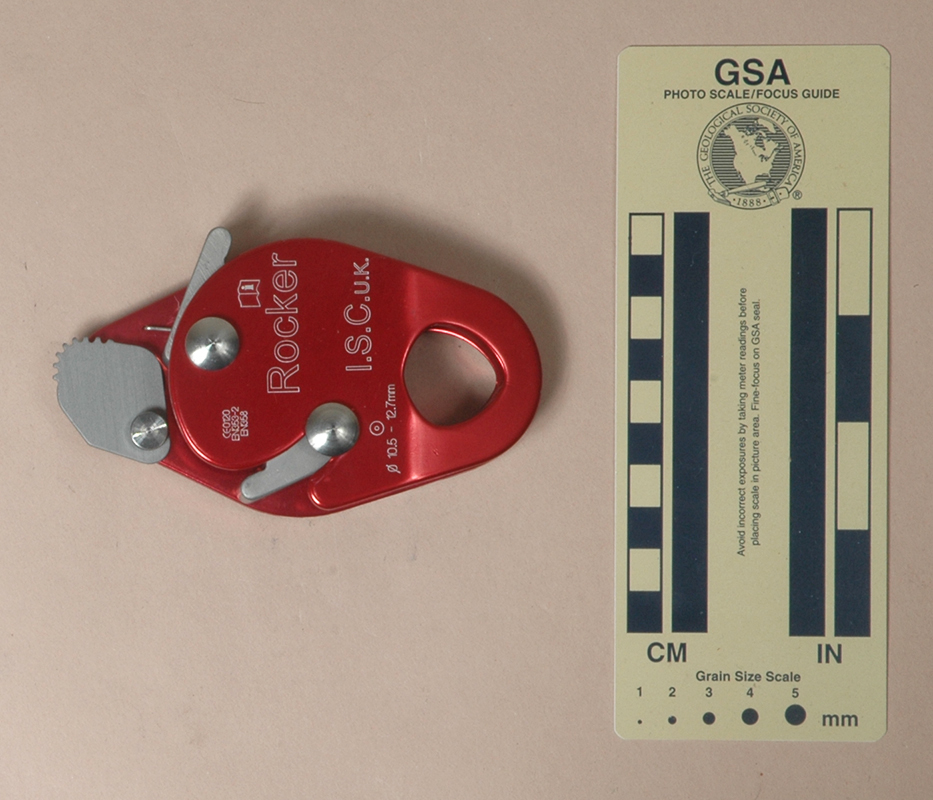

2637	ISC Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Bob Thrun Collection, 2017	168	70	115	29	235

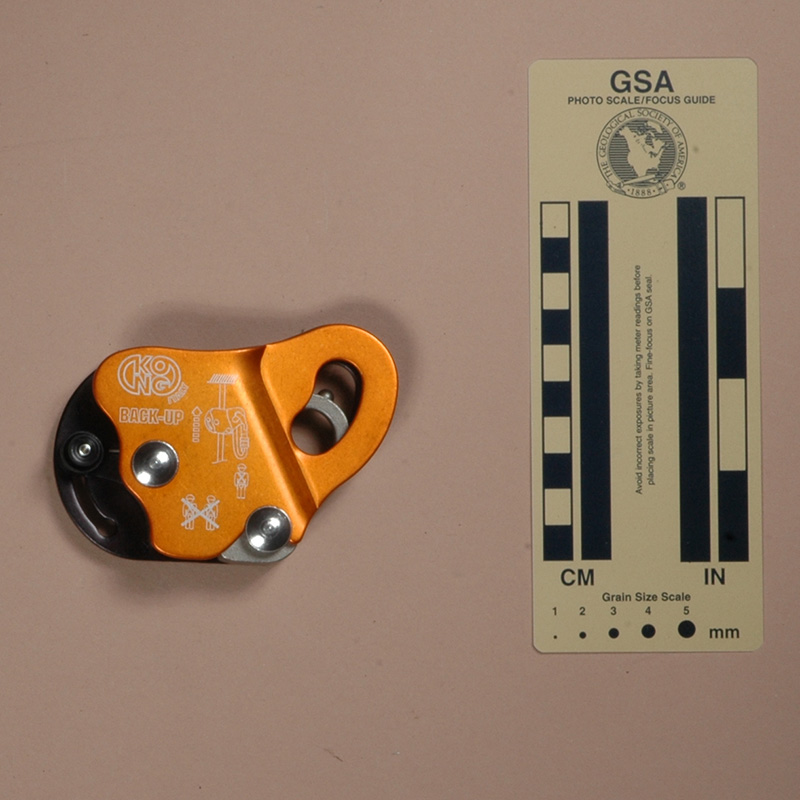

1716 2650	Kong Back-Up	Stamped Al side plates, SS pivoting cams, SS anvil	On Rope 1, 2010 Bob Thrun Collection, 2017	209	65	95	26	156

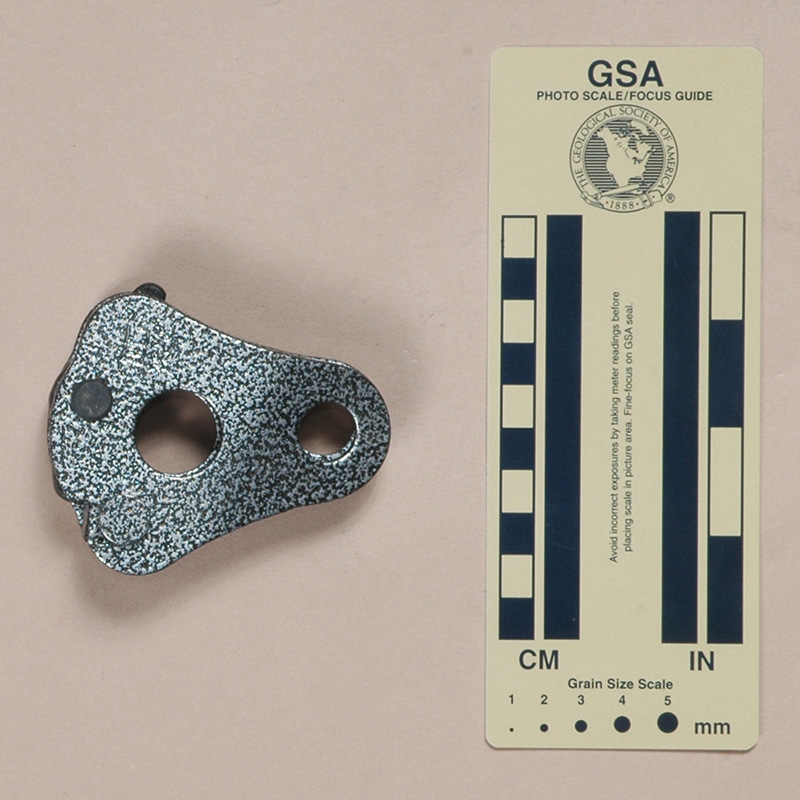

1599	Krok Drop Model 1	Stamped Al side plates, steel pivoting cam, steel anvil	Krok (Alex Dniprovsky & Alex Kostromitinov), 2012	157	80	67	29	154

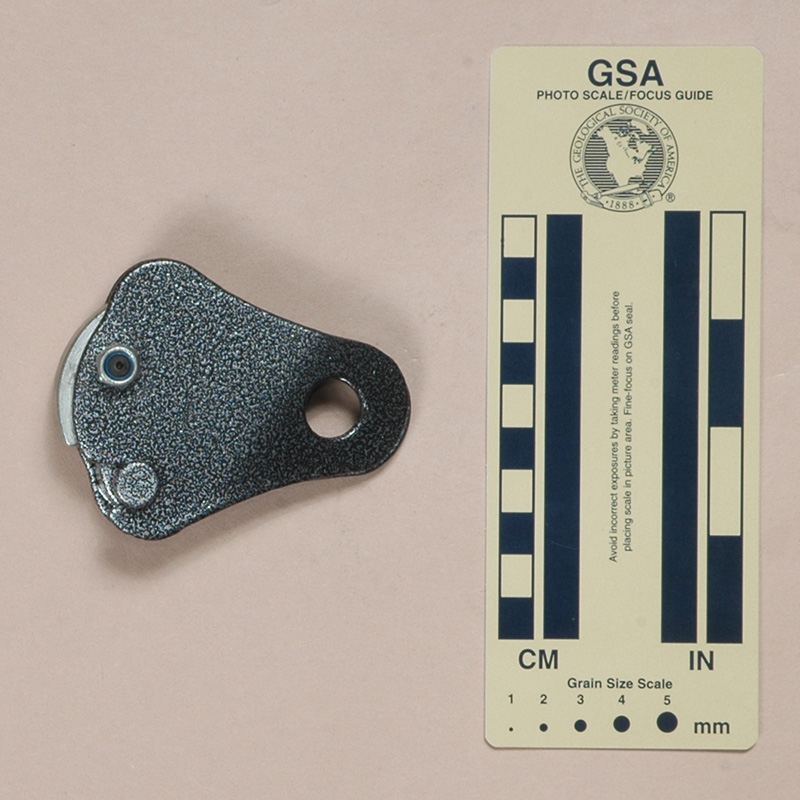

221	Krok Drop Model 2	Stamped steel side plates, steel pivoting cam, steel anvil	PetrenkoWorld, 2007	225	83	66	29	158

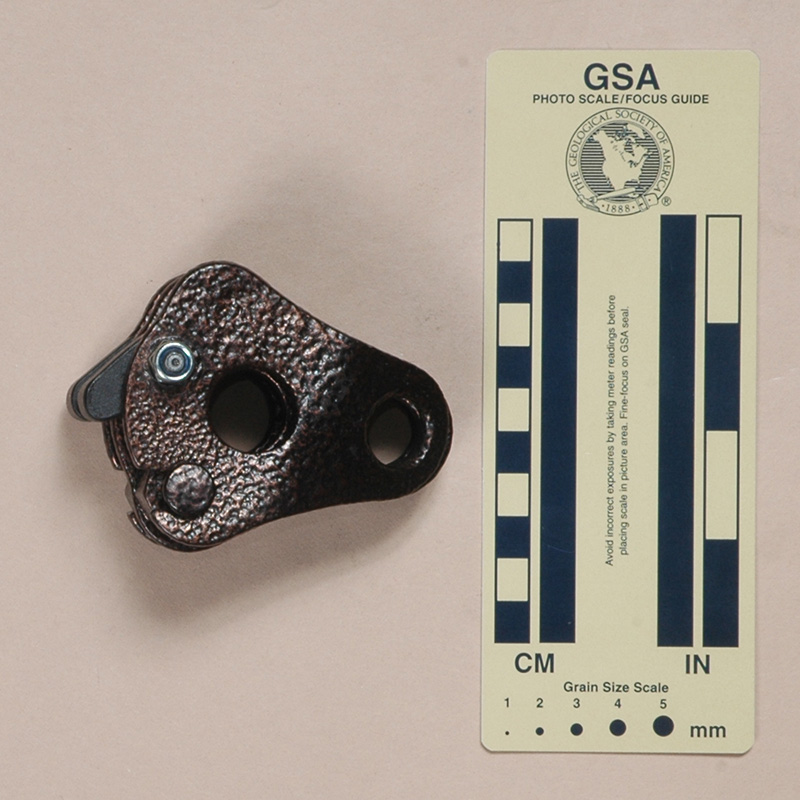

1775	Krok Drop Model 3	Aluminum side plates, pivoting steel arms, fixed anvils, double rope	Gear4Rocks, 2012	303	80	65	51	264

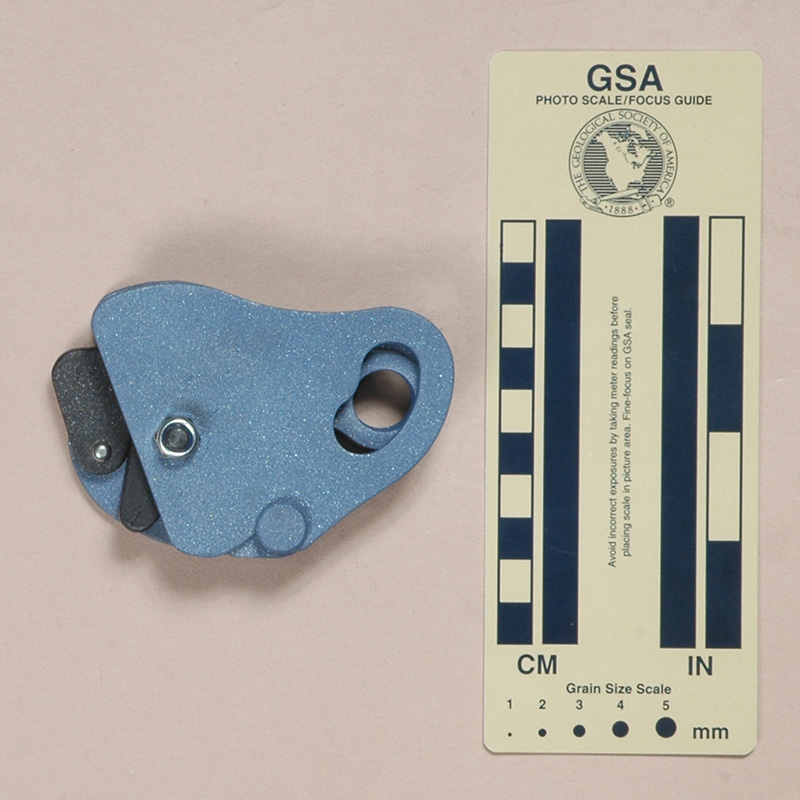

1774	Krok Drop Model 4	Aluminum side plates, pivoting steel arm and Al actuator, fixed anvil, lever lock	Gear4Rocks, 2012	191	91	74	30	203

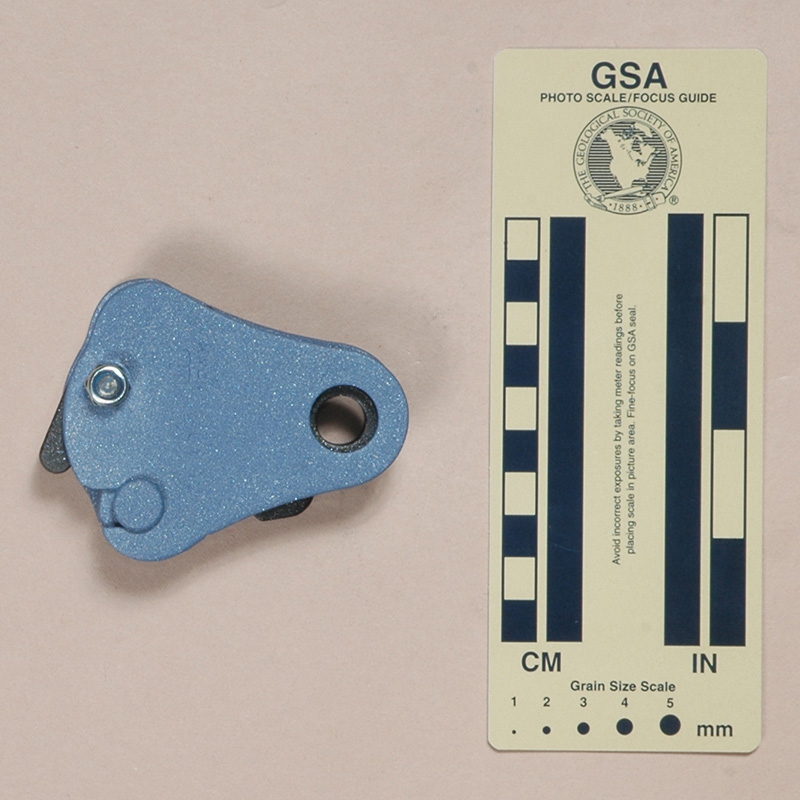

1593 1598	Krok Drop Model 5	Stamped steel side plates, steel pivoting cam, cam lock, & latch, steel anvil	Gear4Rocks, 2012 Krok (Alex Dniprovsky & Alex Kostromitinov), 2012	254	65	80	27	140

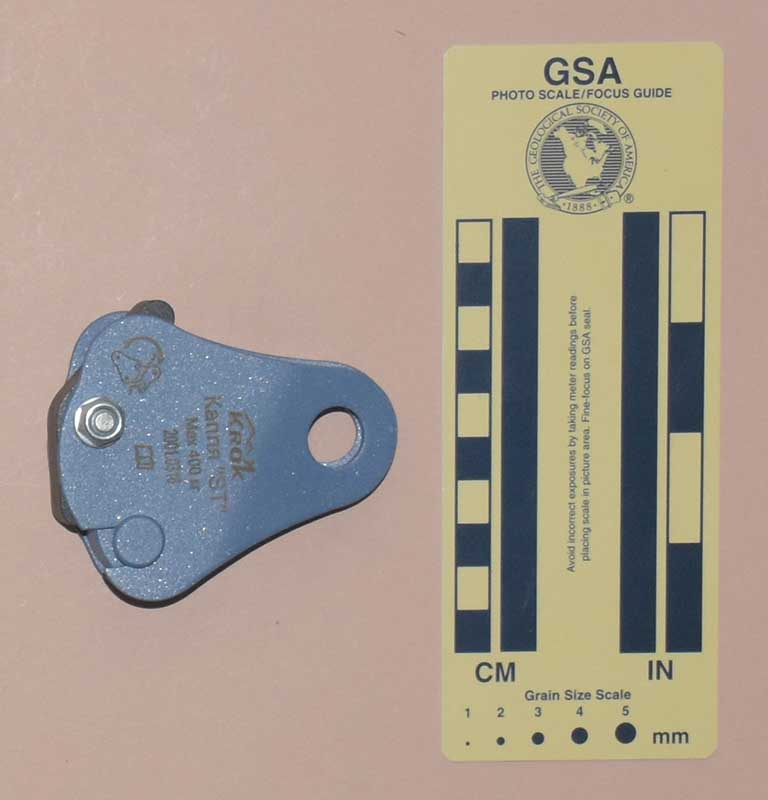

2820	Krok Drop "ST" (Капля "ST")	Stamped steel side plates, steel pivoting cam, steel anvil	Krok, 2021	211	81	68	30	162

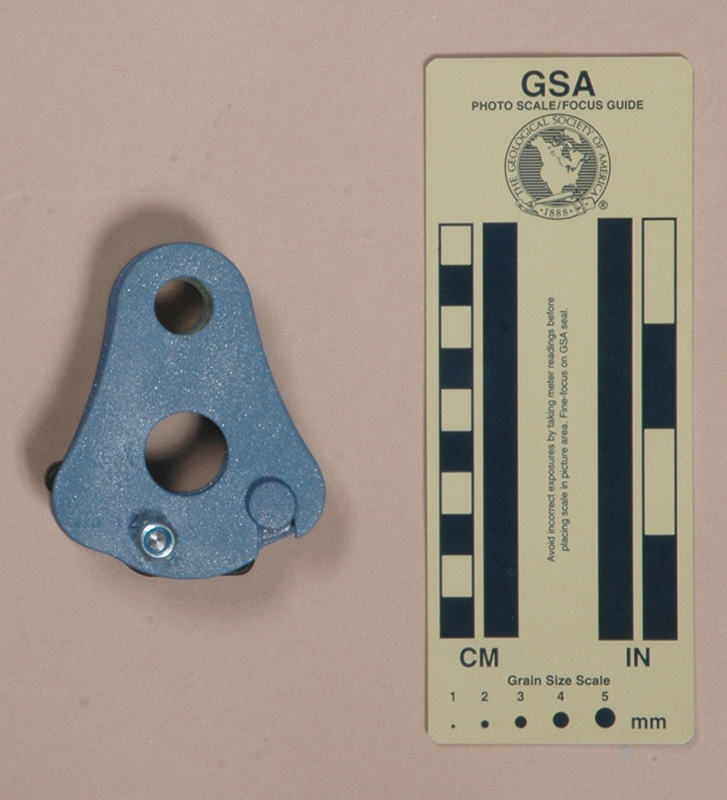

1805	Krok Drop-Roll	Stamped steel side plates, steel pivoting cam, steel anvil, steel pulley	Gear4Rocks, 2013	246	80	67	28	152
2021	Krok Drop-Roll (Капля-РОЛ) with Equilibrium Set (Набор "Эквилибр")	Stamped Al side plates, Al pivoting cam, Al anvil, Al handle	Krok, 2021	309	154	145	28	621
2706	NTR Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Andy (China), 2017	173	114	69	29	229
2888	Orion-Alp Drop (Орион-Альп Зажим Капля)	Stamped steel side plates, milled steel pivoting cam, turned steel anvil	Artyom Babin (Артём Бабин), 2021	304	100	69	31	213

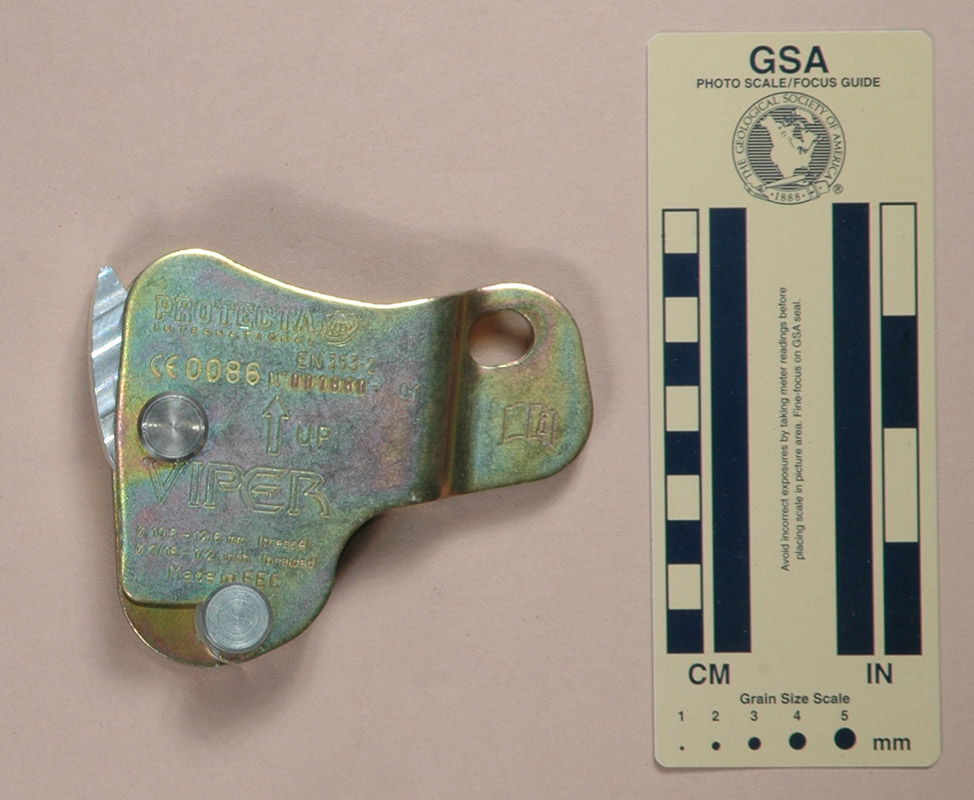

784	Protecta International AC400 Viper	Steel, spring-loaded pivot arm, fixed anvil	Inner Mountain Outfitters, 2003	439	93	110	27	280

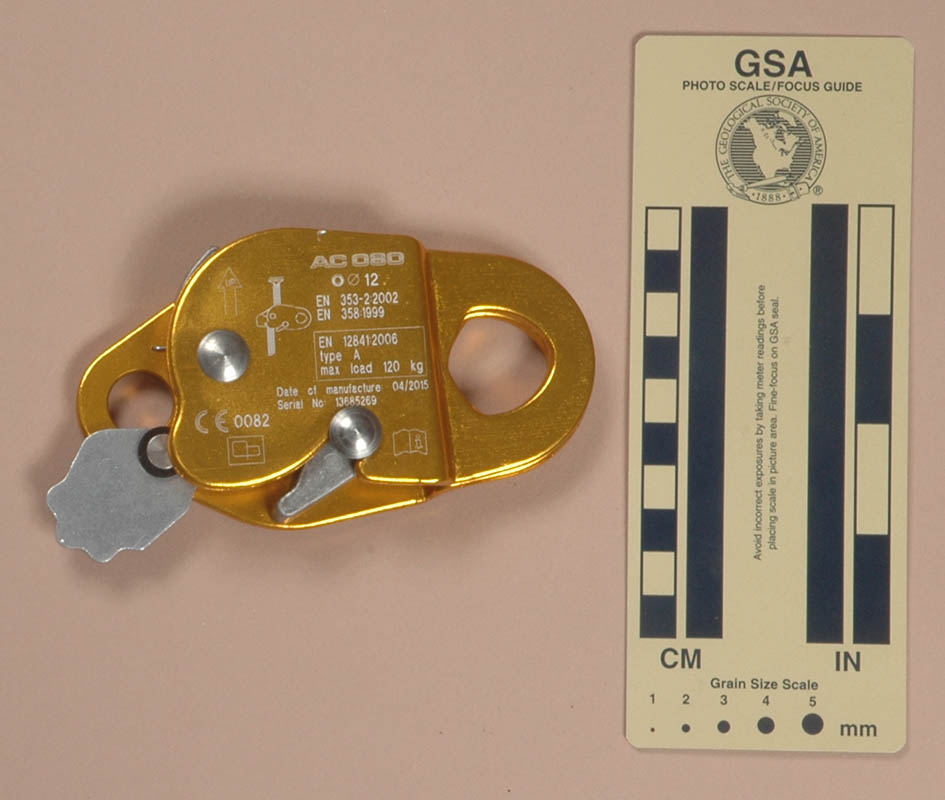

1874	Proverti AC080	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Ondřej Belica, 2015	193	66	120	29	230

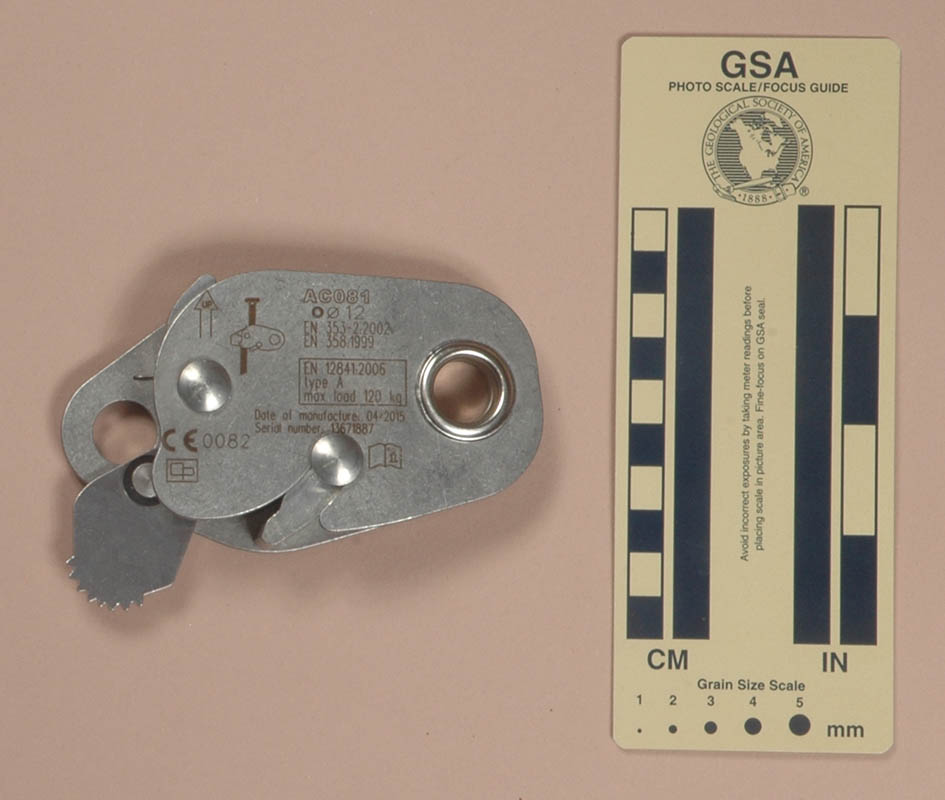

1875	Proverti AC081	SS side plates, spring-loaded pivot arm, fixed anvil, lever lock	Ondřej Belica, 2015	333	68	111	26	192

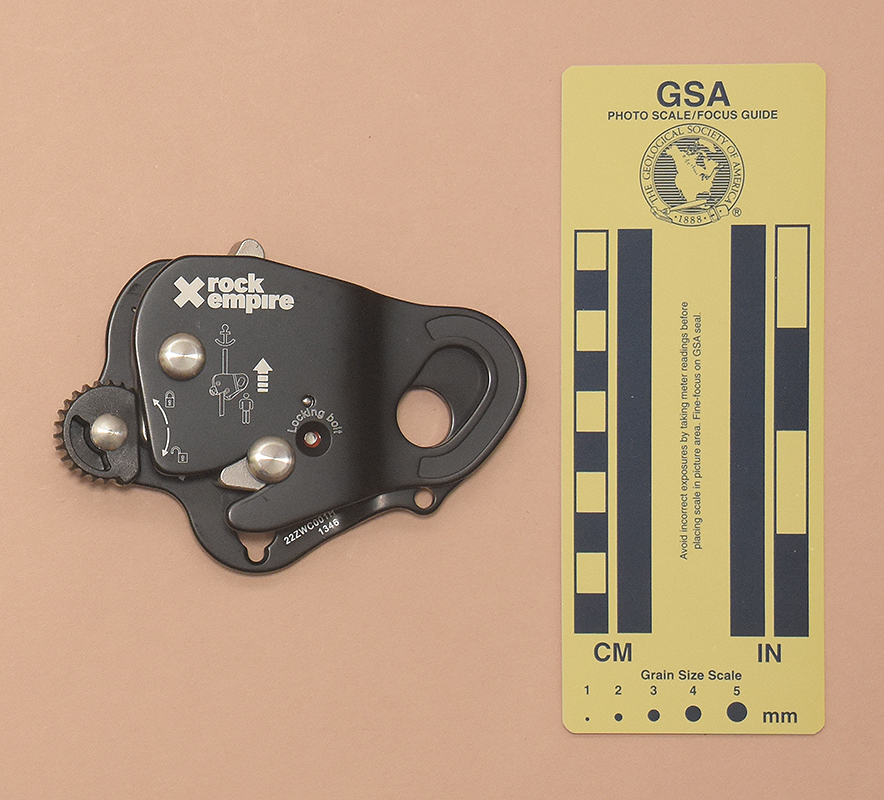

3902	Rock Empire Catch	Stamped Al side plates, pivoting cast SS cam, fixed cast SS anvil, plastic lock	Ondřej Belica / Climbing CZ sro, 2023	232	82	118	28	271

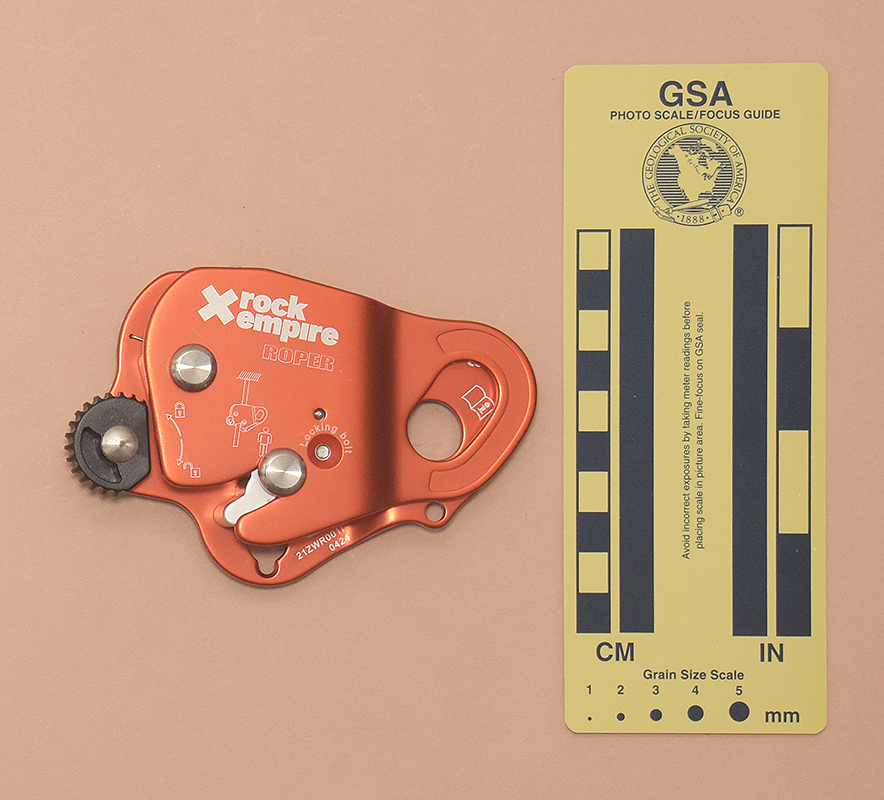

3903	Rock Empire Roper	Stamped Al side plates, pivoting Al cam, fixed Al anvil, plastic lock	Ondřej Belica / Climbing CZ sro, 2023	163	78	117	29	258

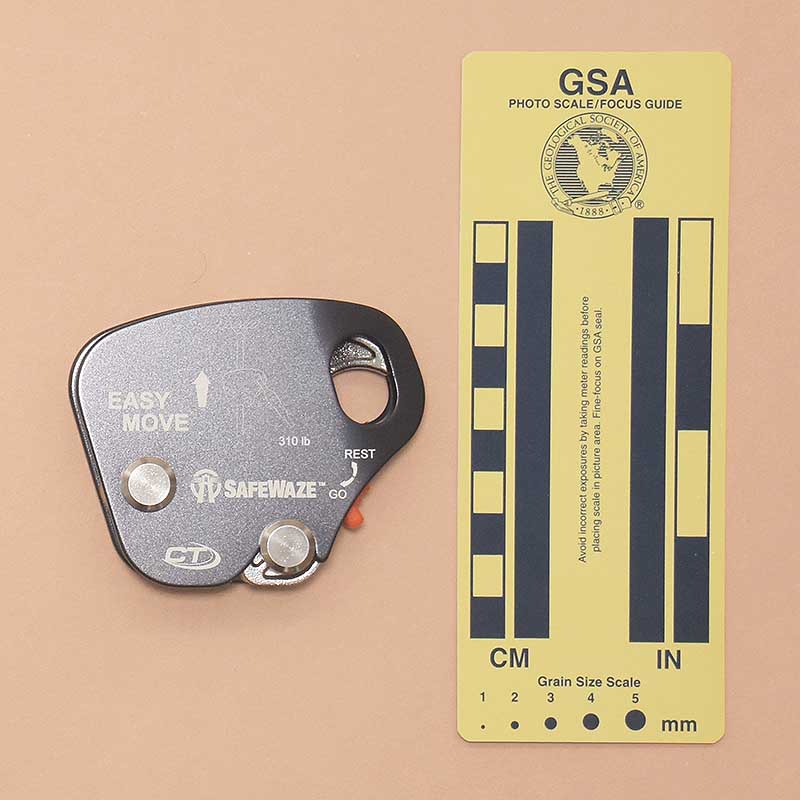

3885	Safewaze Easy Move	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Olivia Brooke and Company, 2023	200	69	81	24	134

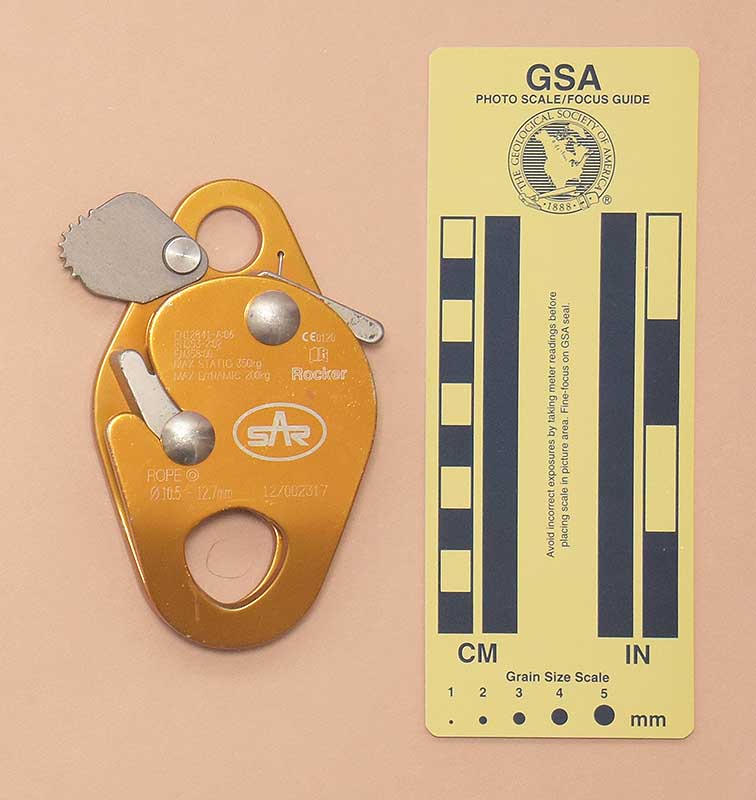

3879	SAR Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Miles Bradshaw, 2023	167	112	65	29	213

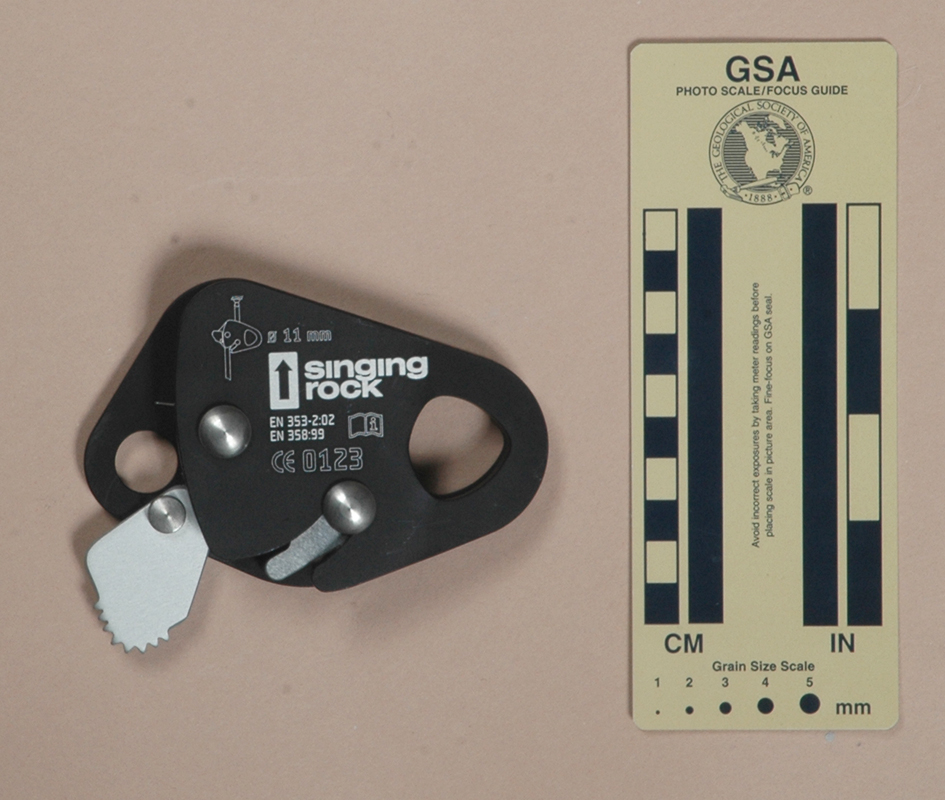

1754	Singing Rock Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Outdoors Etc., 2012	174	118	68	29	231
2703	SOB Grab	Forged Al frame & swinging side plate, forged ss levers & anvil	Suntek, 2017	184	65	98	23	149

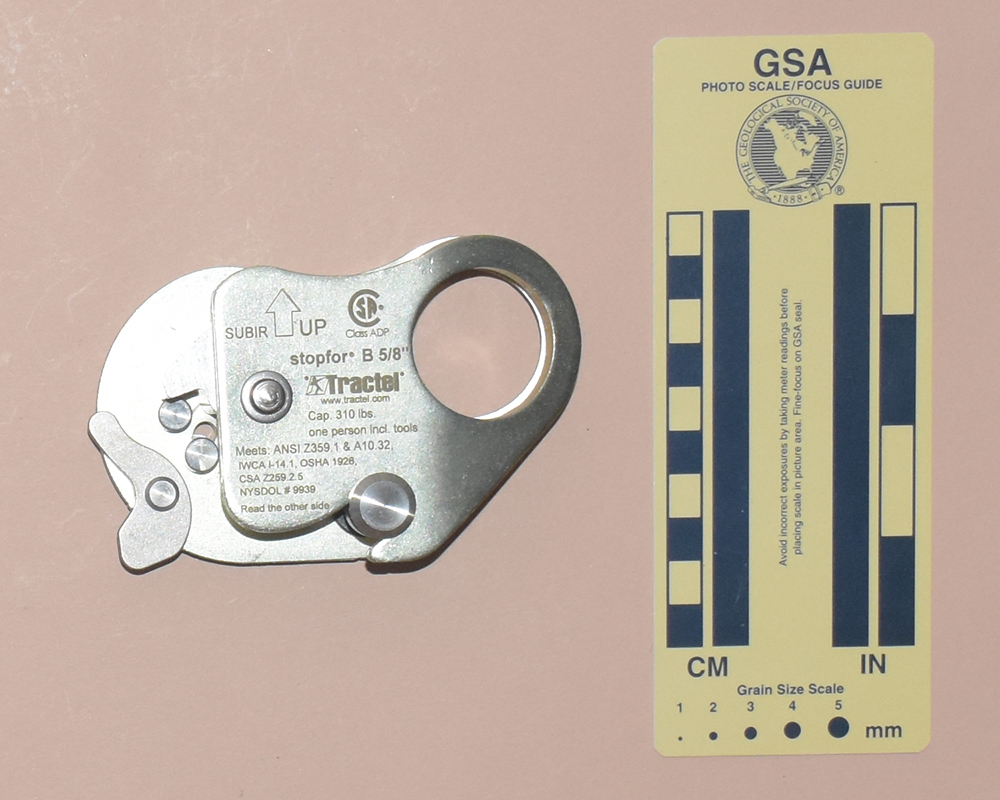

2806	Tractel Stopfor B	Steel plates, steel rocker arm, latch pin & lever, for 5/8" rope	Windows101, 2021	370	113	71	35	281

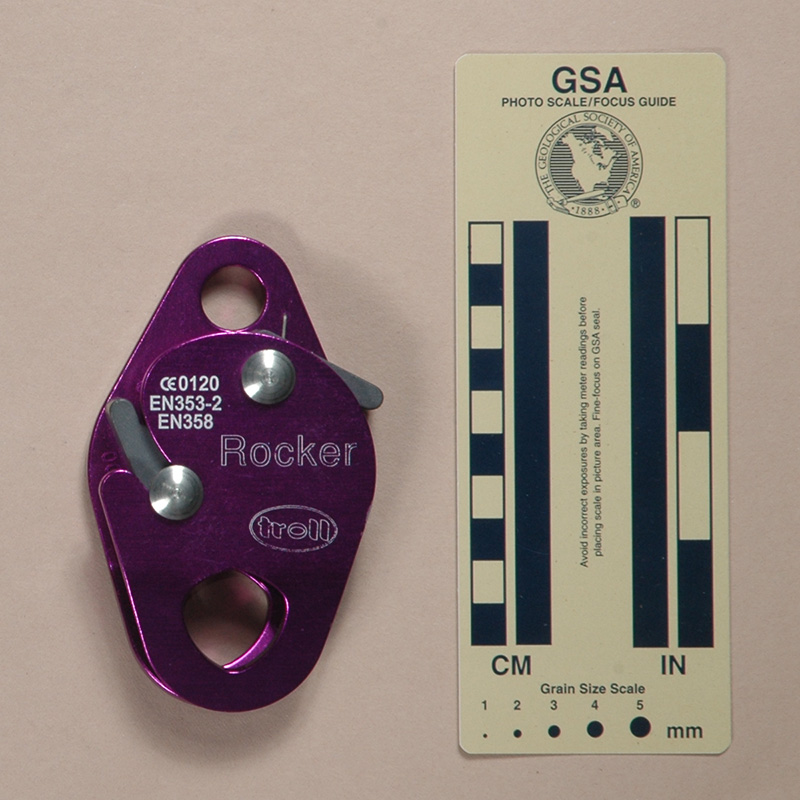

742	Troll Rocker, Version A	Al side plates, spring-loaded pivot arm, fixed anvil	Troll, 2000	162	113	65	30	216

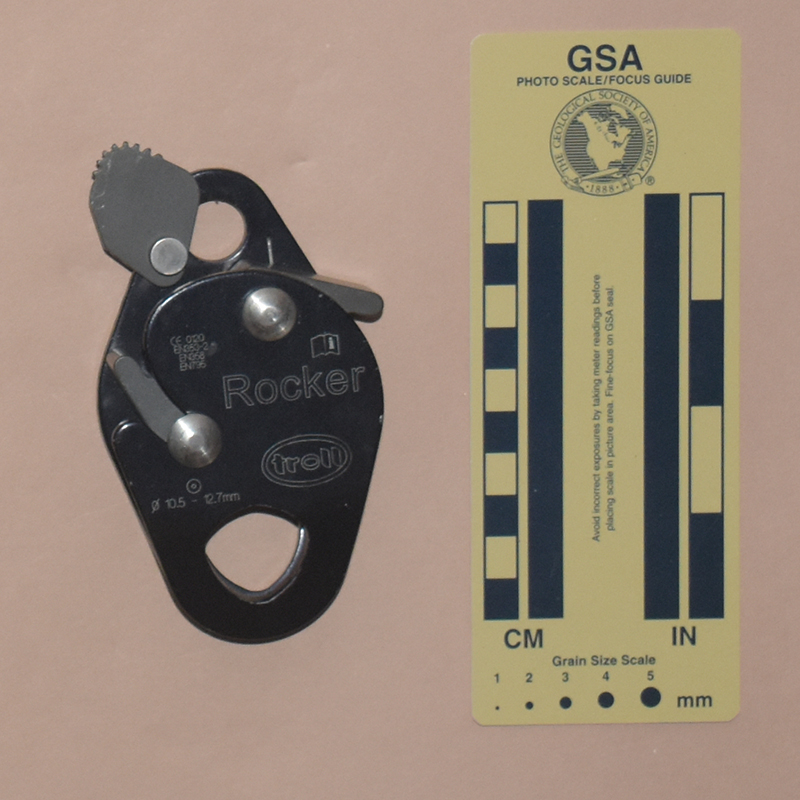

2776	Troll Rocker, Version B	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Adventure Outdoors, 2019	167	114	65	29	215

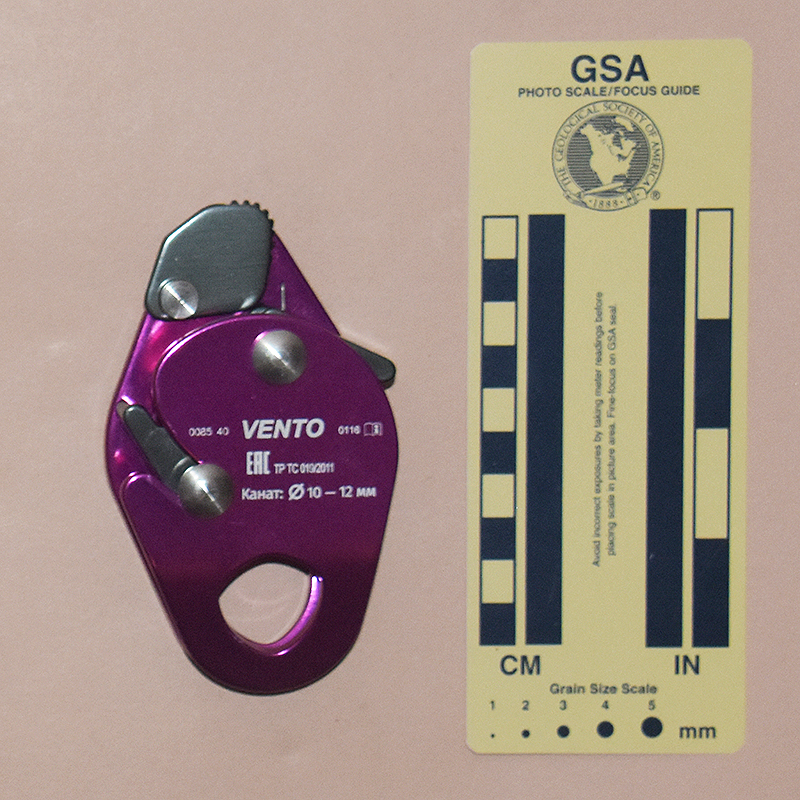

2763	Vento (Венто) Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Artyom Babin (Артём Бабин), 2019	179	113	65	30	219

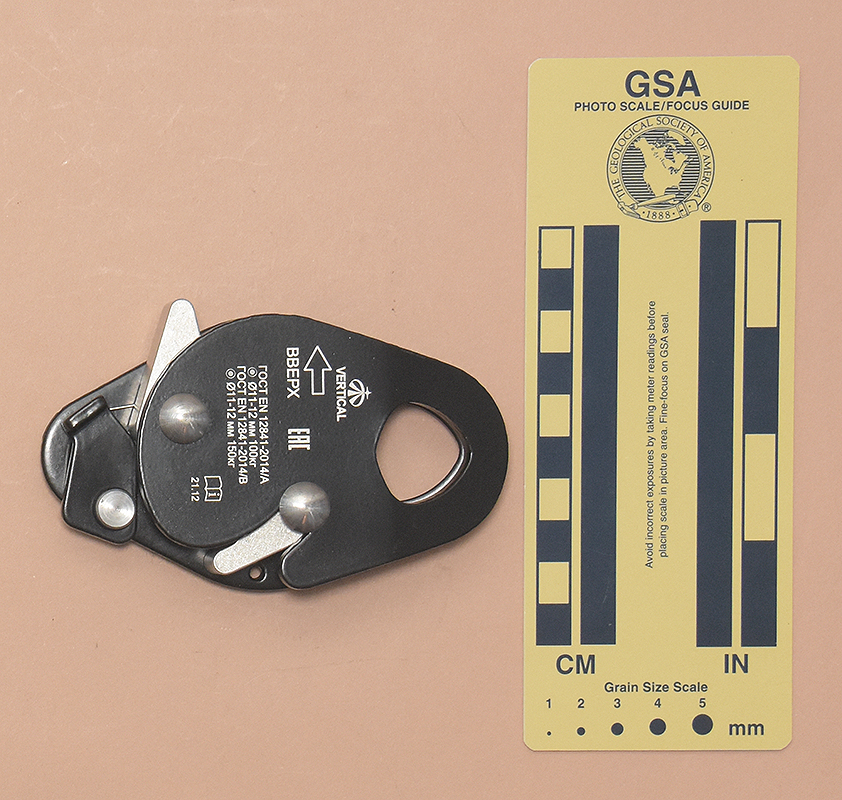

3736	Vertical (Вертикаль) Rocker ver 0115	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Vertical (Вертикаль) via Artyom Babin (Артём Бабин), 2022	168	109	65	31	217

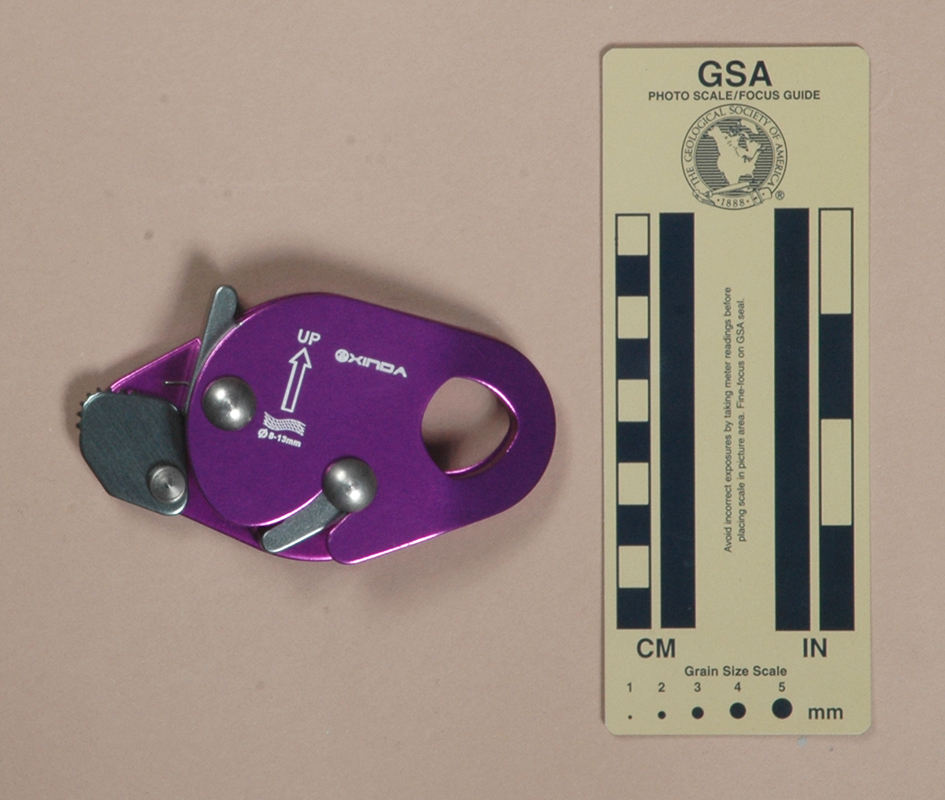

1830	Xinda Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Gold Bucket, 2014	168	114	64	29	214

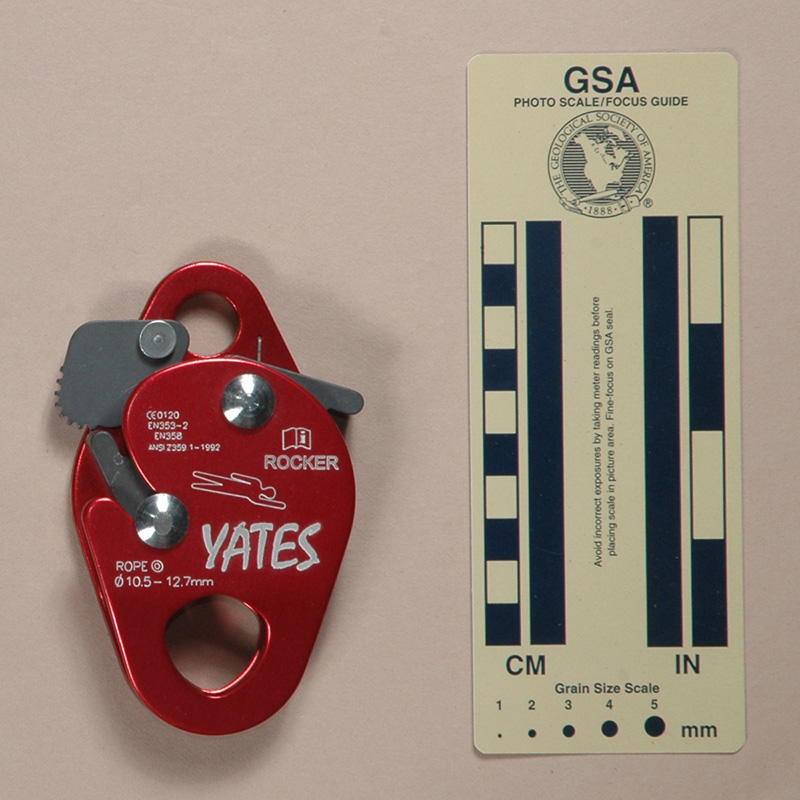

778	Yates Rocker	Al side plates, spring-loaded pivot arm, fixed anvil, lever lock	Mountain Gear, 2003	163	115	65	29	219
2764	Z&W Rocker	Aluminum side plates, spring-loaded pivot arm, fixed anvil, lever lock	Accessories Mall, 2019	177	116	66	30	227
