Table 9: T-side Figure Eights

• These eights have ears on the side. Their primary purpose is to provide a convenient place for tying the rope to lock off.
• The AustriAlpin Guide, Hugh Banner, Mizo, and some of the Krok and Chinese eights are similar, with each having T-horns on each side.
• In this table, special shading in the ID field background indicates eights that are particularly similar except for markings and possibly finish. A pale orange background in the Device column indicates a double-T-sided eight.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width	Aux Height	Aux Width	Ear #1	Ear #2
	2575	AustriAlpin Nemo AF09B	102	69	8	30	34	8	20	18	28	18	-	-	22	19
	2576	AustriAlpin Nemo Fix AF09B-X-F	102	69	8	30	34	8	20	18	14	14	-	-	22	19
	1467	AustriAlpin NO.MAD	127	89	10	45	40	10	44	24	14	14	-	-	28	23
	2577	AustriAlpin RopeX Guide 8, Version A	128	129	12	58	58	12	24	30	22	30	-	-	35	39
	3065	AustriAlpin RopeX Guide 8, Version B	128	129	12	58	58	12	24	30	22	30	-	-	35	39
	1157	Blitz Safety 8	179	101	13	75	48	13	13	40	66	19	-	-	33	43
	3030	Canyoning Equipment 4 You Axe-8	147	82	10	48	63	10	42	13	14	14	-	-	28	22
	2578	CanyonZone Zone 8	132	93	10	42	57	10	41	12	14	14	46	13	21	28
	2509	Chinese Model A	153	119	11	65	52	11	44	30	23	24	23	8	25	32
	3248	Gallis	108	83	10	59	35	10	11	32	15	15	-	-	30	26
	1007	Hugh Banner	123	116	13	44	44	12	43	33	16	16	18	18	26	29
	2455	Ice Rock Duckling	126	105	11	35	57	11	34	24	12	12	-	-	21	25
	2591	Kailas Canyon	126	93	13	44	61	12	29	25	14	14	28	14	24	19
	3365	Kaluga	171	86	8	96	33	8	2	58	12	12	-	-	83	64
	1411	Kong Oka (805.08.B)	137	94	11	52	55	11	38	17	21	21	43	17	23	25

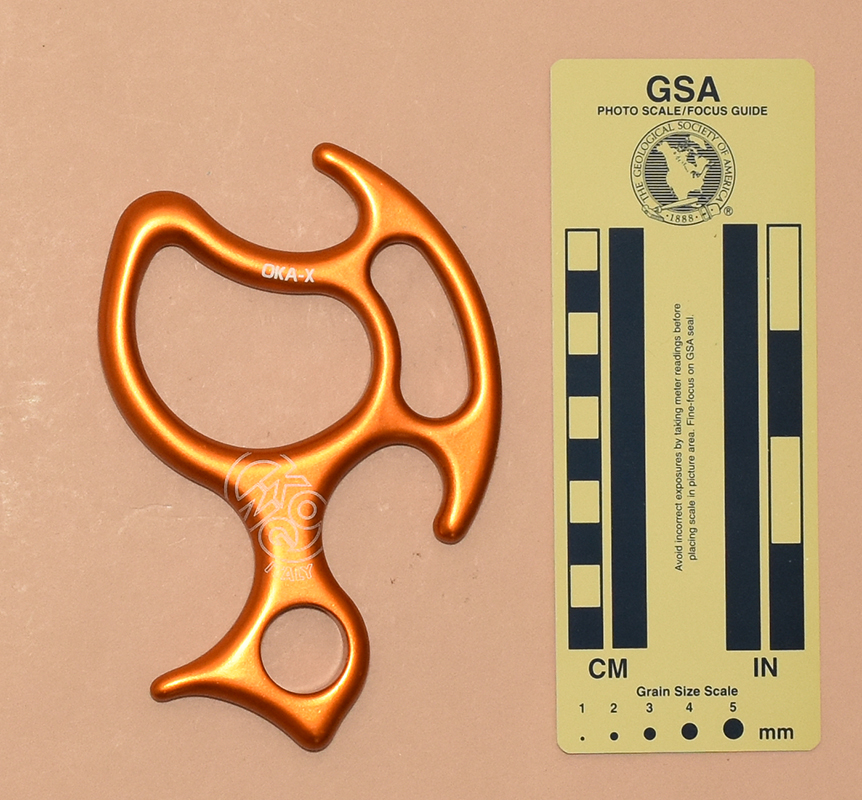

	3380	Kong Oka-X	137	93	11	49	54	11	38	16	21	21	-	-	-	-
	3005	Krok 6021_0745.9	123	138	10	64	64	10	13	37	14	14	-	-	38	39
	3006	Krok 6013_0745.6	154	152	10	80	80	10	32	26	20	20	-	-	44	44
	1108	Krok 8 Ear	151	99	10	48	48	10	41	28	25	25	-	-	34	29
	1109	Krok Invar Aluminum	132	109	10	58	58	10	12	44	18	18	-	-	38	38
	1110	Krok Invar Steel, Version A	149	108	10	67	69	10	24	20	21	20	-	-	42	36
	1334	Krok Invar Steel, Version B	120	138	10	63	63	10	14	38	14	14.1.	-	-	39	38
	1144	Krok SQU-EAR	118	99	9	48	50	9	25	29	20	20	-	-	34	26
	3384	Lev Petrovich Karepin	113	77	13	38	36	12	25	21	17	16	-	-	39	38
	1422	Mammut Nano Eight	84	72	9	24	34	9	29	21	18	14	-	-	15	13
	967	Manaraga, Version C	98	85	10	40	40	10	11	32	18	18	-	-	30	31
	965	Manaraga, Version D	135	105	10	61	61	10	15	33	18	18	-	-	40	40
	342	Manaraga, Version E	134	108	12	60	60	12	10	39	16	16	6	6	45	39
	3221	Manaraga, Version F	131	110	10	60	60	10	10	36	16	16	-	-	43	39
	3378	Manaraga, Version G	130	110	10	59	59	10	11	35	16	16	-	-	42	42
	968	Manaraga, Version H	94	81	10	40	40	10	11	32	18	18	-	-	27	27
	969	Manaraga, Version I	132	109	10	60	60	10	11	32	17	16	6	6	46	43
	1097	Mizo Jet Man Big, Versiion A	122	116	13	45	45	13	42	39	16	16	20	20	26	32
	3259	Mizo Jet Man Big, Versiion B	123	116	12	45	45	12	42	39	16	16	18	18	27	30
	1098	Mizo Jet Man Small	114	110	10	40	40	10	42	40	15	15	15	15	25	32
	1099	Mizo Jet Man Sus	136	121	14	44	48	13	43	26	24	24	-	-	32	31
	1412	NH	145	124	10	81	82	10	25	28	20	20	-	-	42	42
	966	Orion-Alp, Version A	147	125	10	80	80	10	25	29	20	20	-	-	42	42
	3379	Orion-Alp, Version B	140	111	11	58	58	11	13	44	18	18	-	-	41	42
	3107	Orion-Alp Steel Combo	149	126	10	80	81	10	25	29	20	20	-	-	42	43
	3106	Orion-Alp Steel Horned	162	120	10	70	70	10	27	42	35	35	-	-	38	39
	3105	Orion-Alp Two-Horned Steel	127	136	10	61	61	10	20	35	20	20	-	-	36	36
	2508	Perfeclan	170	155	11	84	67	11	35	36	29	31	15	13	19	19
	1449	Rescue Q, Version A	190	114	13	69	68	13	63	40	25	29	38	16	38	37
	3082	Rescue Q, Version B	191	114	13	69	69	13	63	40	25	29	38	16	38	37
	3381	Rescue Q, Version C	195	117	13	69	69	13	63	40	25	29	40	16	37	45
	2498	Rescue Q, Version D	195	117	13	69	68	13	64	40	25	29	40	16	37	42
	1132	Rescue Q, Version E	194	120	13	69	69	13	63	40	25	28	38	16	38	37
	1132	Rescue Q, Version F	193	115	13	68	68	13	63	40	25	29	38	16	38	37
	3262	Rescue Q, Version G (FE2121N)	99	64	10	35	35	10	29	211	17	17	-	-	21	23
	2507	Rescue Q Mini, Version A	100	65	9	35	35	9	29	21	17	17	-	-	22	23
	3263	Rescue Q Mini, Version B (FE2122N)	193	117	13	68	68	13	64	40	26	29	40	16	37	42
	1280	Rock Exotica Micro Eight	75	78	9	31	41	9	18	22	14	14	-	-	28	25
	1254	Rock Exotica Mini Eight	92	82	10	32	44	10	33	22	14	14	26	11	27	28
	473	Russian, Version A	98	82	11	41	41	10	19	39	22	20	-	-	25	23
	3371	Russian, Version B	86	80	10	41	41	10	8	33	19	19	-	-	23	30
	492	Russian, Version C	85	79	11	40	40	10	8	34	18	18	-	-	19	22
	3256	Russian, Version D	128	115	10	66	66	10	22	28	18	18	-	-	45	52
	971	Russian, Version E	155	115	15	50	66	14	43	34	20	20	-	-	37	36
	3222	Russian, Version F	149	92	10	83	38	10	24	34	15	15	-	-	42	36
	3257	Russian, Version G	140	121	10	66	65	10	9	-	15	15	-	-	44	46
	3258	Russian, Version H	185	126	13	85	54	13	15	-	16	16	-	-	64	66
	523	Russian, Version I	118	101	8	40	43	8	41	16	16	16	-	-	52	49
	902	SBCI Sidewinder	194	108	13	75	49	13	23	46	66	19	-	-	34	39
	970	Turin, Version A	153	98	13	50	50	13	40	30	31	31	-	-	32	32
	2540	Turin, Version B	136	106	9	59	59	9	16	29	18	17	-	-	33	34
	1031	Unknown	176	100	13	69	49	13	66	40	19	19	40	15	34	43
	1387	Vento (Венто)	145	125	11	80	80	11	26	28	19	19	-	-	41	42
	2506	Vertical (Вертикаль)	118	107	12	58	58	12	13	42	20	20	-	-	34	35
	2500	YQ Model C	170	156	11	85	67	11	35	36	29	31	15	13	18	18

Table 10: Harpoons

• Harpoons are Australian. That explains why the ears are on the bottom: southern hemisphere.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width	Aux Height	Aux Width	Ear #1	Ear #2
	949	Single Rope Technique Equipment R8B	172	92	17	51	51	16	66	28	28	28	-	-	24	-
	570	Single Rope Technique Equipment R8Ba	172	92	16	53	53	16	65	30	28	28	-	-	24	-
	343	Spelean Harpoon	168	89	17	53	53	16	66	28	21	21	-	-	21	-

Table 11: Welded Steel Figure Eights with Ears

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width	Aux Height	Aux Width	Ear #1	Ear #2
	320	Bob Handley Cool 8, Thick-walled	126	141	19	60	78	19	10	59	39	41	-	-	23	-
	319	Bob Handley Cool 8, Thin-walled	158	164	19	66	80	18	10	59	37	41	-	-	34	-
	3325	Michael Oatney, Version A	158	130	10	61	62	9	10	43	69	32	-	-	-	-
	3326	Michael Oatney, Version B	182	20	124	85	58	19	21	13	59	34	-	-	-	-
	3164	Russian, Version J	223	168	12	134	105	10	21	19	35	28	107	88	74	64
	916	Ural Alp (20.01)	123	90	10	46	38	10	37	10	22	18	-	-	63	-
	948	Ural Alp (20.03)	123	117	10	41	36	10	45	10	20	18	-	-	57	20
	987	Ural-Alp (20.05)	148	80	10	35	44	10	45	10	16	20	-	-	54	33
	3297	Vertical Supply Prototype, Version A	98	124	11	31	47	11	14	29	32	16	-	-	27	-
	3298	Vertical Supply Prototype, Version B	123	126	11	49	54	11	14	31	39	17	-	-	25	-
	3299	Vertical Supply Prototype, Version C	134	135	11	53	61	11	11	36	49	24	-	-	25	-

Table 12: Miscellaneous Figure Eights with Ears

• There are always a few that defy classification.

Image	ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width	Aux Height	Aux Width	Ear #1	Ear #2
	3031	Canyoning Equipment 4 You Devil-8, Version A	135	80	10	43	50	10	31	17	15	15	-	-	28	28
	3201	Canyoning Equipment 4 You Devil-8, Version B	135	80	10	43	50	10	32	17	14	14	-	-	28	29
	4000	Canyoning Equipment 4 You Devil-8 Mini Stainless Steel	119	71	10	38	47	10	26	15	14	14	-	-	22	25
	1457	Canyon Werks CRITR	124	99	11	38	46	11	51	30	14	14	36	13	38	31
	1480	Canyon Werks CRITR2	138	100	11	45	46	11	51	30	13	13	36	13	39	32
	1441	CMI El Diablo	140	92	9	34	55	9	47	33	20	24	321	17	21	25
	3382	CTRA Bat Descender	130	100	11	40	46	11	29	16	14	14	-	-	18	25
	316	DMM Anka, Version A	142	84	47	39	51	11	54	17	25	25	-	-	18	-
	1446	DMM Anka, Version B	144	85	47	38	51	9	54	19	26	25	-	-	17	-
	2456	Edelrid Hannibal	131	74	13	46	50	11	31	31	15	15	-	-	14	7
	2579	Edelrid Mago	106	70	8	30	43	8	36	28	17	18	28	8	10	14
	317	Famau, Version A	154	79	41	42	59	9	85	20	15	15	-	-	32	37
	1061	Famau, Version B	153	80	46	42	59	10	85	20	15	15	-	-	32	37
	1385	Famau, Version C	156	80	46	42	59	11	86	20	15	15	-	-	33	36
	3308	Glacier Black Axol	131	93	10	40	45	10	59	38	14	14	38	10	15	25
	3092	Glacier Black PaliKoa Element, Version A	130	106	10	45	45	10	56	30	14	14	32	14	25	19
	3199	Glacier Black PaliKoa Element, Version B	130	106	9	45	45	9	56	30	14	14	32	14	25	19
	3093	Glacier Black PaliKoa Pivot, Version A	130	101	10	45	45	10	56	30	14	14	32	14	16	19
	3200	Glacier Black PaliKoa Pivot, Version B	130	101	9	45	45	10	56	30	14	14	32	14	16	19
	1481	Hoodoo	159	100	10	30	44	10	62	30	12	12	45	12	40	40
	2491	Hoodoo SL	125	94	9	30	42	9	52	28	14	14	36	12	36	37
	3316	I Climb (元鴻興有限公司) #648	139	99	11	43	43	11	53	28	14	14	36	13	40	34
	3317	I Climb (元鴻興有限公司) #649	146	93	10	35	53	10	54	27	14	14	38	13	25	31
	3318	I Climb (元鴻興有限公司) #650B	110	79	12	50	50	12	25	21	14	14	-	-	23	-
	3246	Imlay Canyon Gear CRITR3	138	100	11	46	46	11	51	30	14	14	36	13	39	32
	564	Interalp/Camp Job, Version A	171	100	34	37	67	12	95	39	25	25	74	36	23	22
	1103	Interalp/Camp Job, Version B	174	100	34	36	67	12	96	39	24	24	74	36	23	21
	1238	ISC RP120 Mini 8	88	55	8	12	40	8	24	12	16	12	10	30	15	-
	3003	ISC RP130 Figure 9	192	159	42	69	73	11	45	26	36	22	-	-	29	18
	972	Madagaskar	123	77	10	51	46	10	25	25	15	12	-	-	15	26
	322	Munter Egg Mark 3	181	124	10	73	101	10	39	66	49	28	17	17	8	-
	583	New England Micro Rappel Device	92	52	10	23	23	9	34	32	18	16	18	16	7	6
	1427	New England Micro Rappel Device - Eric Thunberg Copy	91	52	10	23	23	10	34	32	19	16	19	16	7	6
	3104	Orion-Alp Hummingbird	111	90	10	47	45	10	11	34	23	14	-	-	26	41
	904	Petzl Pirana, Version A	115	76	15	53	48	11	28	24	11	12	-	-	14	25
	1298	Petzl Pirana, Version B	115	77	14	53	48	11	28	24	11	12	-	-	14	25
	3188	Petzl Pirana, Version C	115	89	25	55	47	11	27	24	12	13	-	-	30	32
	2551	Petzl Pirana, Version D	115	89	25	55	47	11	27	24	12	13	-	-	30	32
	3189	Petzl Pirana Club, Version A	115	77	15	55	44	11	24	27	12	13	-	-	23	25
	3190	Petzl Pirana Club, Version B	115	77	15	55	44	11	24	27	12	13	-	-	23	25
	3361	Petzl Pirana Guide	116	89	24	53	44	11	27	24	12	12	-	-	33	31
	1250	Radeberger Haken, Version A	176	153	28	46	48	21	75	38	24	13	29	13	46	39
	1283	Radeberger Haken, Version B	265	213	37	66	77	15	113	42	42	17	48	24	58	52
	1350	Radeberger Haken, Version C	287	205	34	66	75	15	113	42	41	18	48	23	91	51
	1314	Radeberger Haken, Version D	290	205	26	73	76	8	112	40	40	16	45	20	93	53
	1400	Radeberger Haken, Version E	288	207	39	74	75	16	102	40	41	17	45	21	89	50
	935	Rappel Rescue Systems Pro-Pak, Version A	191	86	16	42	60	12	46	23	41	42	24	52	31	-
	1212	Rappel Rescue Systems Pro-Pak, Version B	189	84	17	42	61	13	45	22	42	42	24	52	30	-
	514	Rappel Wheel, Version A	150	150	16	46	65	16	28	29	46	65	-	-	39	34
	515	Rappel Wheel, Version B	150	150	16	46	65	16	29	28	46	65	-	-	67	-
	2574	Resonator 3000	140	125	9	42	51	9	56	48	14	14	40	14	27	36
	4010	Tashkent Aviation Plant	111	91	10	61	59	10	9	43	23	22	-	-	23	22
	961	Ural-Alp Self-Braking Descender/Belay Device, Version B	137	70	27	40	45	26	44	18	16	16	-	-	4	7
	2499	YQ Model B	153	119	11	65	52	11	44	30	23	24	23	8	25	32
