Collection Home
Rescue 8
Mini Rescue 8
|
|
|
| Rescue 8 | Mini Rescue 8 |
[ Top | Mini Rescue 8 | Return to Figure Eights ]
|
|
 |
| Front | Rear |
I acquired my Climb X Rescue 8 With Ears from Climb X in 2015.
The Climb X Rescue 8 With Ears is forged from aluminum alloy and then soft anodized. Mine is 170 mm. tall, 170 mm. wide, and 16 mm. thick. The rope hole is 63 mm. high and 71 mm. wide. The top center thickness is 14 mm. The shaft length and width are 48 mm. and 42 mm., respectively. The auxiliary hole is 31.9 mm. high and 16.3 mm. wide. The eye measures 36 mm. by 40 mm. The ears are 35.7 mm. long. My Climb X Rescue 8 With Ears weighs 280 g.
The front is printed with "Climb X," "Tested 3σ BBABE," and "45kN."
The Climb X Rescue 8 is one of the following family of nearly identical forged aluminum rescue eights with ears:
Some of these eights are made in Europe, and some in Asia. Some are rebranded eights made by one manufacturer for others.
Each of these eights is 170±1 mm. tall and 170±2 mm. wide. Their weights fall in the 269±20 g. range. Although similar, these eights are not identical, and close inspection will reveal some minor differences in their shapes. Thickness variations account for much of the wide weight range. None of these affect their performance to any noticeable degree.
The Climbing Technology Ltd. eight is similar, but the ears are shaped differently. The Climb Right, Version B has a similar design, but it is a milled eight and is significantly smaller. There are several Kong steel eights that also have similar designs, some about the same size as the Kong Big "8" (805.06) in the table, some smaller.
The eyes and ears on these eights are larger than they need to be for most uses. The belay slot is a reasonable size for a Sticht slot, and insetting part of the slot into the useless portion of the upper rope hole reduces the length of the eight.
Like all rescue eights, these are too large and too heavy for an individual-use eight, and I see no reason to choose them in normal caving or climbing applications. I don't interfere with natural selection, not wanting to deal with the politics, but I question whether these are really the best option for rescue applications. They can be used, but there are smaller and lighter devices that will work better for anything I'm likely to do. The bigger-is-better crowd seems to like them, but I don't rappel on battleship mooring hawsers and I have no need for these.
This eight has a hard coating that wears well.
[Top | Rescue 8 | Return to Figure Eights ]
|
|
 |
 |

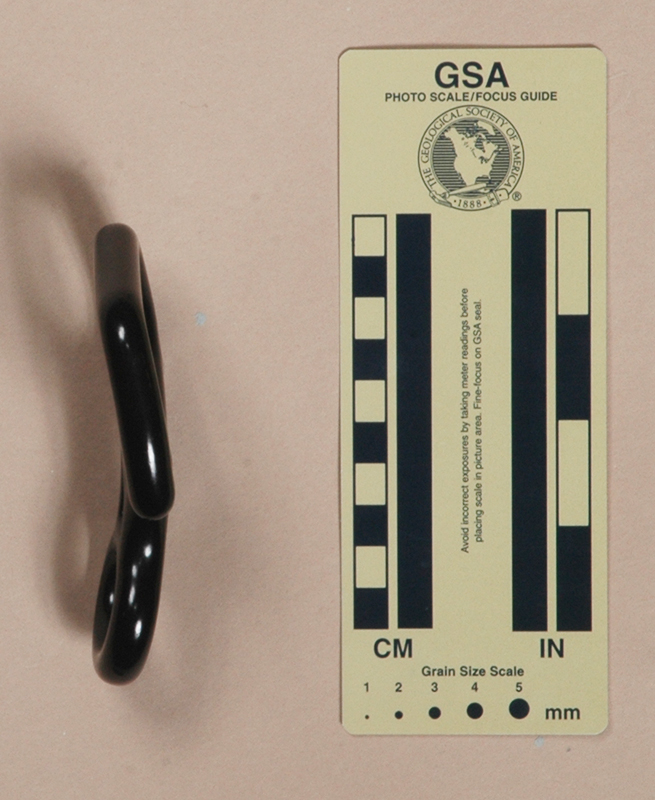

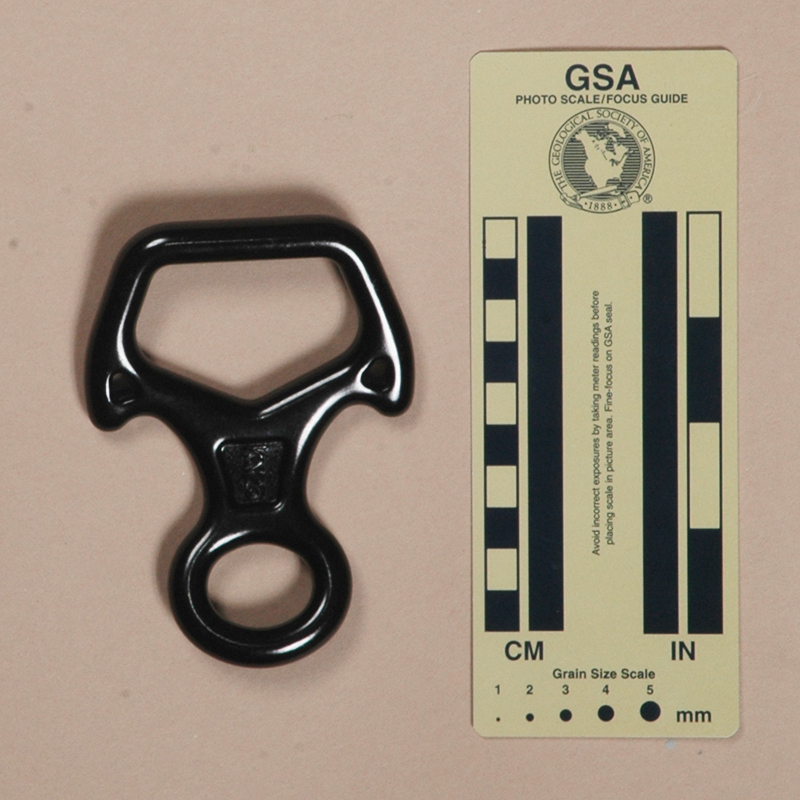

| Front | Rear | Side |
I acquired my Climb X Mini Rescue 8 With Ears from Climb X in 2015.
The Climb X Mini Rescue 8 With Ears is forged from aluminum alloy and then soft anodized. Mine is 109 mm. tall, 80 mm. wide, and 19 mm. thick. The rope hole is 35 mm. high and 53 mm. wide. The top center thickness is 11 mm. The shaft length and width are 35 mm. and 25 mm., respectively. The eye measures 20 mm. by 25 mm. The ears are 13.6 mm. long. My Climb X Mini Rescue 8 With Ears weighs 93 g.
The convex side of the shaft has "ACE" in raised forged letters, and the concave side has "kN25," also in raised letters.
This is one of the following family of nearly identical "mini"-size figure eights with ears:
|
|
|
|
|
||||||||||||||||||||||||||||||
Each of these eights is 109±1 mm. tall and 80±1 mm. wide. Their weights fall in the 89±5 g. range. Although similar, these eights are not identical, and close inspection will reveal some minor differences in their shapes. None of these affect their performance to any noticeable degree.
These eights are smaller and much lighter than most figure eights with ears. While the advantages are manifest, there are two practical disadvantages:
The holes in the ears provide a place to tie a keeper cord, if you believe in such things. To me, the nuisance of keeping the keeper away from the main rope outweighs their value.
The rope hole is shorter than normal, so these eights may provide too much friction on stiff or muddy ropes. If these were flat (like the similar Kailas Multi 8), they would create more friction than most eights. The bend allows them to be rigged two ways with differing amounts of friction, one with less friction than the Kailas and one with more.
Other small eights have similar bends. Examples are the Chouinard
Version B, Faders Versions A and B, Frendo
Version B, and the Trango Penta. The significant difference is that this eight and its equivalents also have ears. Better yet, the ears are placed low where they can function effectively without increasing the size of the eight. The idea behind ears is that they reduce the chance of an eight girth-hitching. They are not strictly needed, as girth hitching is neither likely nor more than a minor nuisance to a competent user. For eared eights, I like this design enough to give each example a star.
The Climb X Mini Rescue 8 With Ears that I ordered had Climb X markings in the listing, but the one that arrived did not.
Climb X calls this a "Mini Rescue 8 With Ears," but it does not fit my idea of a "rescue 8," whatever that is.
[Top |Rescue 8 |Mini Rescue 8 ]
