NLNTL
(#3140)



Front Rear
Front Rear

Technical Details

I acquired my NLNTL on eBay from Roger & Dawn Neher in 2022.

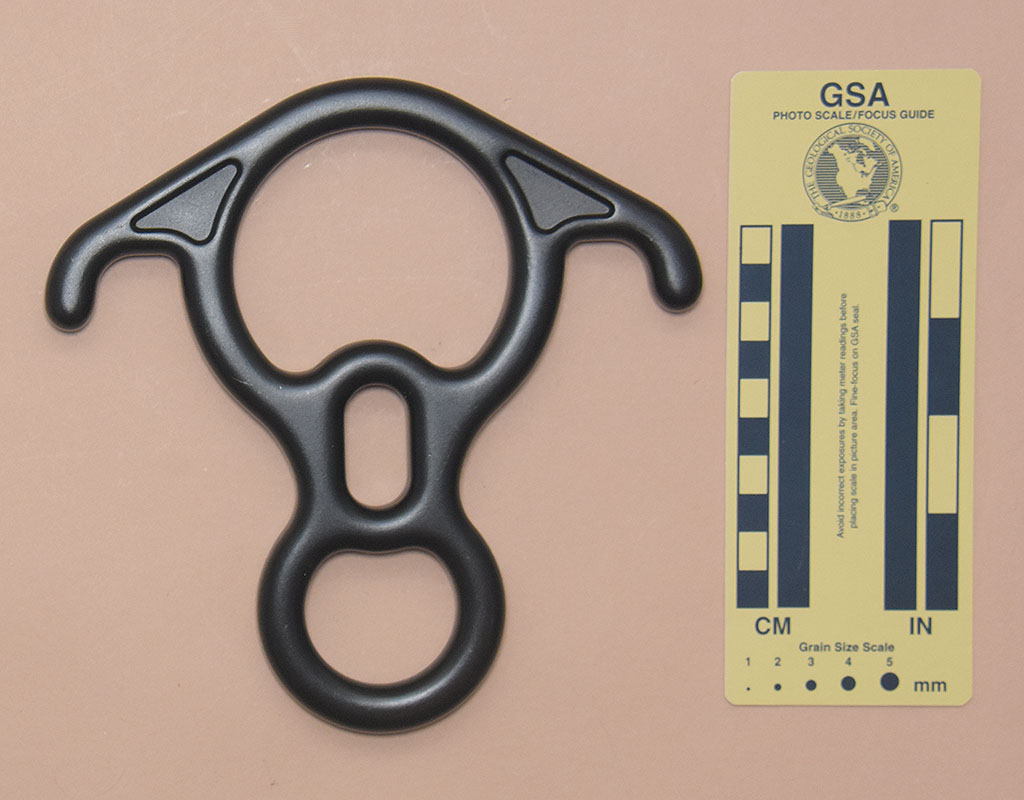

The NLNTL is forged from aluminum alloy and then hard anodized. Mine is 170 mm. tall, 170 mm. wide, and 17 mm. thick. The rope hole is 61 mm. high and 71 mm. wide. The top center thickness is 15 mm. The shaft length and width are 45 mm. and 42 mm., respectively. The auxiliary hole is 32 mm. high and 16.6 mm. wide. The eye measures 36 mm. by 40 mm. The ears are 35 mm. long. My NLNTL weighs 289 g.

One side is printed with the NLNTL logo and "50kN."

Comments

The NLNTL is one of the following family of nearly identical forged aluminum rescue eights with ears:

Image Eight
Asol, Version B Asol, Version B
C-Wildyfield Wings 8 C-Wildyfield Wings 8
Climb Right Climb Right #85228
Climb X Rescue 8 With Ears Climb X Rescue 8 With Ears
Epic Peak Epic Peak
Image Eight
Fusion Fusion
Fusion Terminal Rappel 8 Fusion Terminal Rappel 8
Good Makings, Version A Good Makings, Version A
I Climb (???????) #633 I Climb (元鴻興有限公司) #633

Image Eight
Kong Big "8"(805.06) Kong Big "8" (805.06)
Mad Rock Rescue 8 Mad Rock Rescue 8
NewDoar NewDoar
NLNTL NLNTL

Image Eight
NTR NTR
Orbsoul Orbsoul
S.E.Peak SE–225 S.E.Peak SE–225
U.S. Rigging Supply<BR>Proclimb USR-835-AU U.S. Rigging
Supply Proclimb
USR–835–AU


Some of these eights are made in Europe, and some in Asia. Some are rebranded eights made by one manufacturer for others.

Each of these eights is 170±1 mm. tall and 170±2 mm. wide. Their weights fall in the 269±20 g. range. Although similar, these eights are not identical, and close inspection will reveal some minor differences in their shapes. Thickness variations account for much of the wide weight range. None of these affect their performance to any noticeable degree.

The Climbing Technology Ltd. eight is similar, but the ears are shaped differently. The Climb Right, Version B has a similar design, but it is a milled eight and is significantly smaller. There are several Kong steel eights that also have similar designs, some about the same size as the Kong Big "8" (805.06) in the table, some smaller.

The eyes and ears on these eights are larger than they need to be for most uses. The belay slot is a reasonable size for a Sticht slot, and insetting part of the slot into the useless portion of the upper rope hole reduces the length of the eight.

Like all rescue eights, these are too large and too heavy for an individual-use eight, and I see no reason to choose them in normal caving or climbing applications. I don't interfere with natural selection, not wanting to deal with the politics, but I question whether these are really the best option for rescue applications. They can be used, but there are smaller and lighter devices that will work better for anything I'm likely to do. The bigger-is-better crowd seems to like them, but I don't rappel on battleship mooring hawsers and I have no need for these.
