Figure Eight Table Set 4

Table 13: Bent, Odd Shaped Rope Hole Eights

All of these eights are bent (they will not lie flat) so they have two different rigging configurations that provide different friction.
None of these has a round or oval rope hole.
In this table, special shading in the ID field background indicates eights that are particularly similar except for markings and possibly finish.

ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
301	C.A.M.P./Lowe Fungo	122	90	19	61	40	10	40	26	23	23
303	Chouinard, Version A	107	74	17	35	54	11	26	30	26	26
510	DMM Cardiac Arrester, Version A	143	82	20	52	58	11	36	26	30	21
1051	DMM Cardiac Arrester, Version B	144	84	20	52	58	12	36	27	30	21
3359	Edelrid Bund	108	79	20	36	59	11	27	30	25	25
544	Faders, Version A	104	80	19	41	63	10	27	24	21	21
1364	Faders, Version B	106	82	19	41	63	10	27	24	20	21
3096	Faders, Version C	107	74	18	35	54	11	26	30	26	26
533	Frendo, Version B	107	74	17	35	54	10	26	30	26	26
1341	Grivel 2 X 8	100	72	15	35	49	7	30	21	18	32
1186	KWO	106	79	20	35	58	11	26	30	25	26
1037	Lucky Face	108	79	19	36	59	11	27	30	25	25
1130	Mammut, Version F	108	79	20	36	59	11	27	30	25	25
1134	Singing Rock	107	79	19	36	59	11	27	30	25	25
524	Trango Penta	107	79	20	36	59	11	27	30	25	25
1145	Unknown #1	106	82	18	41	63	10	27	25	21	21

Table 14: Belay Eights

These have a V-shaped notch in the rope hole that was designed to let the user use the eight for belaying.
All the eights in this table are particularly similar except for markings and any nonmetallic parts within the eye.

ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
591	Advanced Base Camp Friction 8	128	74	14	69	51	11	13	25	24	28
1055	Advanced Base Camp Friction 8 (Notch)	128	73	13	69	51	11	27	26	11	11
1302	Edelrid Terence	120	72	10	74	50	7	-	26	10	8
503	Trango Belay 8, Version A	125	71	10	68	50	10	27	24	11	11
346	Trango Belay 8, Version B	125	71	10	68	50	10	27	24	11	11
1270	Trango Belay 8, Version C	127	72	11	68	50	10	14	24	24	27
1326	Troll Belay 8, Version A	128	73	14	69	51	11	13	25	24	28
1327	Troll Belay 8, Version B	128	73	14	69	51	11	13	25	10	9

Table 15: Welded Steel Rod Eights

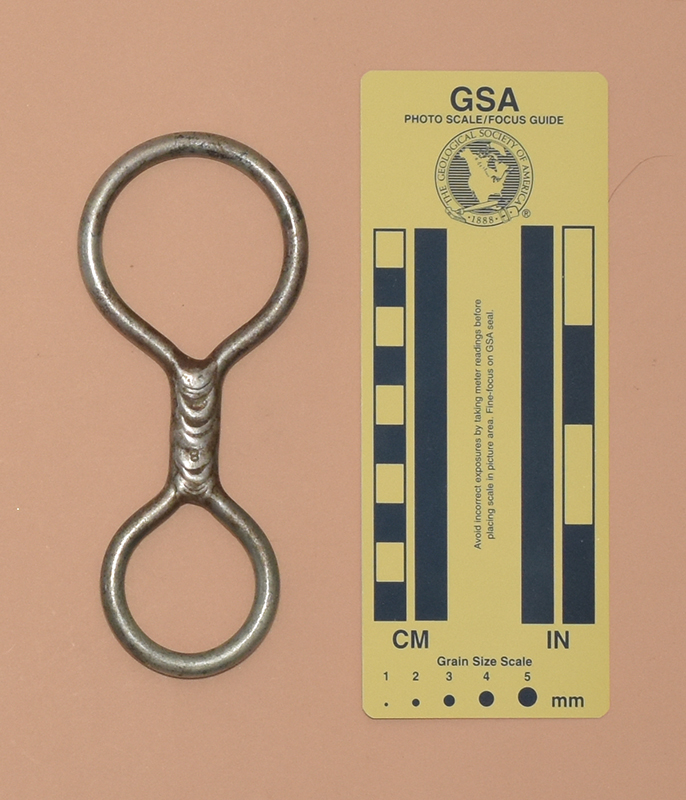

These eights are made from steel rod bent into shape and welded.
In this table, special shading in the ID field background indicates eights that are particularly similar except for markings and possibly finish.

ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
1175	Blacks, Version A	141	59	8	53	45	7	35	13	39	34
1176	Blacks, Version B	139	63	7	58	51	6	39	12	29	26
982	Fisher, Version A	138	59	9	53	46	6	36	12	38	33
3329	Fisher, Version A, Chrome Plated	141	59	9	51	45	7	38	14	37	33
1011	Fisher, Version C	128	130	10	38	114	9	58	16	20	20
1135	Kirnoz	119	77	11	59	55	11	20	22	19	14
3324	Michael Oatney	163	82	11	64	63	9	9	42	71	29
3383	Russian, Version B	118	93	8	77	7	8	10	26	16	17
2510	Schuster (ASMü), Version A	141	62	7	59	49	7	22	14	45	35
2547	Schuster (ASMü), Version B	141	62	7	57	48	7	26	14	44	38
3084	Schuster (ASMü), Version C	141	63	7	62	49	7	20	15	45	35
340	SMC Descent-Control Eight	126	90	10	38	73	9	47	30	20	29
345	Storrick Stainless	164	73	12	71	51	9	49	19	24	23
2554	Unknown #5	150	79	46	63	57	11	37	11	32	24
3293	Vertical Supply / Bassett Metal Studios Offset 8 Prototype, Version A	168	89	14	57	62	14	44	16	41	25

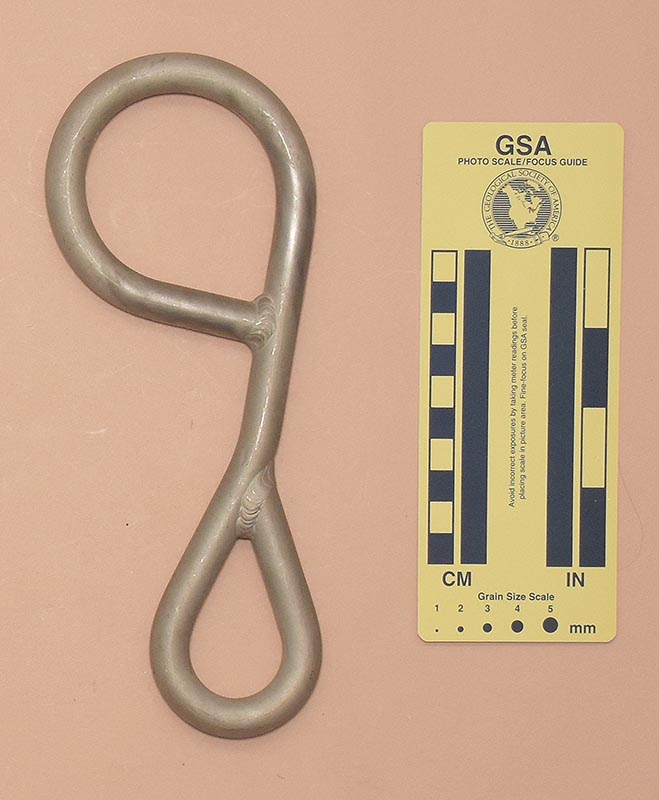

3294	Vertical Supply / Bassett Metal Studios Offset 8 Prototype, Version B	217	86	13	73	61	13	75	13	52	30
1191	Vertical Supply / Bassett Metal Studios Offset 8	166	72	11	61	49	11	43	11	45	24

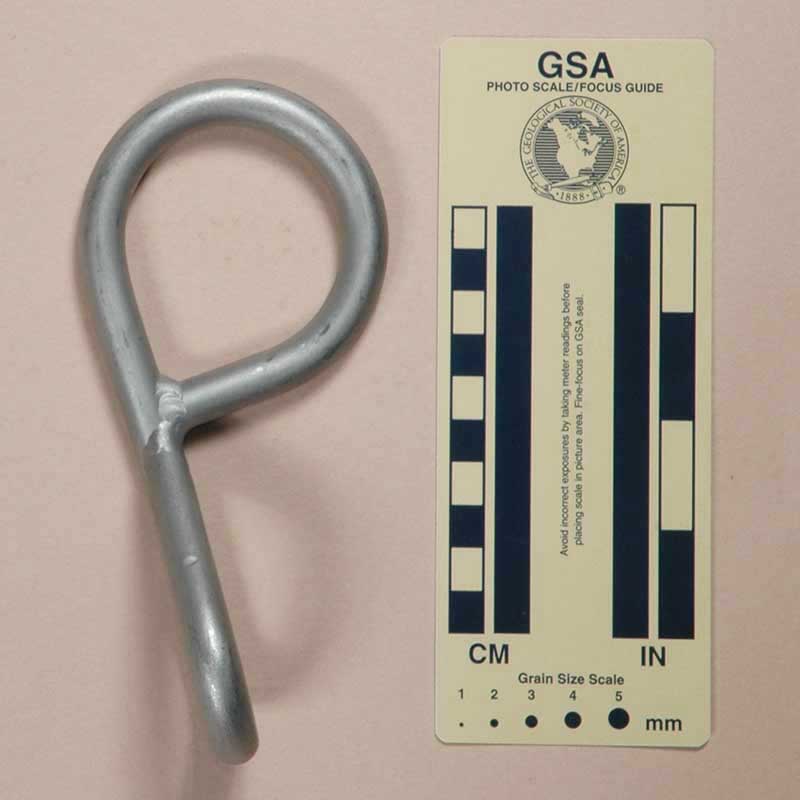

348	Vertical Supply / Bassett Metal Studios Offset 8 LS, Version A	164	71	17	62	51	11	36	11	46	25
3289	Vertical Supply / Bassett Metal Studios Offset 8 LS, Version B	169	72	17	62	50	11	47	11	45	24
349	Vertical Supply / Bassett Metal Studios Offset 8 LT, Version A	164	71	17	61	51	11	45	11	42	25

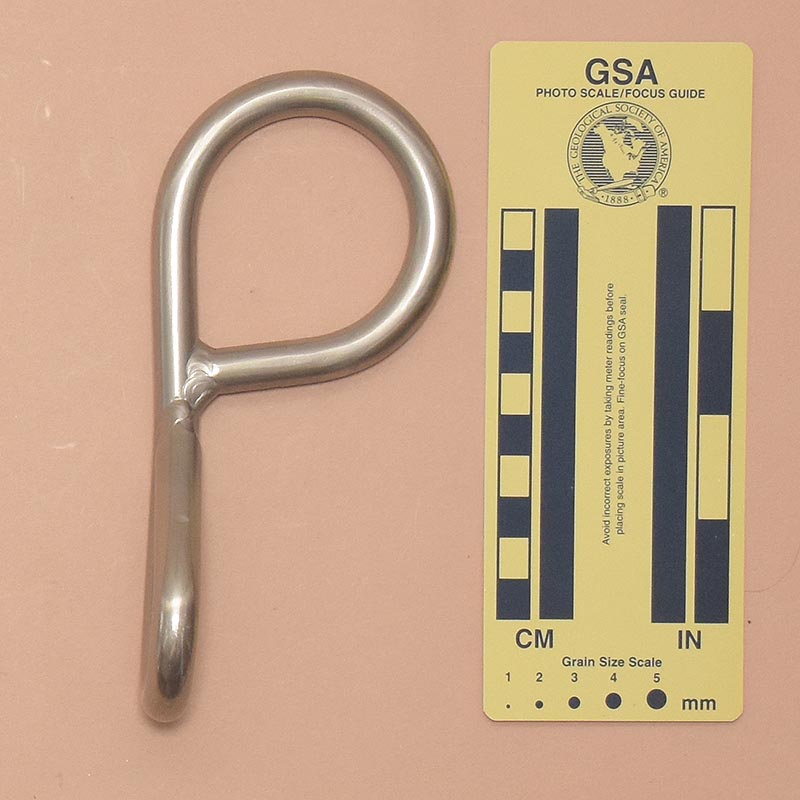

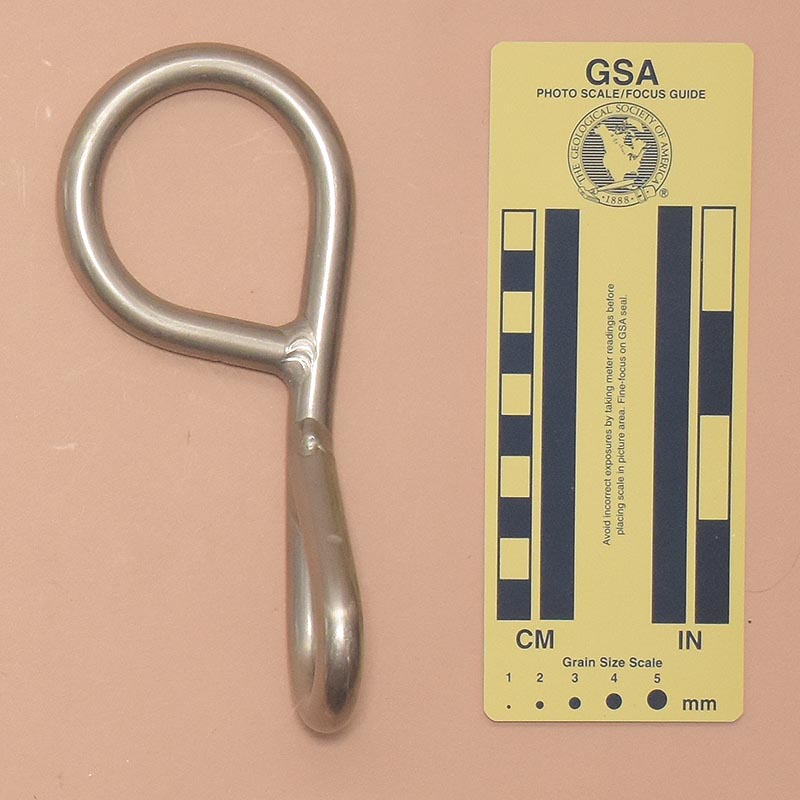

3291	Vertical Supply / Bassett Metal Studios Offset 8 LT, Version B	166	72	47	62	50	11	49	11	39	24
3295	Vertical Supply / Bassett Metal Studios Offset 8 RS Prototype, Version A	213	89	25	73	60	14	73	14	48	25
3296	Vertical Supply / Bassett Metal Studios Offset 8 RS Prototype, Version B	225	103	25	90	74	14	68	14	51	26
3290	Vertical Supply / Bassett Metal Studios Offset 8 RS	167	72	22	32	50	11	43	11	46	25
3292	Vertical Supply / Bassett Metal Studios Offset 8 RT	160	73	47	63	52	11	40	11	43	24

Table 15: Other Eights

As always, there are a few unique ones:

The Fisher, Version B was cut from bronze plate.
The Pierre Allain was cast from aluminum alloy.
The Rocksport is cast from phosphor bronze.
The Simond Krokro has internal grooves in the rope hole to provide more friction.
The Spool Eight is perhaps the strangest eight of all.
The Ural Alp was made from nickel-plated aluminum sheet metal.

ID	Device	Total Height	Total Width	Maximum Thickness	Rope Hole Height	Rope Hole Width	Thickness at Top	Shaft Length	Minimum Shaft Width	Eye Height	Eye Width
3360	Chinese	142	85	49	72	60	13	23	14	22	22
983	Fisher, Version B	107	73	9	36	58	9	35	16	19	19
325	Pierre Allain	149	79	19	39	51	19	68	17	19	19
327	Rocksport	166	80	17	55	55	16	63	27	21	21
3163	Russian, Version B	109	69	9	49	49	9	10	40	30	30
1088	Simond Krokro	143	74	15	50	50	12	48	27	25	25
1229	Spool Eight	205	107	145	n/a	76	n/a	158	25	13	13
2486	Unknown #3	143	76	16	48	48	13	45	35	22	23
2487	Unknown #4	134	75	16	48	51	12	39	25	25	25
2547	Unknown #7	166	80	16	52	51	17	63	28	21	21
944	Ural-Alp Self-Braking Descender/Belay Device, Version A	130	65	29	33	41	28	44	15	16	16
