Version A	Version B

Overview

[ Top | Version B | Return to Rope Grabs ]

Version A
(#1836)

Front	Rear	Open for Rigging

Technical Details

I acquired my Climbing Technology Easy Move, Version A from Expé-Spelemat in 2014.

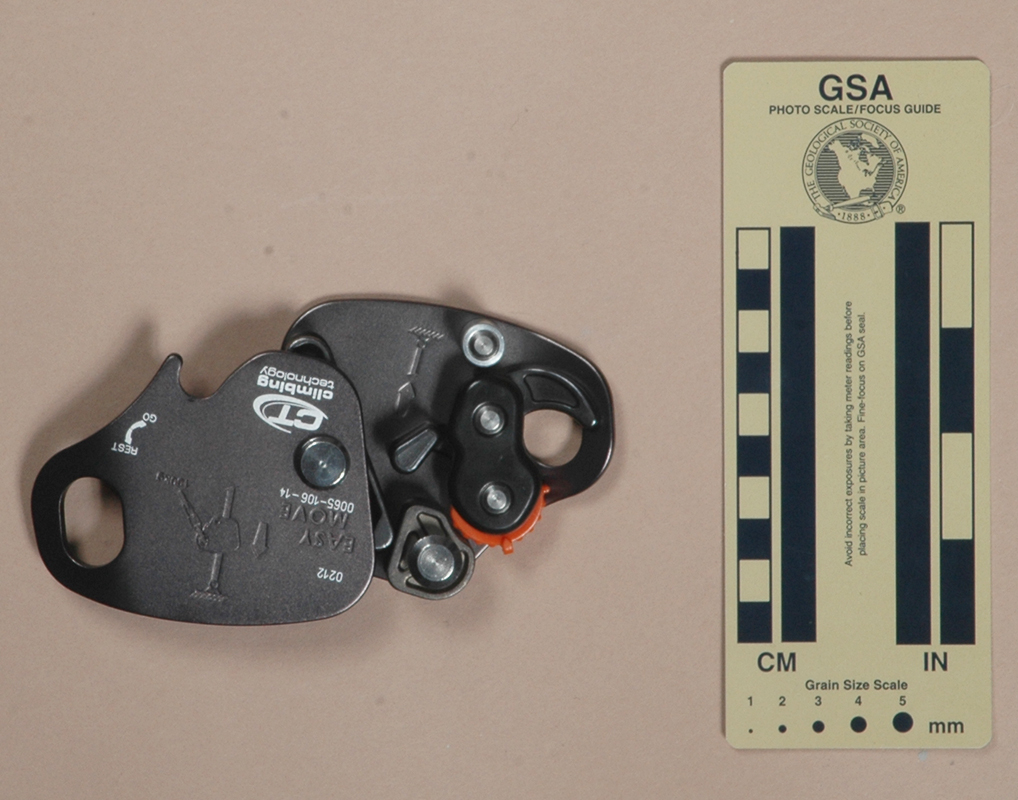

Version A is 81 mm. long, 69 mm. wide, 24 mm. high, and weighs 202 g. It consists of 3 mm. aluminum front and back plates and several internal parts. There is a forged steel rocker lever on the left. This lever pivots on an 8 mm. post riveted to the rear plate, and the front plate pivots on the post, swinging counter-clockwise to open.In the closed position, a notch on the right side of the front plate engages the end of the pin supporting the anvil. A pin limits the motion of the rocker lever. Opposite the lower end of the lever is a fixed forged steel anvil, held in place by another pair of pins.

There is another pin on the rear plate that supports another lever. One end of this lever rides against the rope, while the other has a hook extending into the rear plate attachment eye. A spring acts to rotate the second lever clockwise, pressing the left end against the rope. A plastic knob in a housing attached to the lever allows blocking the lever movement. A post above the lever supports a friction-educing roller.

The front is stamped with "EASY MOVE" and a rigging illustration. It is printed with "0212," "0065-106-14," the CT logo, "climbing technology," and a double ended curved arrow with "REST" at one end and "GO" at the other. The inside of the rear plate is stamped with a rope hanging from a ceiling and an up-pointing arrow. The rear is stamped with "EN 12841:2006 A/B," "ROPE TypeA•10.5≤Ø≤11," "EN353-2:2002," "USE ONLY ROPE Ø11," "EN 358:1999," a "Reading-Is-Dangerous" icon, "CE 0333," and "Made in Italy."

Comments

Climbing Technology makes the Safewaze Easy Move for American markets. That version is labeled with U. S. rather than European standards. There are quite a number of other miscellaneous ascenders and rocker-type rope grabs that are vaguely similar, but the Camp Goblin is arguably the closest match.

[ Top | Version A | Return to Rope Grabs ]

Version B
(#1837)

Front View	Rear View	Side View

Technical Details

I acquired my Climbing Technology Easy Move, Version B from Lior Porian in 2015.

Version B is 81 mm. long, 69 mm. wide, 24 mm. high, and weighs 202 g.

Version B has different markings than Version A.

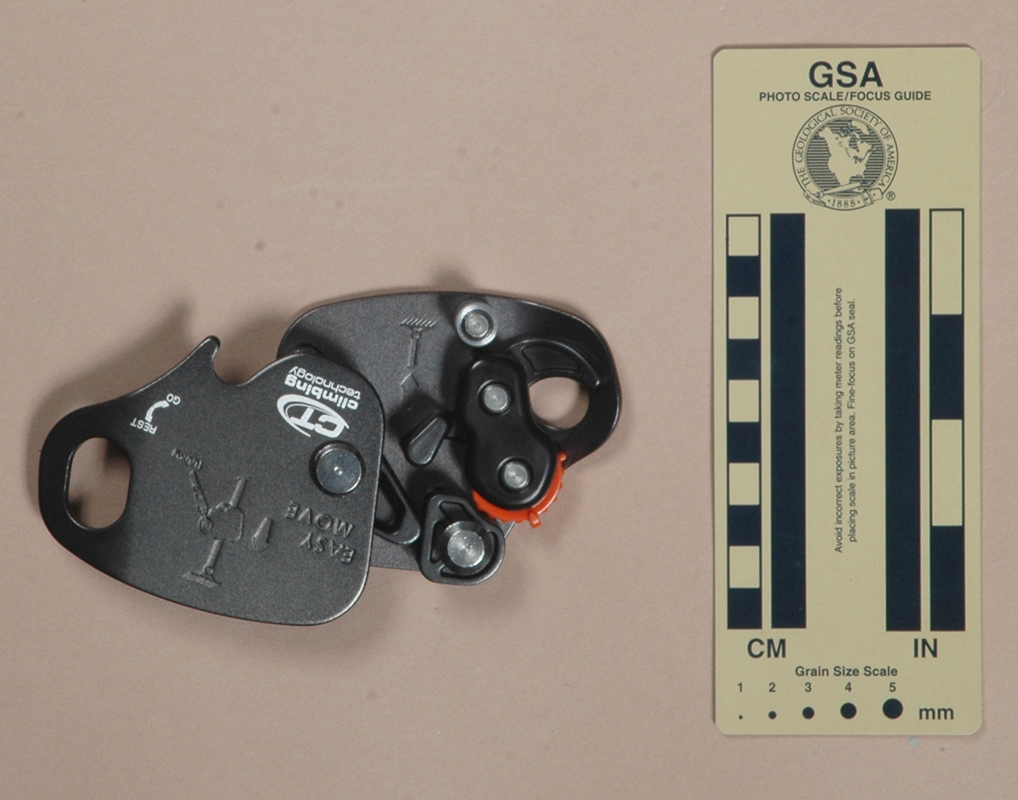

The front is stamped with "EASY MOVE" and a rigging illustration. IT is printed with the CT logo, "climbing technology," and a double ended curved arrow with "REST" at one end and "GO" at the other. The inside of the rear plate is stamped with a rope hanging from a ceiling and an up-pointing arrow. The rear is stamped with "Made in Italy" and a "Reading-Is-Dangerous" icon. It is printed with "EN 12841:2006 A/B," "ROPE TypeA• 10.5≤Ø≤11," "EN353-2:2002," "USE THE CORECT ROPE Ø11 ONLY," "EN 358:1999," "CE 0333," "0114," and "0076-275-14."

Comments

I ordered this hastily, forgetting that I already had Version A. Fortunately, the two were not identical.
