Trango

Version A

Version B

Version A Version B
Version A Version B

Overview


Version A
(#675)

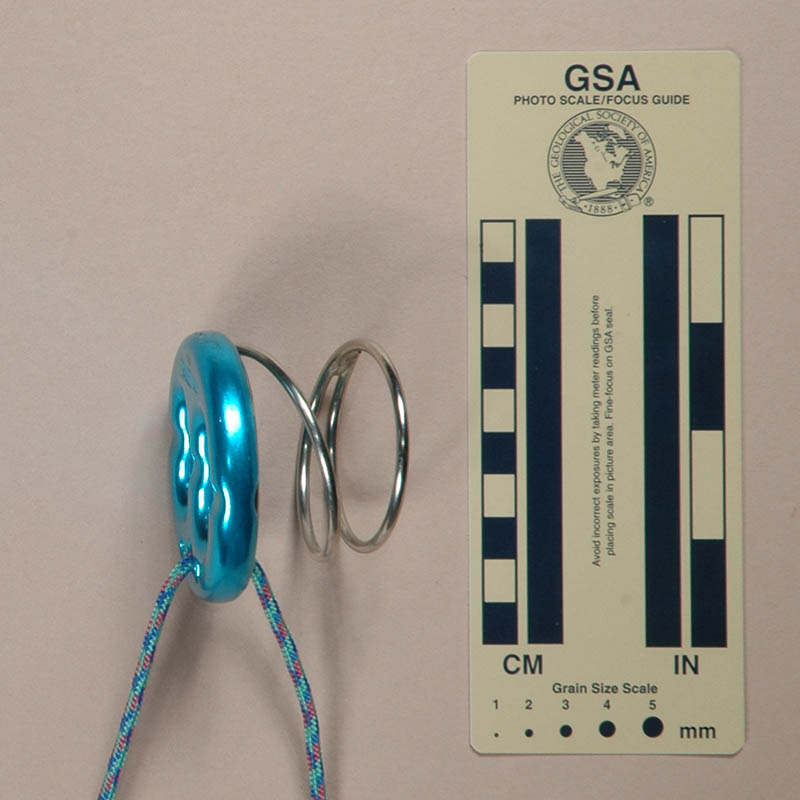

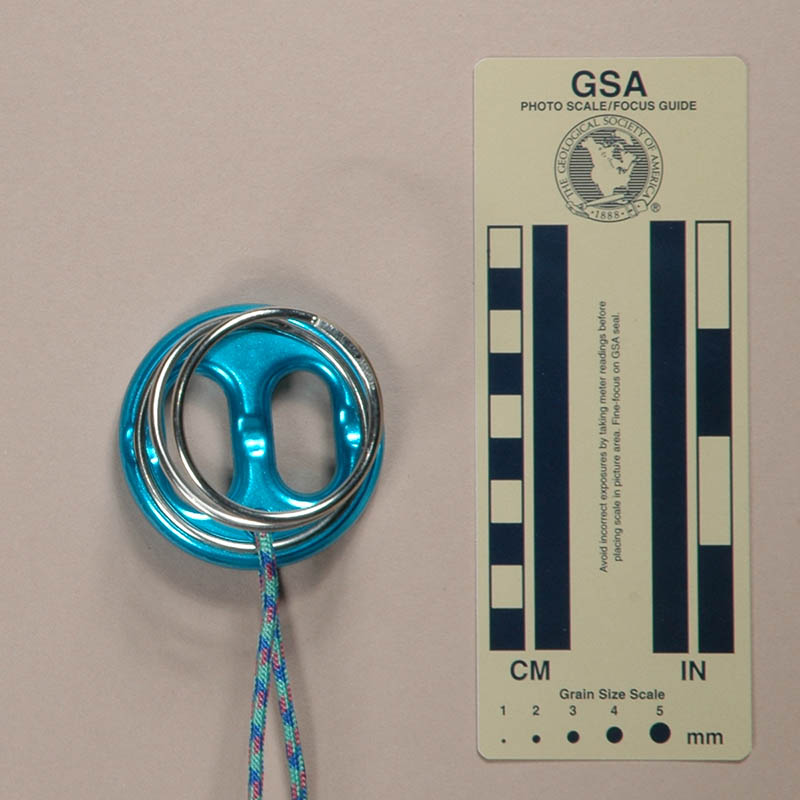

Top View Side View Bottom View
Top View Side View Bottom View

Technical Details

I acquired my Trango, Version A from Ragged Mountain Equipment in 1994.

Version A is 63 mm. long, 63 mm. wide, 48 mm. high, and weighs 80 g. It has two slots that are 29 and 31 mm. long. A spring fits into a circular groove in the bottom of the plate, and is crimped into place. There are shallow grooves in the top and bottom of the plate, perpendicular to the slots.

This plate is stamped with "TRANGO ITALY," an "S" in a small circle and an "L" in a small circle.

Comments

The Trango, Version A is one of many round "Sticht" plates with springs. This table compares the ones in my collection. Colored shading (not white) in the "Belayer" column indicates different brand plates with particularly similar plate designs, excluding markings and finish.

Image Belayer Slot 1 Slot 2 Finish Spring
Attachment
Spring
bracket
Keeper
Holes
Top & Bottom
Grooves
Salewa Sticht 11 (/w spring), Version B Salewa Sticht 11 (/w spring), Version B 11 mm. - Hard Anodized Crimped Side Groove /w ramp exit No 2 Yes
Salewa Sticht 11 (/w spring), Version D Salewa Sticht 11 (/w spring), Version D 11 mm. - Bare Crimped Side Groove /w ramp exit No 2 Yes
Salewa Sticht 11 (/w spring), Version A Salewa Sticht 11 (/w spring), Version A 11 mm. - Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 11 (/w spring), Version C Salewa Sticht 11 (/w spring), Version C 11 mm. - Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/9  (/w spring), Version A Salewa Sticht 9/9 (/w spring), Version A 9 mm. 9 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/9  (/w spring), Version B Salewa Sticht 9/9 (/w spring), Version B 9 mm. 9 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/9  (/w spring), Version C Salewa Sticht 9/9 (/w spring), Version C 9 mm. 9 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
GAB 9/11, Version A GAB 9/11 (/w Spring),
Version A
9 mm. 11 mm. Hard Anodized Crimped Side Groove /w ramp exit Yes 1 No
GAB 9/11, Version B GAB 9/11 (/w Spring),
Version B
9 mm. 11 mm. Hard Anodized Crimped Side Groove /w ramp exit Yes 1 No
GAB 9/11, Version C GAB 9/11 (/w Spring),
Version C
9 mm. 11 mm. Hard Anodized Crimped Side Groove /w ramp exit Yes 1 No
Salewa 9/11, Salewa #1616 Salewa #1616 9 mm. 11 mm. Soft Anodized Crimped Side Groove /w ramp exit No 1 Yes
Salewa 9/11, Version F Salewa 9/11, Version F 9 mm. 11 mm. Soft Anodized Crimped Bottom Groove No 1 Yes
Trango, Version A Trango (/w Spring), Version A 9 mm. 11 mm. Soft Anodized Crimped Bottom Groove No 1 Yes
Zero-G ZBD Sprung Belay Plate Zero–G ZBD (/w Spring) 9 mm. 11 mm. Soft Anodized Crimped Bottom Groove No 1 Yes
Salewa Sticht 9/11 (/w spring) Version A Salewa Sticht 9/11 (/w spring) Version A 9 mm. 11 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/11 (/w spring) Version B Salewa Sticht 9/11 (/w spring) Version B 9 mm. 11 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/11 (/w spring) Version C Salewa Sticht 9/11 (/w spring) Version C 9 mm. 11 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/11 (/w spring) Version D Salewa Sticht 9/11 (/w spring) Version D 9 mm. 11 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 9/11 (/w spring) Version E Salewa Sticht 9/11 (/w spring) Version E 9 mm. 11 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Image Belayer Slot 1 Slot 2 Finish Spring
Attachment
Spring
bracket
Keeper
Holes
Top & Bottom
Grooves
GAB 11/11 (/w spring) GAB 11/11 (/w spring) 11 mm. 11 mm. Hard Anodized Crimped Side Groove /w ramp exit Yes 1 No
Cassin #221.02 Cassin #221.02 (/w spring) 11 mm. 11 mm. Hard Anodized Crimped Side Groove /w ramp exit No 1 Yes
Advanced Base Camp, Version A Advanced Base Camp, Version A 11 mm. 11 mm. Hard Anodized Crimped Bottom Groove No 1 Yes
Cassin #221.12 Cassin #221.12 (/w spring) 11 mm. 11 mm. Soft Anodized Crimped Side Groove /w ramp exit No 1 Yes
Gravity Equipment Gravity Equipment (/w Spring) 11 mm. 11 mm. Soft Anodized Crimped Side Groove /w ramp exit No 1 Yes
Hugh Banner "Sticht," Version B Hugh Banner "Sticht" (/w Spring) Version B 11 mm. 11 mm. Soft Anodized Crimped Side Groove /w step exit No 2 No
Hugh Banner Bigger Brake, Version A Hugh Banner Bigger Brake (/w Spring), Version A 11 mm. 11 mm. Soft Anodized Crimped Side Groove /w step exit No 1 Yes
Single Rope Technique BPS Single Rope Technique Equipment BPS (/w Spring) 11 mm. 11 mm. Soft Anodized Bottom Groove /w 2 screws No 0 No
Hugh Banner "Sticht," Version A Hugh Banner "Sticht" (/w Spring), Version A 11 mm. 11 mm. Bare Crimped Side Groove /w step exit No 2 No
Salewa Sticht 11 (/w spring). Version A Salewa Sticht 11/11 (/w spring), Version A 11 mm. 11 mm. Bare Crimped Side Groove /w ramp exit Yes 1 No
Advanced Base Camp, Version B Advanced Base Camp, Version B 11 mm. 11 mm. Bare Crimped Bottom Groove No 1 Yes
Camp (/w Spring), Version A Camp (/w spring), Version A 11 mm. 11 mm. Bare Crimped Bottom Groove No 1 Yes
Camp (/w Spring), Version B Camp (/w spring), Version B 11 mm. 11 mm. Bare Crimped Bottom Groove No 1 Yes
Camp (/w Spring), Version C Camp (/w spring), Version C 11 mm. 11 mm. Bare Crimped Bottom Groove No 1 Yes
Salewa Sticht 11 (/w spring). Version B Salewa Sticht 11/11 (/w spring), Version B 11 mm. 11 mm. Painted Crimped Side Groove /w ramp exit Yes 1 No
Salewa Sticht 11 (/w spring). Version C Salewa Sticht 11/11 (/w spring), Version C 11 mm. 11 mm. Painted Crimped Side Groove /w ramp exit Yes 1 No




The spring helps the plate release under load, helping the belayer. I prefer having the spring. Unfortunately, the springs have a tremendous capacity for tangling with other equipment on a climber's rack. If you can't find a way to prevent this - and I've tried - you will hete the spring as I do.

Sticht Plates came in many variations.Some had one slot, some had two. Some slots were sized for 9 mm. rope, some for 11 mm. My preference is for two-slot plates since they are lighter and more versatile. Choose one that matches the ropes that you will be using. My first Sticht Plate had one 11 mm. and one 9 mm. slot. One could use the same slot for both, and get different performance, but I like the different size slots. I'm often climbed with an 11 mm.lead line and a 9 mm.haul line, so this arrangement suited me well. It was s a good choice for most situations other than rappelling on double 11 mm. lines.

All of the plates listed in the table have considerable wear margin. The Cassin #221.02 has a particularly thick hard anodized finish. I slightly prefer the hard anodized GAB plates, but don't see a large advantage over any other anodized plate, or even the bare plates. I dislike the painted plates.

There are several methods used to attach the spring to the plate. They all seem to be equally effective, but the ones using a side groove seem more robust than the ones using bottom grooves.

Most of the Salewa plates have spring brackets. They hold the spring in the compressed position for carrying. Sometimes these are effective, but more often, I find them inadequate for their task.

The Single Rope Technique Equipment BPS is the only one without a hole for a keeper sling. I like having a keeper and having a hole to attach it instead of tying to the spring is nice. I would drill a hole in the BPS plate if I were going to use it much.

Many plates have a shallow groove across the top and bottom surfaces. The grooves don't seem to do much, in my opinion.


Version B
(#679)

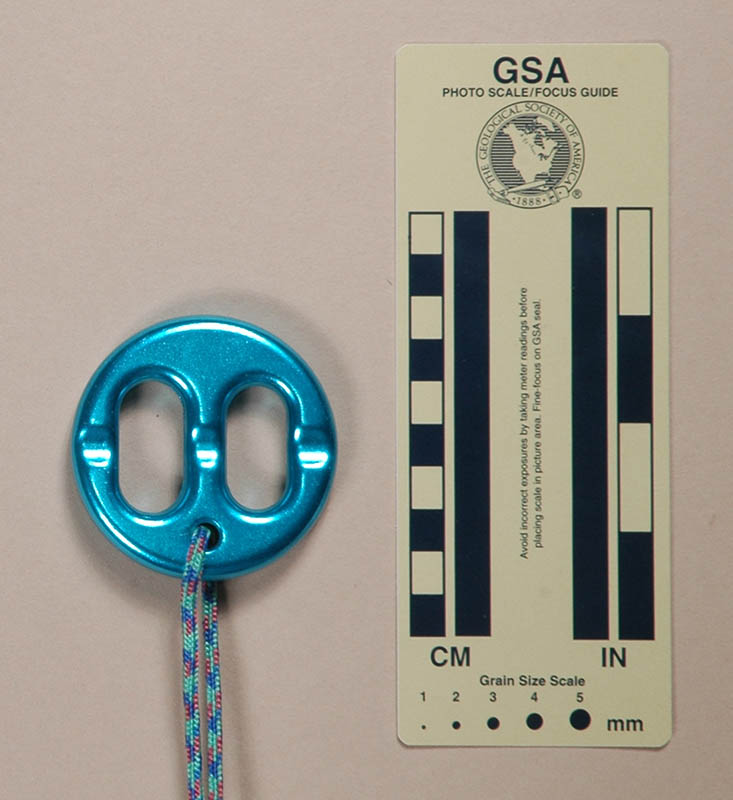

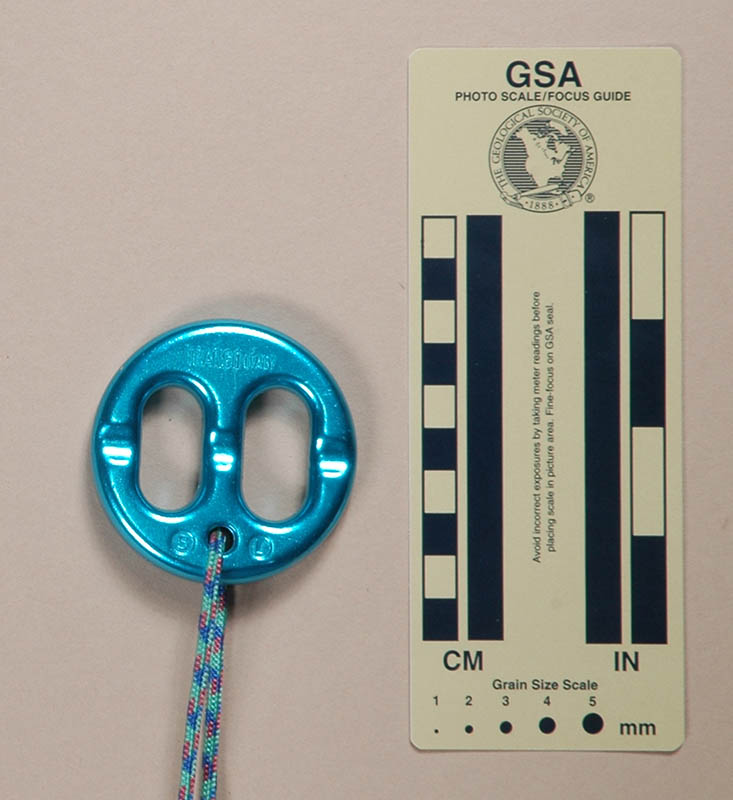

Front Rear
Front Rear

Technical Details

I acquired my Trango, Version B from Ragged Mountain Equipment in 1994.

Version B is forged from aluminum alloy and then soft anodized, round. Mine is 63 mm. long, 63 mm. wide, 11 mm. high, and weighs 69 g. It has two slots that are 29 and 31 mm. long.

This plate is stamped with "TRANGO ITALY," an "S" in a small circle and an "L" in a small circle.

Comments

Version B is a normal forged double-rope "Sticht" plate. It is essentially the same as the Cassin #221.11 plate.
