| Version A | Version B | Version C |
[ Top | Version B | Version C | Return to Plate Descenders ]
|
|
 |
| Front | Rear |

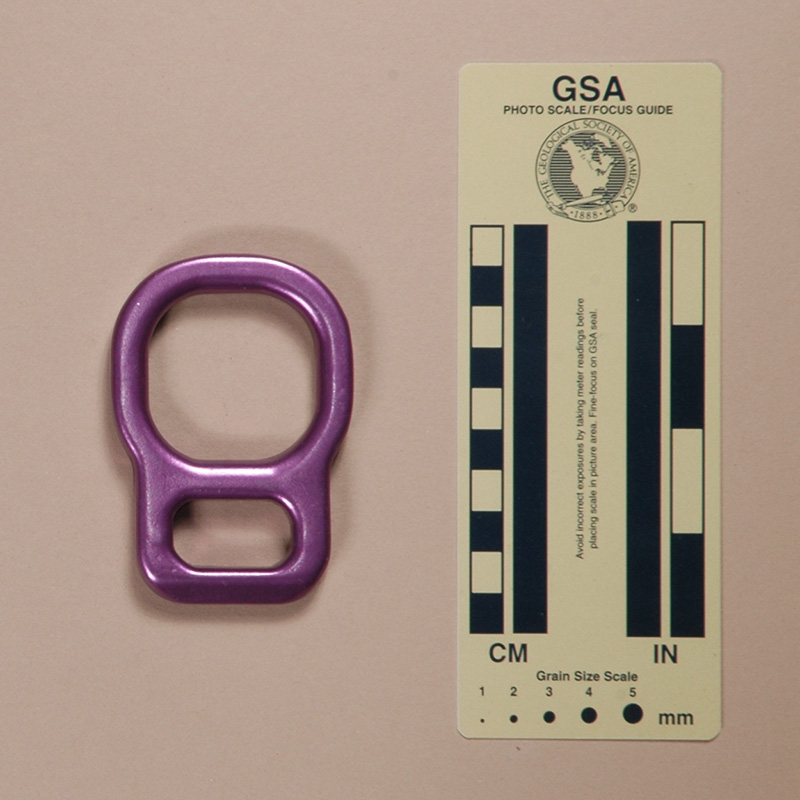

I acquired one Version A from Inner Mountain Outfitters in 1990 and a second from Chris Christensen in 2022.
The New Alp Multifreins is milled from aluminum alloy and hard anodized. It is 86 mm. long, 60 mm. wide, 11 mm. high, and weighs 60 g. It has a 40.5 mm. suboctagonal rope hole and a 28.5 by 16 mm. subrectangular slot eye.
One side is stamped "NEW ALP."
Although it is also called a "Light 8," this is not a figure 8 and should not be used in the same manner. My Light 8s came without instructions, but it is clear that it is similar to the Yates Belay Slave, and can be used in a similar manner. See the Yates Belay Slave illustrations for details.

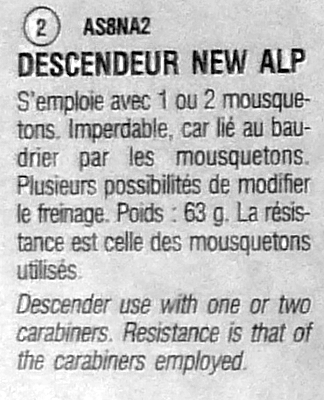

The Multifreins was introduced in 1985. Here are an ad and instructions from the 1986 Snell Sports catalog:
 |
 |
[ Top | Version A | Version C | Return to Plate Descenders ]
 |
 |
| Front | Rear |

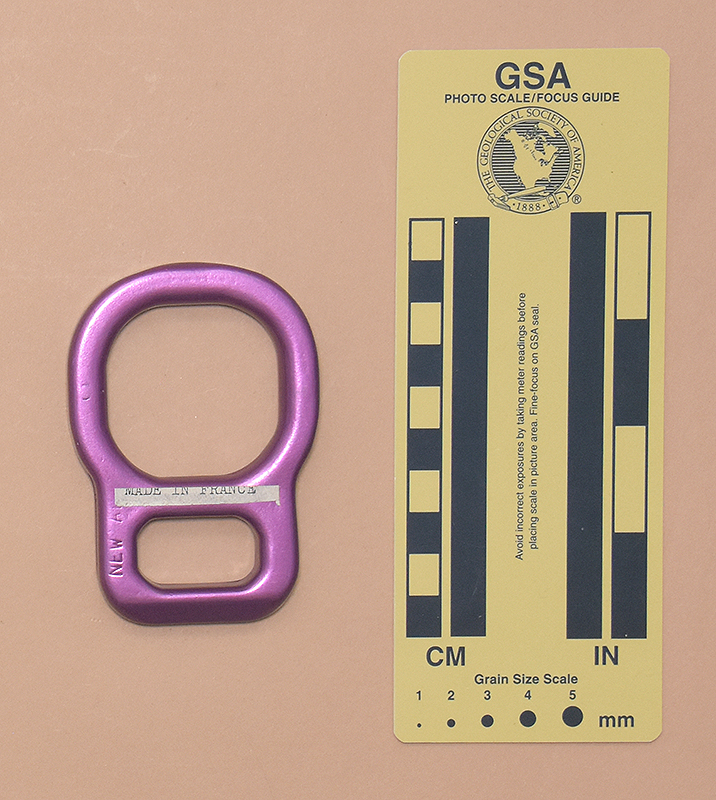

I acquired Version B from Chris Christensen in 2022.
Version B is milled from aluminum alloy and hard anodized. Mine is 86 mm. long, 60 mm. wide, 11 mm. high, and weighs 59 g. It has a 40.5 mm. suboctagonal rope hole and a 28.5 by 16 mm. subrectangular slot eye.
Both sides are stamped "NEW ALP." although "ALP" on the second side is nearly invisible. The sticker is printed with "MADE IN FRANCE."
This version is stamped on both sides. "ALP" on the second side is nearly invisible.
[ Top | Version A | Version B | Return to Plate Descenders ]
|
|
 |
| Front | Rear |

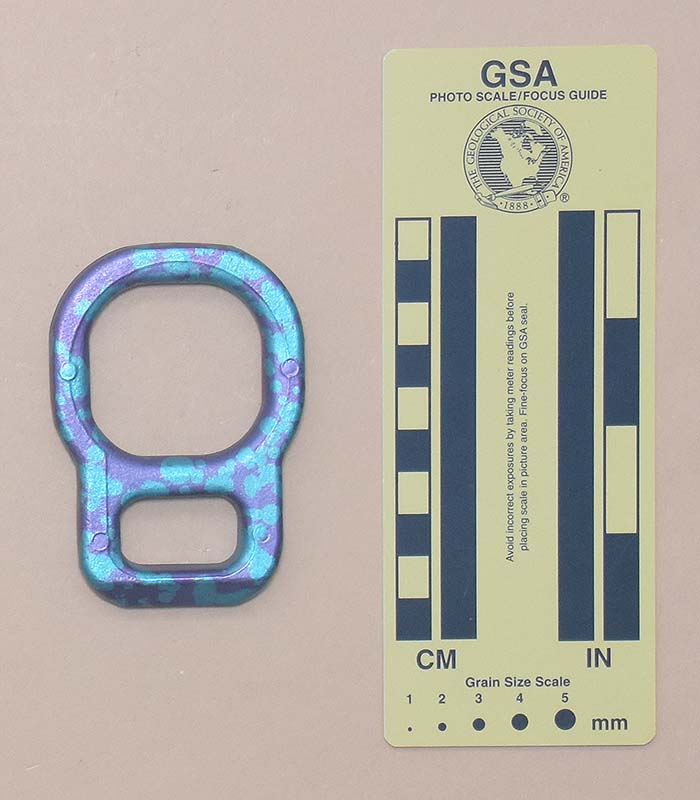

I acquired Version C from Denis Pivot in 2022.
This version is forged from aluminum alloy and soft anodized. Mine is 86 mm. long, 60 mm. wide, 11 mm. high, and weighs 60 g. It has a 40.5 mm. suboctagonal rope hole and a 28 by 16 mm. subrectangular slot eye.
One side is stamped "NEW ALP."
Forging marks are clearly visible on the rear and to a lesser extent on the front. The finish is two-tone "bird dropping" soft anodizing
