AustriAlpin
(#1073)



Front Rear
Front Rear

Technical Details

I acquired this eight from AustriAlpin USA in 2007.

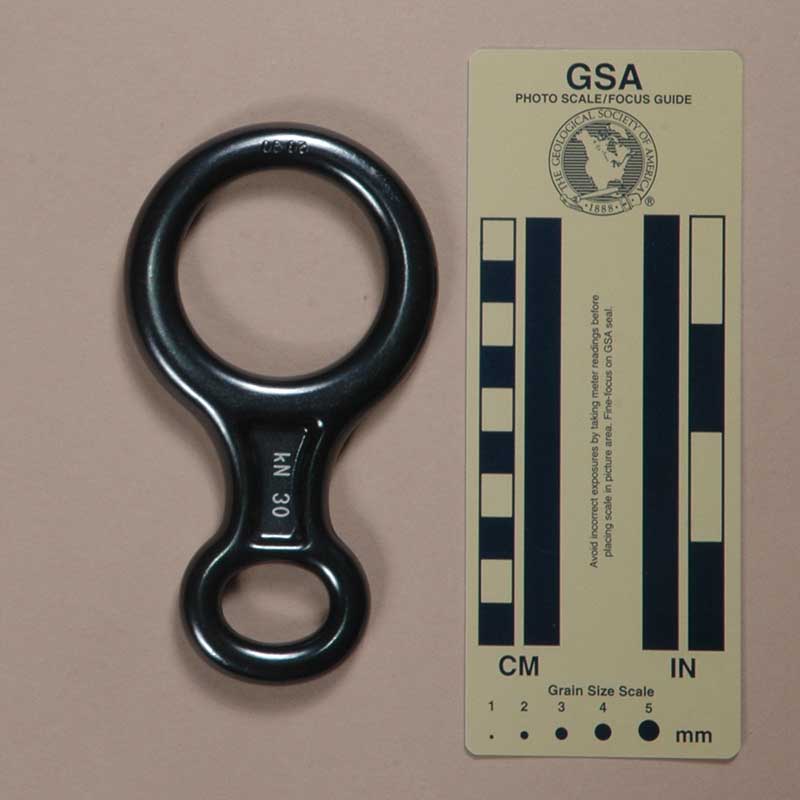

The AustriAlpin is forged from aluminum alloy and then soft anodized. Mine is 132 mm. tall, 74 mm. wide, and 13 mm. thick. The rope hole is 48 mm. high and 48 mm. wide. The top center thickness is 11 mm. The shaft length and width are 44 mm. and 24 mm., respectively. The eye measures 18 mm. by 25 mm. My eight weighs 106 g.

The front of this eight is etched with "CT LTD," and the rear is etched with "kN 30." The top rear is also marked "0603."

Comments

The AustriAlpin is a "midi" size, forged, aluminum eight sharing one of the most common designs of this type. The following eights are quite similar, except for their markings:

Image Eight
Advanced Base Camp, Version A Advanced Base Camp, Version A
Advanced Base Camp, Version C Advanced Base Camp, Version B
Advanced Base Camp, Version C Advanced Base Camp, Version C
Anpen Anpen
AustriAlpin AustriAlpin
Brasovia Small Brasovia Small
Image Eight
C.A.M.P., Version B C.A.M.P., Version C
C.A.M.P., Version C C.A.M.P., Version D
C.A.M.P., Version E C.A.M.P., Version E
C.A.M.P., Version F C.A.M.P., Version F
C.A.M.P. 928.00/01, (Otto Small) C.A.M.P. 928.00/01, (Otto Small)
C.A.M.P./Lowe, Version A C.A.M.P./Lowe, Version A
Image Eight
C.A.M.P./Lowe, Version B C.A.M.P./Lowe, Version B
Climb High, Version C Climb High, Version C
Climbing Technology Ltd. Climbing Technology Ltd.
Cypher Descender 88 Cypher Descender 88
GrandWall GrandWall
ISC Stein RP110 ISC Stein RP110
Image Eight
Lowe Alpine Systems Lowe Alpine Systems
Lucky Ecos Mini Lucky Ecos Mini
Mammut, Version B Mammut, Version B
Mammut, Version C Mammut, Version C
Mammut, Version D Mammut, Version D
Omega Pacific Omega Pacific
Image Eight
Proverti CD 303 Proverti CD 303
Salewa Midi, Version A< Salewa Midi, Version A
Salewa Midi, Version B Salewa Midi, Version B
inging Rock 8 M Singing Rock 8 M
Zero-G Classic 8 Zero-G Classic 8


Some of these eights are made in Europe, and some in Asia. Some are rebranded eights made by one manufacturer for outside customers and labeled accordingly.

Each of these eights is 131±1 mm. tall and 74±1 mm. wide. Their weights fall in the 105±4 g. range. These are normal manufacturing variations that have no practical significance. Although similar, these eights are not identical, and close inspection will reveal some minor differences in their shapes. None of these affect their performance to any noticeable degree.

The AustriAlpin and C.A.M.P. 928.00/01 appear to have harder anodizing than the others, and may wear better. My experience with the high-quality hard anodizing on CMI eights is that hard anodizing provides considerable protection on clean ropes, but the protection provided against cave mud is limited. In bad conditions the anodizing soon breaks through, and the protection is lost. For this reason, I don't place a lot of value on hard over soft anodizing for caving use, but I prefer hard anodizing for climbing applications.

The rope hole is shorter than normal, so it may provide too much friction on stiff or muddy ropes. Cavers should consider this possibility.

Some caver friends refuse to use figure eights because they twist the rope. I think that concern is absurd for short drops, and eights are short drop devices.

Many climbers think that eights are outdated, and prefer to rappel on belay tubes. I prefer belay tubes for belaying, but belay tubes get very hot when used for rappelling. Eights run much cooler. On any given day, I make my choice about carrying a separate rappel device by considering several factors, and it is not unusual for me to carry an eight if I expect to be rappelling more than a very short distance.

None of these eights have slots for sticht-type belaying, and their oval eyes are not really designed for that purpose. They can be used for "Sticht" belaying on 9 mm. rope, but the eye is a bit short for optimum use on 11 mm. rope. Some people will belay with an eight rigged for rappelling, but I don't like that practice since it does not provide the automatic lock and the friction that a sticht does.

Most of these eights have strength markings of 25 or 30 kN. To put this in perspective, the value required by EN 15151-2:2012 is only 7 kn. The excess provides margin for wear.
