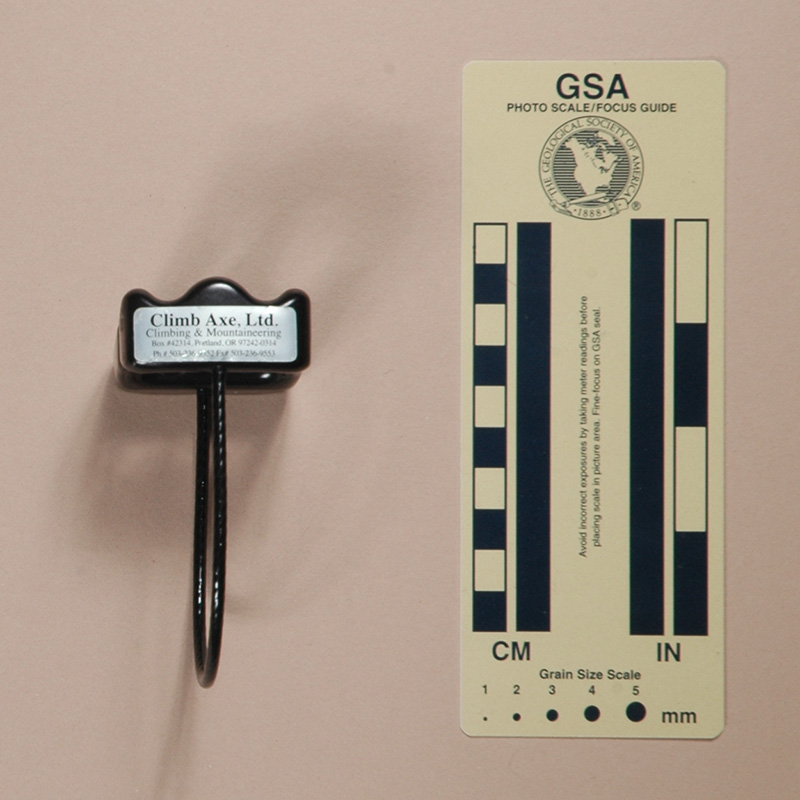

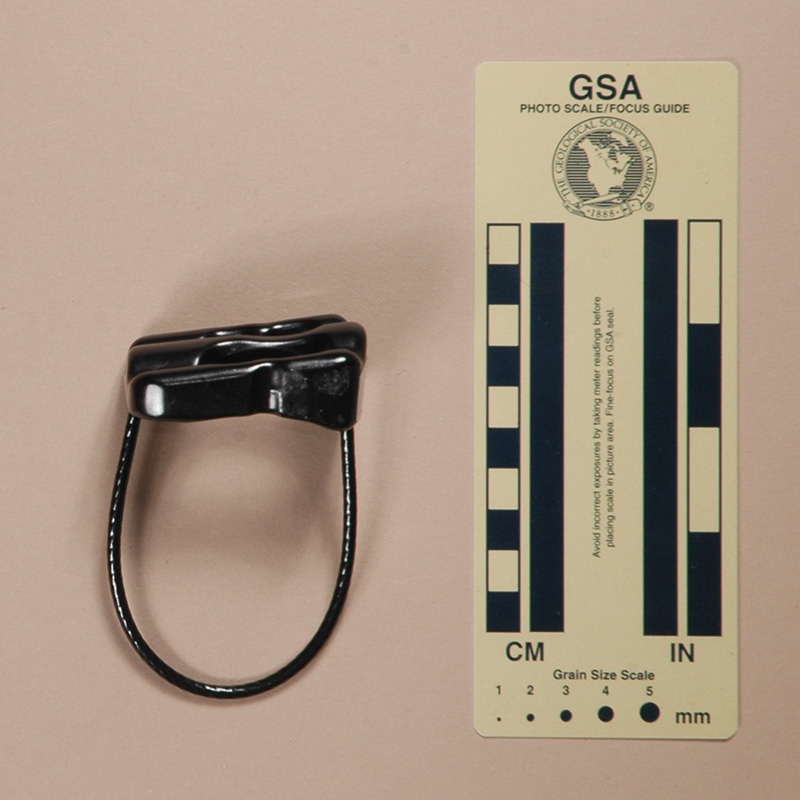

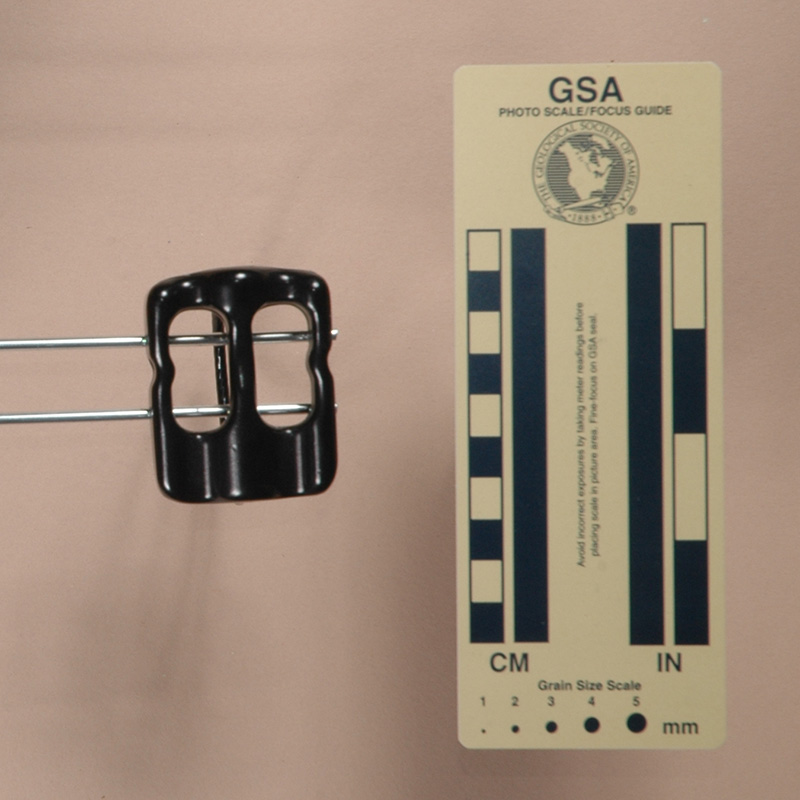

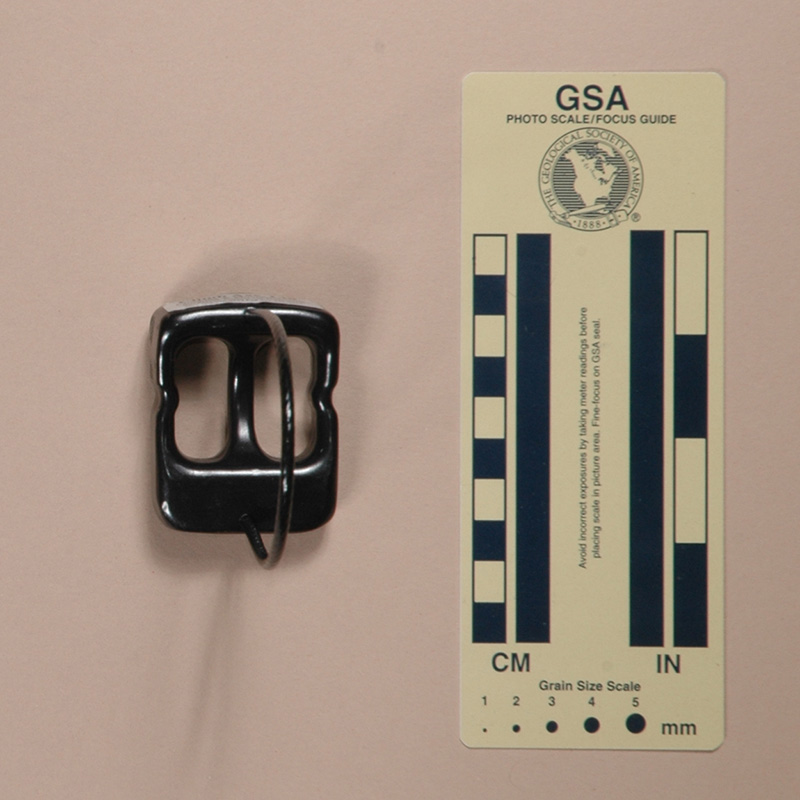

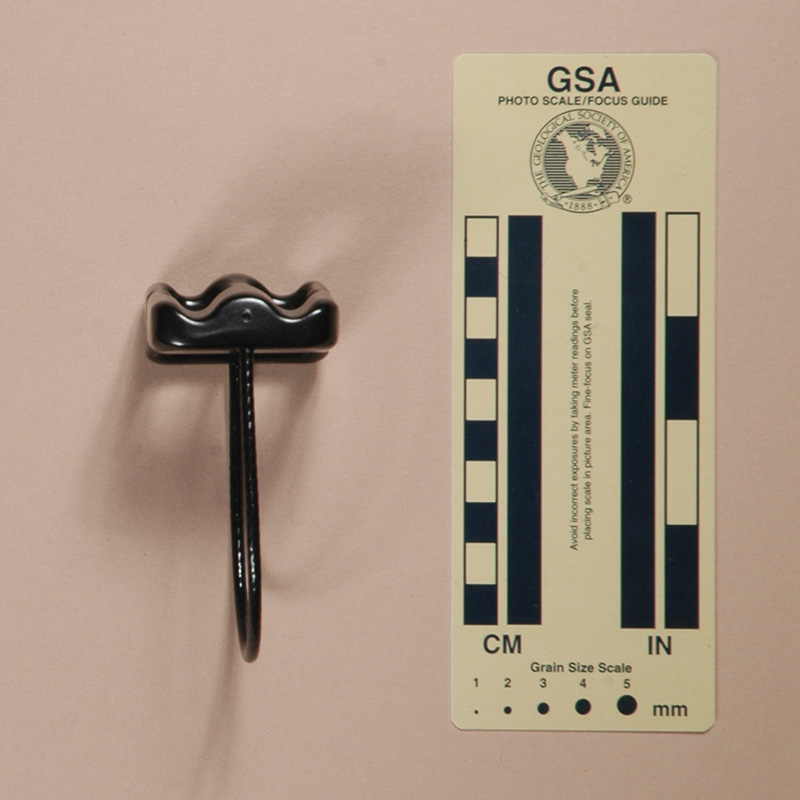

Front	Rear	Top
Left	Right	Bottom

Technical Details

I acquired my Faders Variable Belay from Climb Max in 1999.

The Faders Variable Belay is forged from aluminum alloy and then hard anodized. Each slot is 29 mm. long and 14 mm. wide. The slots have an hour-glass shape, but this is of no functional significance. Mine is 58 mm. long, 45 mm. wide, 23 mm. high, and weighs 64 g.

There are no markings on my Variable Belay other than a sticker added by the retailer.

Comments

The Faders Variable Belay is one of the following closely-related slotted block belay devices:

Image Device Advanced Base Camp (ABC) Catch	Image Device Faders Variable Belay	Image Device Fixe

Each of these works much like any other slotted belay device. The control is good, but not as smooth as some of the belay tubes. Like the Wild Country Variable Controller, the two ends are asymmetrical, so these can be reversed for a slight change in feel. The asymmetry is less than on the Variable Controller, and I don't find the difference between the two orientations to be very great.

The cable keeper is stiff enough to not get caught by the rope.
