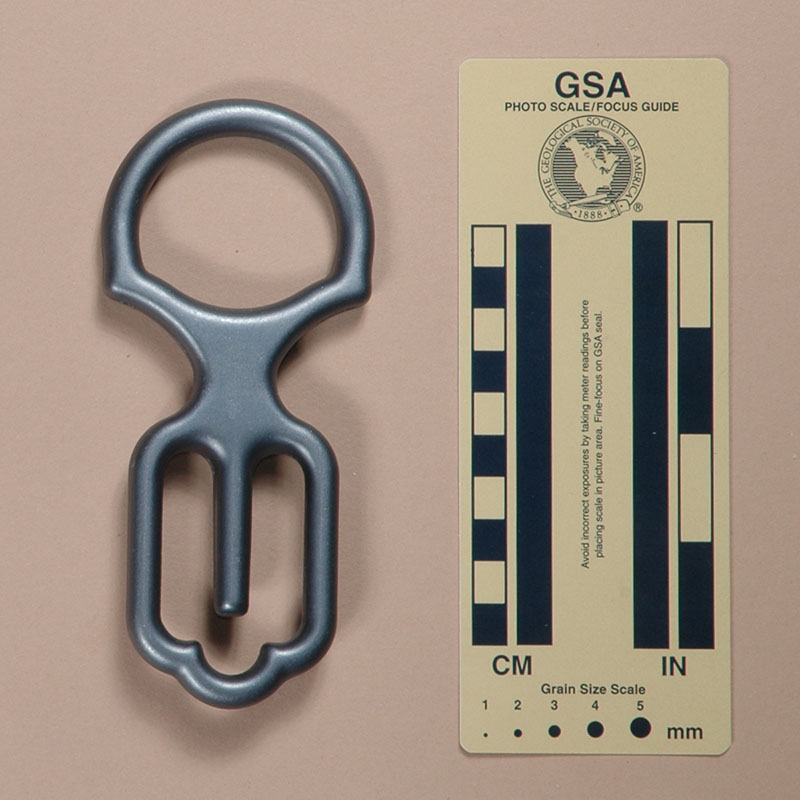

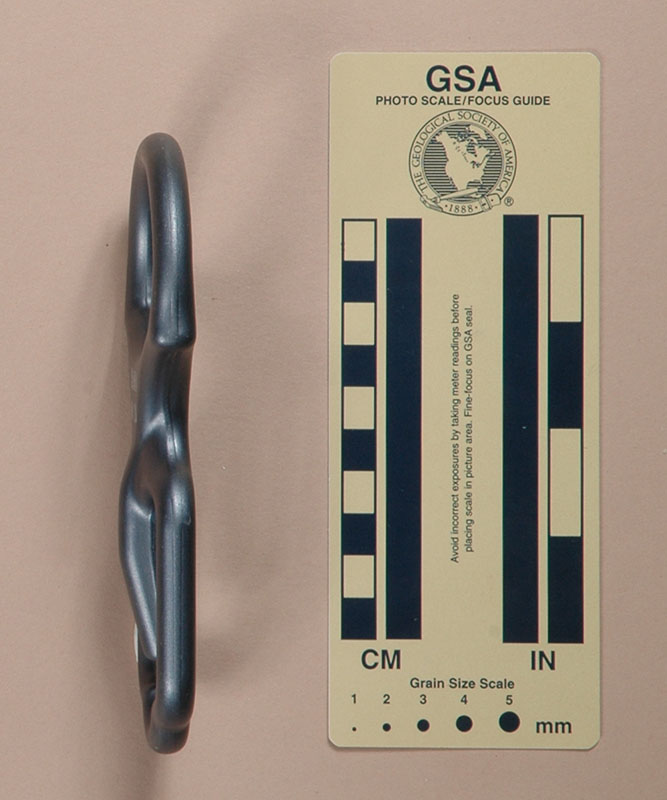

Front View	Rear View	Side View

Technical Details

I got my Magic APD from Cormier Mountaineering in February 2001.

The Trango Magic APD is forged from aluminum alloy and then soft anodized. It is a combination of a double-slot belayer and a figure eight. My APD is 65 mm. long, 144 mm. wide, 16 mm. high, and weighs 82 g.

One side is printed with "TRANGO" and "kN 20."

Comments

Unlike most "all-purpose devices," the Trango Magic APD performs its functions well. At first glance it looks like a Figure Eight Descender, which it is in part, but its main function is as a guide’s belay and rappel device. The lower slots perform the same belay functions that the Kong Gi–gi or Cassin 217. Like Kong Gi–gi and Cassin 217, the Trango Magic APD can be used to belay two clients simultaneously. The Magic APD has an advantage during lowering in that the eye can be used as a handle to control the rate of descent. Of course, the Magic APD can be used as a Figure Eight for rappel. When rappelling, remember that the Magic is not as heavy as many other eights, so it will tend to heat quickly. It also does not have as much margin for wear.

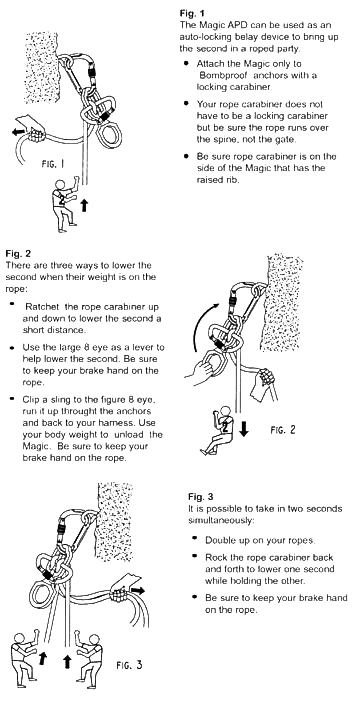

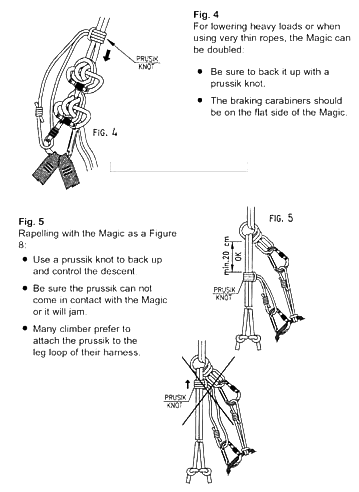

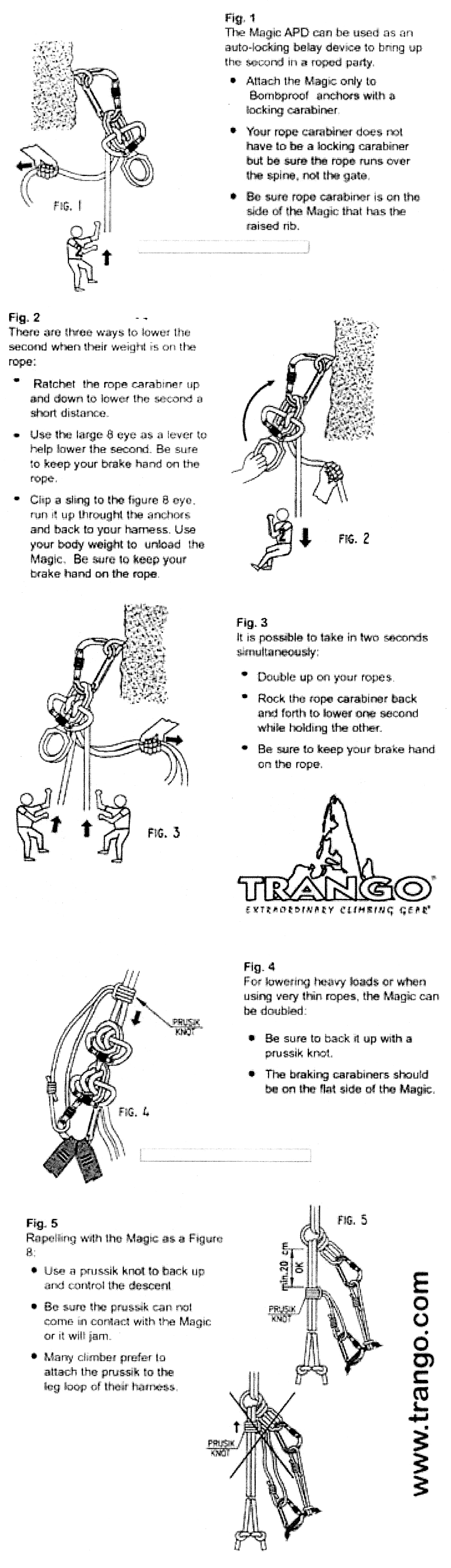

I got my Magic APD a few months before they were generally available, so it came without any instructions. I borrowed the instructions given here from the Trango web site. I think that they do a fairly good job of showing how the Magic APD can be used. I prefer not to use a prusik rappel safety for several reasons, but I agree with the method shown if you really want to use one. Other than that, I don't have much to add.

I don't know where Trango gets their ideas, but they have certainly come up with some good ones. The Magic APD is a fine device and well worth considering. I give it two stars:
