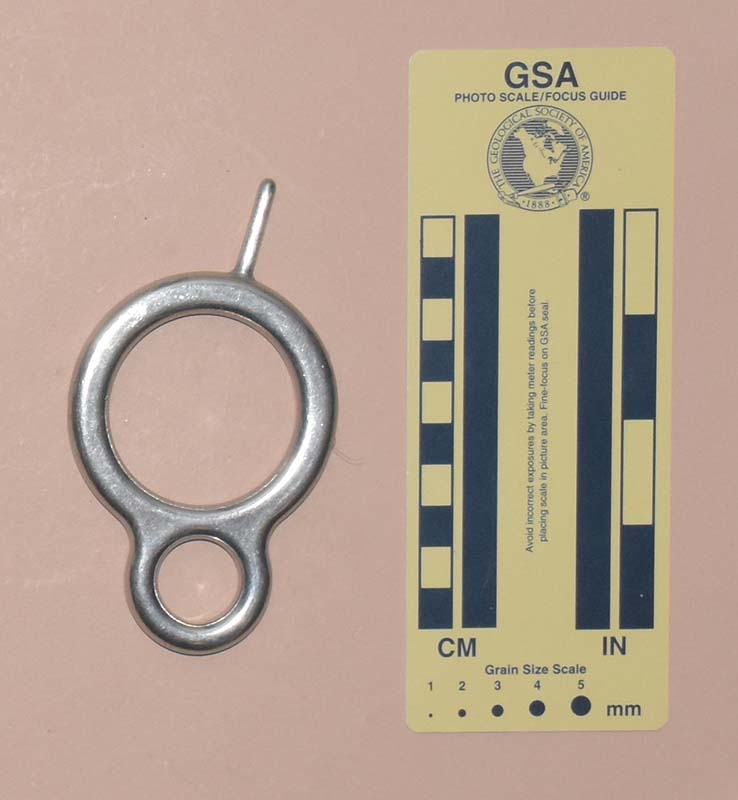

| Front View | Rear View |
I acquired my ISC Keeloc SmartSnap Belay Rescue Device Ring Key from Brian Bell in 2021.
My ISC Keeloc SmartSnap Belay Rescue Device Ring Key is 65 mm. long, 116 mm. wide, 8 mm. high, and weighs 130 g.
The Ring Key consists of an 8-shaped forging with a 25 mm. pin projecting from the top.
The front of the Ring Key is etched with "Smart Snap," "16/76328/039," and "MBS 25kN." It is stamped with "I|S|C."
CommentsAlthough it looks like some small figure eights, the ring key is not a descender. It’s sole purpose is to unlock one side of the ISC RP420 Keeloc SmartSnap Belay Device. The SmartSnap is designed for use on ropes courses where 100% attachment is required. The SmartSnap ideally allows the user to traverse all of the individual elements of a course without ever being able to detach from the safety line. It was presumably designed for people who cannot be trusted not to be stupid enough to unlock their safety. See the SmartSnap Belay Device page for more details.
[ Top | Ring Key | Return to Most Miscellaneous ]
 |
 |
|

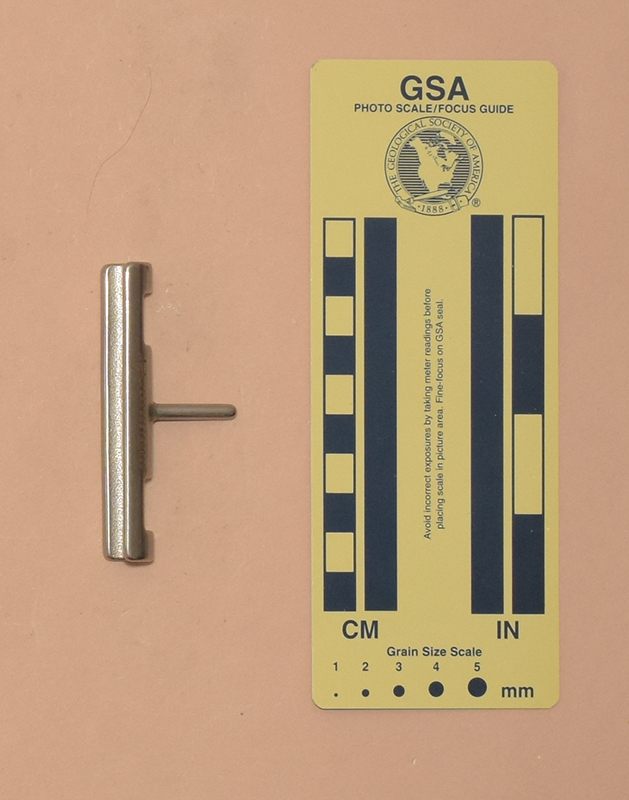

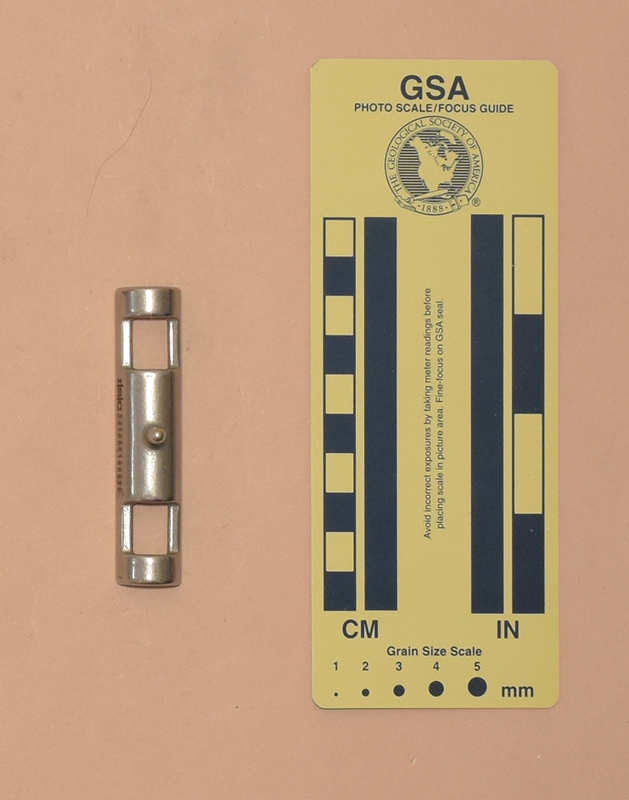

| Front View | Left Side View | Right Side View |
I acquired my ISC Keeloc SmartSnap Belay Rescue Device Wire Key from Ropes Gear LLC in 2024.
My International Safety Components Keeloc SmartSnap Belay Rescue Device Wire Key 3-8" is 76 mm. long, 17 mm. wide, 33 mm. high, and weighs 40 g.
The Wire Key consists of a half-cylindrical stainless steel channel with two cutouts and a welded pin. My channel fits over 3/8 on. (9 mm) cable. The cutouts are 13 mm. long. The pin is 4 mm. in diameter and 23 m. long
The channel is etched with "I|S|C" and "241886180028."
CommentsThe Wire Key is to be mounted on an adventure course cable. It is used is to lock one side of the ISC RP420 Keeloc SmartSnap Belay Device when that side is clipped around the cable. The SmartSnap is designed for use on ropes courses where 100% attachment is required. The SmartSnap ideally allows the user to traverse all of the individual elements of a course without ever being able to detach from the safety line. It was presumably designed for people who cannot be trusted not to be stupid enough to unlock their safety. See the SmartSnap Belay Device page for more details.
