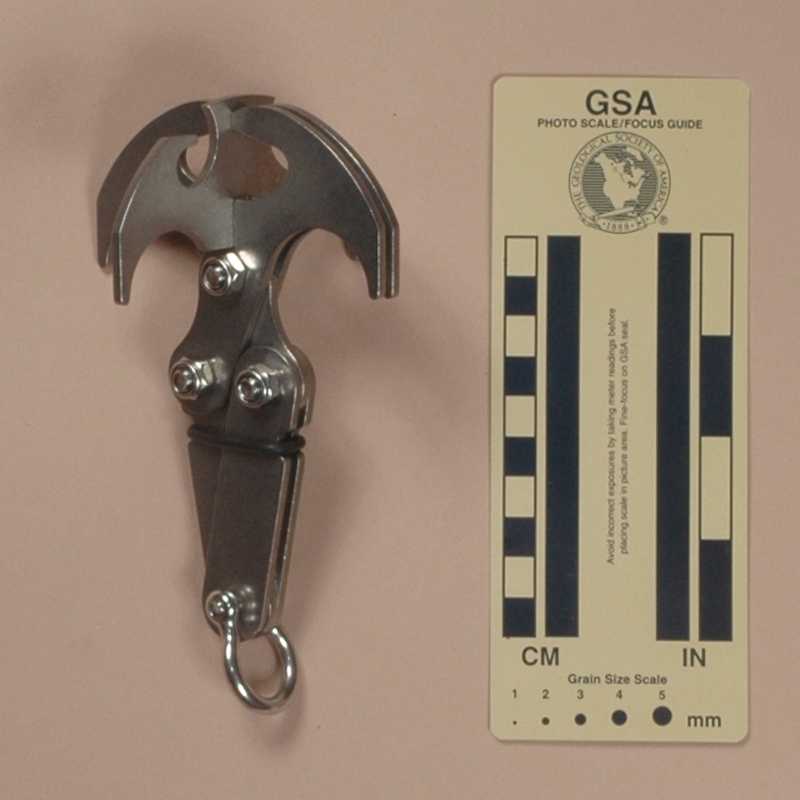

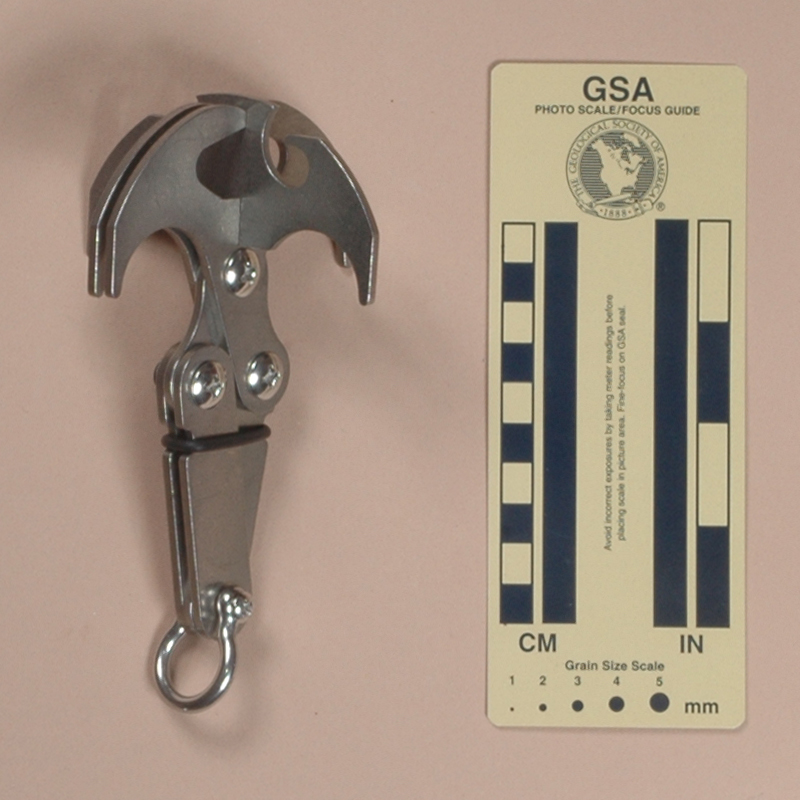

Front View	Rear View

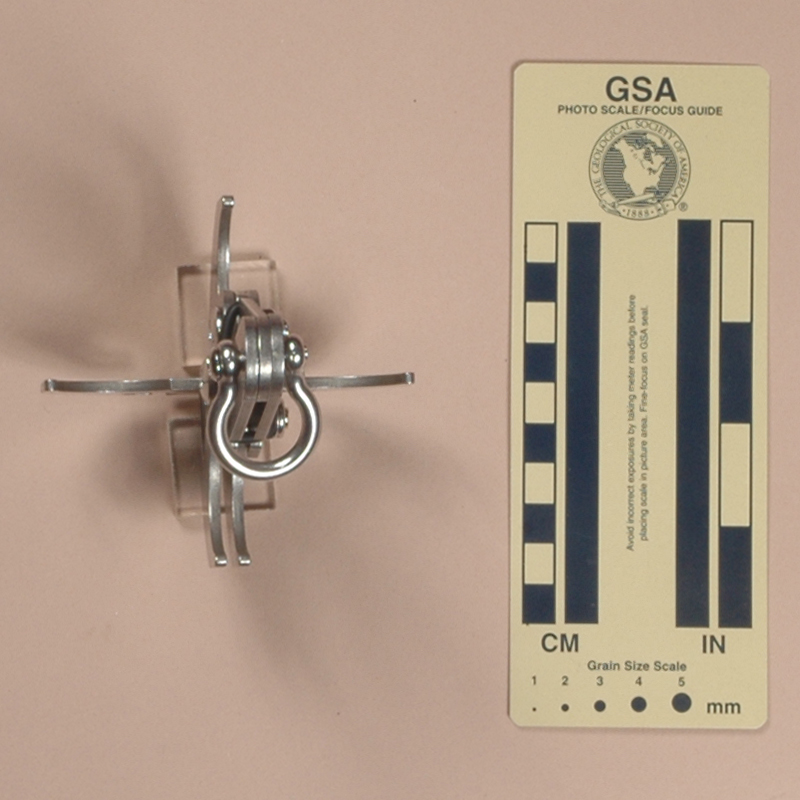

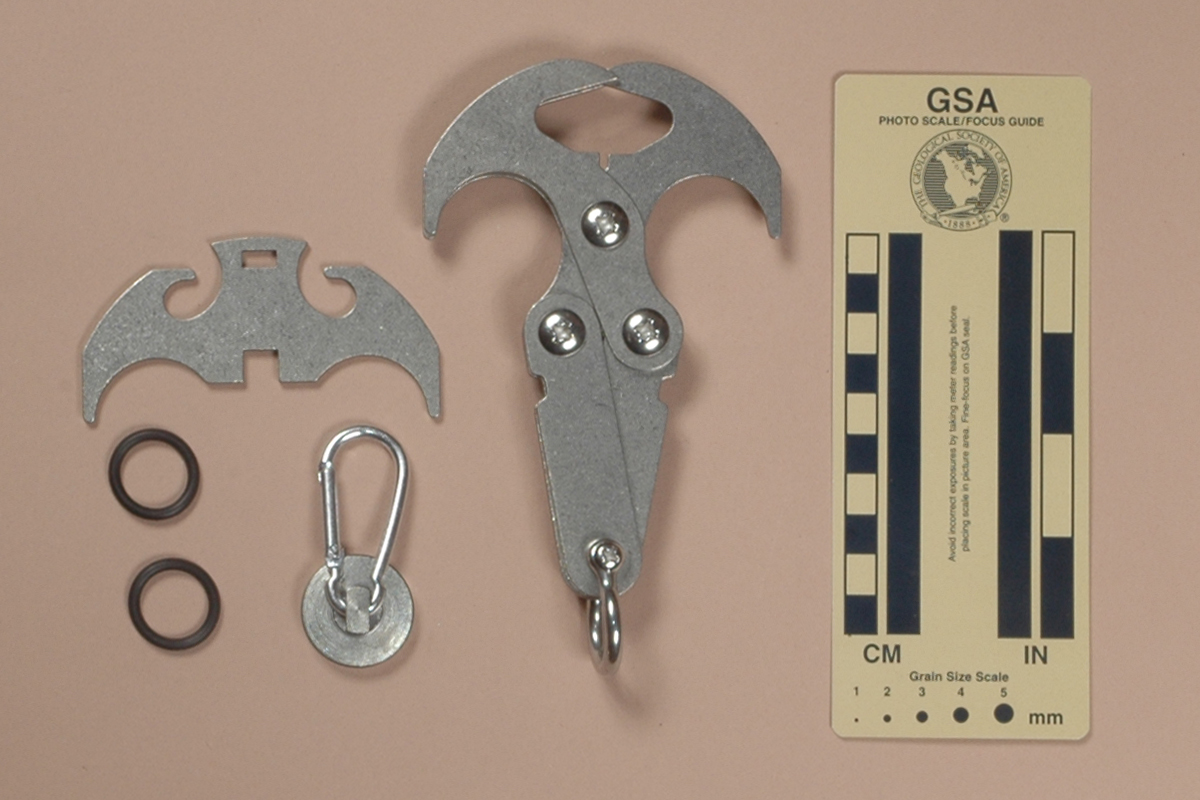

Bottom View	Disassembled for Carry

Technical Details

I acquired my Molibao Gravity Hook from H T Pow Limited in 2016.

The Molibao Gravity Hook is 134 mm. tall, 89 mm. wide, 89 mm. thick, and weighs 268 g.

The Molibao Gravity Hook consists the following pieces:

• A scissors assembly made from six pieces of 2.7 mm. stainless steel, three 5.5x15 mm. Phillips head cap screws with lock nuts, one 4.0x20 mm. Phillips head cap screw, and a 4.5 mm. clevis,
• One cross piece made from 2.7 mm. stainless steel,
• Two 3x17 mm. o-rings,
• A mini-carabiner, and
• A magnetic base.

There are no identifying marks on this device.

Comments

Warning: Don't trust your life to a grappling hook.

This is a small, lightweight hook that I certainly would not trust my life to. The o-rings are essential for keeping the hook from separating in use. I have no idea what the mini-carabiner and magnetic base are supposed to accomplish.
