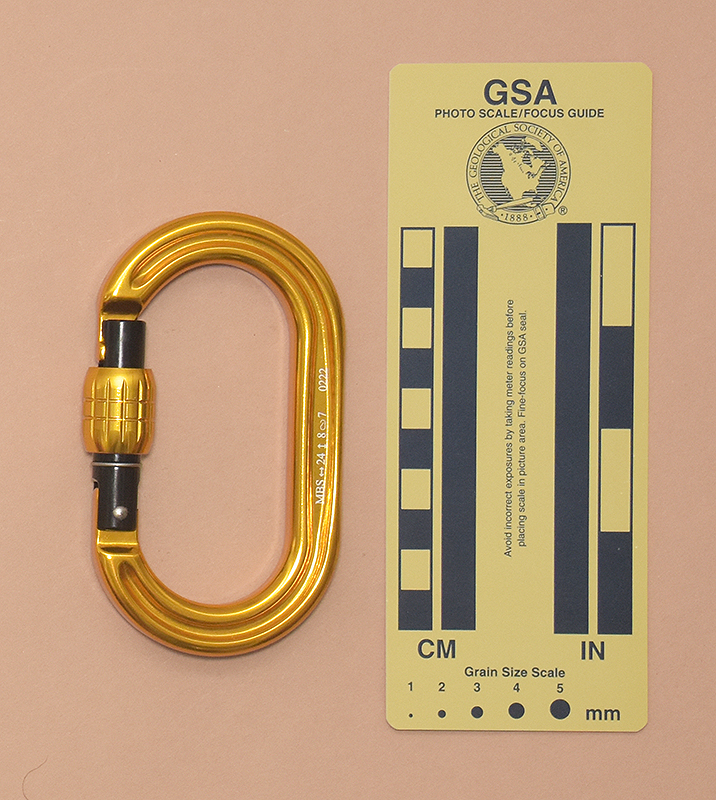

↑ 562: Omega Pacific Raider Screw-Lok

• 110x65 mm., 80 g.
• Gate Opening: 21 mm., Clearance: 20 mm.
• OMEGA<OP logo>RAIDER
  MBS↔24↕8ⱷ7 0222

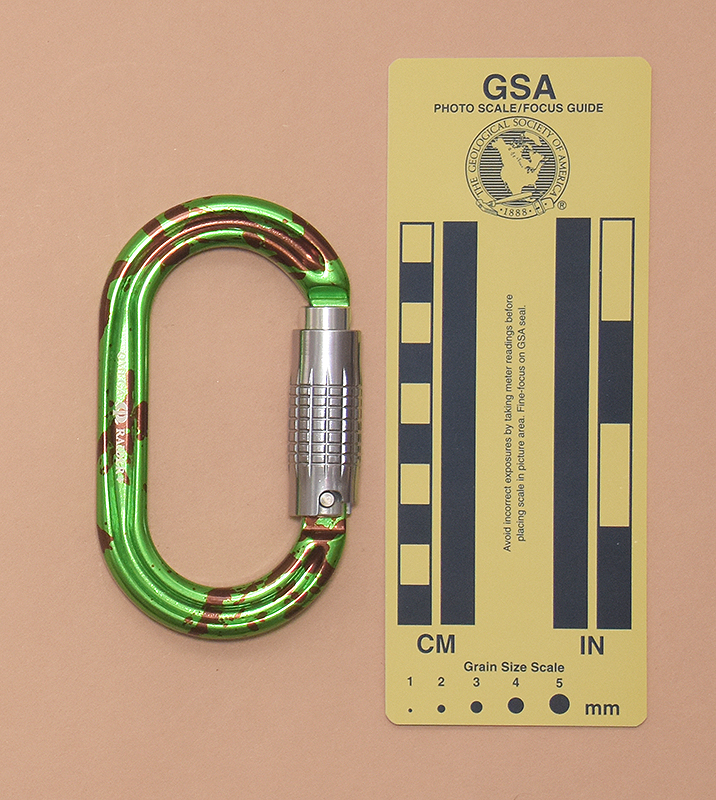

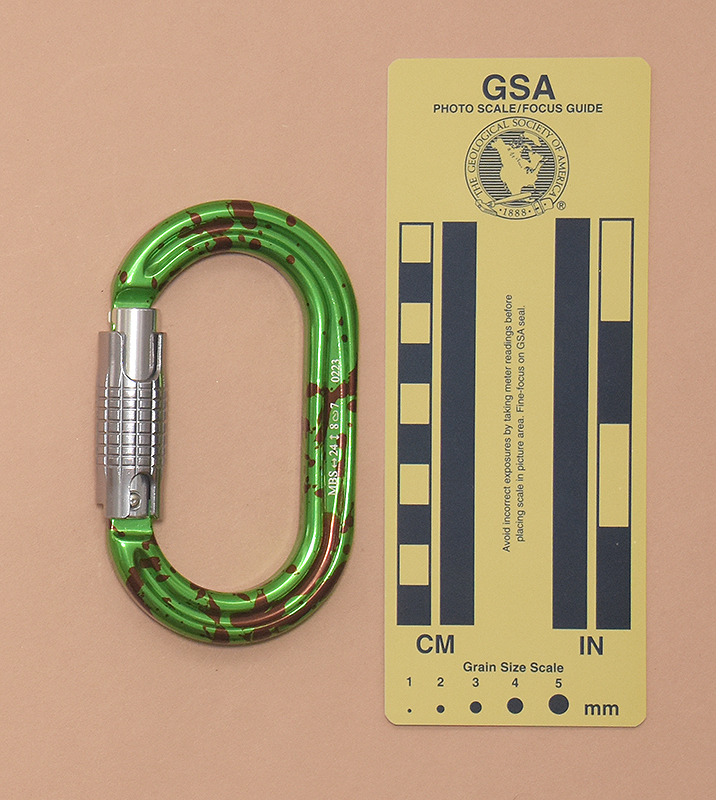

↑ 540: Omega Raider+ 3-Stage Quik-Lok

• 110x65 mm., 85 g.
• Gate Opening: 21 mm., Clearance: 20 mm.
• OMEGA<Omega Logo>RAIDER+
  MBS↔24↕8ⱷ7 0223

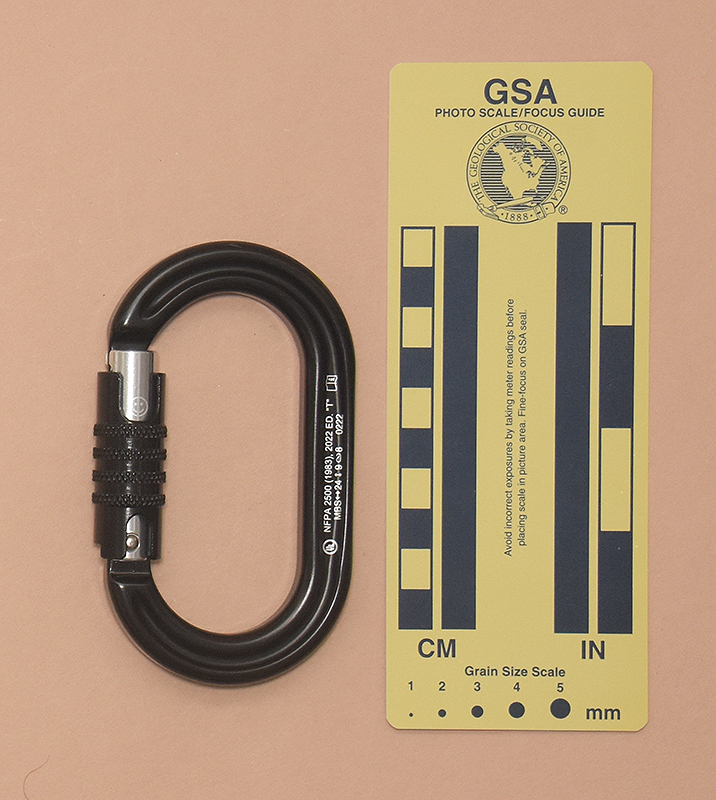

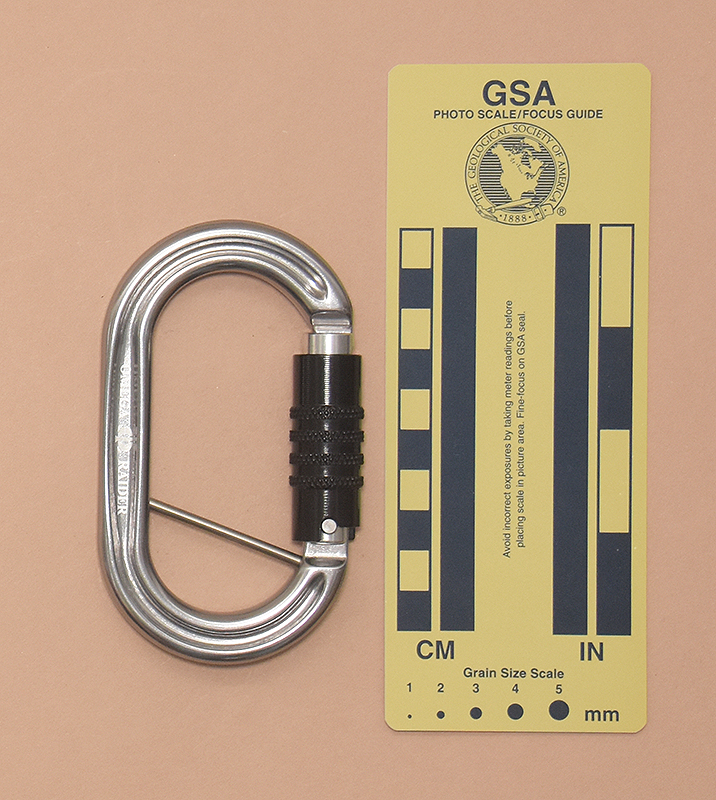

↑ 563: Omega Pacific Raider 3-Stage Quik-Lok NFPA

• 110x65 mm., 85 g.
• Gate Opening: 21 mm., Clearance: 20 mm.
• OMEGA<OP logo>RAIDER
  <UL logo> NFPA 2500(1983), 2022 ED. "T" MBS↔24↕9ⱷ8 0222 <iBook>
  <Smileyface>

↑ 564: Omega Pacific Raider 3-Stage Quik-Lok Captive NFPA

• 110x65 mm., 87 g.
• Gate Opening: 22 mm., Clearance: 21 mm.
• OMEGA<OP logo>RAIDER
  <UL logo> NFPA 2500(1983), 2022 ED. "T" MBS↔24↕9ⱷ8 0222 <iBook>
  <Smileyface>

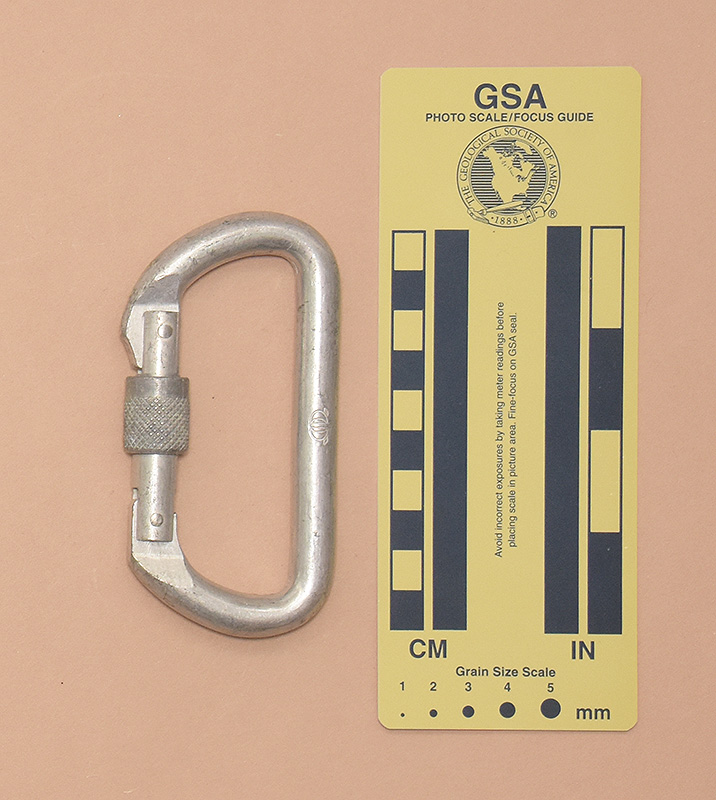

↑ 403: Omega Pacific Locking D

• 106x55 mm., 68 g.
• Gate Opening: 14 mm., Clearance: 14 mm.
• -
  <omega icon>
• Square gate end. Coarse barrel knurl below wide band.

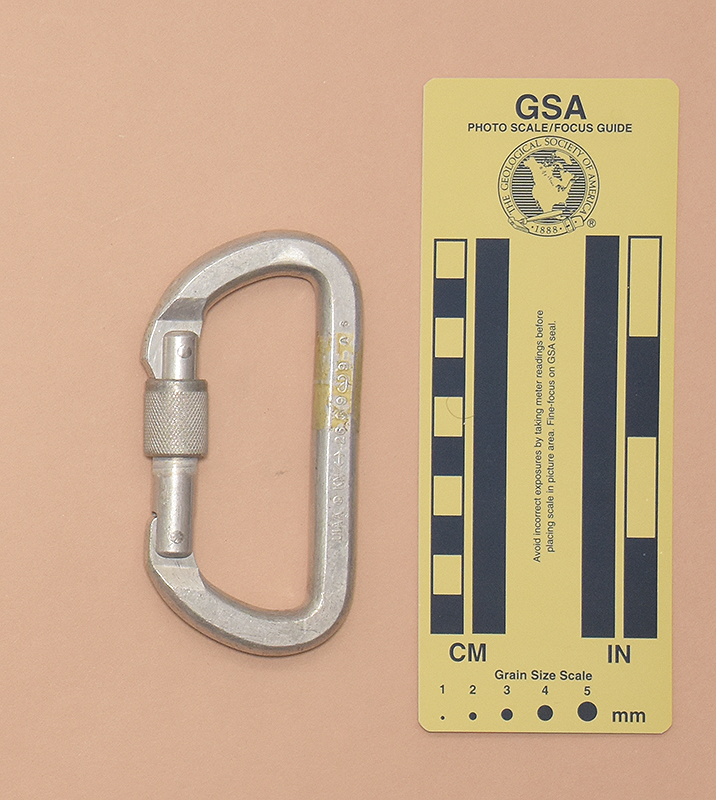

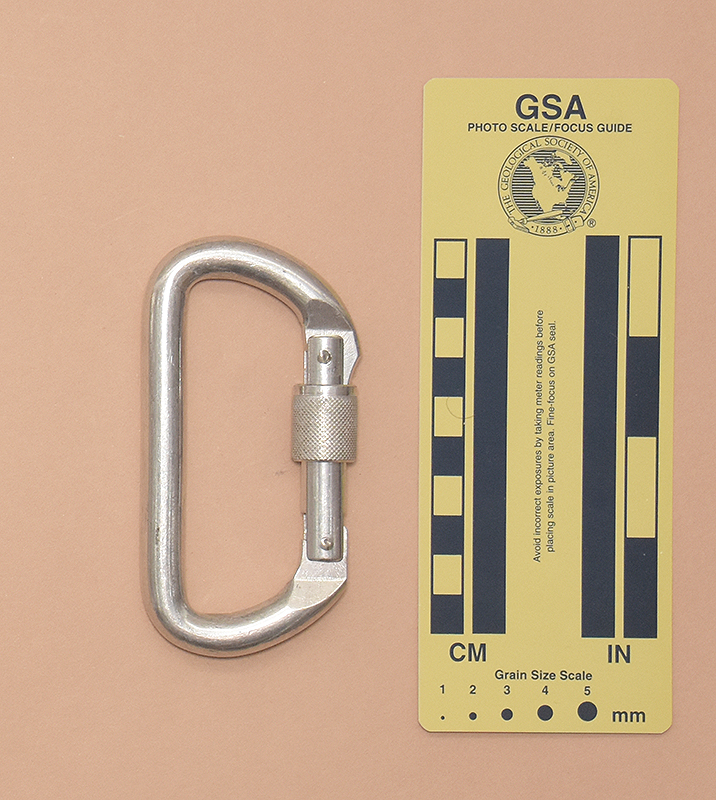

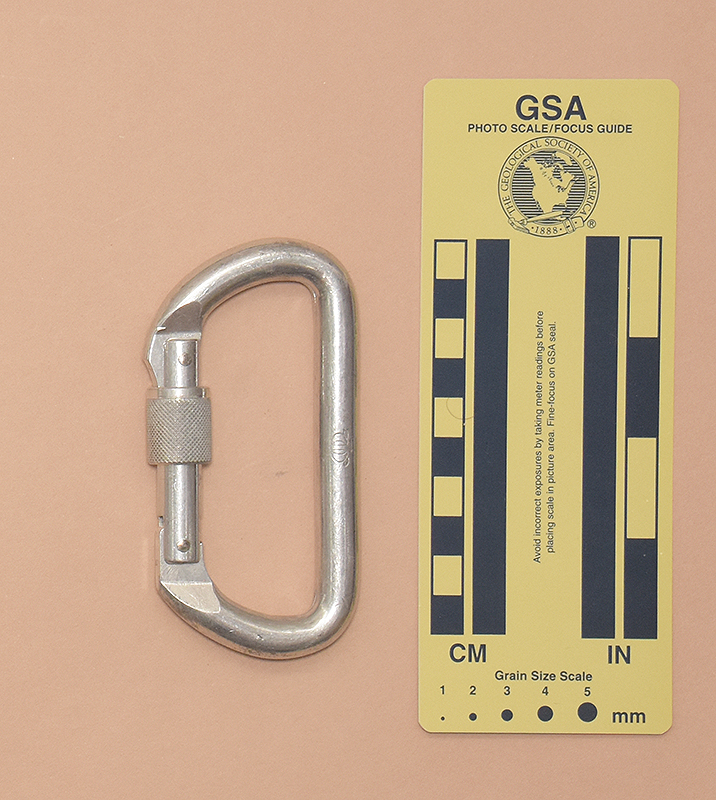

↑ 091: Omega Pacific Locking D

• 106x55 mm., 68 g.
• Gate Opening: 14 mm., Clearance: 14 mm.
• -
  <omega icon>
• Fine barrel knurl.

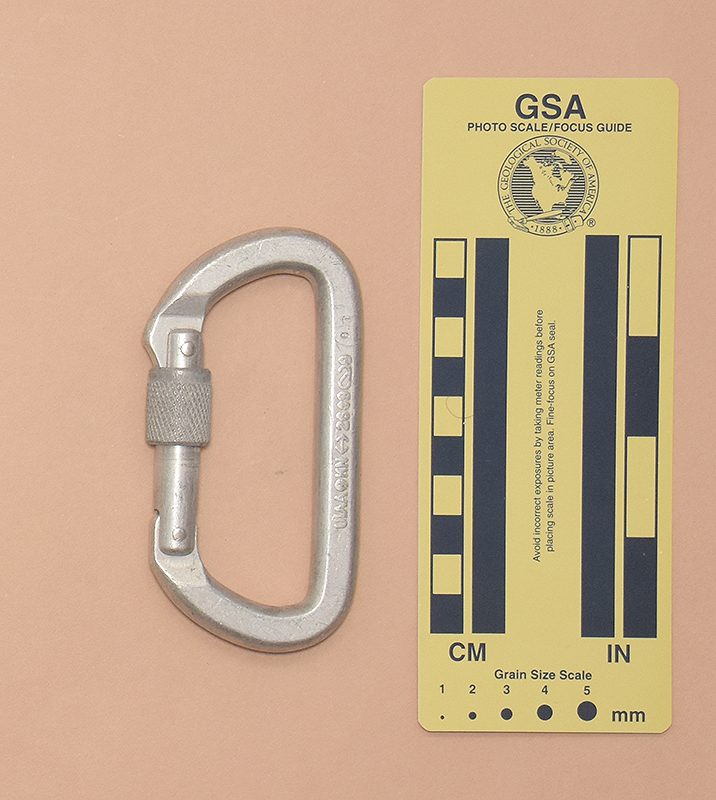

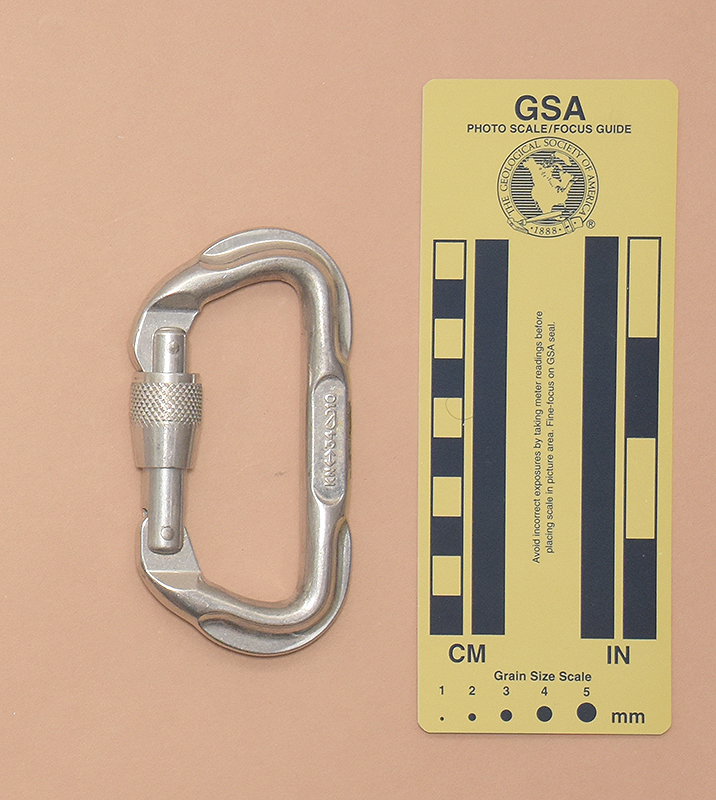

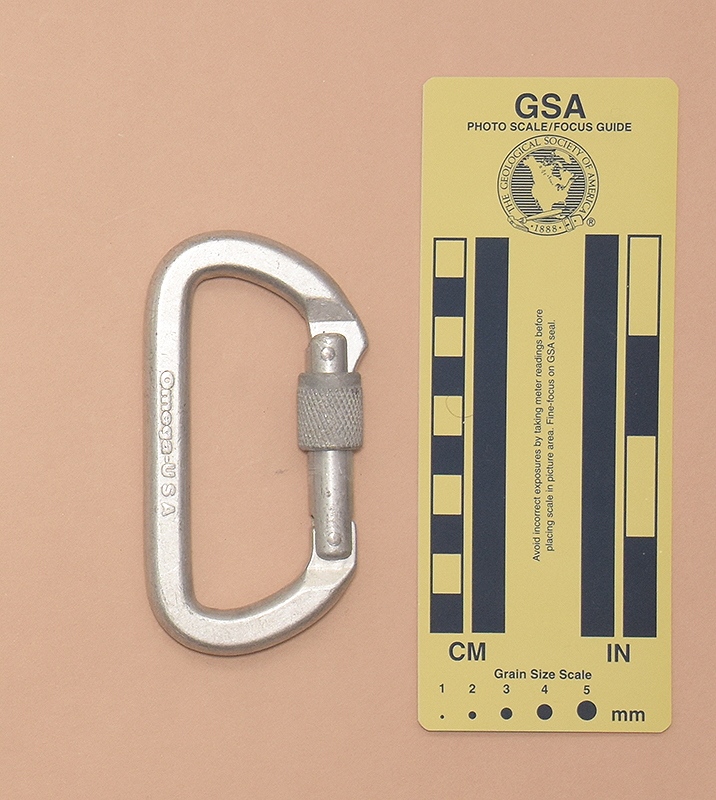

↑ 227: Omega Pacific Locking D

• 108x56 mm., 69 g.
• Gate Opening: 15 mm., Clearance: 15 mm.
• Omega-U S A
  UIAA (N) KN↔26↕9ⱷ9 A 6
• Fine barrel knurl.

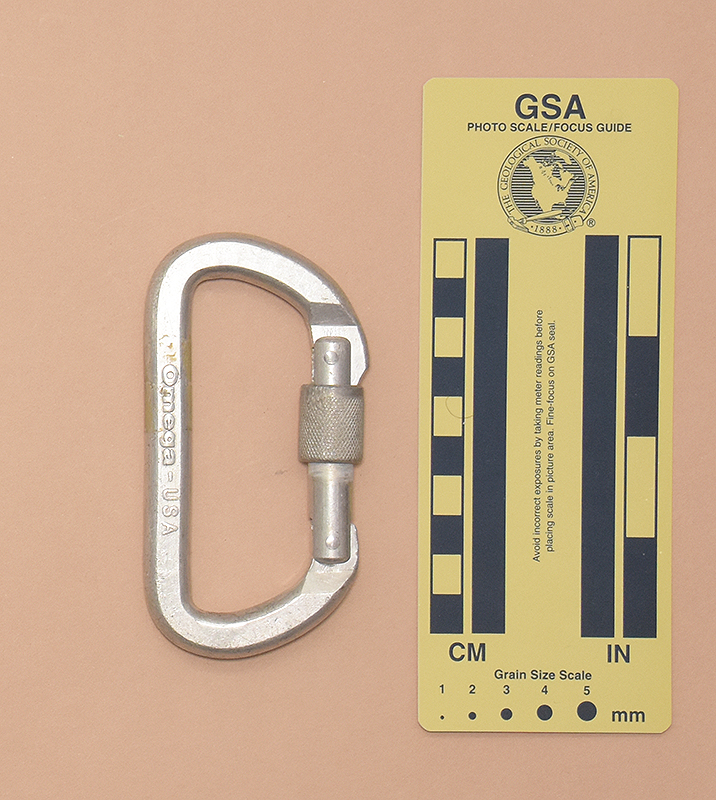

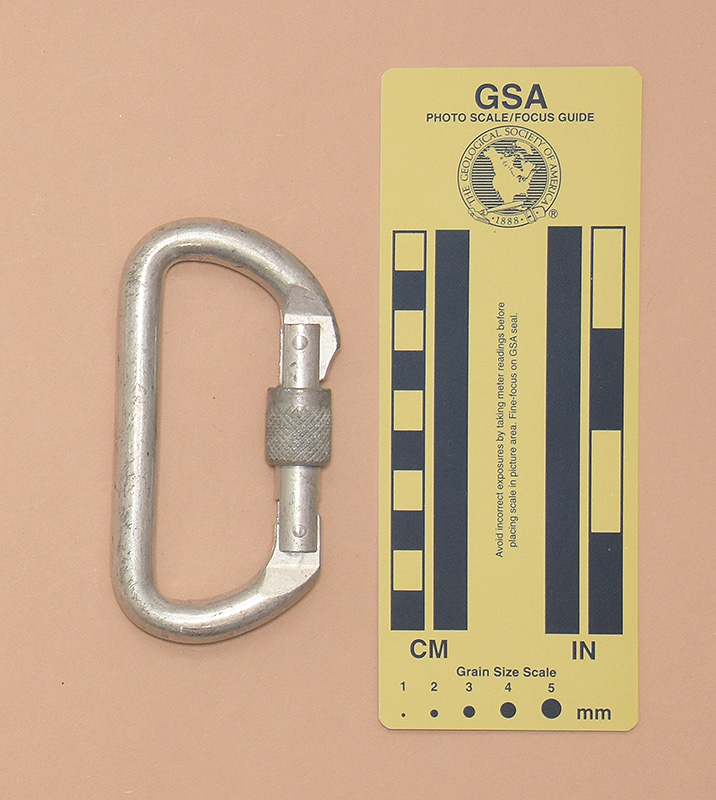

↑ 064: Omega Pacific Locking D

• 108x56 mm., 68 g.
• Gate Opening: 14 mm., Clearance: 14 mm.
• Omega-U S A
  UIAA(N)KN↔26↕9ⱷ7 8
• Coarse barrel knurl.

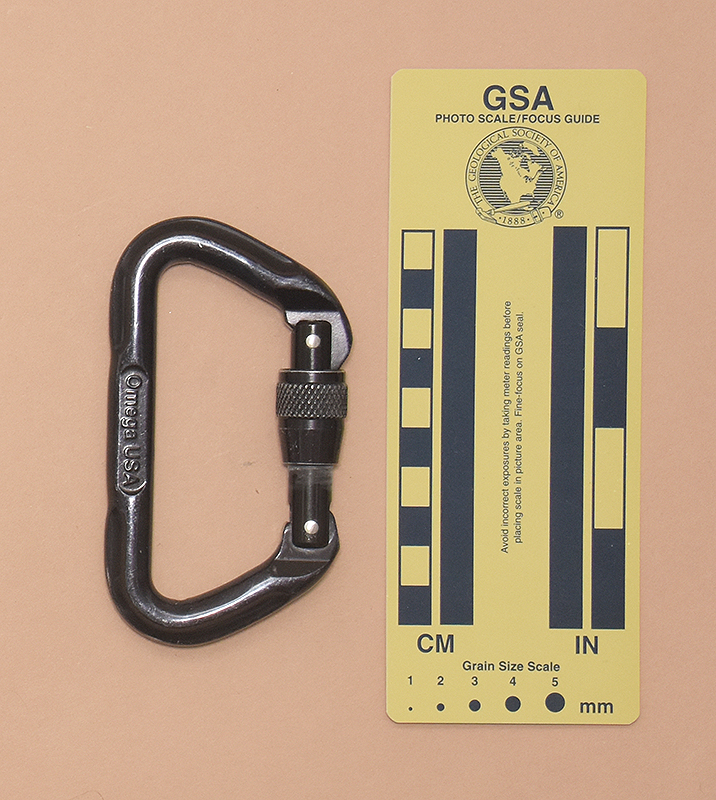

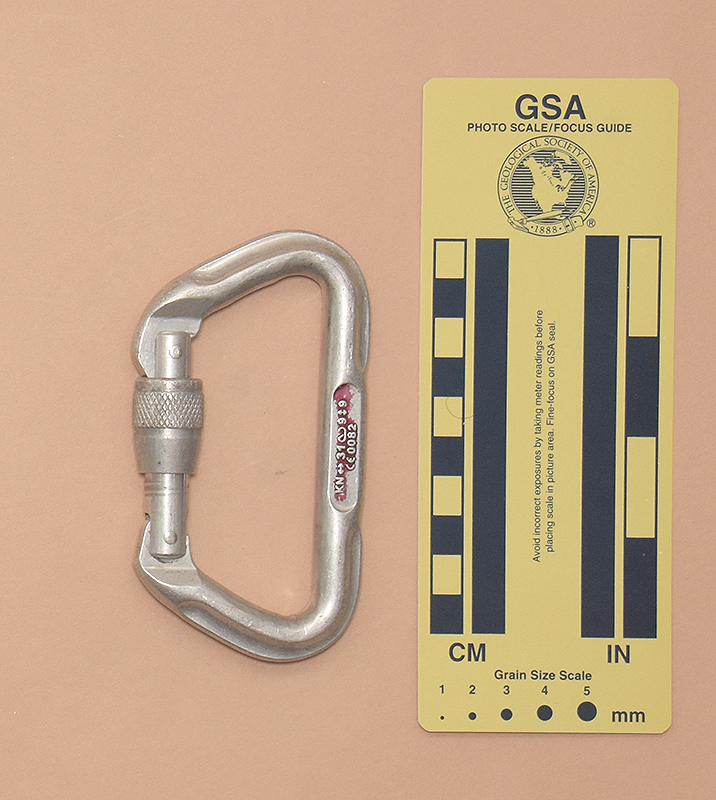

↑ 242: Omega Pacific Locking D

• 109x61 mm., 72 g.
• Gate Opening: 17 mm., Clearance: 17 mm.
• Omega-U S A
  KN↔31ⱷ9↕9 CE0082

↑ 244: Omega Pacific Locking D

• 109x61 mm., 72 g.
• Gate Opening: 17 mm., Clearance: 17 mm.
• Omega-U S A
  KN↔31ⱷ9↕9 CE0082

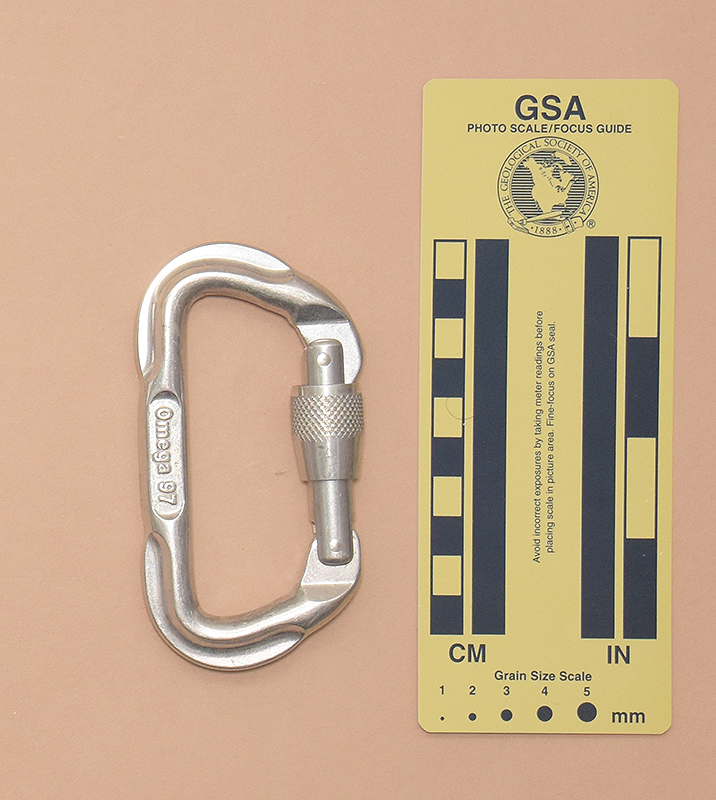

↑ 098: Omega Pacific 97

• 108x57 mm., 69 g.
• Gate Opening: 14 mm., Clearance: 14 mm.
• Omega 97
  kN↔34ⱷ10

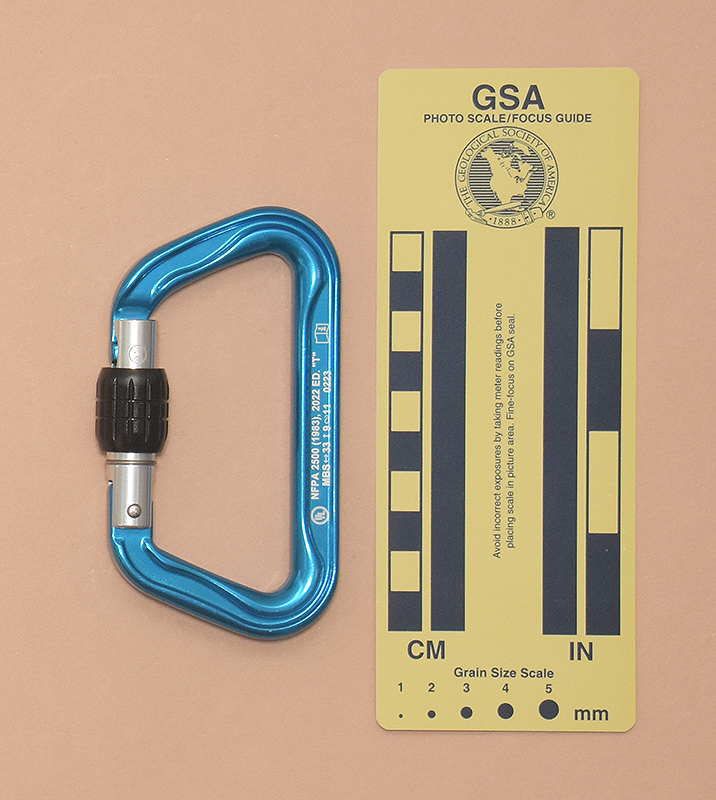

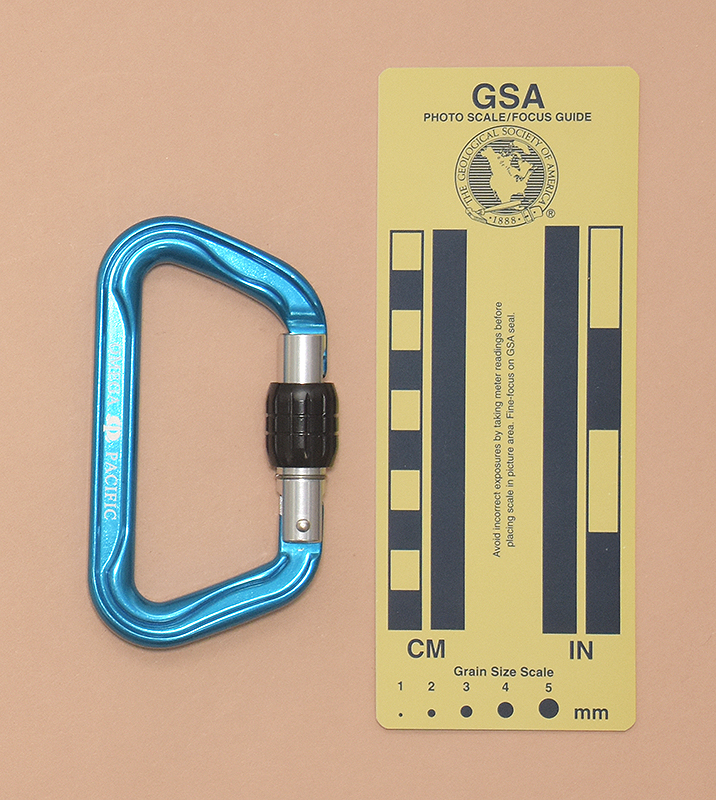

↑ 486: Omega Pacific Std. D Screw-lok

• 108x61 mm., 69 g.
• Gate Opening: 18 mm., Clearance: 18 mm.
• Omega<OP logo>PACIFIC
  <UL logo> NFPA2500(1983), 2022 ED. "T" MBS↔33↕9ⱷ11 0223 <i-book>

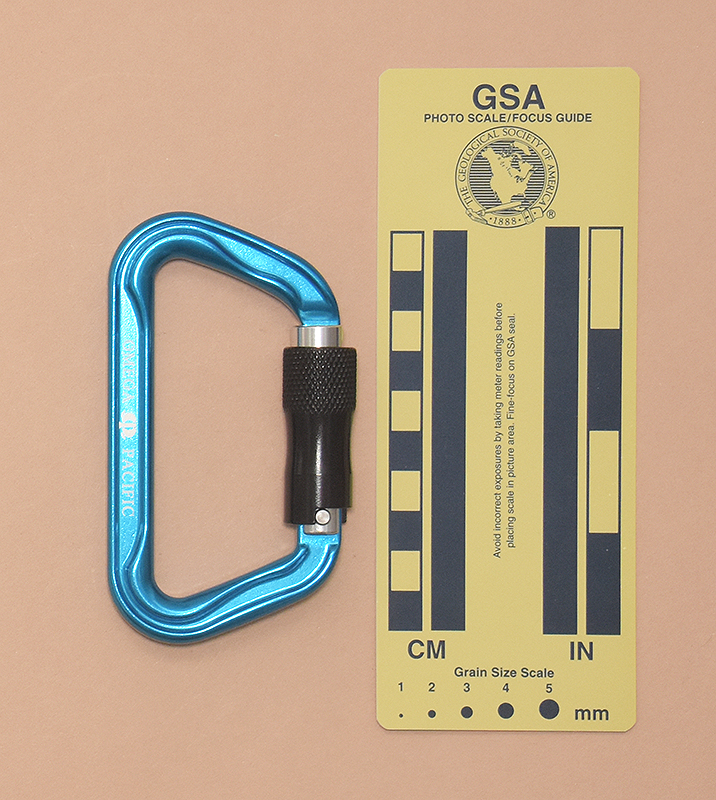

↑ 487: Omega Pacific Std. D 2-Stage

• 108x61 mm., 73 g.
• Gate Opening: 18 mm., Clearance: 18 mm.
• Omega<OP logo>PACIFIC
  <UL logo> NFPA2500(1983), 2022 ED. "T" MBS↔33↕9ⱷ11 0223 <i-book>

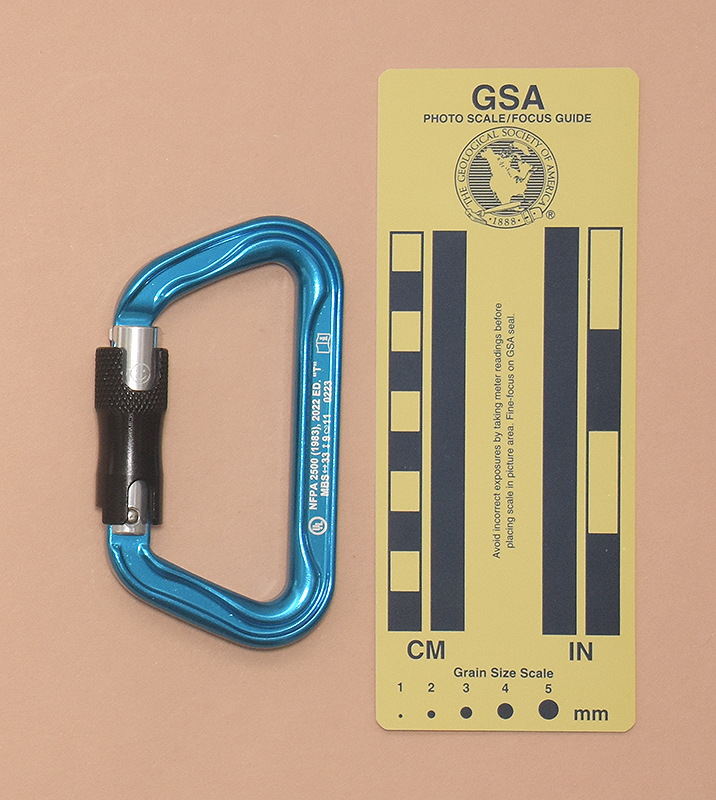

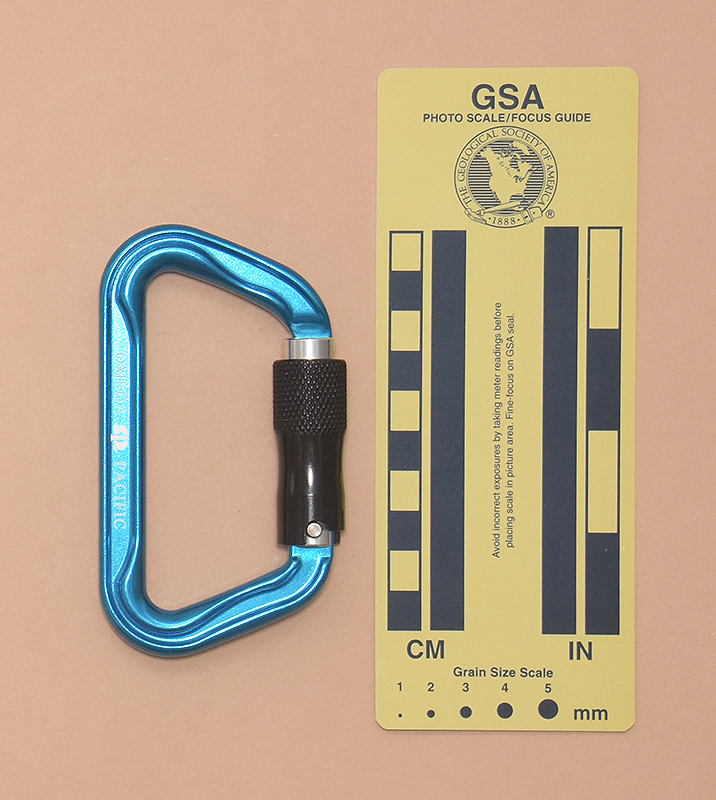

↑ 488: Omega Pacific Std. D 3-Stage

• 108x61 mm., 74 g.
• Gate Opening: 18 mm., Clearance: 18 mm.
• Omega<OP logo>PACIFIC
  <UL logo> NFPA2500(1983), 2022 ED. "T" MBS↔33↕9ⱷ11 0223 <i-book>

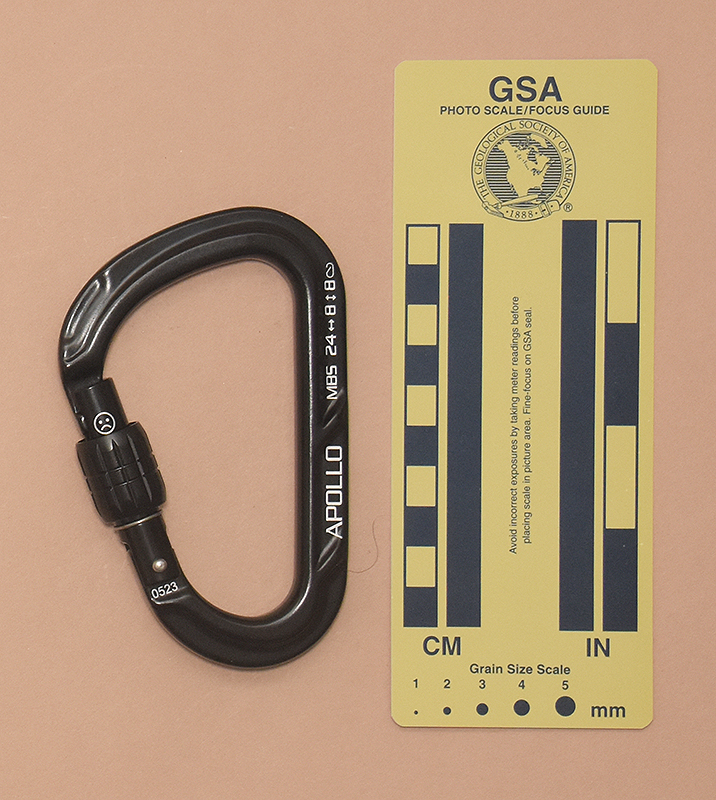

↑ 556: Omega Pacific Apollo Screw-Lok

• 114x72 mm., 74 g.
• Gate Opening: 22 mm., Clearance: 22 mm.
• OMEGA PACIFIC
  APOLLO MBS 24↔8↕8ⱷ

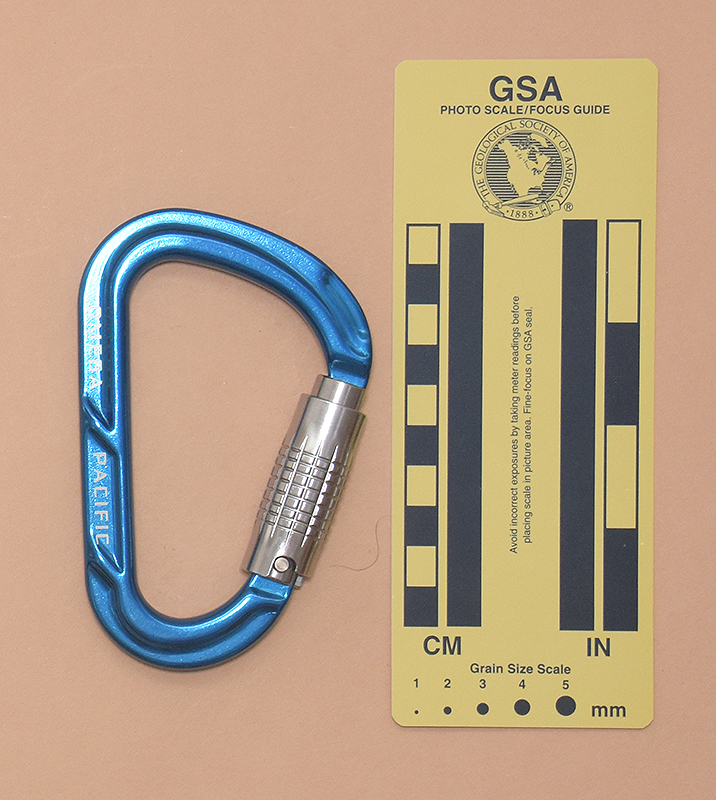

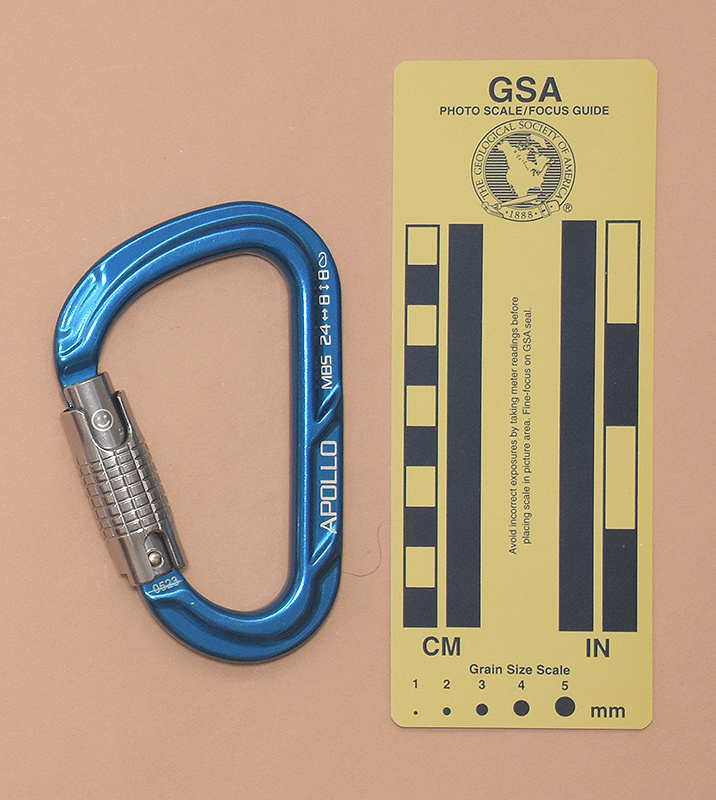

↑ 557: Omega Pacific Apollo 3-Stage Quik-Lok

• 114x72 mm., 80 g.
• Gate Opening: 22 mm., Clearance: 22 mm.
• OMEGA PACIFIC
  APOLLO MBS 24↔8↕8ⱷ

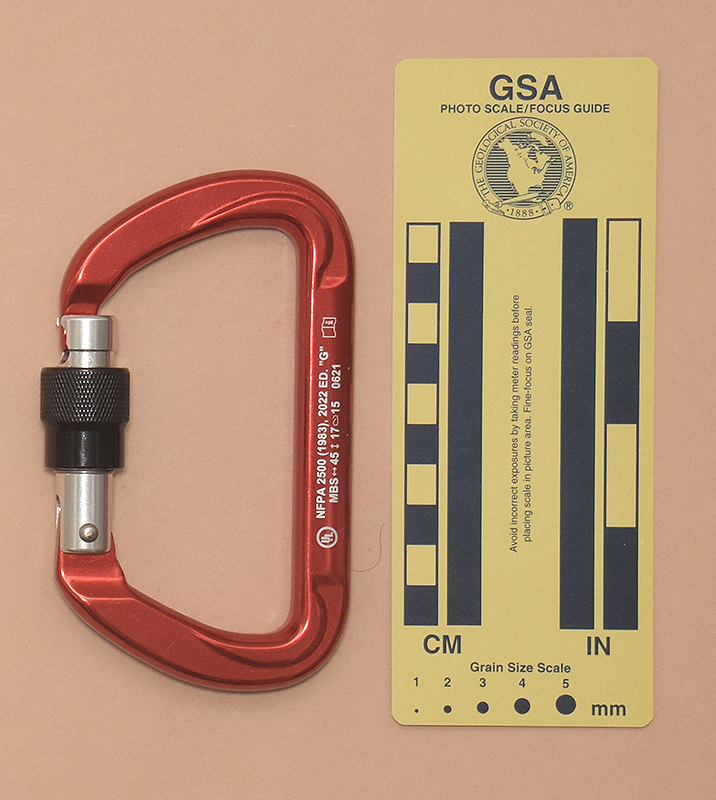

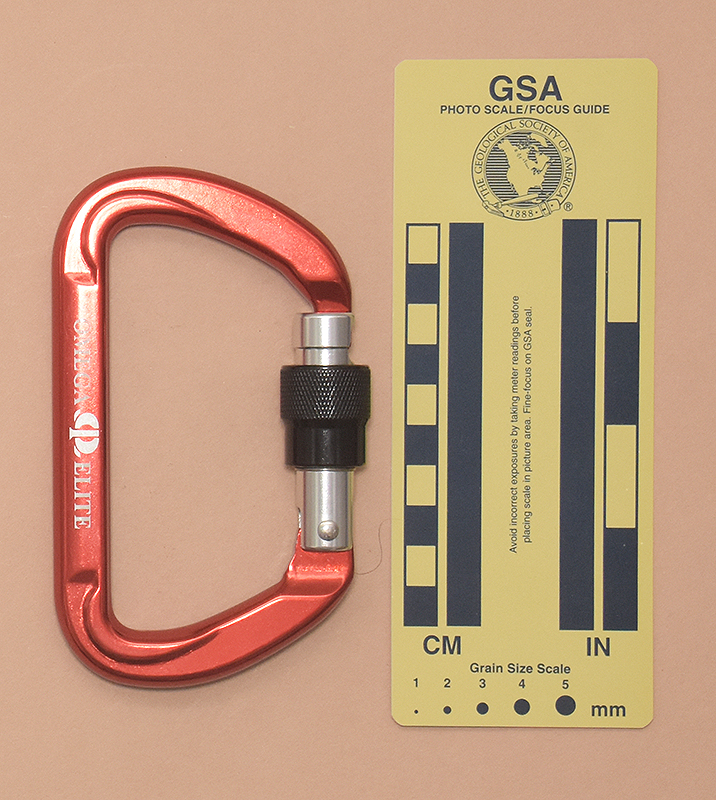

↑ 558: Omega Pacific Elite Screw-Lok NFPA

• 129x78 mm., 134 g.
• Gate Opening: 28 mm., Clearance: 28 mm.
• OMEGA<OP logo>ELITE
  <UL logo> NFPA 2500(1983), 2022 ED. "G" MBS↔45↕17ⱷ15 0621 <iBook>

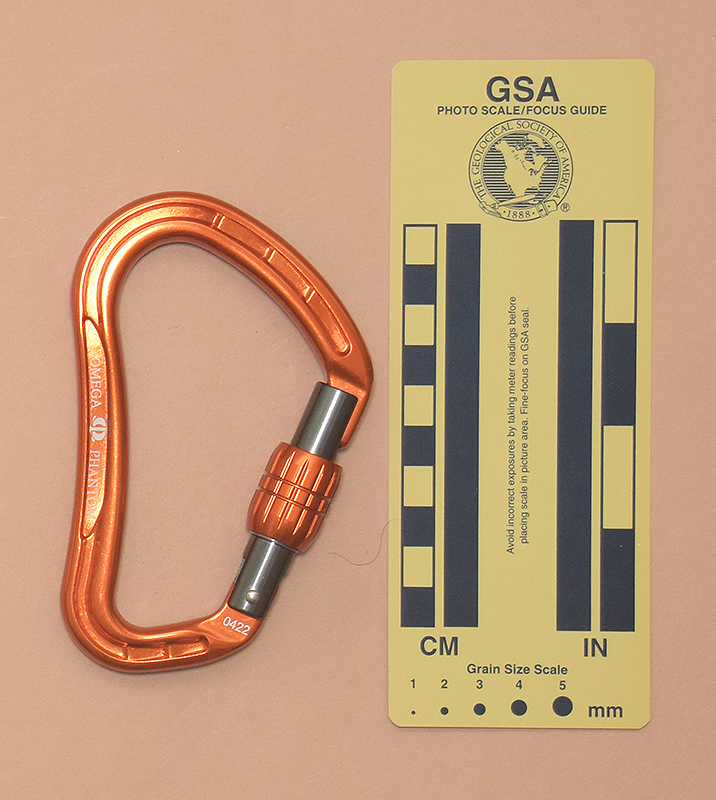

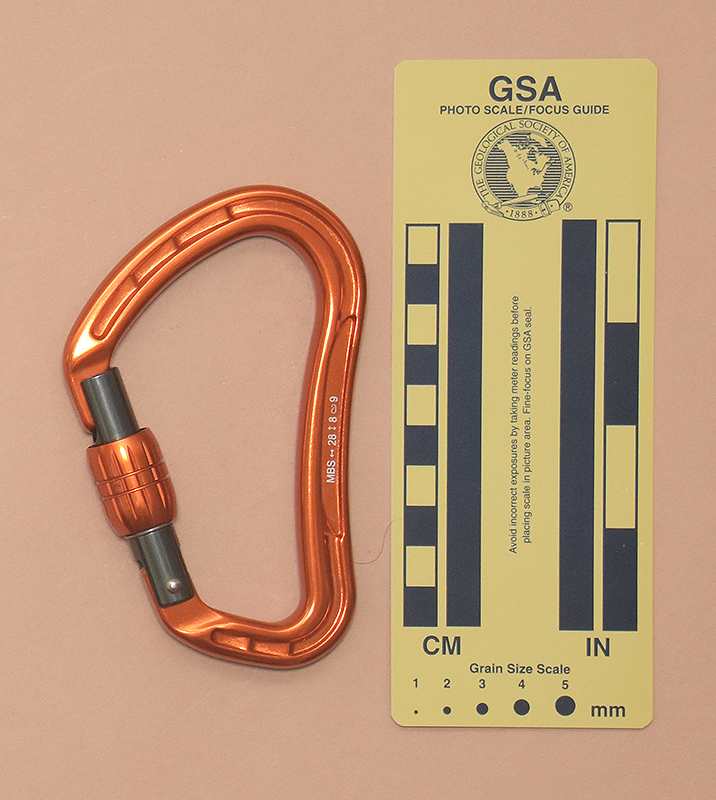

↑ 560: Omega Pacific Phantom Screw-Lok

• 120x75 mm., 84 g.
• Gate Opening: 21 mm., Clearance: 21 mm.
• OMEGA<OP logo>PHANTOM 0422
  MBS↔28↕8ⱷ9

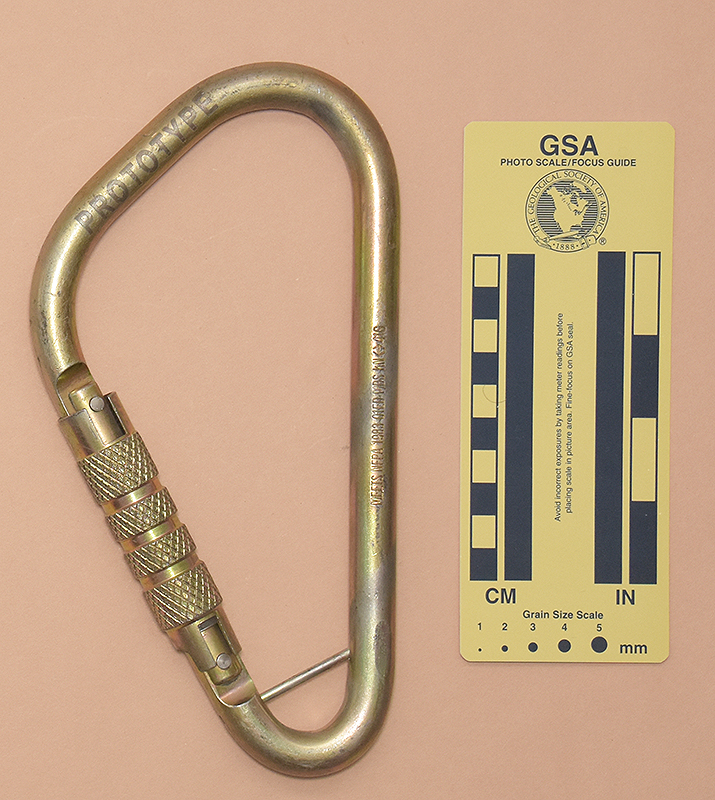

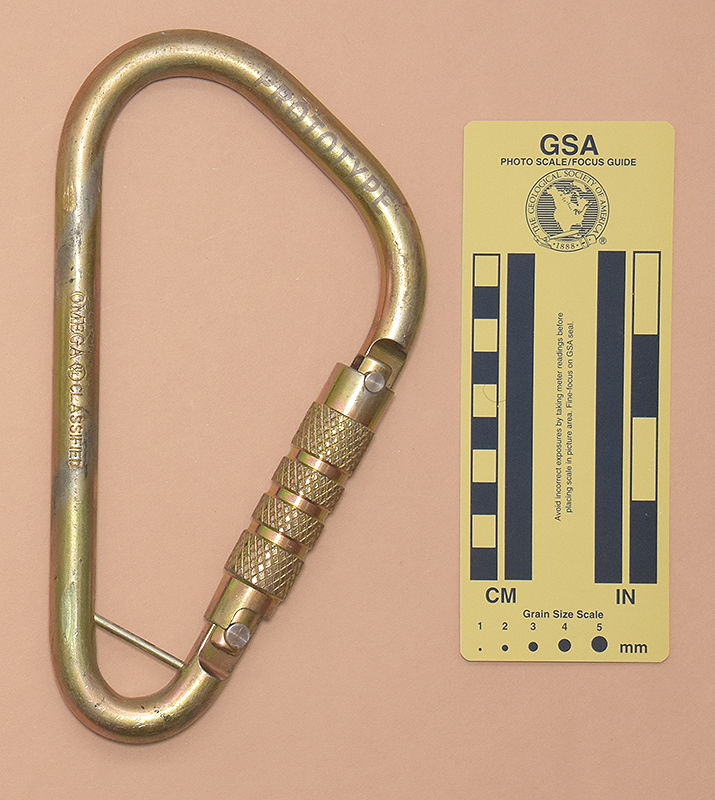

↑ 241: Omega Pacific Prototype Steel Locking D

• 217x113 mm., 644 g.
• Gate Opening: 60 mm., Clearance: 60 mm.
• PROTOTYPE OMEGA<UL logo>CLASSIFIED
  PROTOTYPE MEEFS NFPA 1983 01ED MBS kN ↔41G

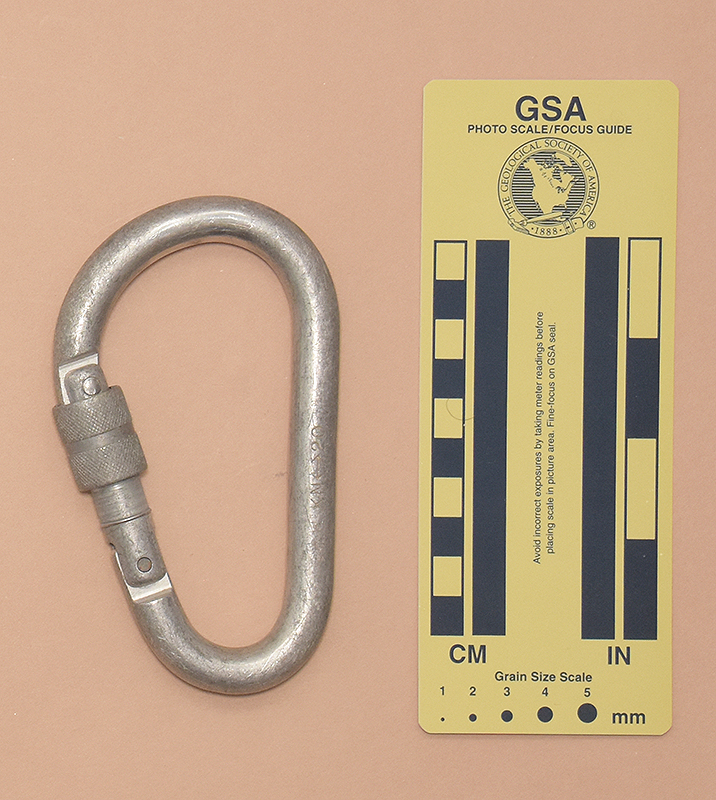

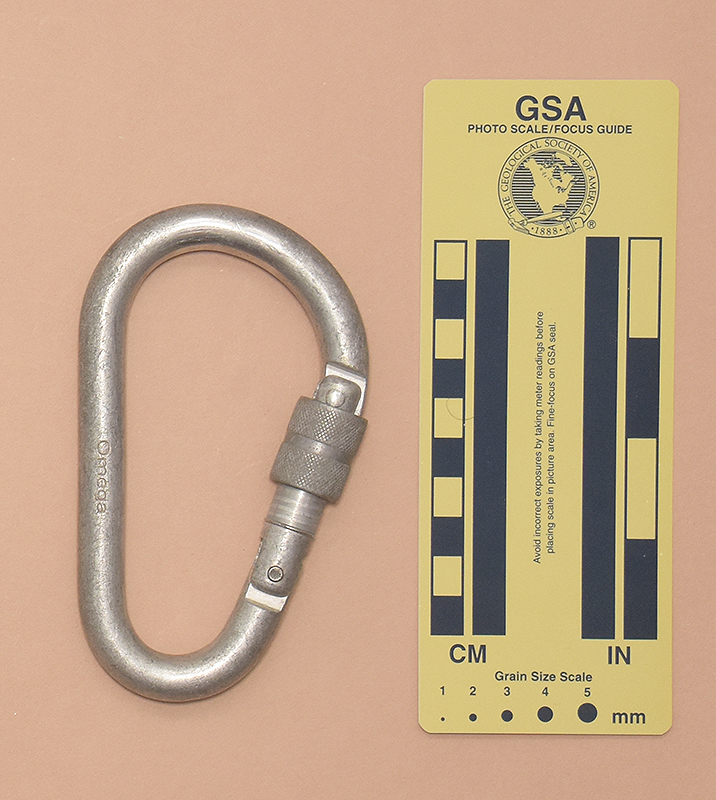

↑ 088: Omega Pacific HMS

• 125x73 mm., 99 g.
• Gate Opening: 22 mm., Clearance: 22 mm.
• Omega
  KN↔20

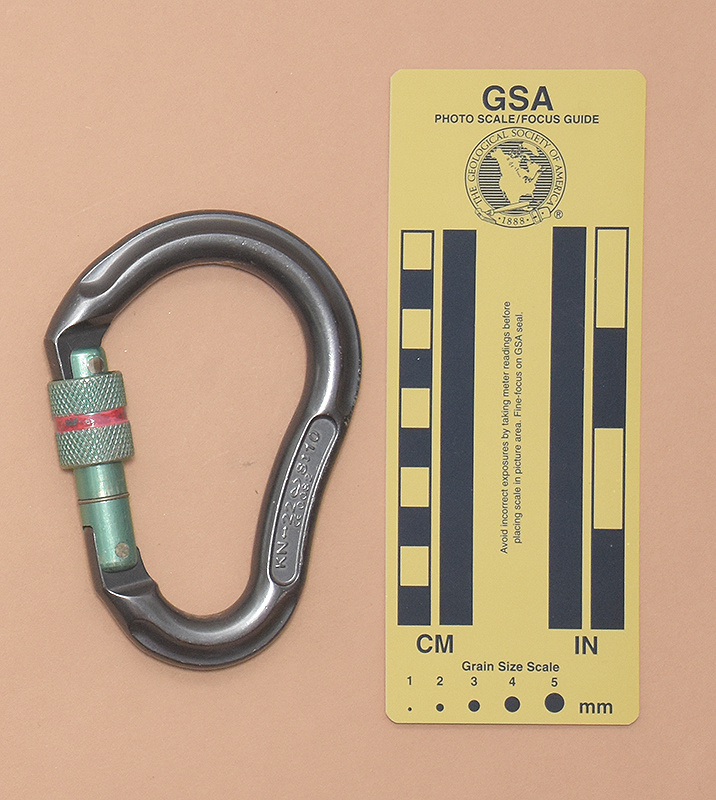

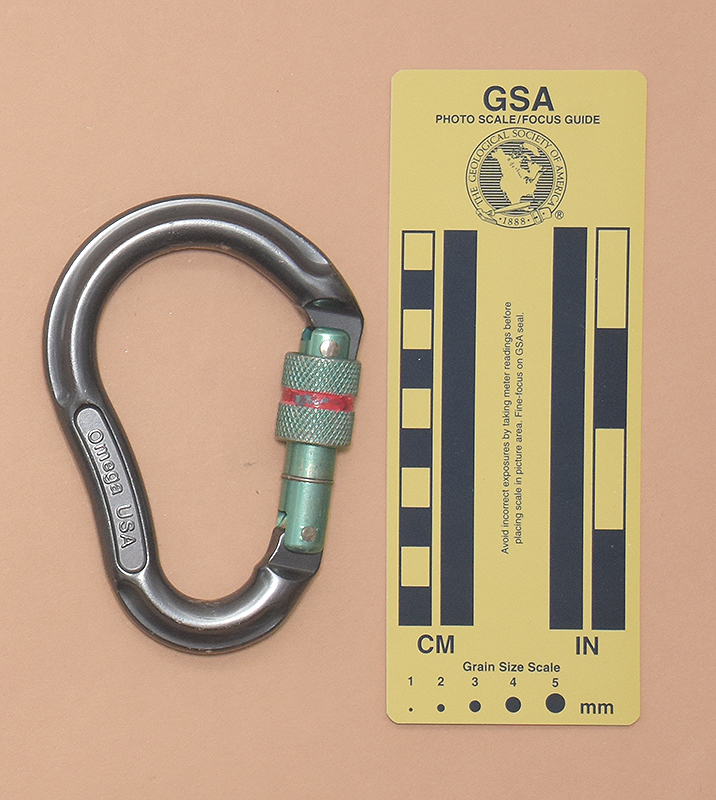

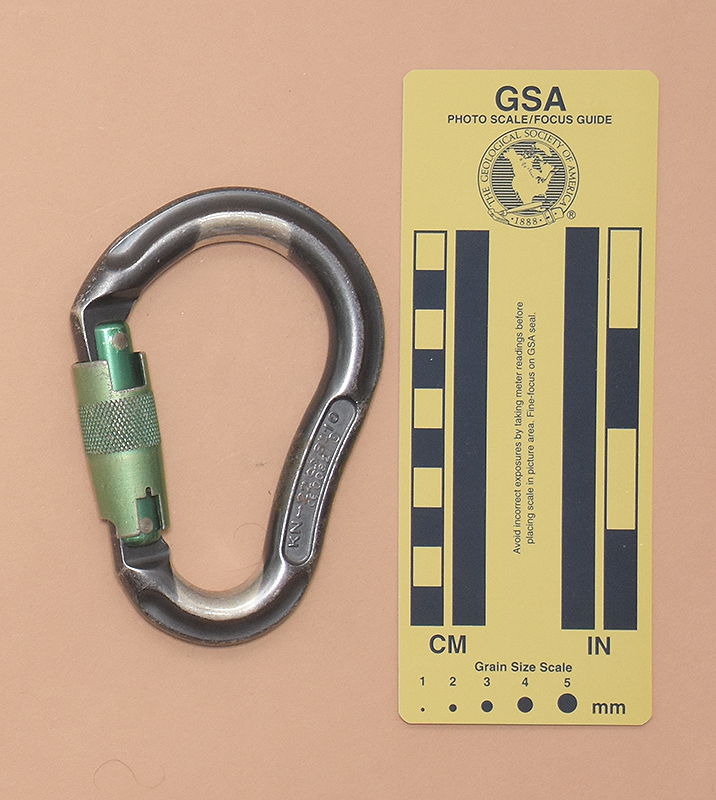

↑ 245: Omega Pacific HMS

• 116x81 mm., 99 g.
• Gate Opening: 24 mm., Clearance: 24 mm.
• Omega USA
  kN↔22ⱷ8↕10 CE 0082
• Gate swings at an angle.

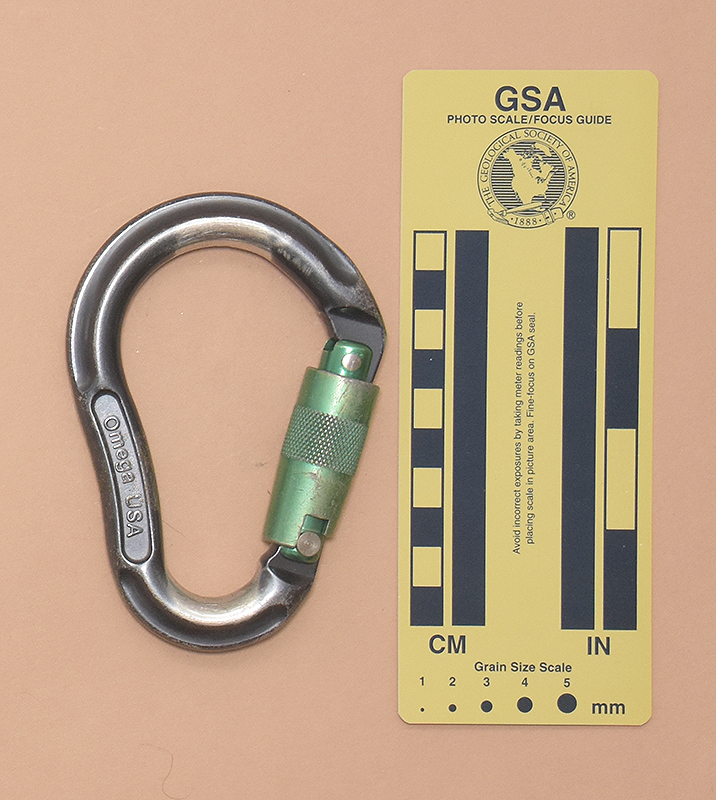

↑ 243: Omega Pacific HMS

• 116x80 mm., 104 g.
• Gate Opening: 25 mm., Clearance: 25 mm.
• Omega USA
  kN↔22ⱷ8↕10 CE 0082
• Gate swings at an angle.
