Fusion

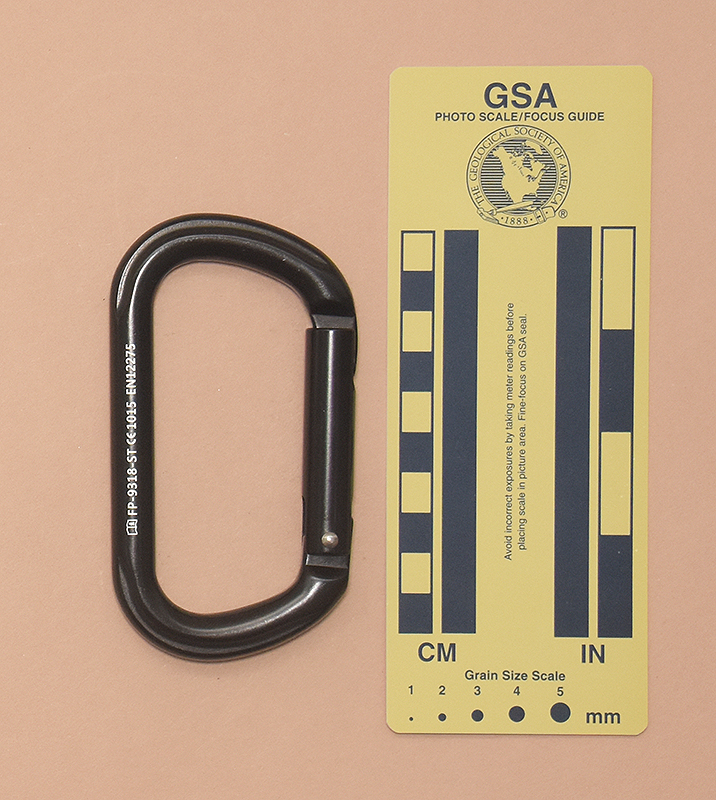

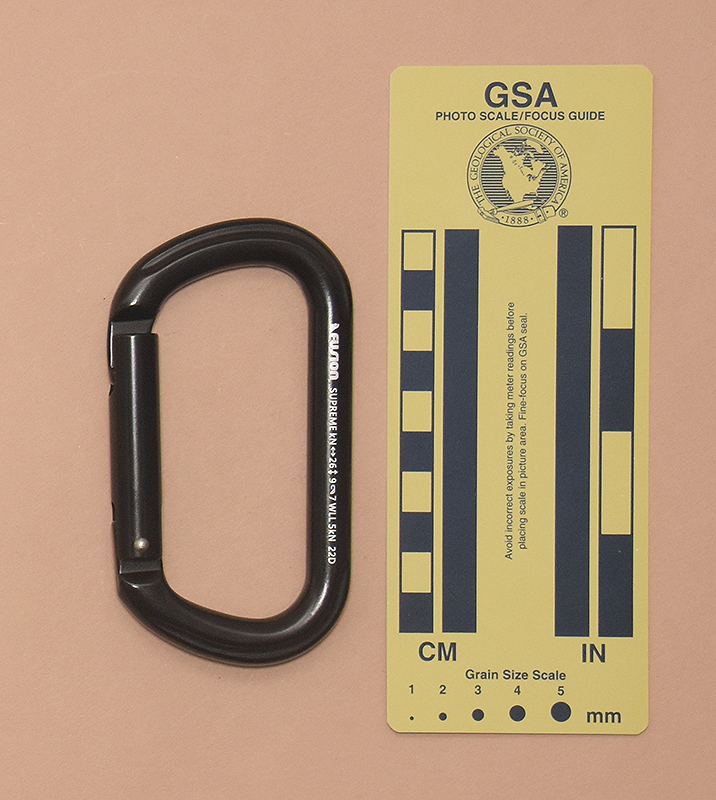

↑ 541: Fusion ACE Supreme II

• 111x61 mm., 70 g.
• Gate Opening: 22 mm., Clearance: 22 mm.
• <iBook> FP-9318-ST CE 1015 EN12275
  <Fusion logo>FUSION SUPREME kN↔26↕9ⱷ7 WLL 5kN 22D

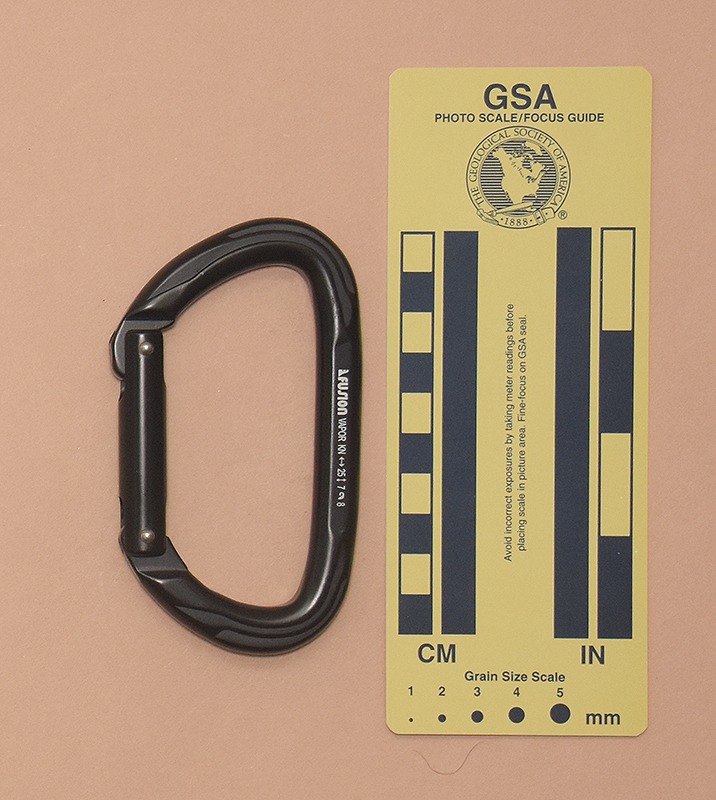

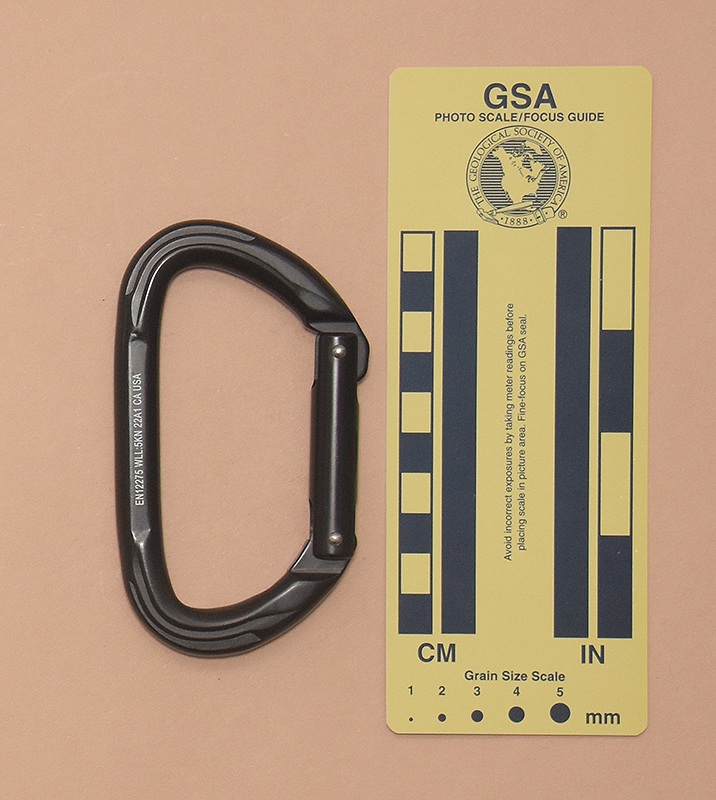

↑ 542: Fusion Vapor

• 108x63 mm., 64 g.
• Gate Opening: 26 mm., Clearance: 23 mm.
• EN12275 WLL:5kN 22A1 CA USA
  <Fusion logo>FUSION VAPOR KN ↔25↕7ⱷ8

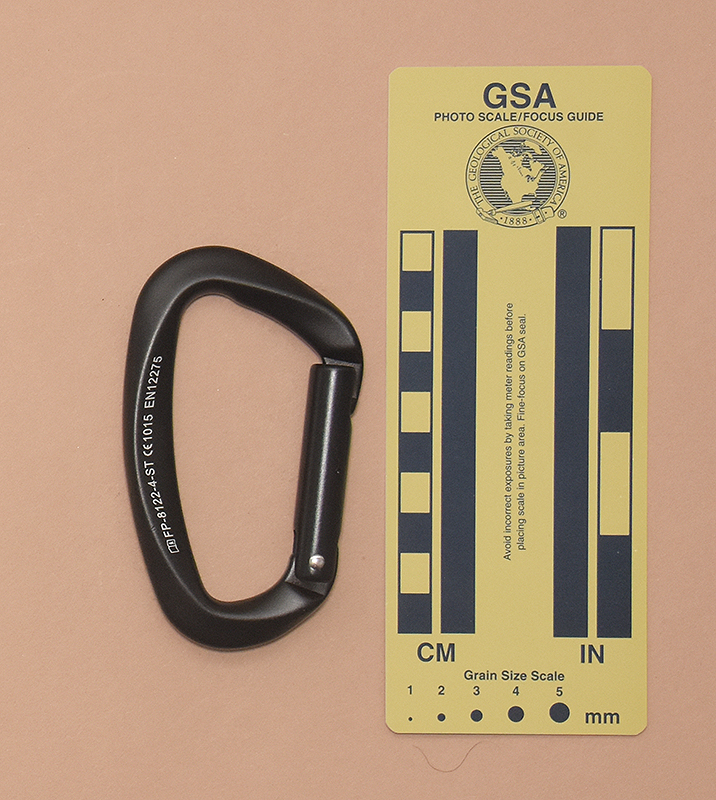

↑ 543: Fusion Vapor III

• 100x59 mm., 57 g.
• Gate Opening: 19 mm., Clearance: 19 mm.
• <iBook> FP-8122-4-ST CE 1015 EN12275
  <Fusion logo>FUSION VAPOR kN↔26↕8ⱷ9 WLL 5kN 22D

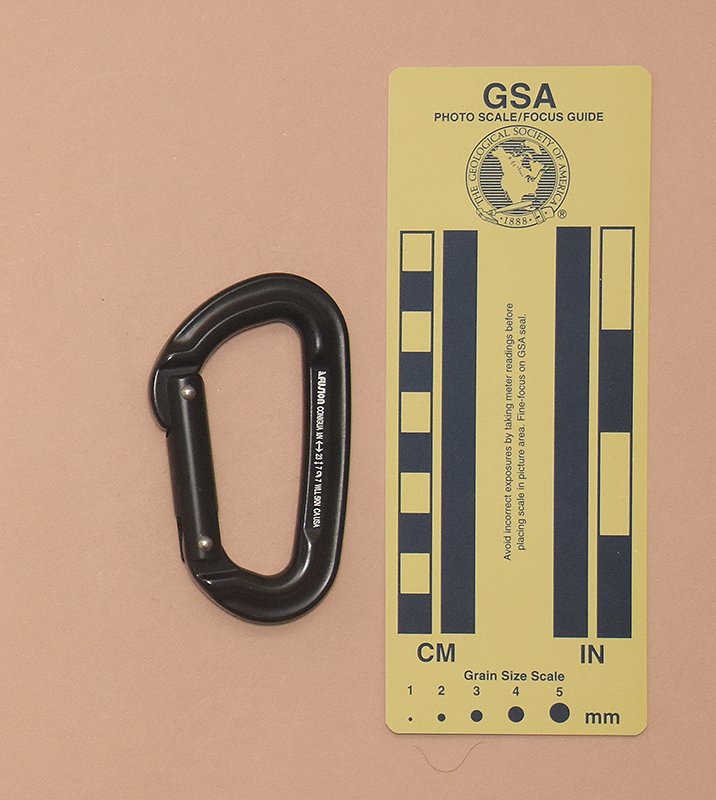

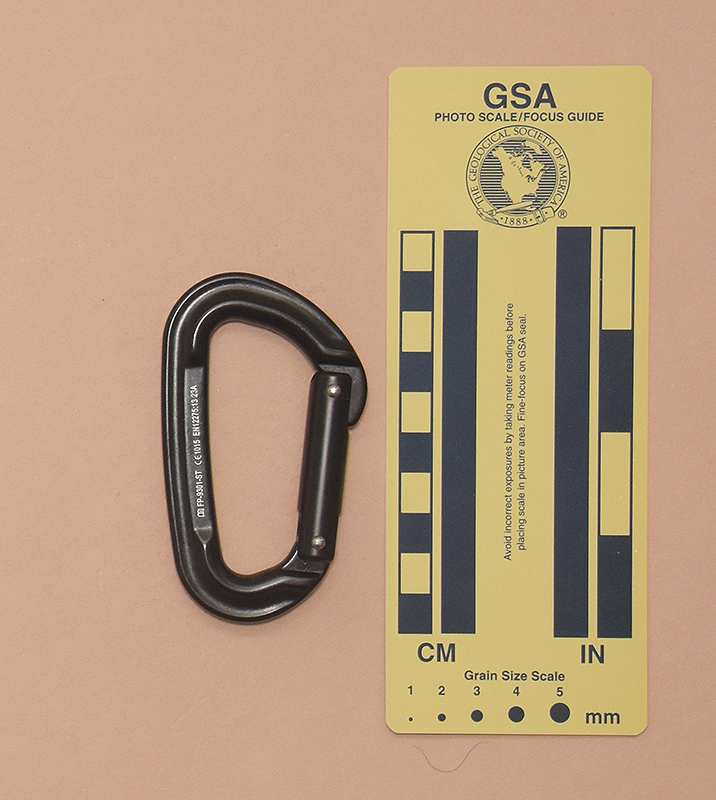

↑ 544: Fusion Contigua

• 87x51 mm., 39 g.
• Gate Opening: 13 mm., Clearance: 13 mm.
• <iBook> FP-9301-ST CE 1015 EN12275:13 23A
  <Fusion logo>FUSION CONTIGUA kN↔23↕8ⱷ7 WLL 5KN CA USA

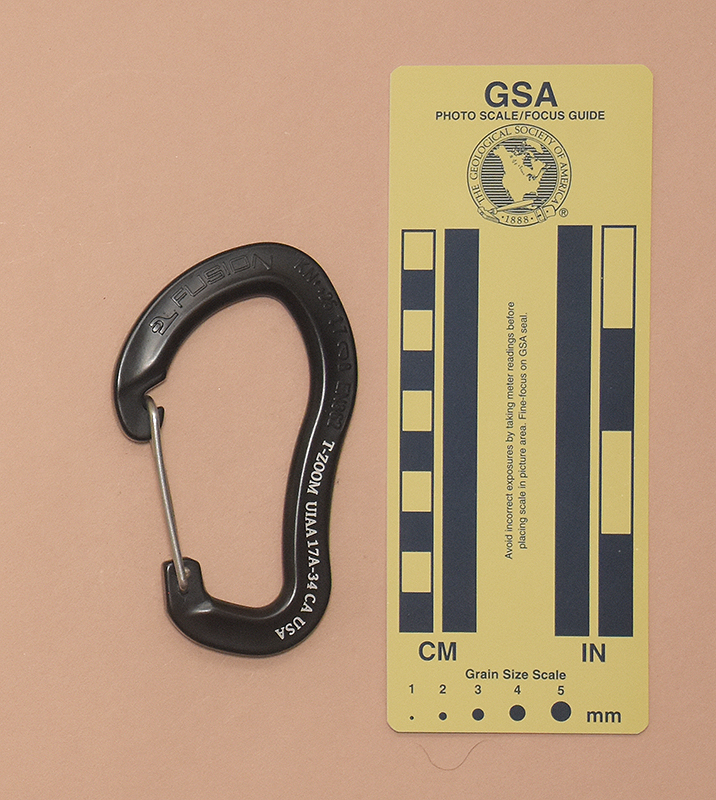

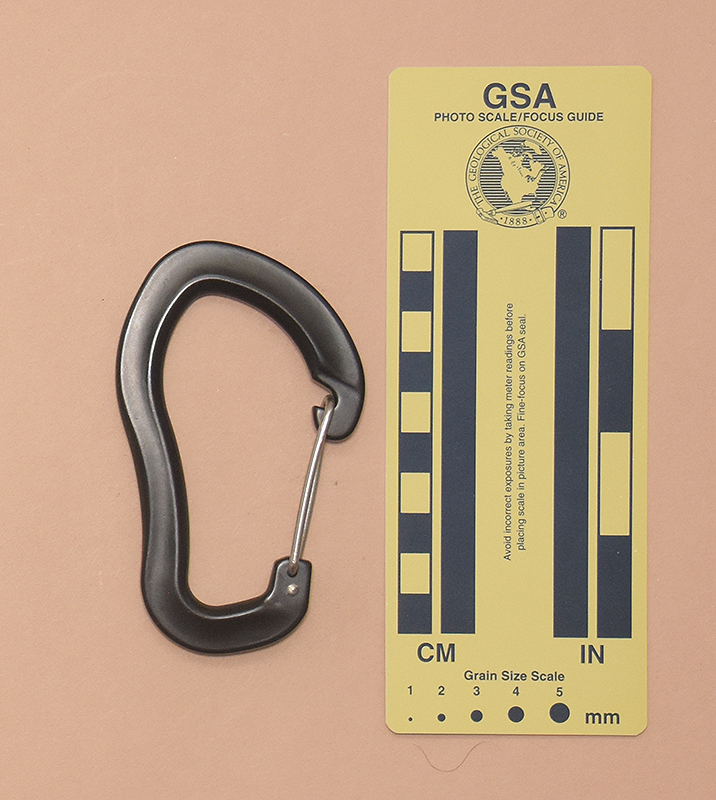

↑ 545: Fusion Techno Wiregate

• 103x61 mm., 41 g.
• Gate Opening: 26 mm., Clearance: 25 mm.
• -
  <Fusion logo>FUSION CONTIGUA kN↔25↕7ⱷ8 EN362 T-ZOOM UIAA 17A-34 CA USA

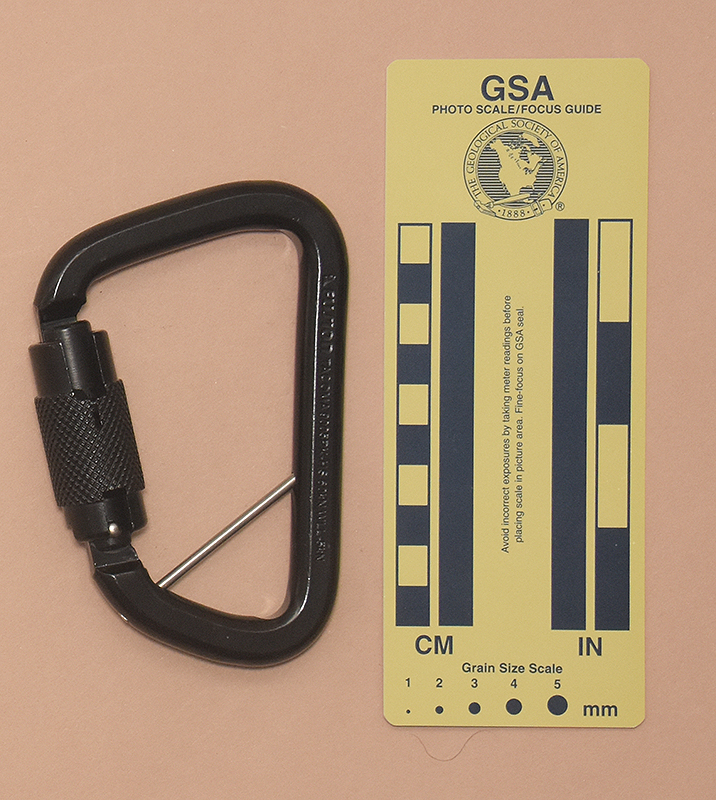

↑ 546: Fusion Swift Twist-lock D

• 111x69 mm., 82 g.
• Gate Opening: 24 mm., Clearance: 22 mm.
• -
  <Fusion logo>FUSION SWIFT KN↔23↕7ⱷ7 EN362 WLL 2KN 21052

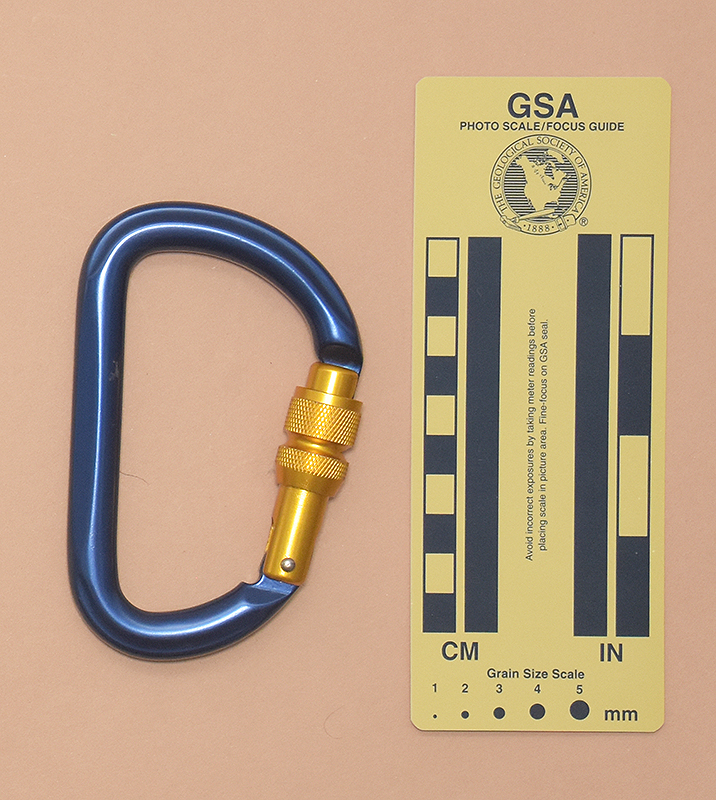

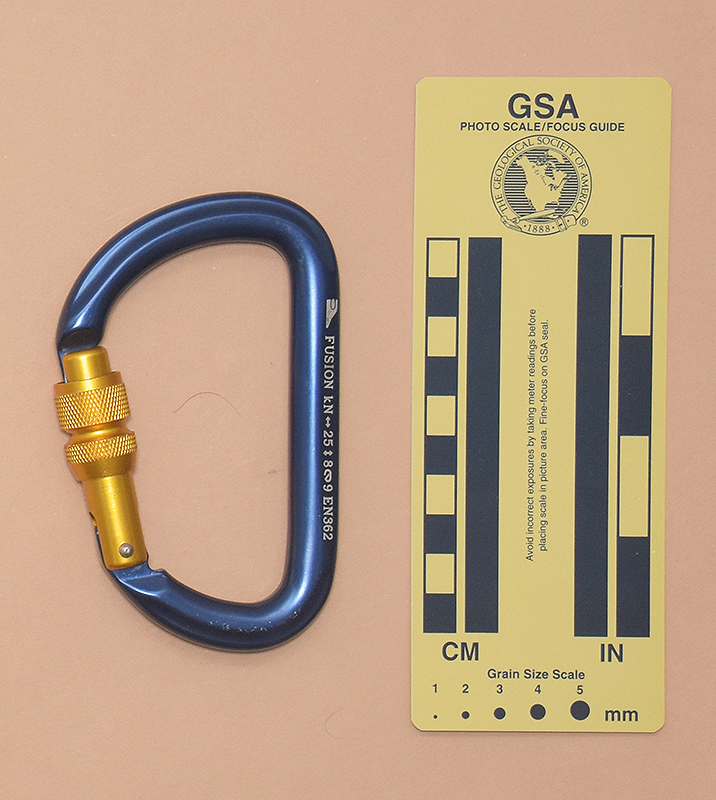

↑ 204: Fusion Locking D

• 116x72 mm., 85 g.
• Gate Opening: 25 mm., Clearance: 25 mm.
• -
  <Fusion logo>FUSION kN↔25↕8ⱷ9 EN362

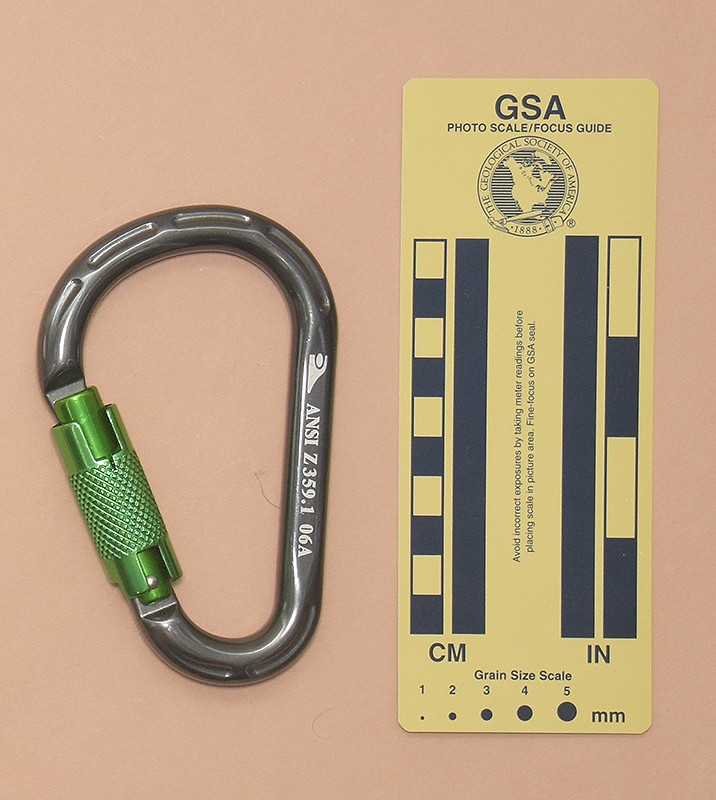

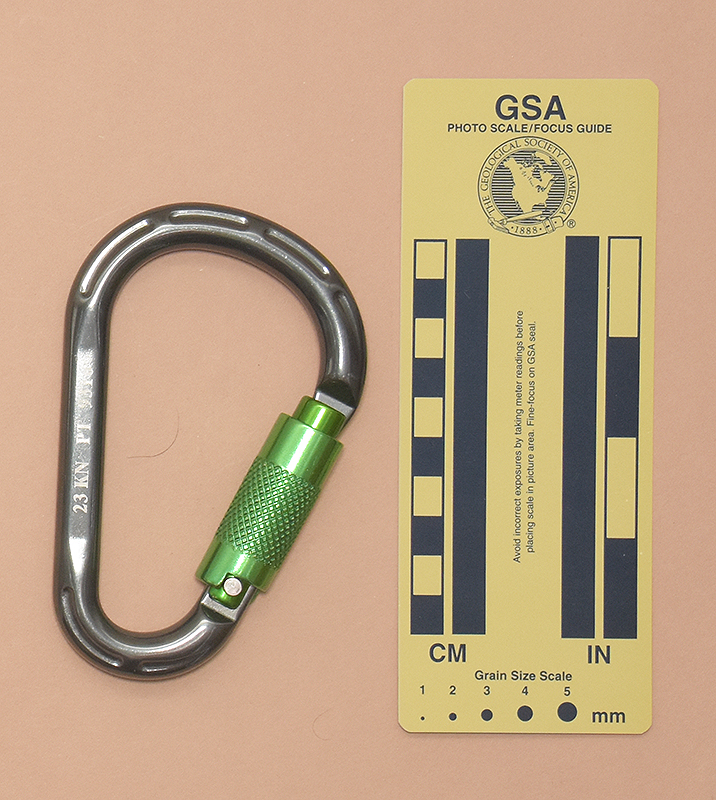

↑ 205: Fusion HMS

• 121x77 mm., 96 g.
• Gate Opening: 24 mm., Clearance: 24 mm.
• 23 KN PT 9316
  <Fusion logo> ANSI Z359.1 06A

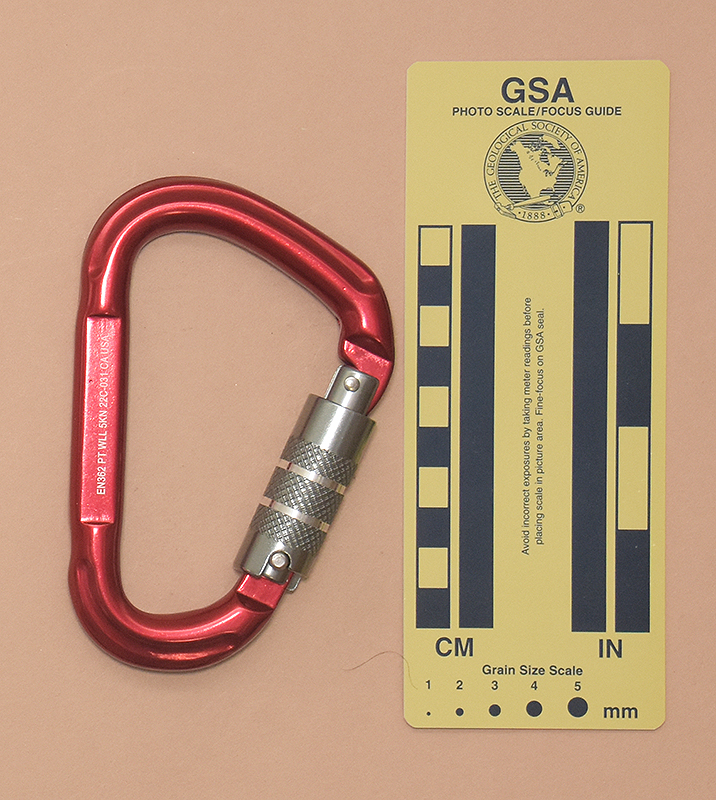

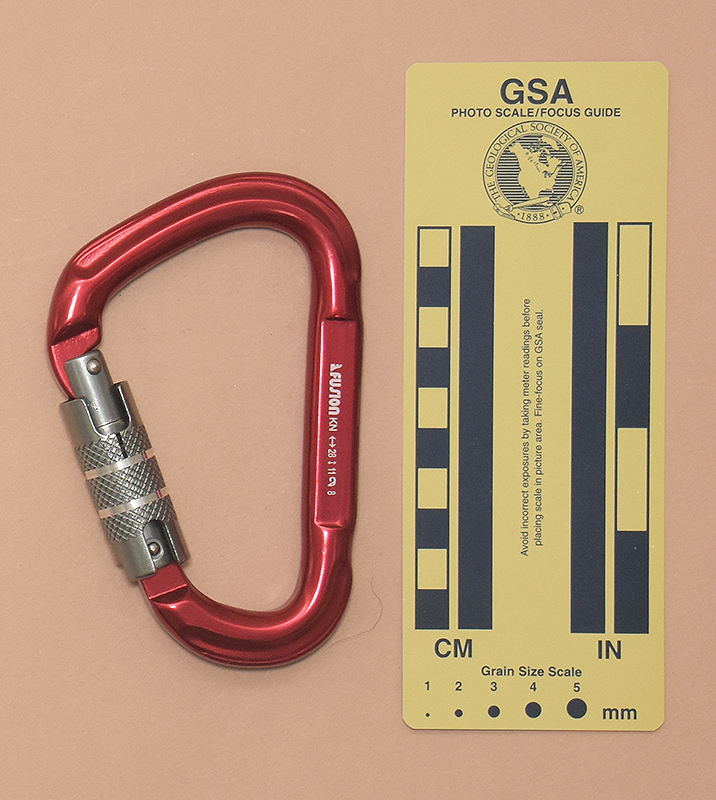

↑ 547: Fusion Eureka Triple Lock HMS

• 123x79 mm., 102 g.
• Gate Opening: 26 mm., Clearance: 26 mm.
• EN362 PT WLL 5KN 22C-031 CA USA
  <Fusion logo>FUSION KN↔28↕11ⱷ8

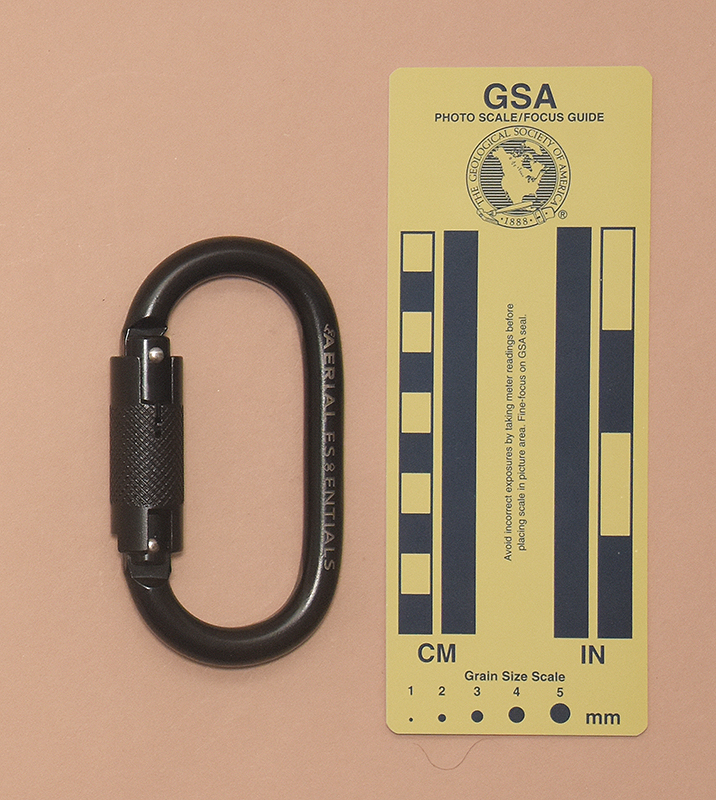

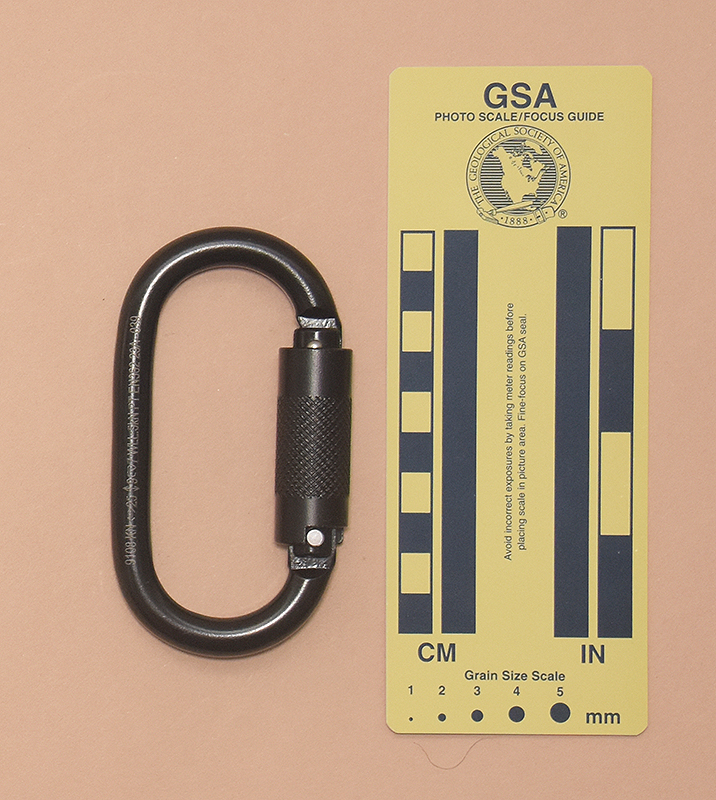

↑ 548: Fusion Ovatti Steel Auto Lock

• 107x59 mm., 192 g.
• Gate Opening: 18 mm., Clearance: 18 mm.
• 9108 KN↔25↕9ⱷ7 WLL:5kN PT EN362 23A-039
  ξAERIAL ES<swivel icon>ENTIALS

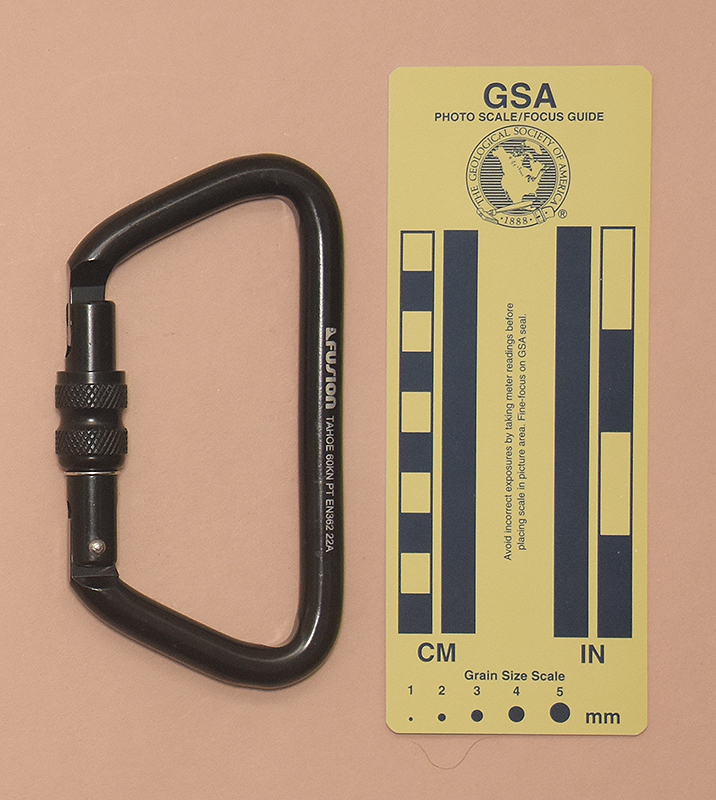

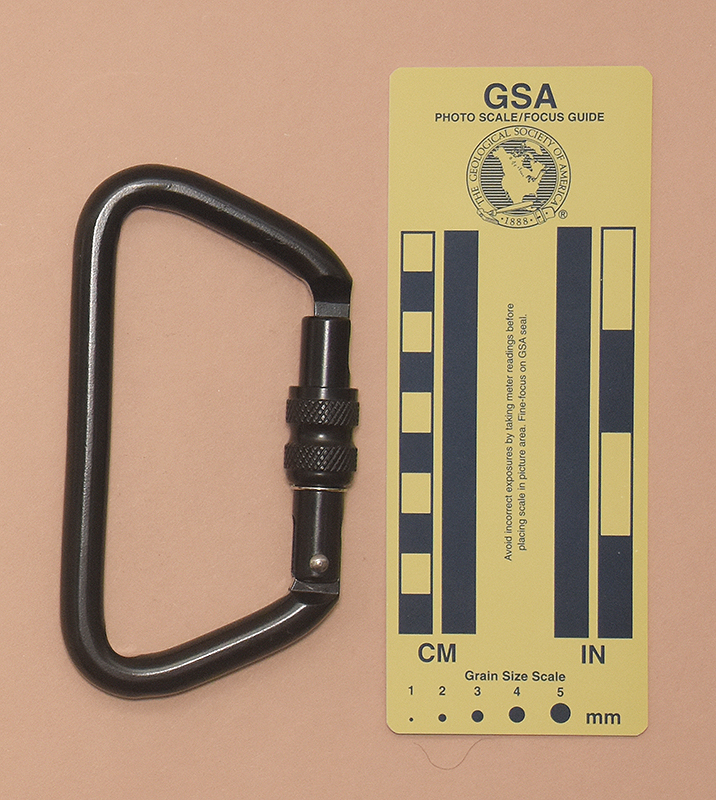

↑ 549: Fusion Tahoe Steel Screw Lock

• 132x71 mm., 248 g.
• Gate Opening: 29 mm., Clearance: 29 mm.
• -
  <Fusion logo>FUSION TAHOE 60kN PT EN362 22A
• Owner must drive capture pin

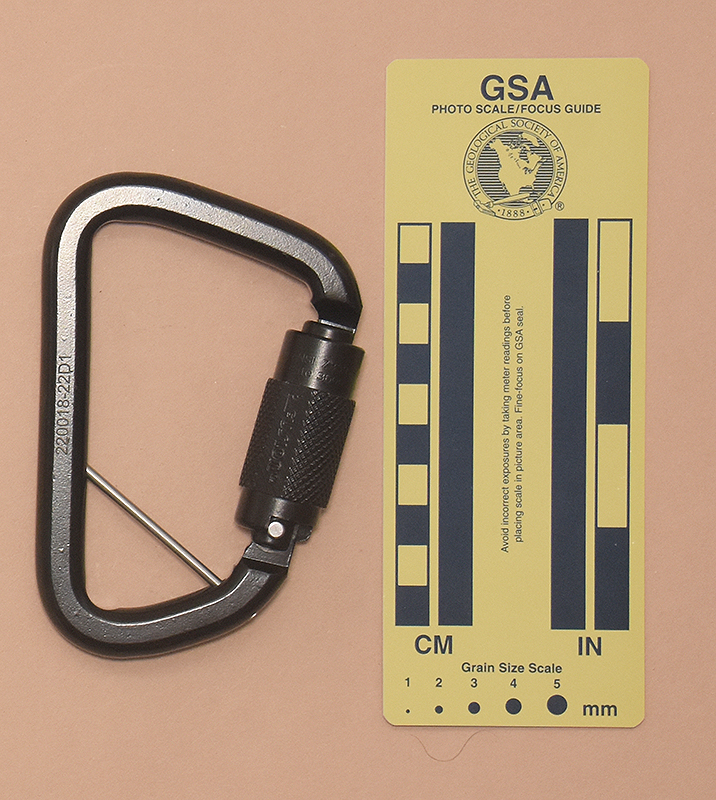

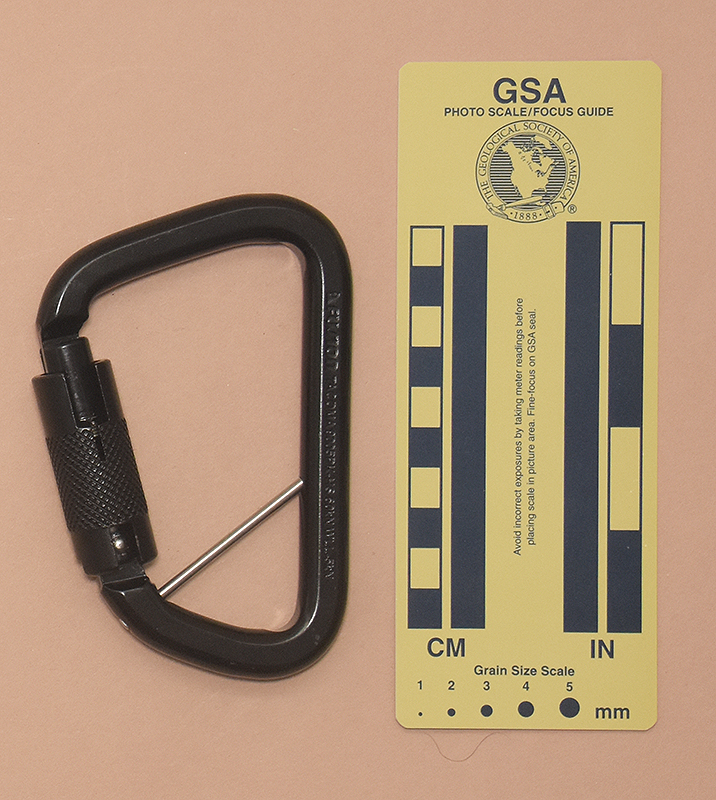

↑ 550: Fusion Tacoma Steel Autolock

• 120x79 mm., 322 g.
• Gate Opening: 26 mm., Clearance: 26 mm.
• 220018-22D1
  <Fusion logo> FUSION TACOMA 9005PK-HS 60kN WLL-5kN
• Owner must drive capture pin

↑ 551: Fusion Tacoma Steel Triple Lock

• 120x80 mm., 305 g.
• Gate Opening: 27 mm., Clearance: 27 mm.
• 21079-22D1
  <Fusion logo> FUSION TACOMA 9005PK-HS 60kN WLL-5kN

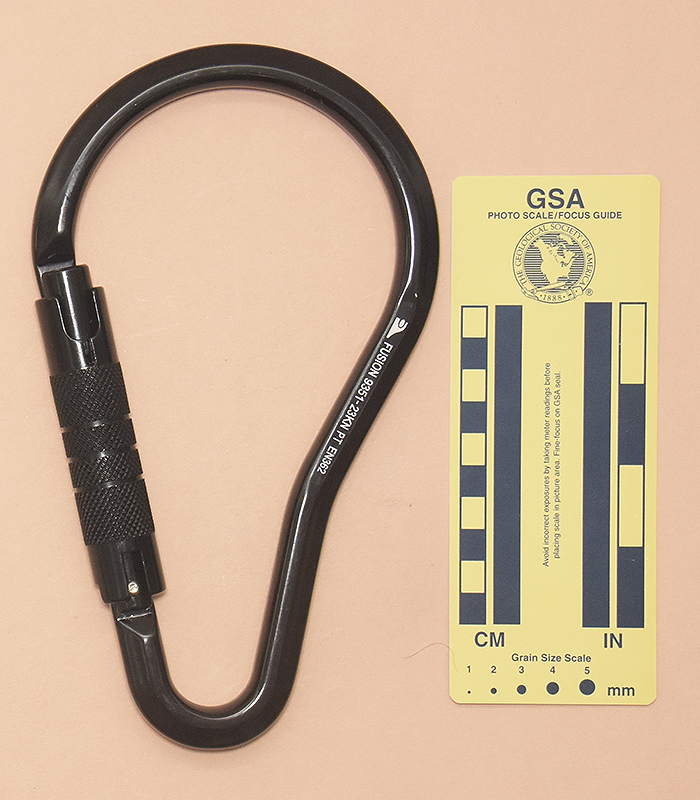

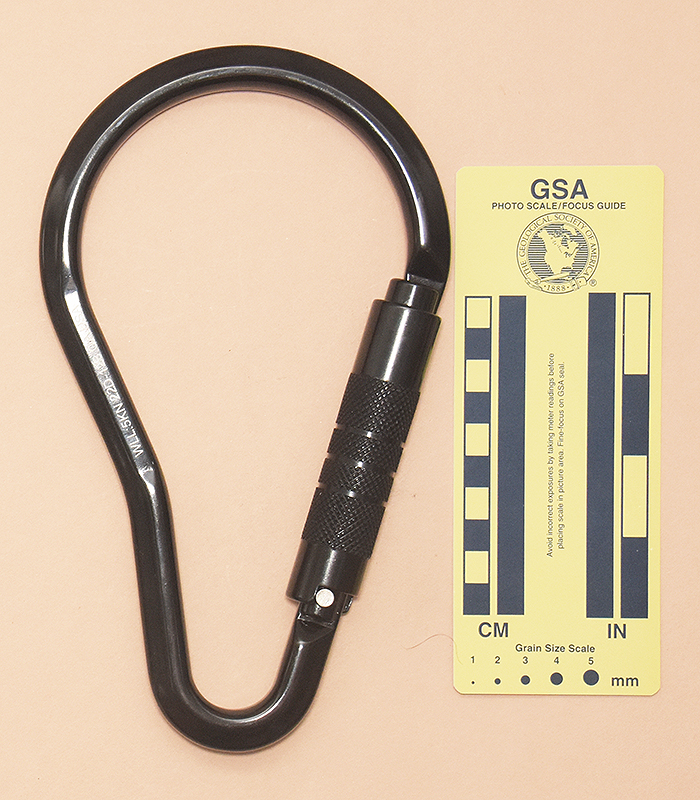

↑ 553: Fusion Prima Auto Lock Ladder Hook

• 220x128 mm., 252 g.
• Gate Opening: 53 mm., Clearance: 53 mm.
• WLL:5KN 22D-128 CA USA
  <Fusion logo>FUSION 9351-23KN PT EN362↔↕ⱷ
