Dividing Head
Lead Attachment Modification

Once my Cinova milling machine arrived, I discovered that the lead attachment did not align with the drive on my 10" Cincinnati Dividing head. I solved that problem by making a new housing for the drive gear from a cast iron disc. There was some lathe and bandsaw work, but most of the effort took place on the mill:

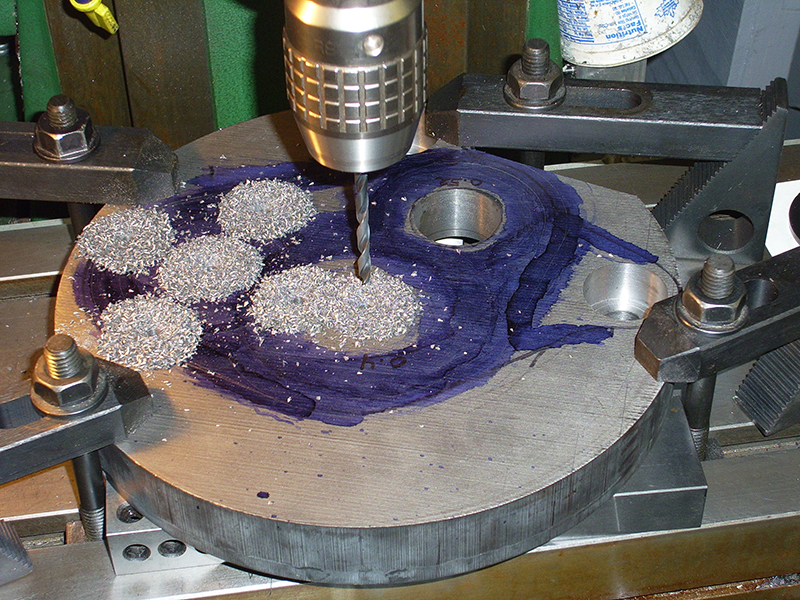

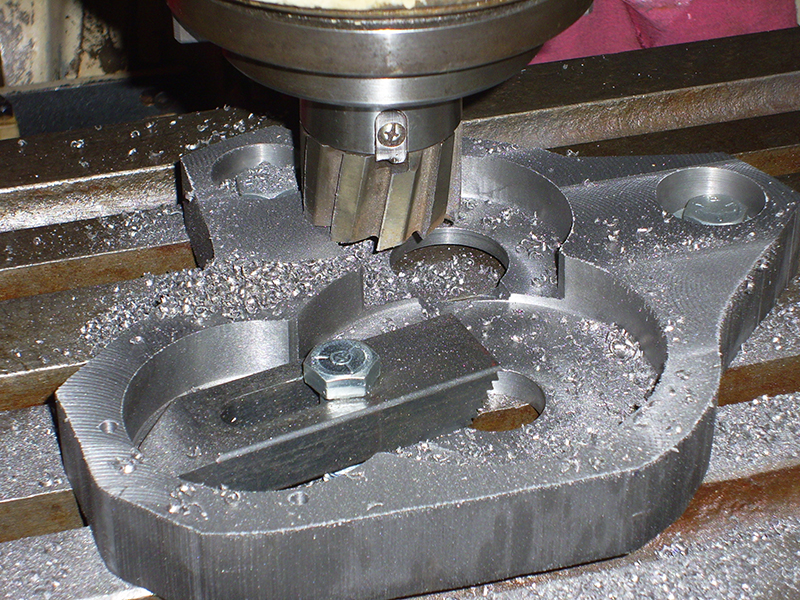

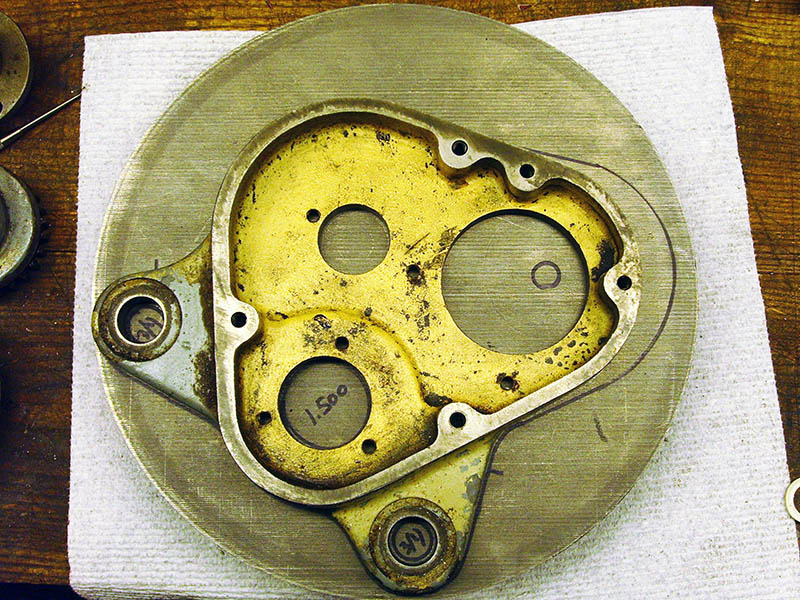

Comparison: Original vs. Required Drilling holes, later bored to size Milling pockets

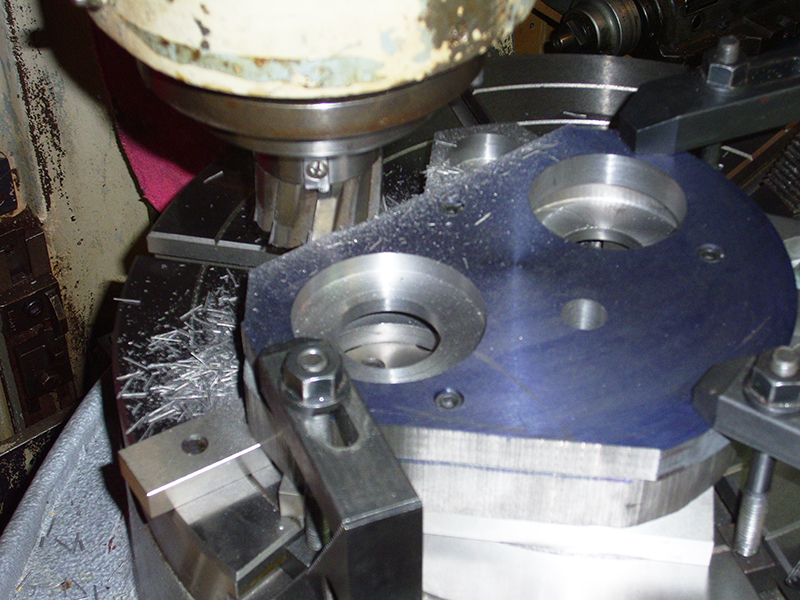

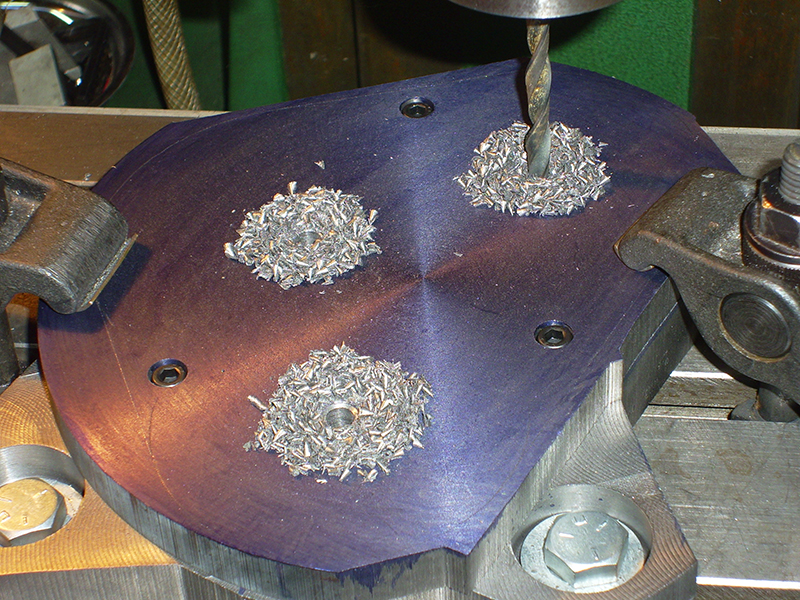

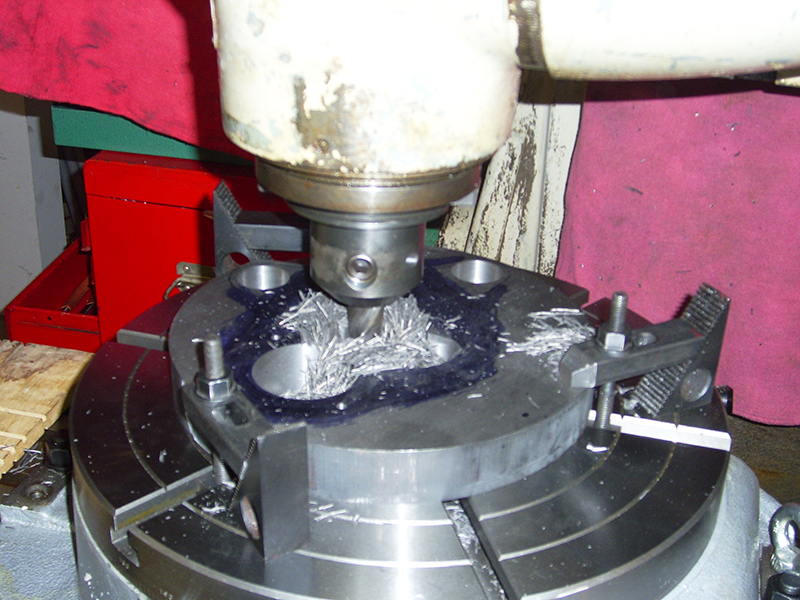

Milling the face Drilling the cover - later bored to size Milling the edges with cover attached

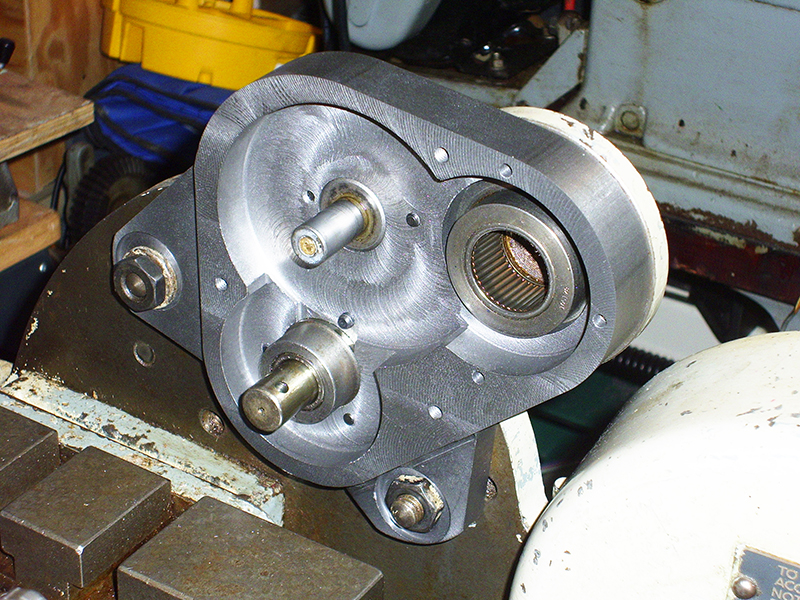

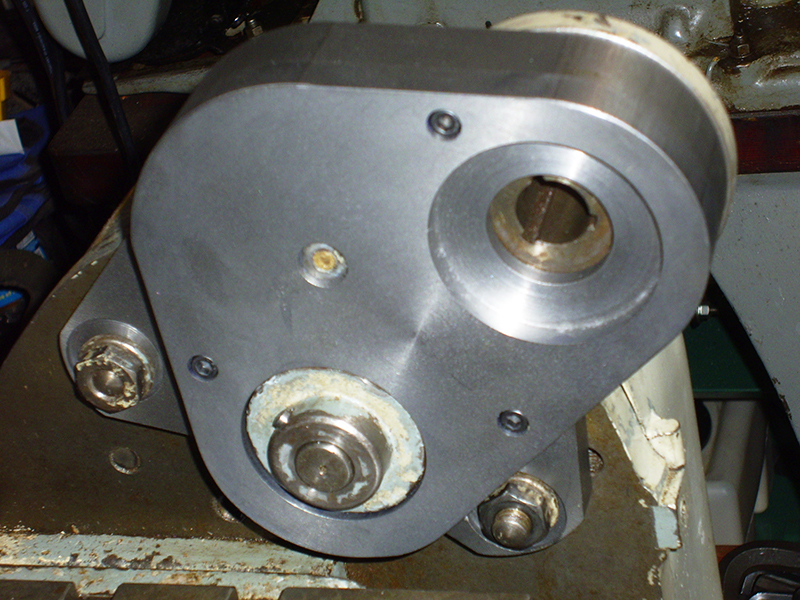

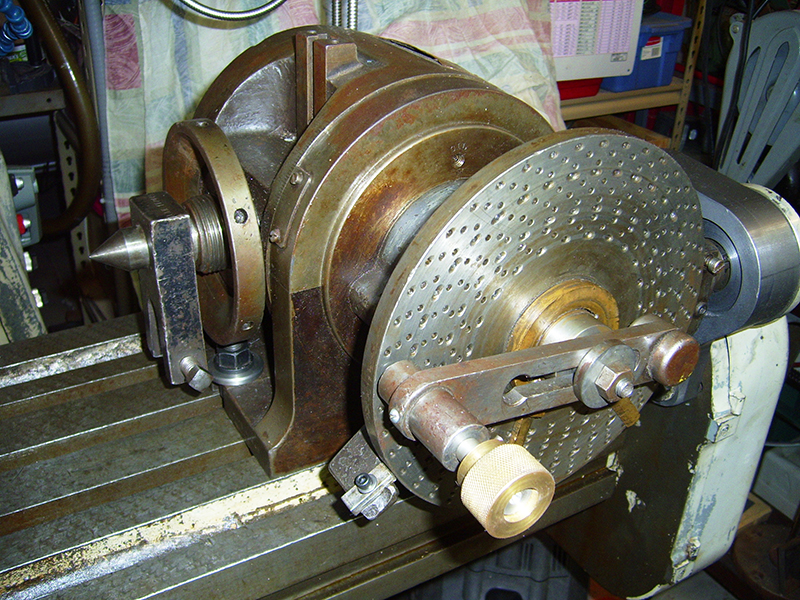

Mounted on mill, cover off Cover on, using some original parts Connected to Dividing Head


Done
